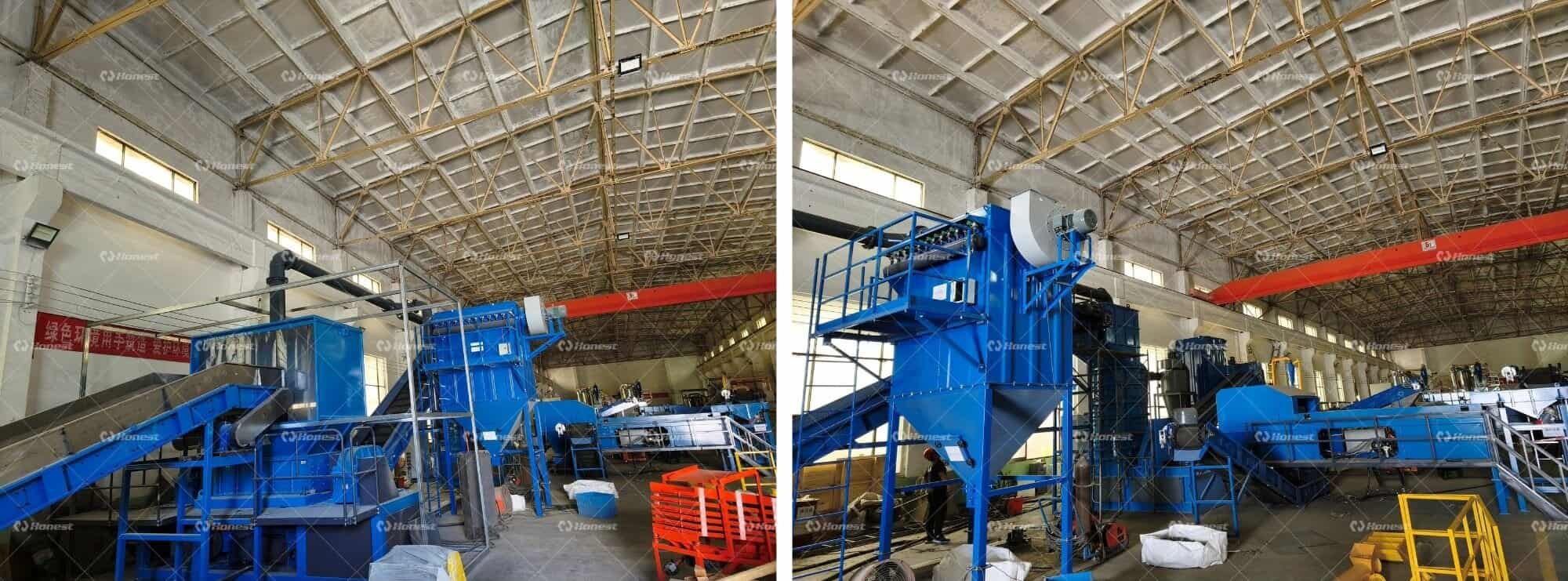

Scrap Metal Recycling Shredding Crushing Sorting Machine

Scrap metal crushing and sorting equipment is widely used to process mixed metal waste into recyclable materials. A complete system combines shredding, crushing, screening, magnetic separation, and eddy current separation to progressively reduce material size and separate ferrous metals, non-ferrous metals, plastics, and other unwanted materials. This multi-stage approach improves material liberation and enables valuable metals to be recovered more efficiently.

The process begins with a heavy-duty chain conveyor that feeds bulky scrap into a double-shaft shredder. The shredder uses high torque to tear large materials such as car bodies, appliances, drums, steel structures, and metal sheets into coarse pieces. These materials are then conveyed to a high-speed hammer crusher, where rotating hammers further reduce them into smaller and more uniform particles. A dust collection system operates during crushing to capture airborne dust and maintain a cleaner working environment. After crushing, the material passes through a magnetic separator to remove ferrous metals such as iron and steel. The remaining mixture of non-ferrous metals, plastics, and other materials enters a rotary trommel screen, which classifies the material into different size fractions. Each fraction can then be processed by an eddy current separator. Using electromagnetic forces, the separator ejects conductive non-ferrous metals such as aluminum and copper from plastics and other non-metallic materials, improving the purity and recovery of the final products.

This type of scrap metal recycling shredding crushing sorting line can handle a wide range of scrap, including end-of-life vehicles, household appliances, bicycles, cans, steel structures, mixed iron and steel scrap, metal shavings, old drums, color-coated steel sheets, copper and brass scrap, aluminum sheets and wires, alloy doors and windows, stainless steel offcuts, and various copper-containing components. Depending on the material composition and required recovery rate, you can also incorporate additional sorting equipment into the system.

Scrap metal shredding and sorting equipment is commonly used in scrap yards, automobile dismantling facilities, manufacturing plants, metal recycling companies, and industrial waste treatment operations. By combining size reduction and automated separation in one continuous process, the system reduces manual sorting, improves processing efficiency, and produces cleaner recyclable metal fractions. More importantly, recovering metals such as iron, steel, aluminum, and copper from discarded materials reduces waste, conserves natural resources, and creates additional value from scrap that would otherwise be lost.
