Recover Silicon Cells from Waste Solar Panels with Pyrolysis

Recovering silicon cells from waste solar panels requires more than simply crushing the modules. Conventional mechanical processing can easily break silicon cells into fine particles and mix them with glass, polymers, and metal, making subsequent separation and silver recovery more difficult. A pyrolysis-based PV module recycling process uses controlled thermal treatment together with physical separation to delaminate the module structure and recover silicon cells in relatively large fragments.

How Pyrolysis Recovers Silicon Cells from Waste Solar Panels
The process is suitable for de-framed single-glass and double-glass PV modules, as well as severely damaged or broken panels. After preliminary preparation, the modules are mechanically processed and, where applicable, pre-pressed to facilitate subsequent treatment. The prepared material then enters a tunnel-type pyrolysis furnace, where controlled heat breaks down the EVA encapsulant and other polymer layers that bond the components together. This thermal delamination step releases the glass, silicon cells, metal ribbons, and other materials without relying entirely on aggressive mechanical crushing.

After pyrolysis, the delaminated material enters a dedicated silicon cell separation system. Silicon cell fragments are separated from glass and metal ribbons through a combination of mechanical separation and screening. The recovered silicon cells are then classified into three different size fractions, allowing the material to be collected according to particle size. Metal ribbons, including copper-containing ribbons, are further separated on a manual sorting platform, while recovered glass passes through a color sorting separator and size screening system to produce two different glass fractions.

One of the main advantages of this process is that it can recover silicon cells as relatively large fragments rather than reducing them to a fine mixed powder. This makes the recovered cells more suitable for downstream processes such as silver recovery and other material recovery applications. At the same time, the process separates valuable glass and metal fractions, increasing the overall recovery value of waste PV modules.

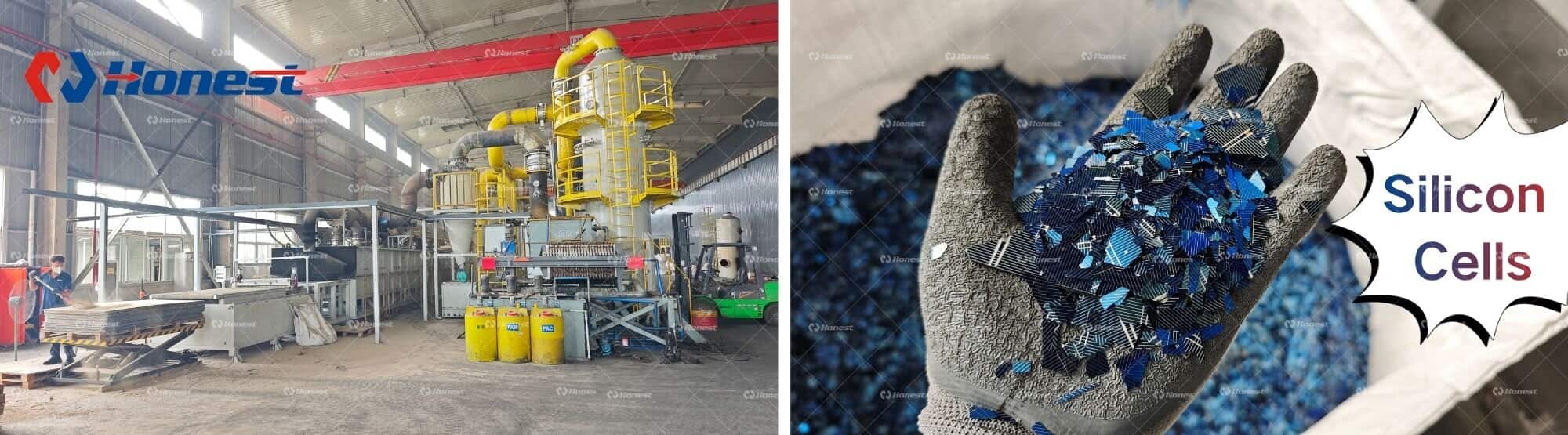

A solar panel pyrolysis recycling plant therefore provides an integrated approach to PV module treatment, combining thermal delamination with mechanical and physical separation. By recovering silicon cells, glass, metal ribbons, and other recyclable materials from end-of-life or severely damaged solar panels, the process helps reduce waste while maximizing the value of materials contained in discarded PV modules.
