Recycling Solution Details

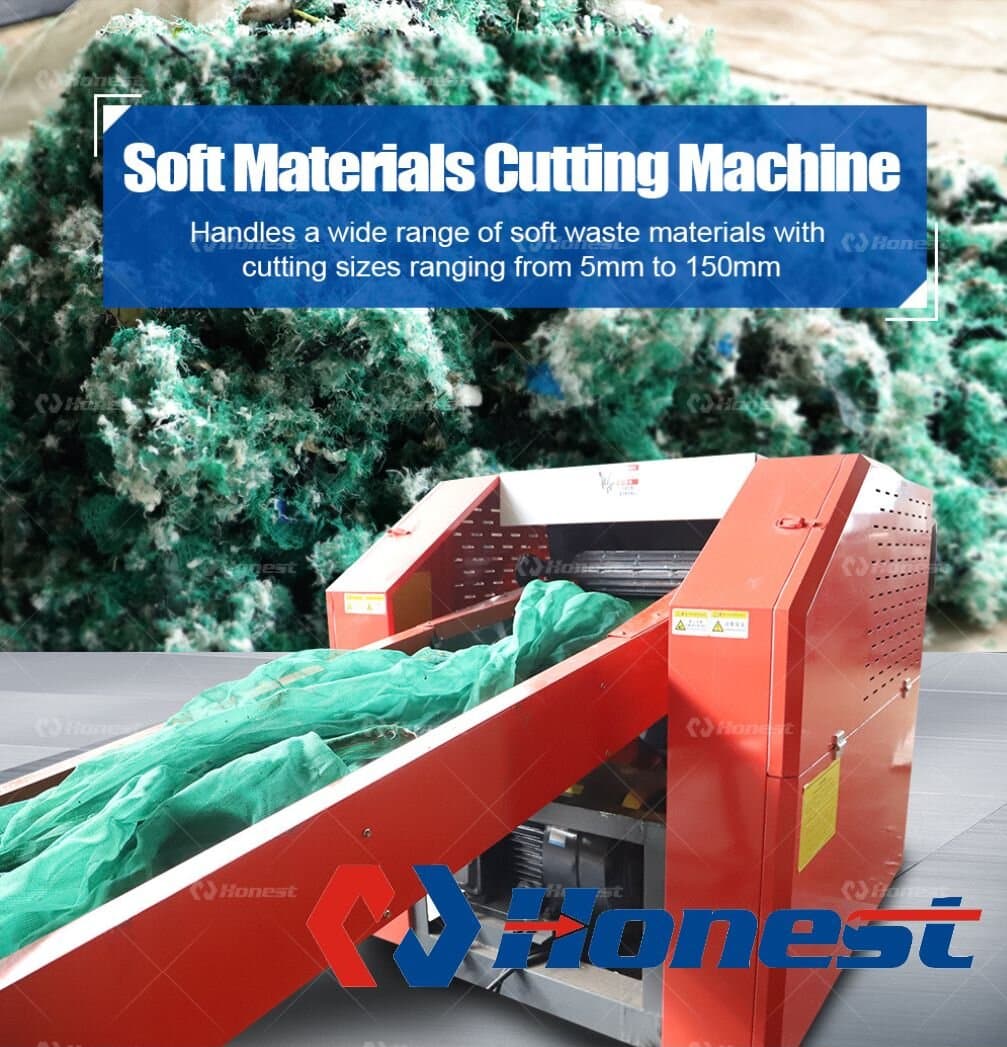

High-quality waste fiber cutting machine, also known as soft material cutting machine, designed for efficient processing of all kinds of soft waste, cutting size range of 5mm to 150mm. traditional shredder in the processing of these soft waste, often encountered clogging, entanglement, inefficiency and other problems, a headache. Now, with this high quality waste fiber cutting machine, everything will be solved!

Raw Material

Fiber cutting machines are designed specifically for various soft waste materials,including scrap fabric, cotton yarn waste, old clothes, cotton wadding, synthetic fibers,linen, leather, plastic film, paper, labels, non-woven fabrics, and more.

Final Products

Below are samples of shredded materials.Handles a wide range of soft waste materials with cutting sizes ranging from 5mm to 150mm.

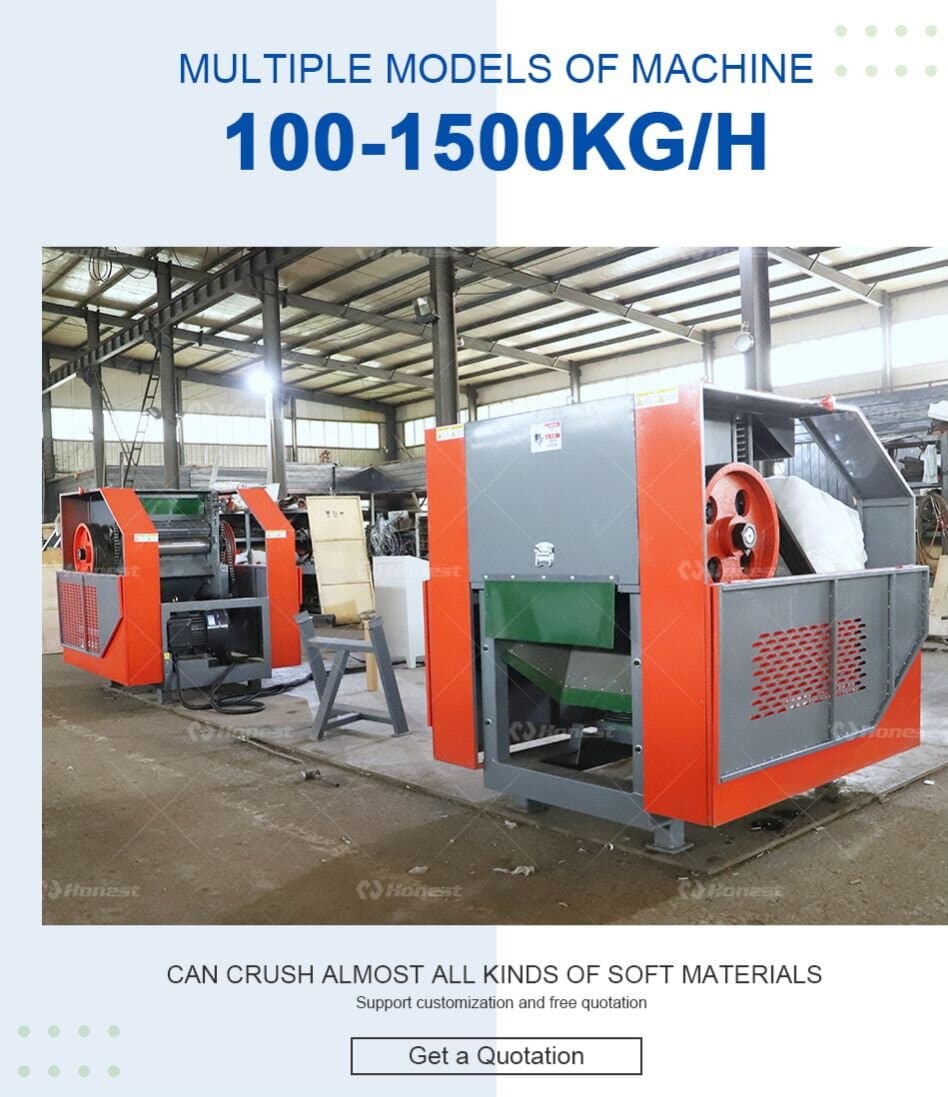

Technical Parameters

Model	HN-SM-800	HN-SM-1200	HN-SM-1600	HN-SM-2400	HN-SM-3200
Motor（Kw）	7.5+1.5	15+2.2	18.5+3	22+22+3.0	45+45+5.5
Shape Size(m)	3.2×1.0×1.2	7.0×1.5×1.5	7.0×1.8×1.95	5.8×2.2×1.95	13.0×3.3×3.0
Capacity	100（kg/h）	200（kg/h）	400（kg/h）	600（kg/h）	1500（kg/h）
Cutting Size(m)	0.005-0.15	0.005-0.15	0.005-0.15	0.01-0.15	0.01-0.3
Input Belt(m)	1.4×0.35	3.0×0.52	3.0×0.72	3.0×1.1	5.0×1.5
Output Belt(m)	1.4×0.35	3.0×0.52	3.0×0.72	3.0×1.1	5.0×1.5
Cutting Thickness(m)	0.03-0.05	0.03-0.08	0.03-0.1	0.03-0.2	0.03-0.2

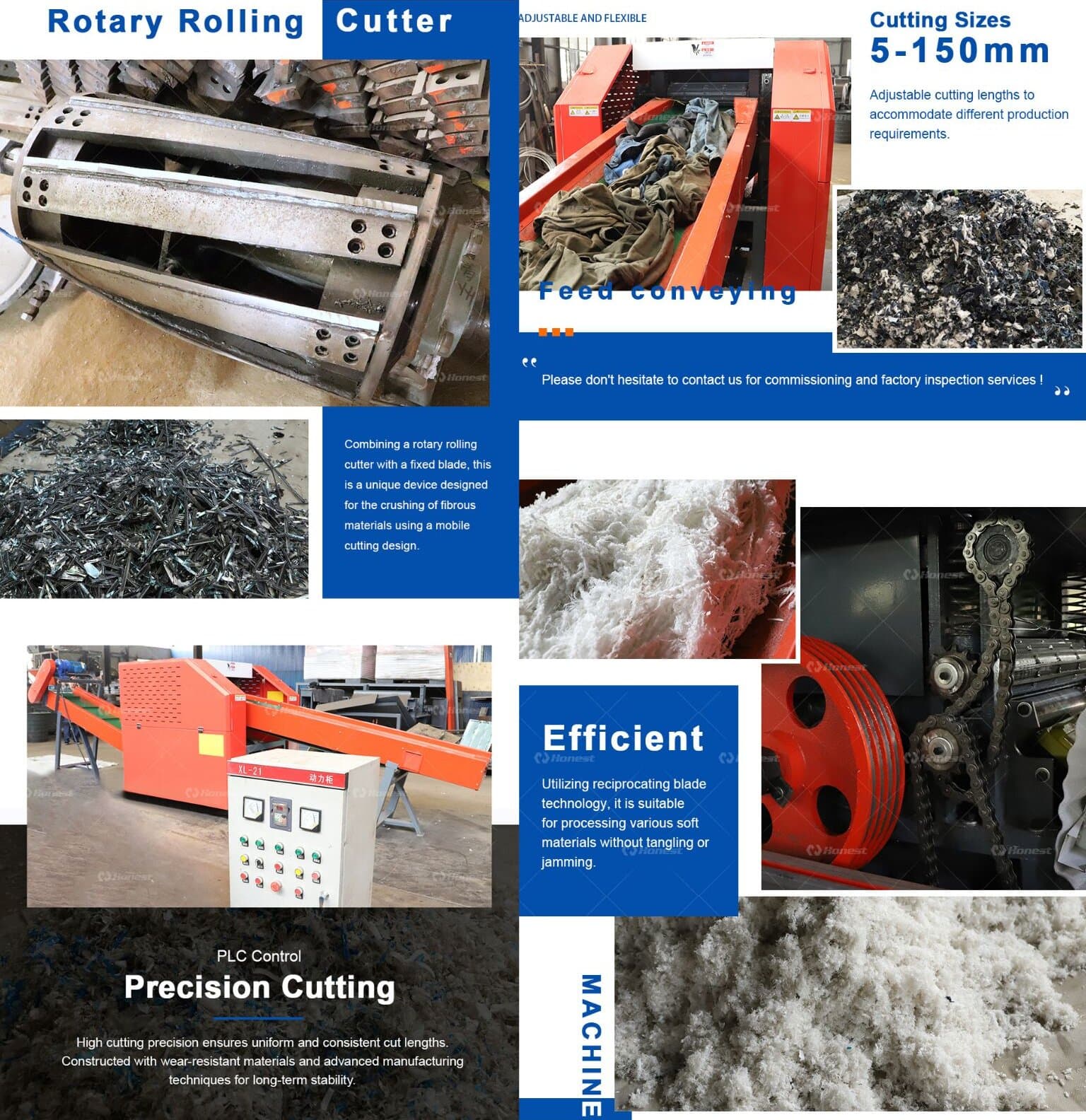

Key components of soft material cutting machine

Conventional shredders often have difficulty with soft materials: dual-shaft shredders can result in uneven discharges and damage from material wrapping around the blades. Single-shaft shredders are not suitable for high-moisture materials and can also suffer from material entanglement, leading to inefficiencies. Double roll shredders are costly, have problems with material buildup, and cannot shred to small sizes. This machine is designed to avoid these problems. The machine offers precise cut size control, high throughput, versatile material handling capabilities and a rugged design for industrial use.
