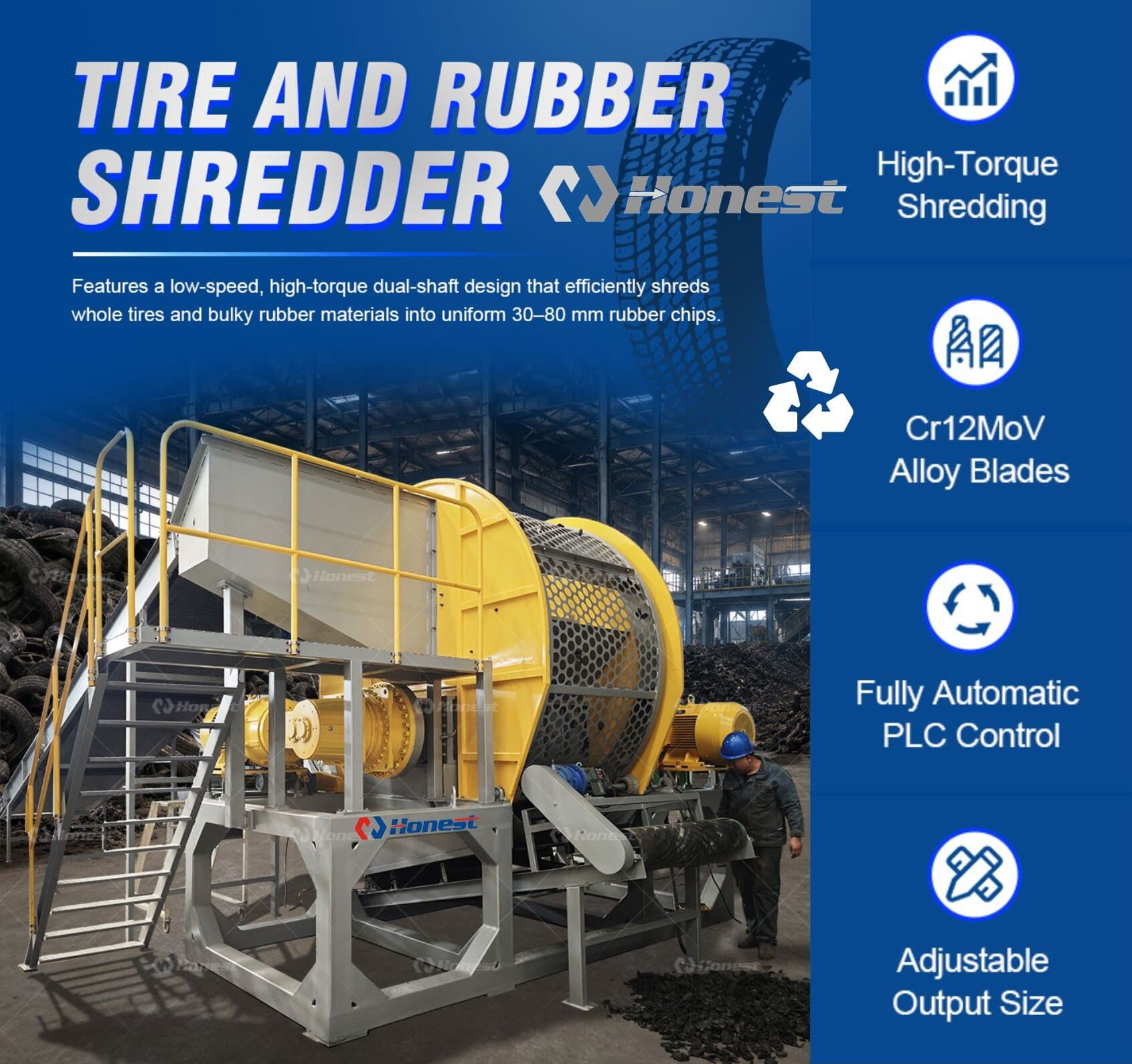

Tire and Rubber Shredder Machine

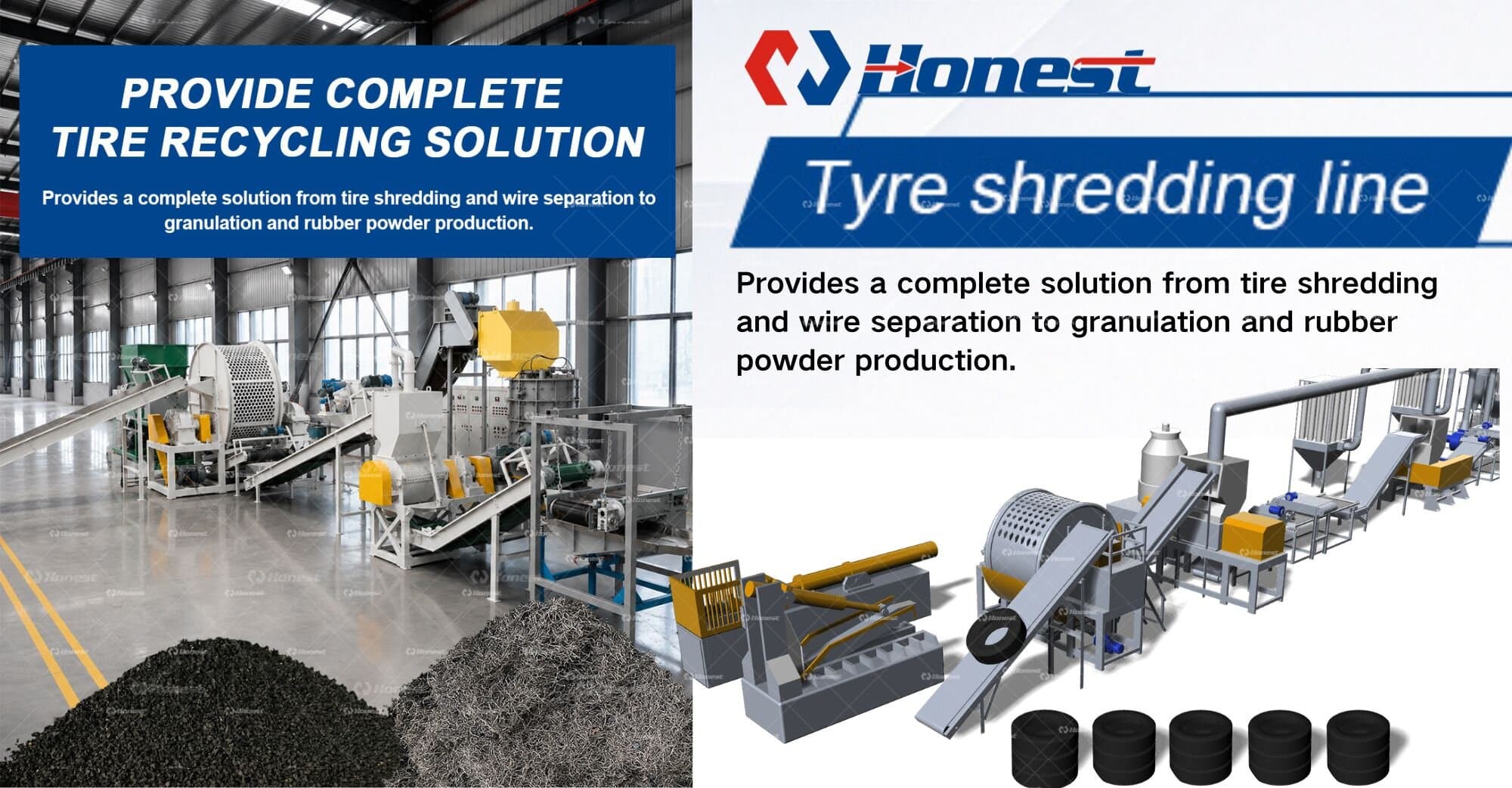

Recycling Solution Details

Designed for efficient primary size reduction of waste tires and rubber products, the Tire Shredder Machine features a low-speed, high-torque dual-shaft system that delivers stable performance, high throughput, and long service life. It processes whole tires into uniform rubber chips, providing ideal feedstock for downstream recycling systems such as wire separation, granulation, crumb rubber production, tire-derived fuel (TDF), and rubber pyrolysis.

Tire & Rubber Shredder Raw Material Applications

The Tire Shredder Machine is designed for the primary size reduction of waste tires and various rubber materials. It efficiently processes passenger car tires, truck tires, bus tires, OTR (off-the-road) tires, agricultural and industrial tires, as well as rubber conveyor belts, rubber hoses, rubber blocks, mixed rubber waste, and other rubber products. By shredding these materials into uniform rubber chips, the machine significantly reduces material volume.

Tire & Rubber Shredder Output Materials

The Tire Shredder Machine performs the initial size reduction of whole tires, efficiently shredding them into strips or uniform rubber chips measuring 30–80 mm. Typical output materials include shredded tires, shredded steel-reinforced rubber, shredded rubber hoses, shredded rubber blocks, and consistent rubber chips.

Technical Parameters

Model	HN-TS-800	HN-TS-1000	HN-TS-1200
Capacity (kg/h)	1,000 – 1,500	1,500 – 2,000	2,000 – 3,000
Blade Quantity (pcs)	20	25	30
Discharging Size (mm)	30 – 80	30 – 80	30 – 80
Power (kW)	30×2	45×2	75×2
Overall Dimensions (mm)	2800×900×2000	3250×1380×2300	4000×2200×2600

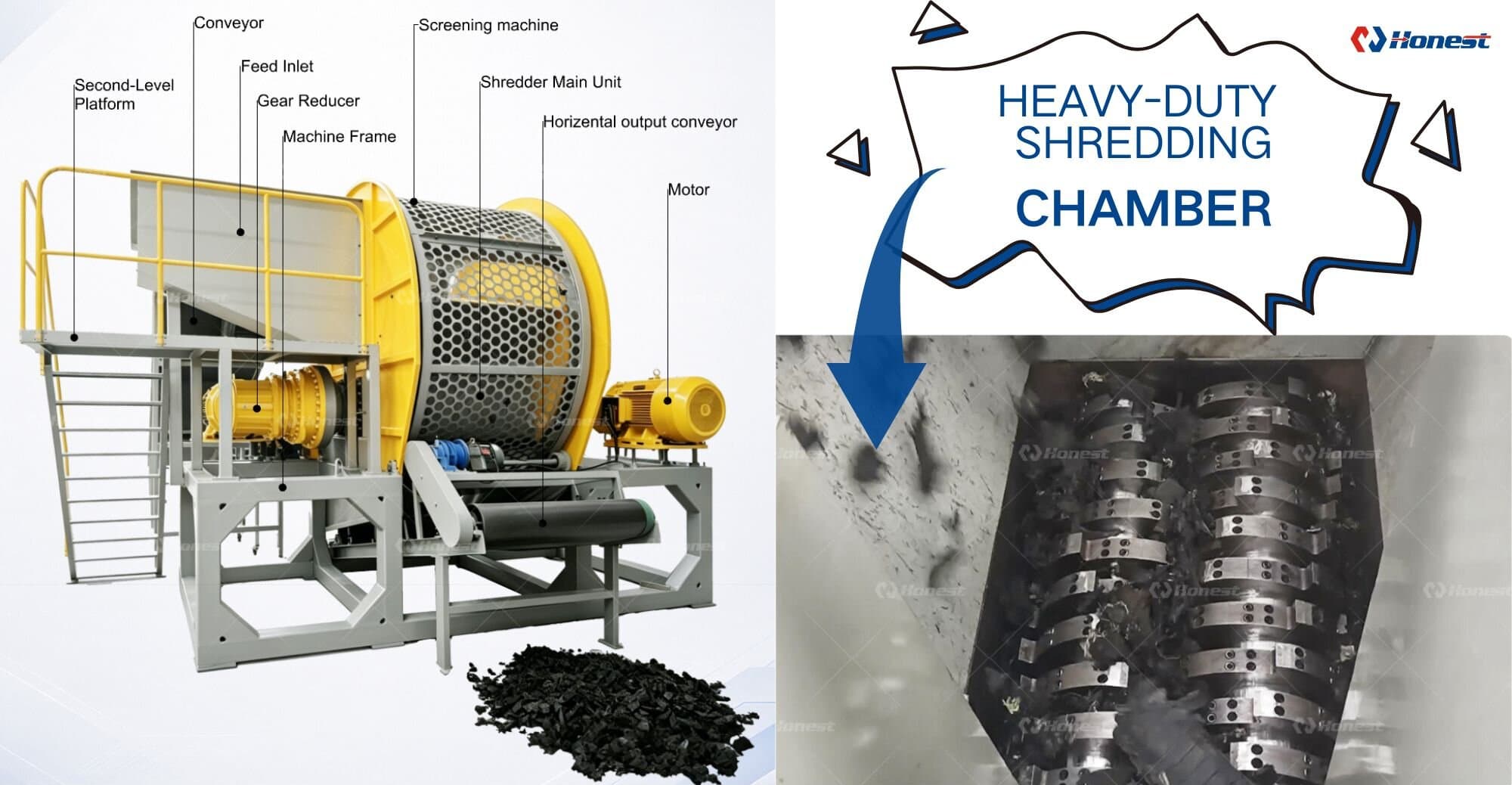

Tire and Rubber Shredder Machine Structure

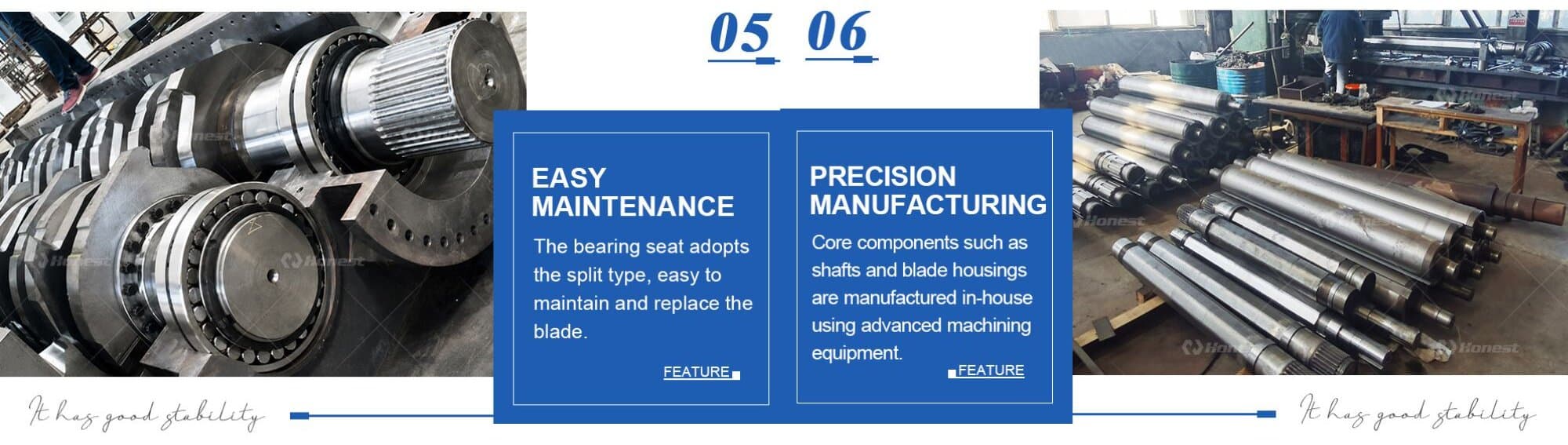

The Tire Shredder Machine features a robust and compact structure consisting of a feed hopper, feeding conveyor, dual-shaft shredding chamber with heavy-duty cutter shafts and Cr12MoV alloy blades, machine frame, gear reducer, electric motor, PLC control cabinet, screening machine, and discharge conveyor. An optional second-level maintenance platform is also available for easier inspection and servicing, ensuring efficient operation and simplified maintenance.

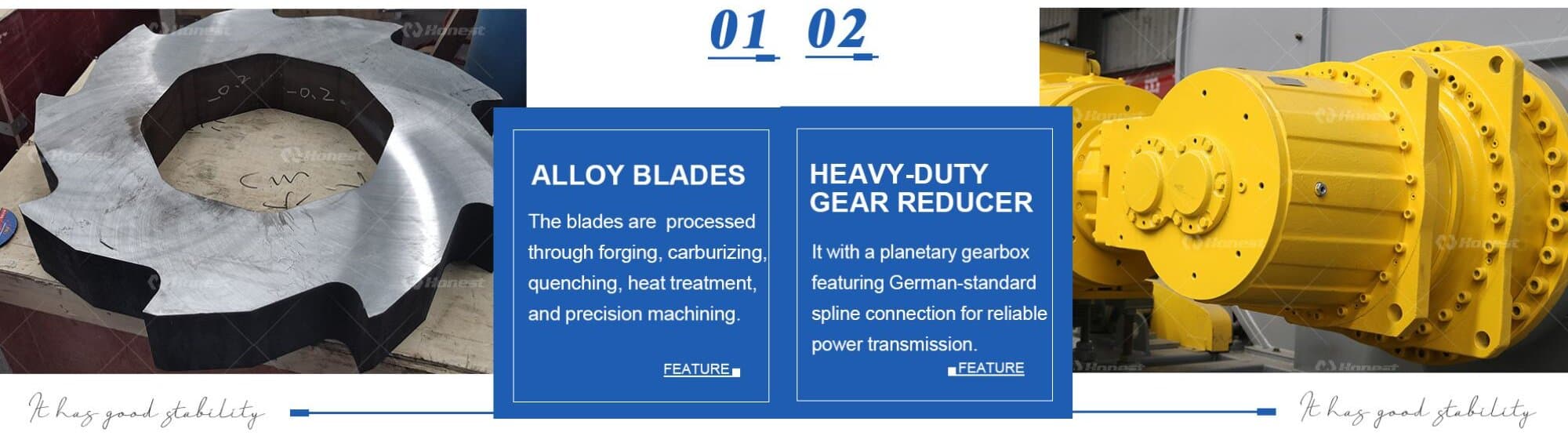

Tire and Rubber Shredder Working Principle

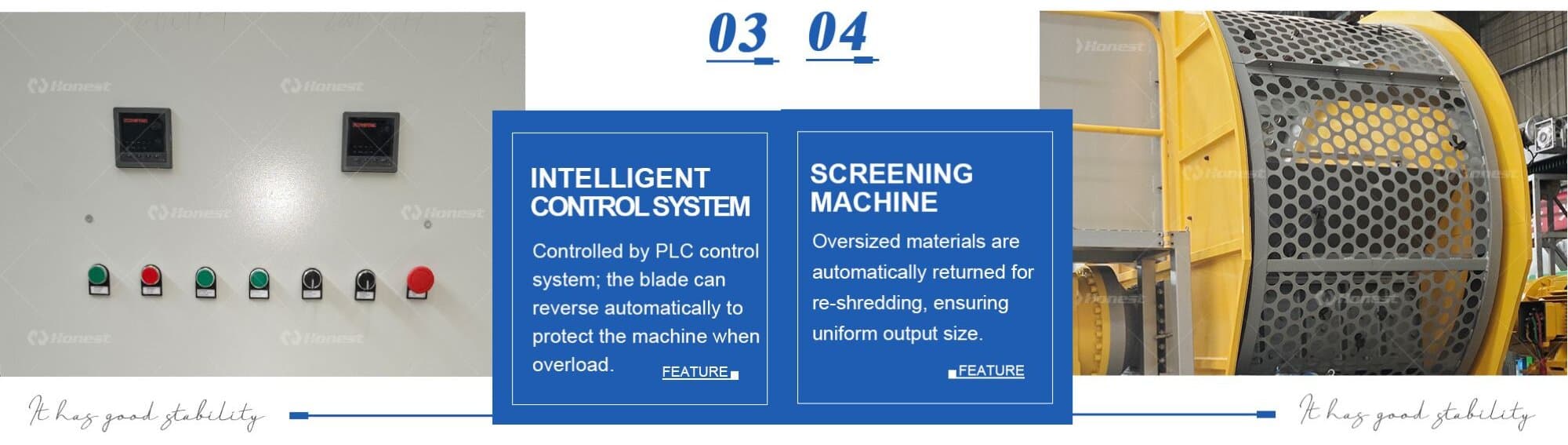

Waste tires are conveyed into the shredding chamber, where two counter-rotating shafts equipped with heavy-duty Cr12MoV alloy blades generate powerful cutting, shearing, and tearing forces to reduce whole tires into rubber strips or uniform rubber chips. The shredded material is then screened, with oversized pieces automatically returned for re-shredding until the desired particle size is achieved. Finally, the finished rubber chips are discharged via the conveyor, ready for downstream recycling processes.

For more demanding applications, a four-shaft tire shredder is available as an optional solution. Compared with the standard dual-shaft design, it delivers finer output, higher cutting efficiency, and improved material control, making it ideal for processing tougher rubber materials or meeting more stringent particle size requirements. Its heavy-duty construction, premium alloy blades, intelligent PLC control, and customizable configurations ensure high capacity, uniform output, low maintenance, and long service life. Our professional technology and considerate service will provide you with the most reasonable personal solution. For more machine information or to schedule a factory visit (in-person or virtual), feel free to contact our sales team.

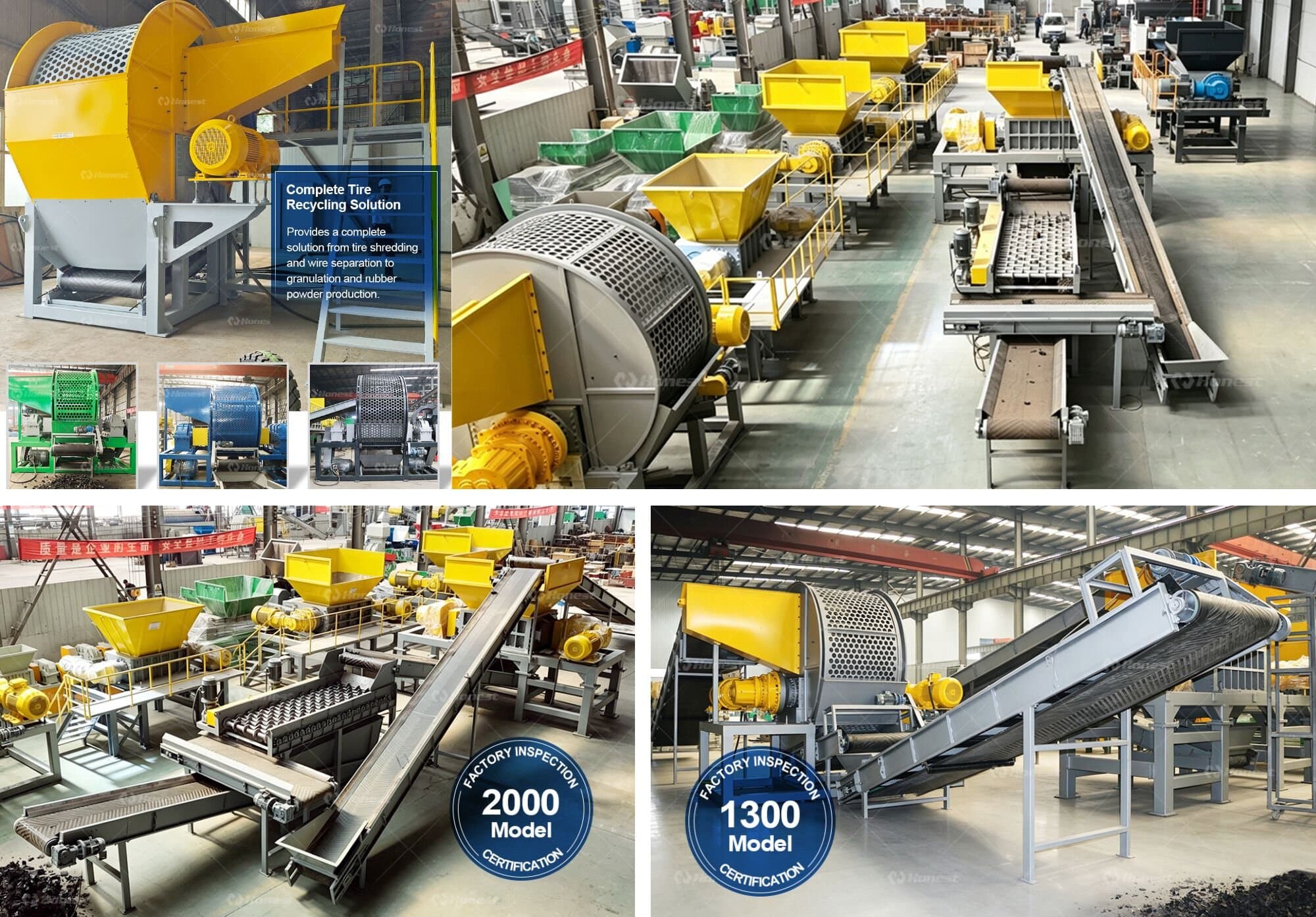

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2. Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
