Recycling Solution Details

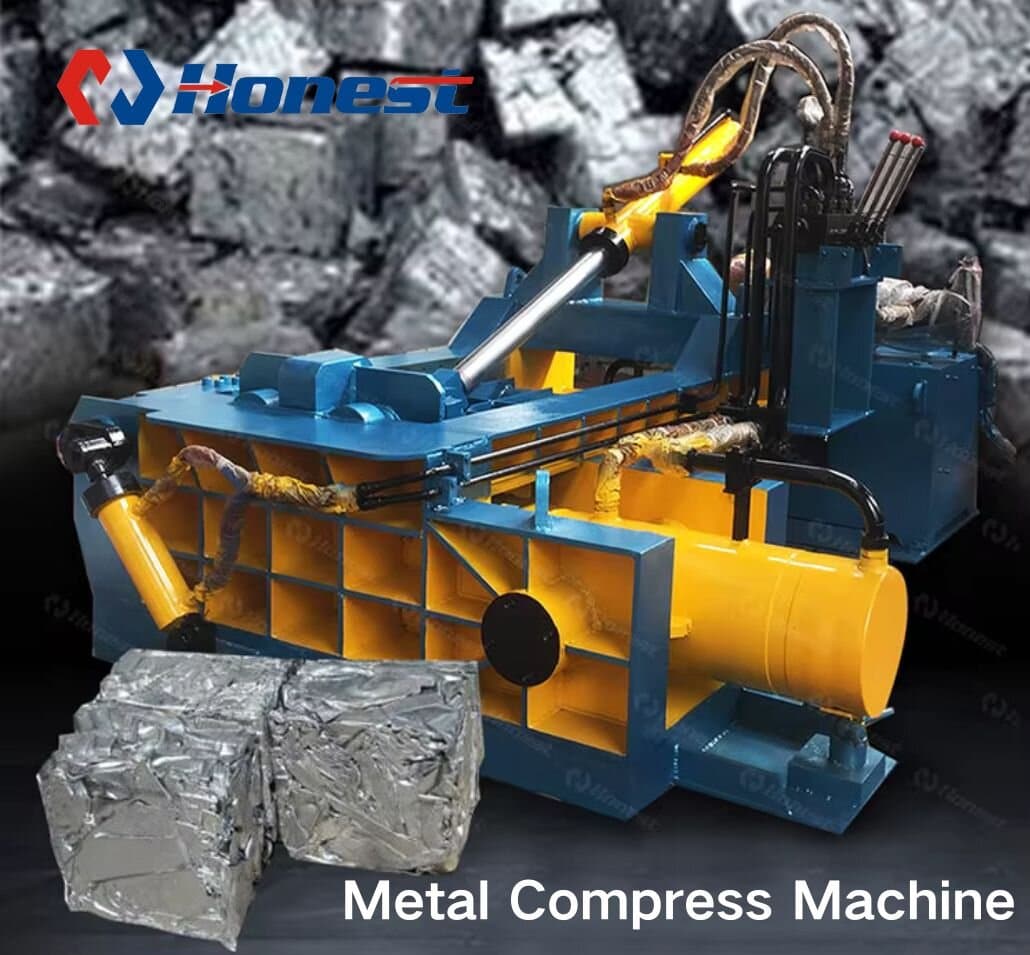

The Metal Compress Machine is a powerful industrial machine that compresses all kinds of scrap metal, such as steel, aluminum, copper, etc., into high-density blocks or bundles by means of a powerful hydraulic system. These compressed metal blocks are not only drastically reduced in size, making them easier to transport and store, but also greatly increase the efficiency of recycling. Metal compressors are widely used in recycling centers, scrap yards, manufacturing plants, demolition sites and automobile recycling, and are indispensable equipment in the process of scrap metal treatment and recycling.

Raw Material

The Metal Compress Machine Can Compressing Machinery Scrap Iron Aluminum Metal Baler is used to compress scrap metal(steel, copper, aluminum,stainless steel, etc)into metal block or metal bale. The purpose is to save the transportation cost or reduce the raw material loss when smelting.

Final Products

After compressing, the metal bale is easy to transport and store, so it can save transporation cost, reduce storage area and reduce the loss when smelting. Easy operation, durable and long service life, high efficiency, etc.

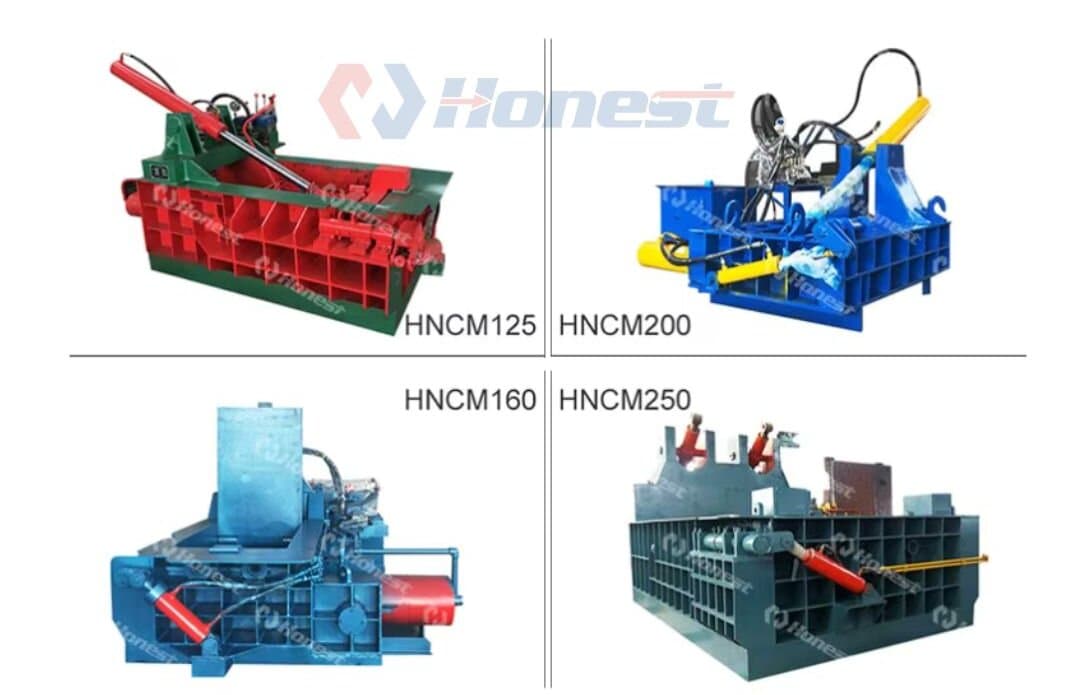

Technical Parameters

Model	Power	Pressure	Feeder Size	Output Press Size
HN-CM-125	15 Kw	1250 KN	1200×700×600 mm	300×300 mm
HN-CM-160	22 Kw	1600 KN	1600×1200×800 mm	400×400 mm
HN-CM-200	22 Kw	2000 KN	1600×1000×800 mm	350×400 mm
HN-CM-250	30 Kw	2500 KN	2500×2000×1000 mm	500×500 mm
NOTE: 1. The price depends on your capacity; 2. Working voltage:380±10V(415V, 440V also can be customized);

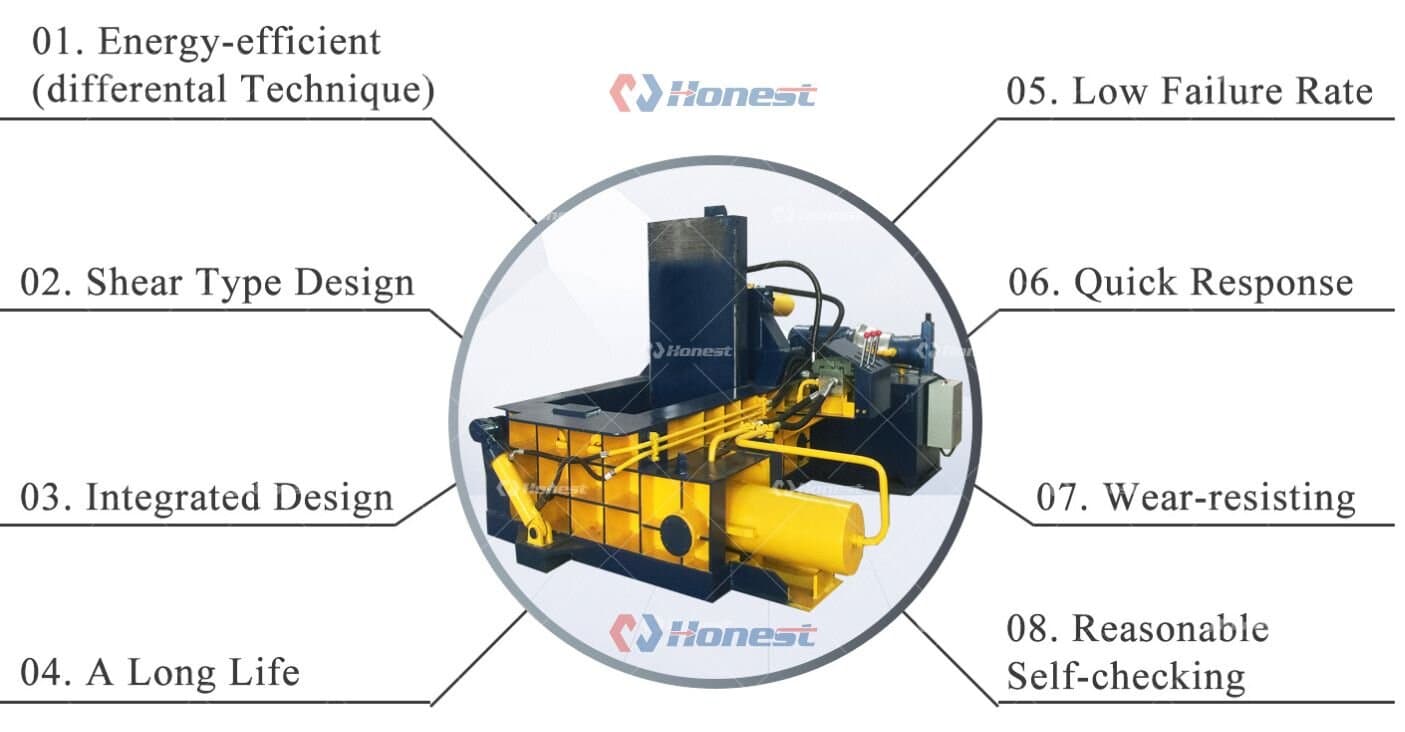

Key components of Metal Compress Machine

1. Hydraulic drive, compact design, great sealing;
2. Customized press box size and bale size;
3. Bale dischargeing ways include turn-out, side-push out and forward-out;

4. Designed with quick unit that can improve work efficiency substantially;
5. Famous motor, hydraulic system, oil cylinder, piston pump, electrical components;
6. Blades: our Ziptop Can Compressing Machinery Scrap Iron Aluminum Metal Baler with the knife, it can cut the long size material when compressing, so it very goog for the long steel wire and big size material.
