Recycling Solution Details

The cable stripping machine (Copper wire stripping machine) is upgraded on the basis of the ordinary model, adding five knife holders and three double-wall socket wire holes to make its function more refined, suitable for all types of wires, and able to strip all kinds of cable wires more easily. This unit supports both motorized and manual modes of operation. The fully enclosed bottom structure effectively protects employee safety and reduces noise pollution. This cable stripping machine has comprehensive functions and excellent performance, which is suitable for a wide range of cable recycling needs.

Raw Material

Cable Stripping Machine is mainly used to recover a variety of wire and cable. Like electronic wire,cingle core wire ,double core,car wires, rubber insulated lead sheathed and armored cable.

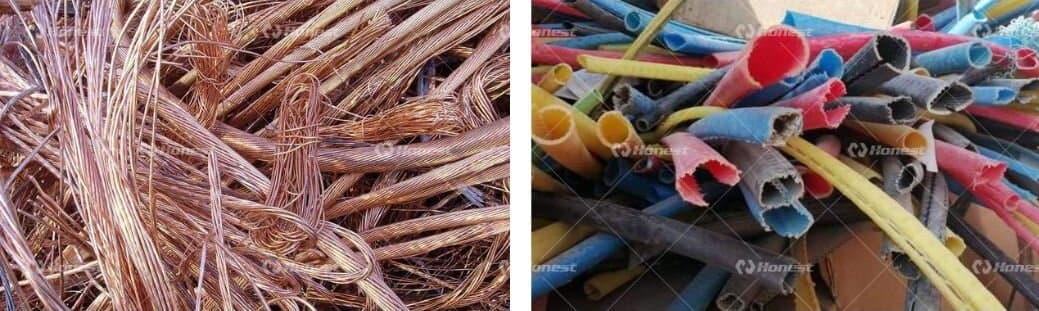

Final Products

The end product produced by the use of a cable stripping machine is mainly separated conductors (usually copper or aluminum) and stripped insulation. The recovered metal can subsequently be recycled or reused in the manufacturing process. The stripped insulation (which may be plastic or other materials) is also often processed for recycling or disposal.

Technical Parameters

Model	HN-KA	HN-KOB	HN-120	HN-120-2
Power	2.2KW	2.2KW	3Kw	2.2/3Kw
Voltage	220/380V
Processing Wire Dia	1-35mm	1-42mm	20-120mm	1-25mm（20-120mm）
Knife Numbers	13+6	18+5	1	9+2
Capacity	30m/min
Machine Size	680×590×860mm		640×780×115mm	900×550×1300mm
Weight	116Kg	110Kg	116Kg	194Kg
Packaging Size	720×610×870mm		660×800×117mm	920×560×1320mm

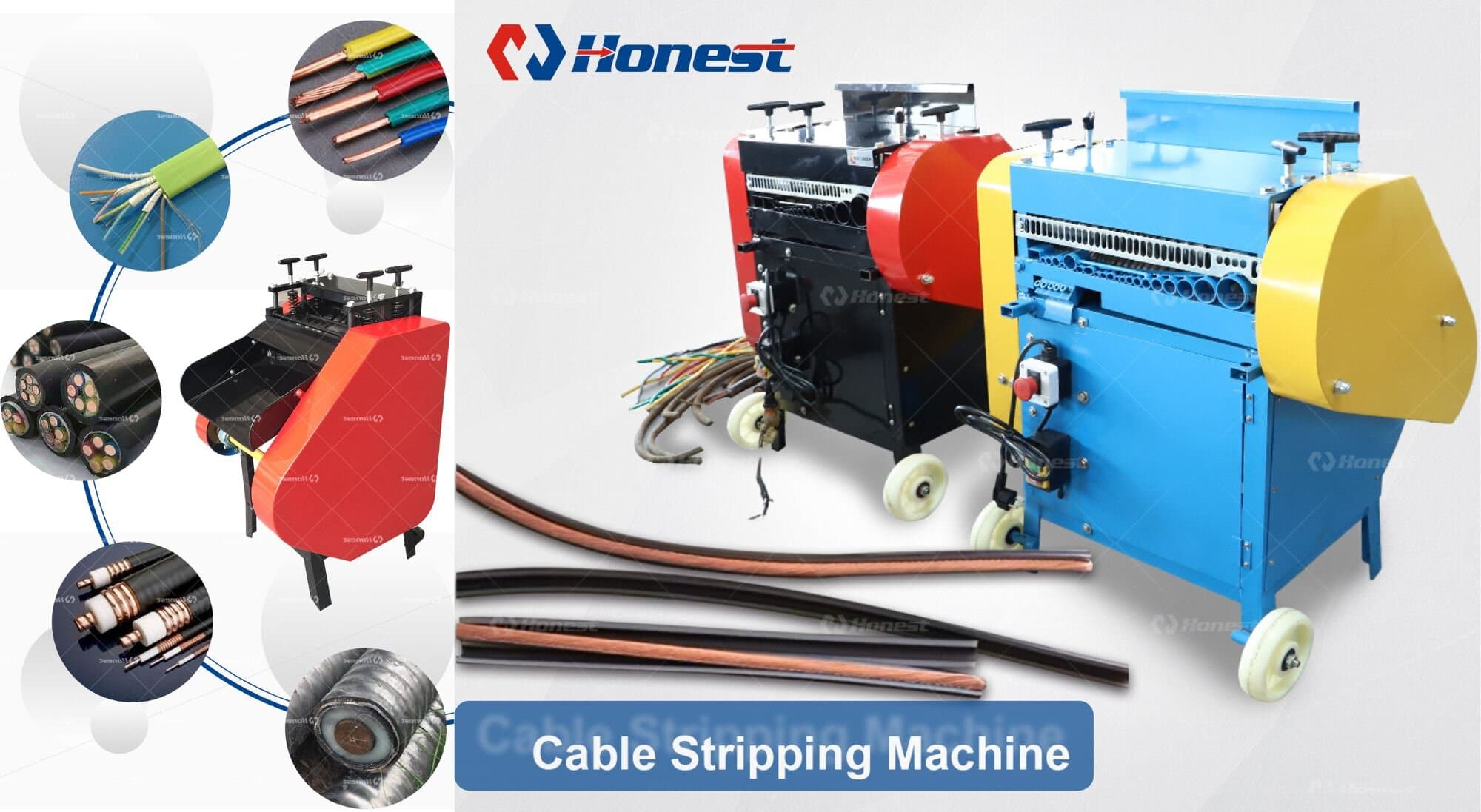

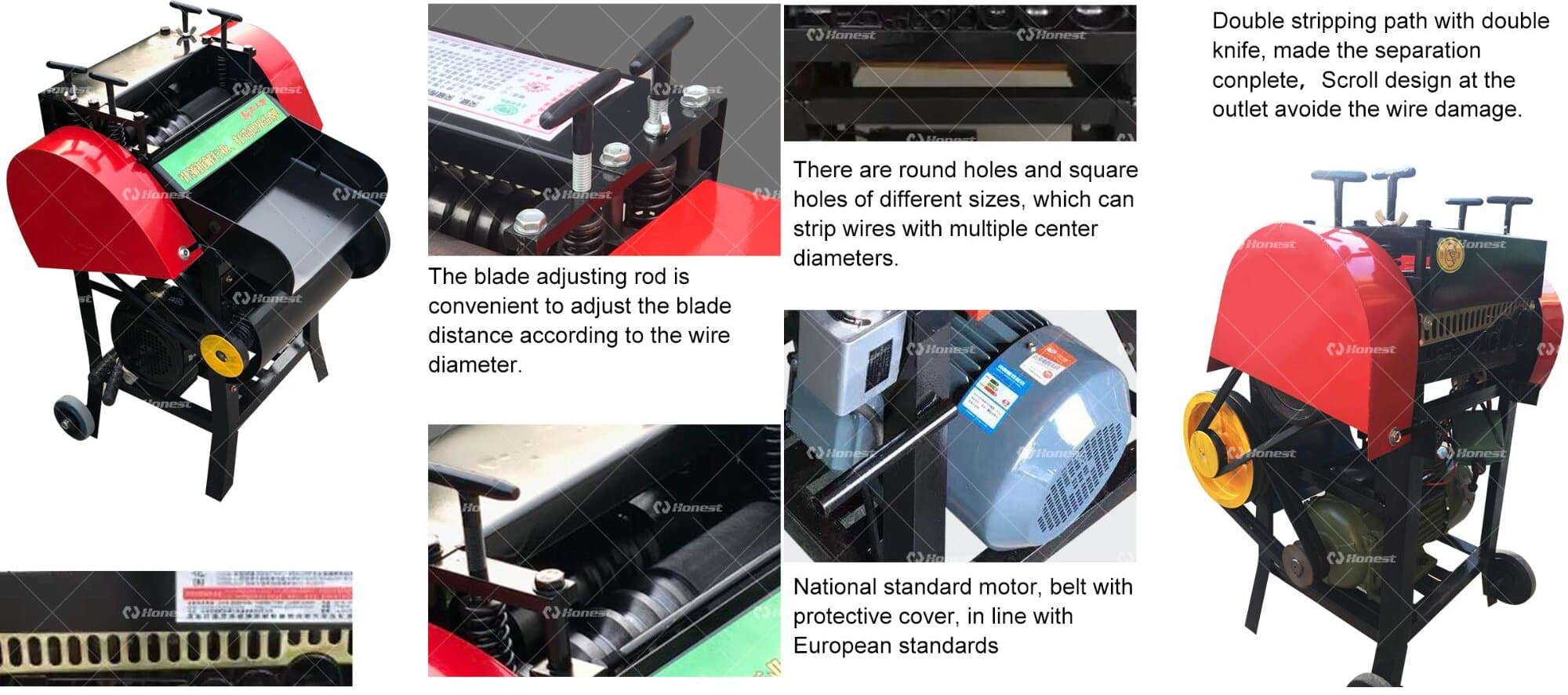

Key components of Cable Stripping Machine

The blade adjusting rod isconvenient to adjust the bladedistance according to the wirediameter.
Double stripping path with doubleknife, made the separationconplete, Scroll design at theoutlet avoide the wire damage.
There are round holes and squareholes of different sizes, which canstrip wires with multiple centerdiameters.
National standard motor, belt withprotective cover, in line withEuropean standards
The fully enclosed bottom structure can effectively protect thesafety of employees and reduce noise pollution

Cable Stripping Machine Packing and delivery

1.This model wire stripping machine is both manually and electricity operatedmachine.Pushing wire automatically,just need hold by labors.
2.Under electric mode,you just need adjust the knifes and gears, and then machine canstrip wire automatically.
3.Adjusting gears to suit different diameter wire,the outer sheath and inner conductor willbe stripped by blade when waste cables cross through the middle guide wheel.

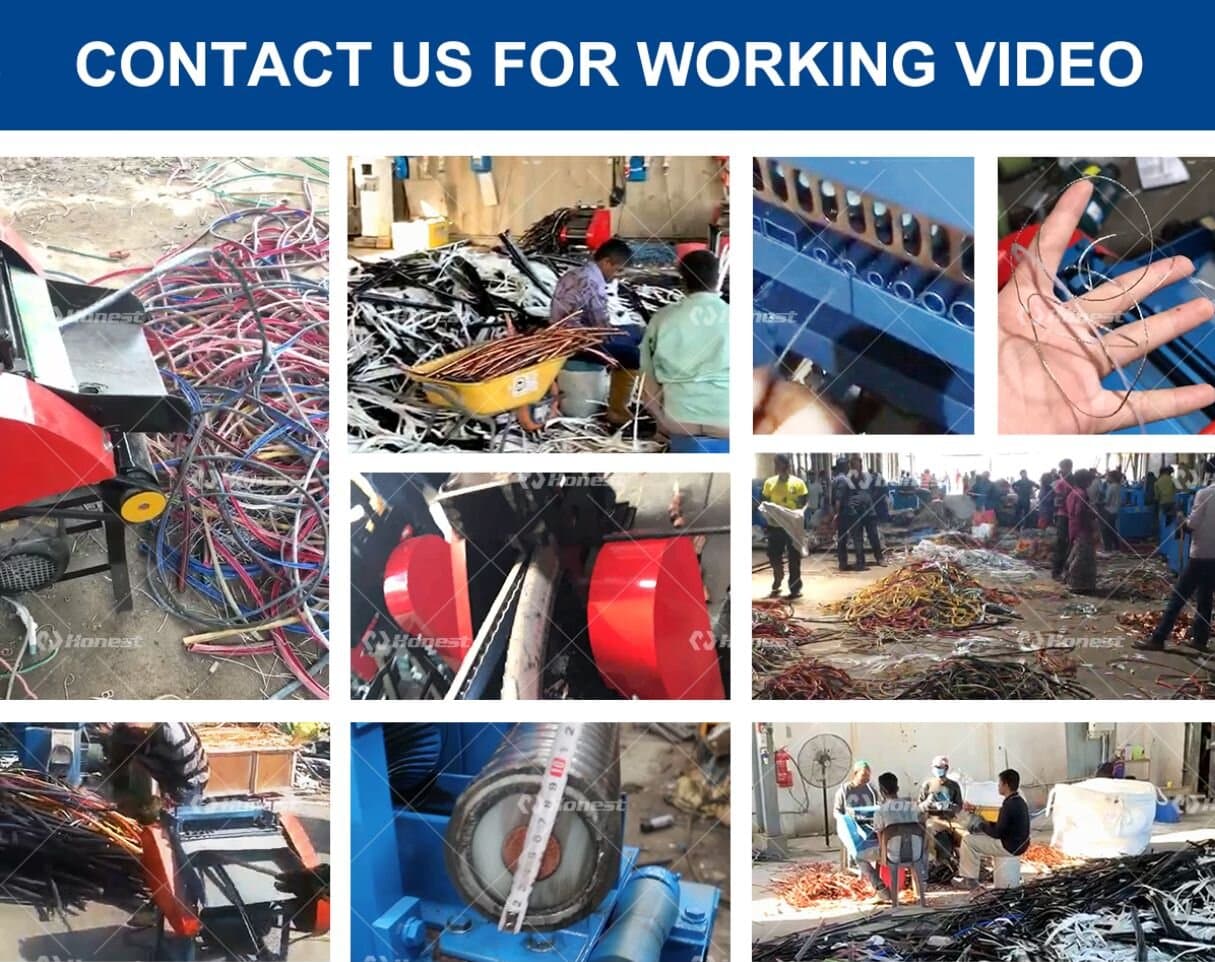

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
