Recycling Solution Details

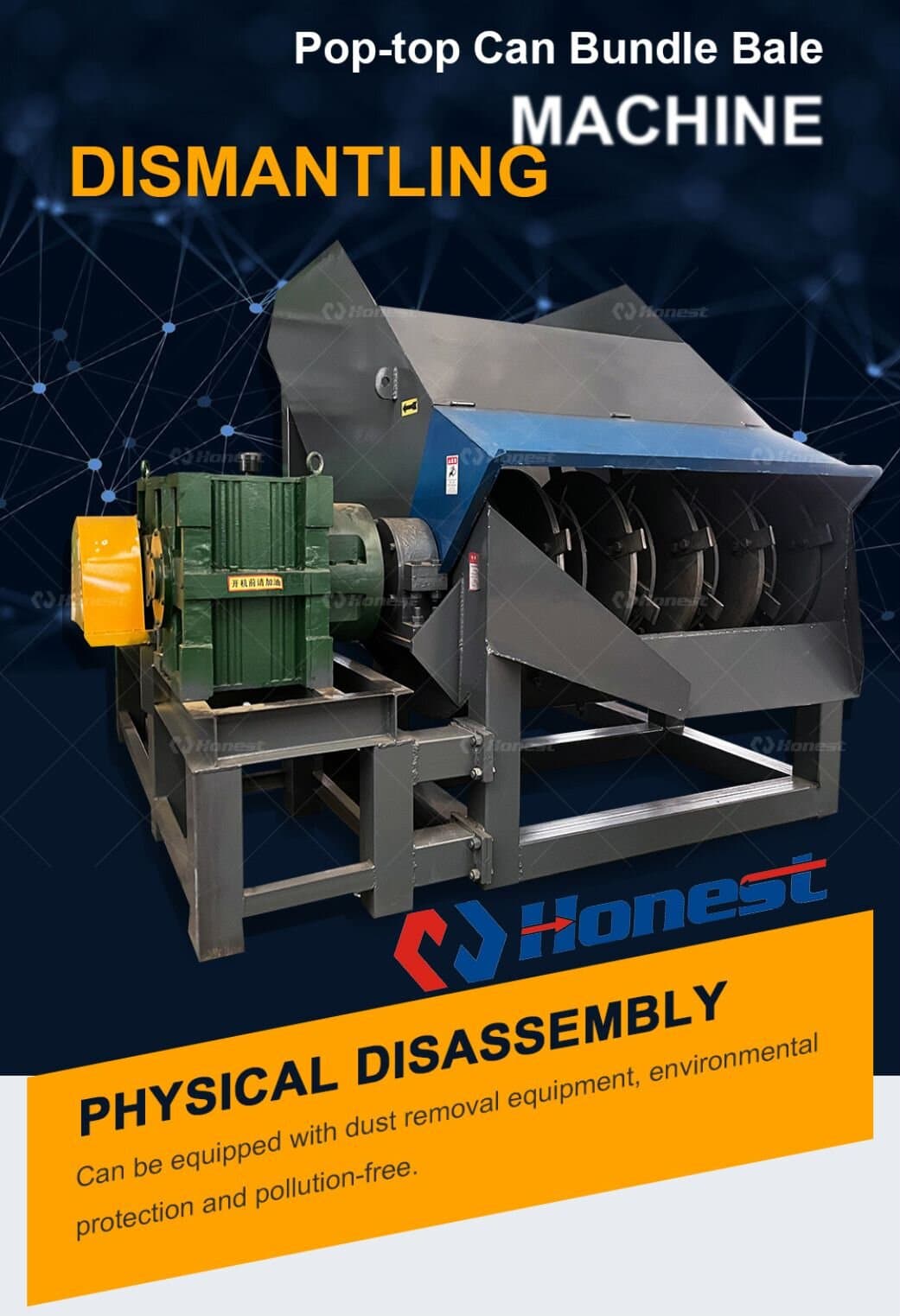

Bale Breaking Machine is also called briquetting decomposer or Bale opener . It is a new generation of professional testing equipment for dismantling scrap metal blocks. It can detect the impurities in the user’s package, ensure the content and quality of scrap steel, and maintain the stability of scrap steel market. This product is used in steel, smelting, steel mills, docks and other industries.

Raw Material

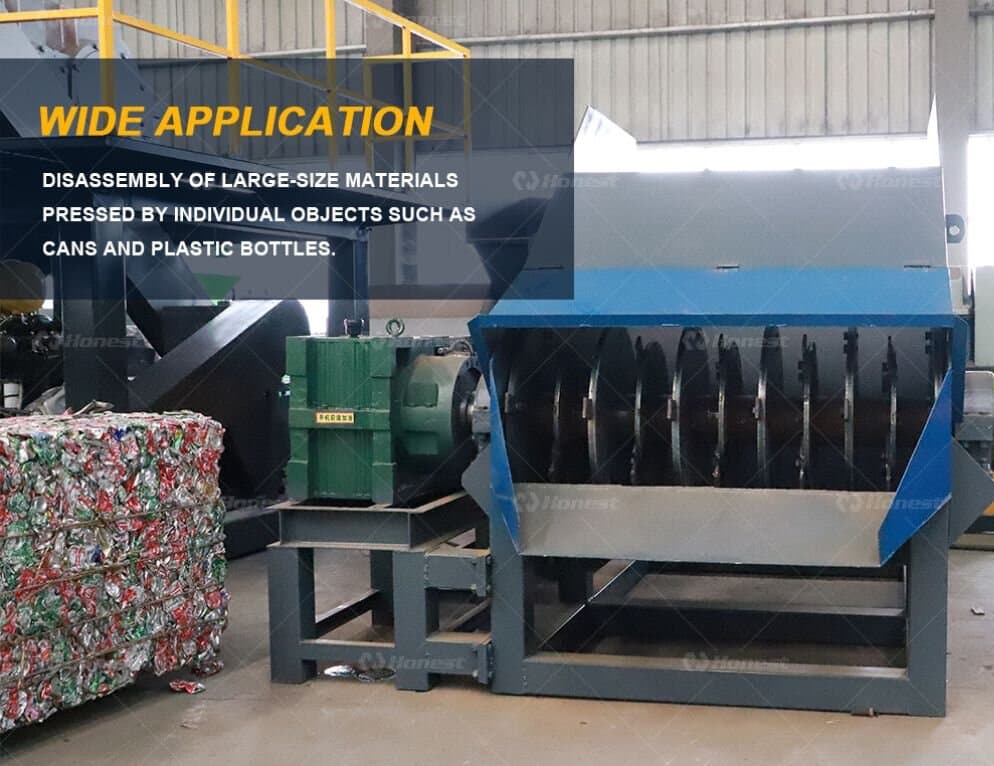

It has a wide range of applications and is capable of dismantling large sized materials (scrap metal briquettes, scrap UBC metal briquettes such as steel scrap, aluminum scrap, etc.) pressed from individual objects such as cans and plastic bottles.

Final Products

(Above) After physical dismantling by the Bale Breaking Machine, the main end-products are: loose scrap metal for further sorting and smelting;

Technical Parameters

Model	HN-BB-5
Feed inlet size	1500mm
Overall dimensions of equipment	2.9m × 2.7m × 2.7m
Spindle material	45 # steel
Hob diameter	850mm
rotation speed	40-80 rpm
The material of the knife	Luo 12
Hardness of knife	52-55 degrees
Fixed number of knives	44 pcs
Machine wall thickness	10mm
Output	5-6t/h
Machine net weight	4.5t

Key components of Bale Breaking Machine

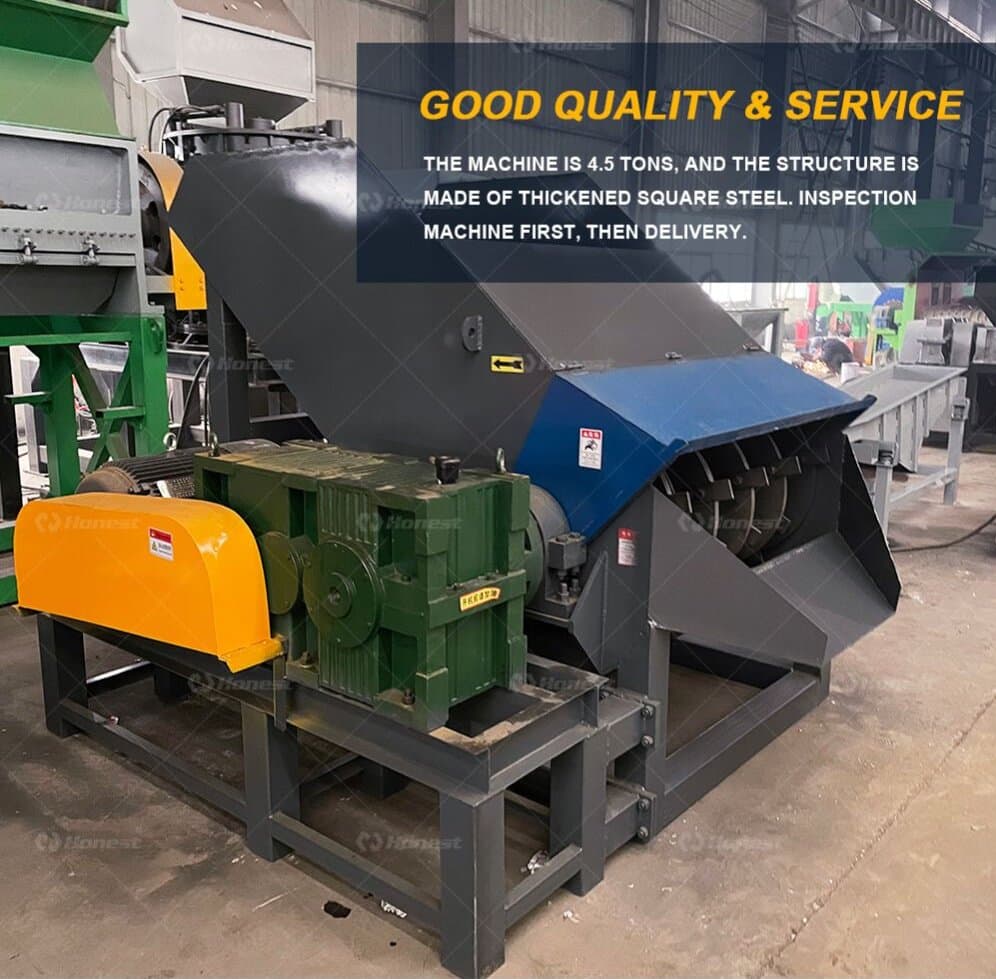

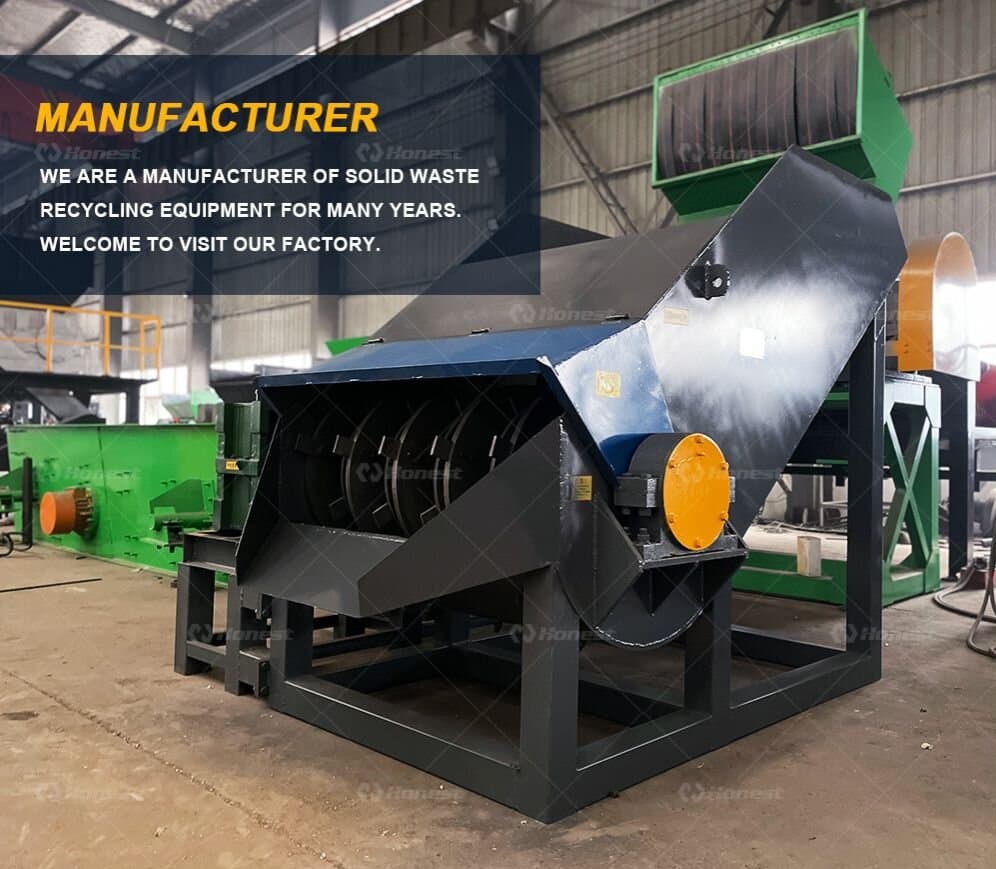

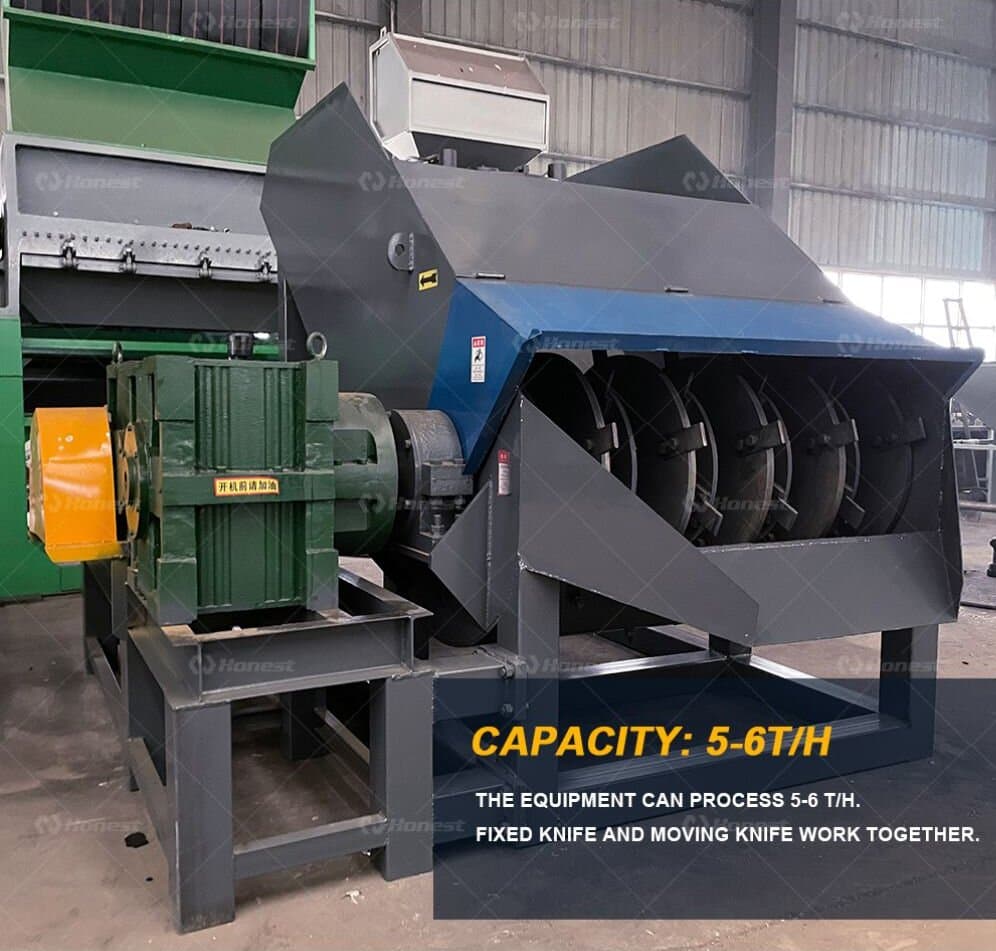

The machine has a strong processing capacity of 5-6 tons of material per hour, and achieves efficient disintegration through the synergistic work of fixed and moving knives. As a manufacturer with years of experience in manufacturing solid waste recycling equipment, we welcome you to visit our factory. The quality of our equipment is reliable, with machines weighing up to 4.5 tons and structures made of thickened square steel to ensure robustness and durability. All equipment undergoes rigorous inspection before delivery to ensure the high quality of the products.
