Recycling Solution Details

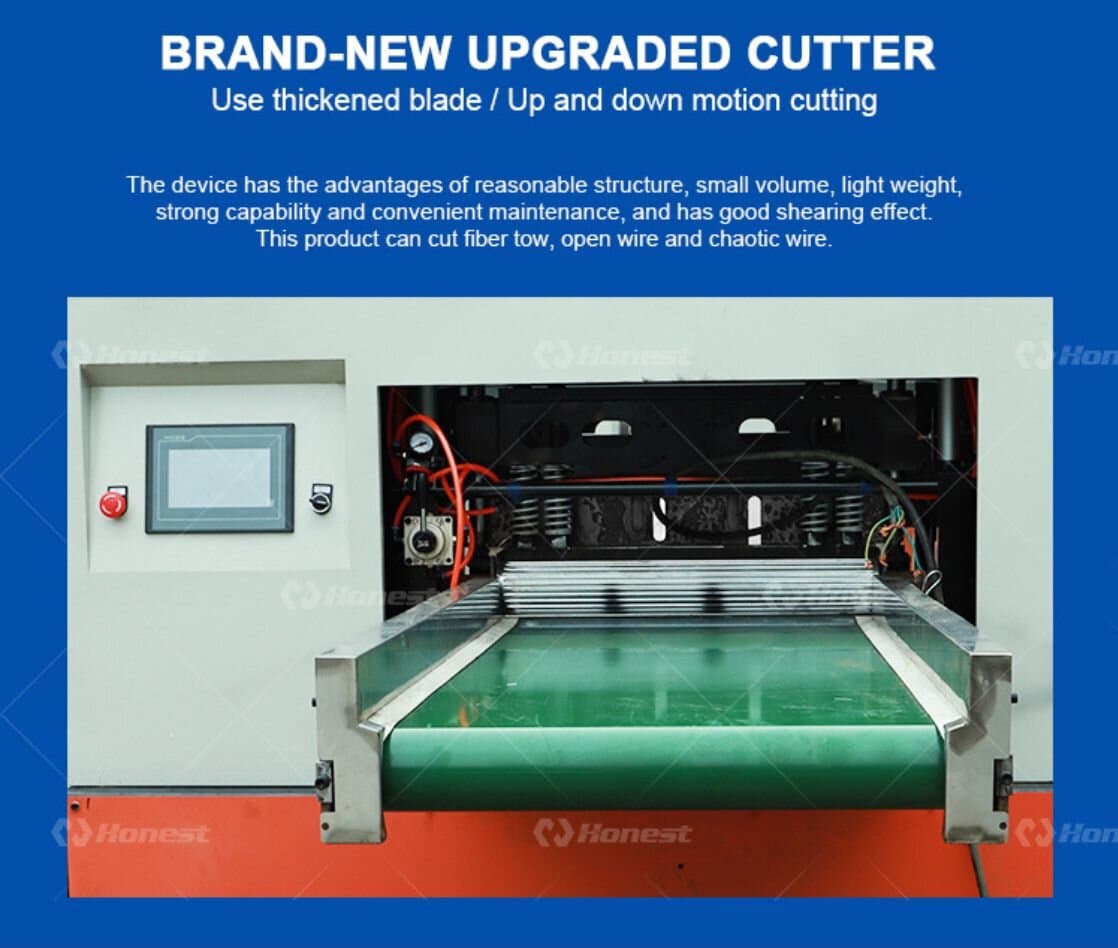

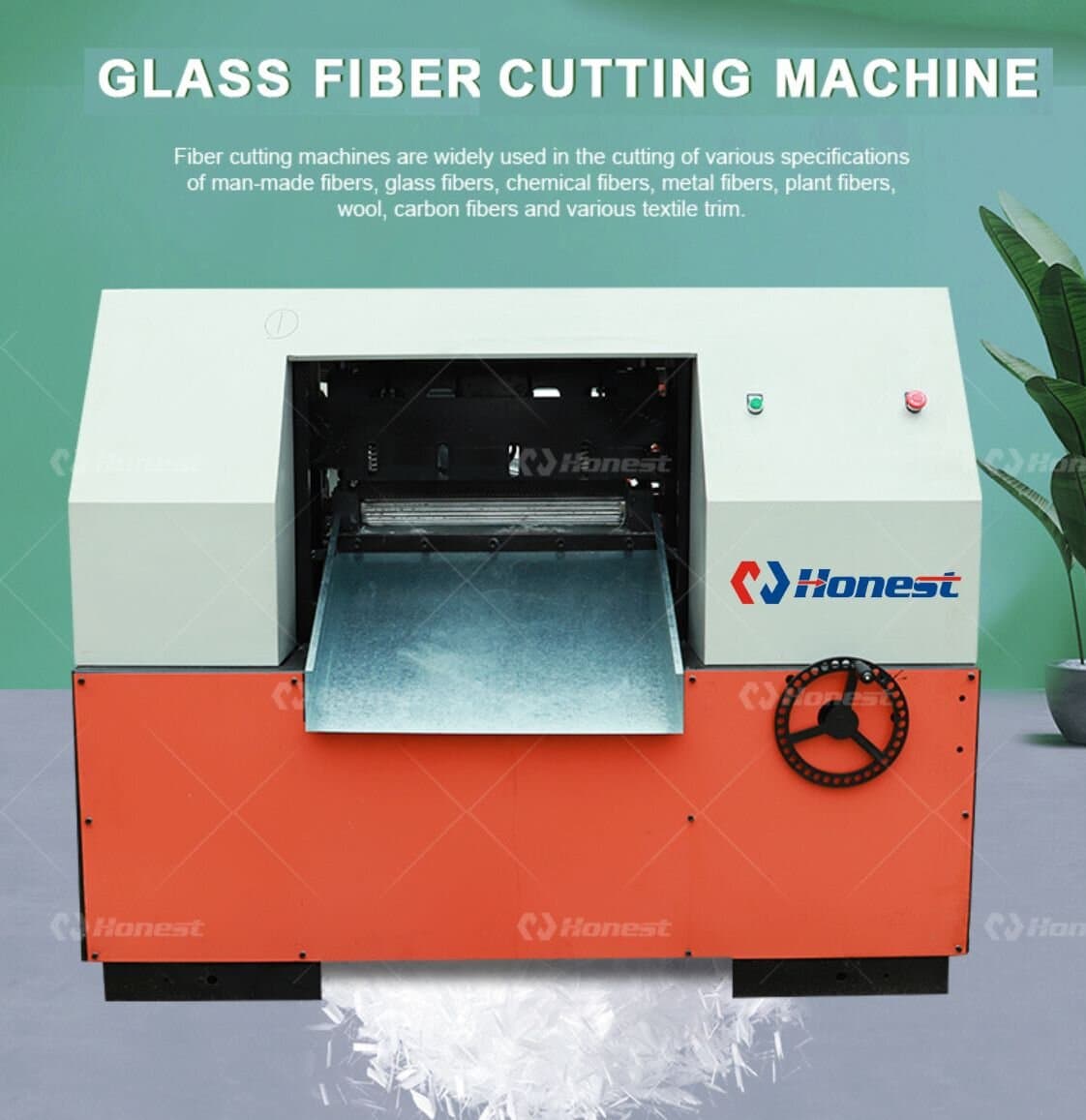

This Glass Fiber Cutting Machine, also known as a fiberglass cutter, is a powerful tool designed to accurately and efficiently reduce the size of glass fibers and related materials. It is specifically designed to mechanically convert fiberglass scrap and fiberglass reinforced plastic (FRP) into manageable pieces. The newly upgraded tool features thickened blades and an up-and-down motion cutting mechanism to provide superior shearing results. This design allows the machine to efficiently cut fiber bundles, bright threads and messy strands. The machine is well-built, compact and lightweight, making it easy to install and maintain. Its powerful features ensure reliable performance in demanding industrial environments.

Raw Material

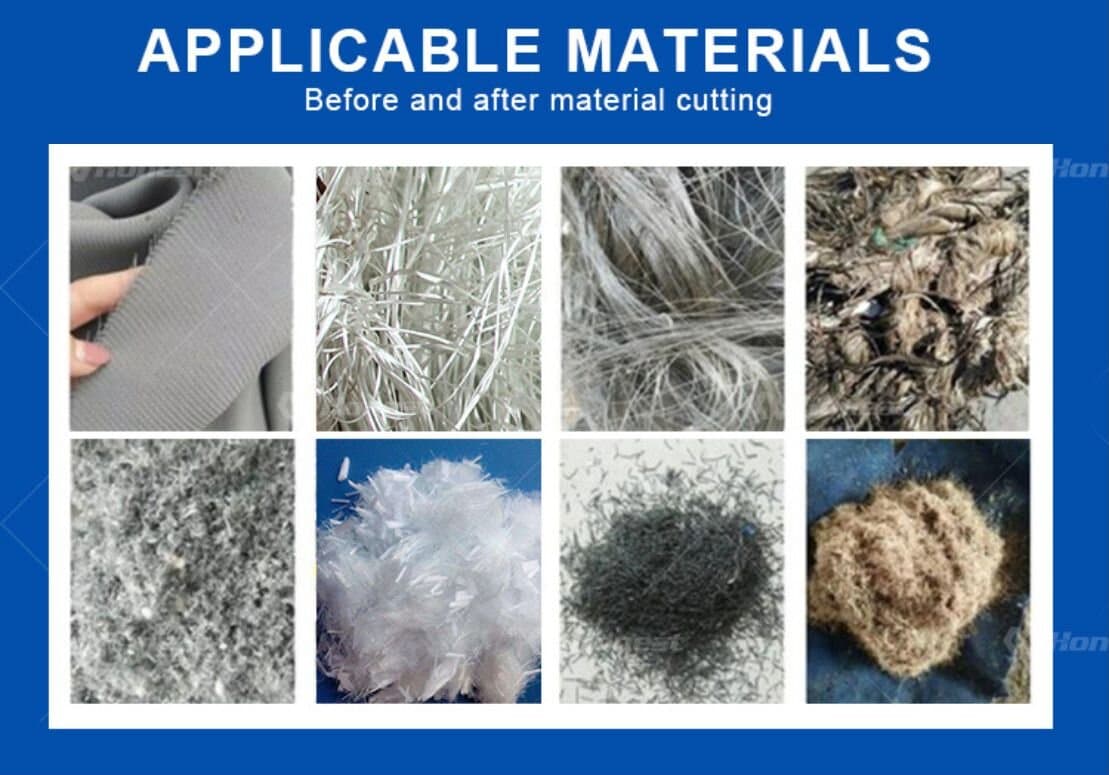

Fiber cutting machines are widely used in the cutting of various specificationsof man-made fibers, glass fibers, chemical fibers, metal fibers, plant fibers.wool,carbon fibers and vanous textle tnm.

Final Products

(Above) The primary end product of this highly efficient glass fiber cutting and recycling machine consists of glass fiber chips that are significantly reduced in size, as well as a variety of other fiber chips that are similarly reduced in size after processing, and which can be used for subsequent recycling or further processing.

Technical Parameters

Motor	HN-GF-600
Cutting Length	1-150mm
Cutting Width	600mm
Blade Raise Height	80mm
Cutting Speed	30-100time/minute
Length Setup	Cylinder
Control Way	PLC
Roller Pressure Way	CNC
Air Pressure	0.6MPA
Voltage	380V 5HZ 3 Phase
Power	7Kw
Machine Size	2000×1800×1400mm
Weight	1500 kg

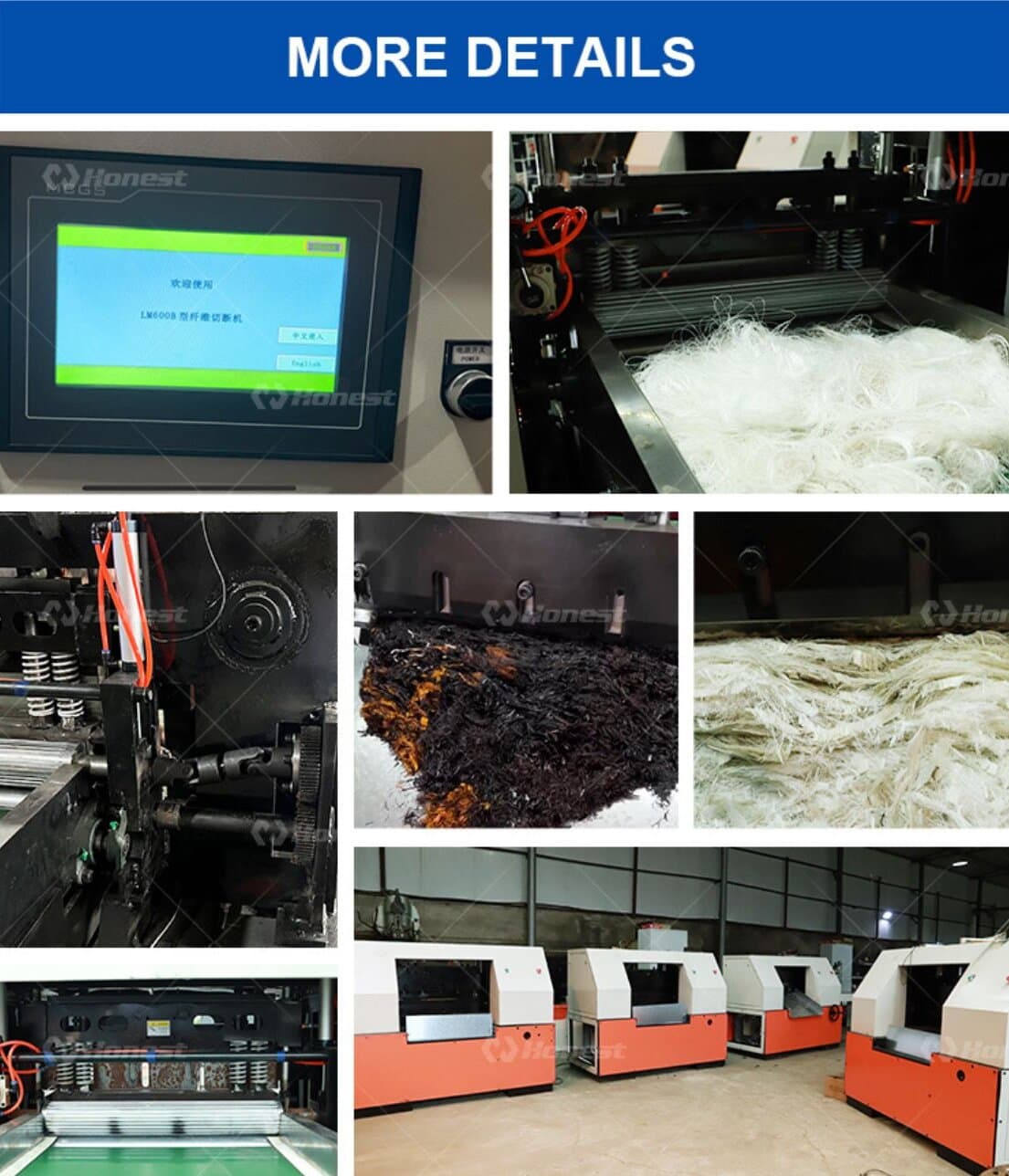

Key components of Glass Fabric Cutting Machine

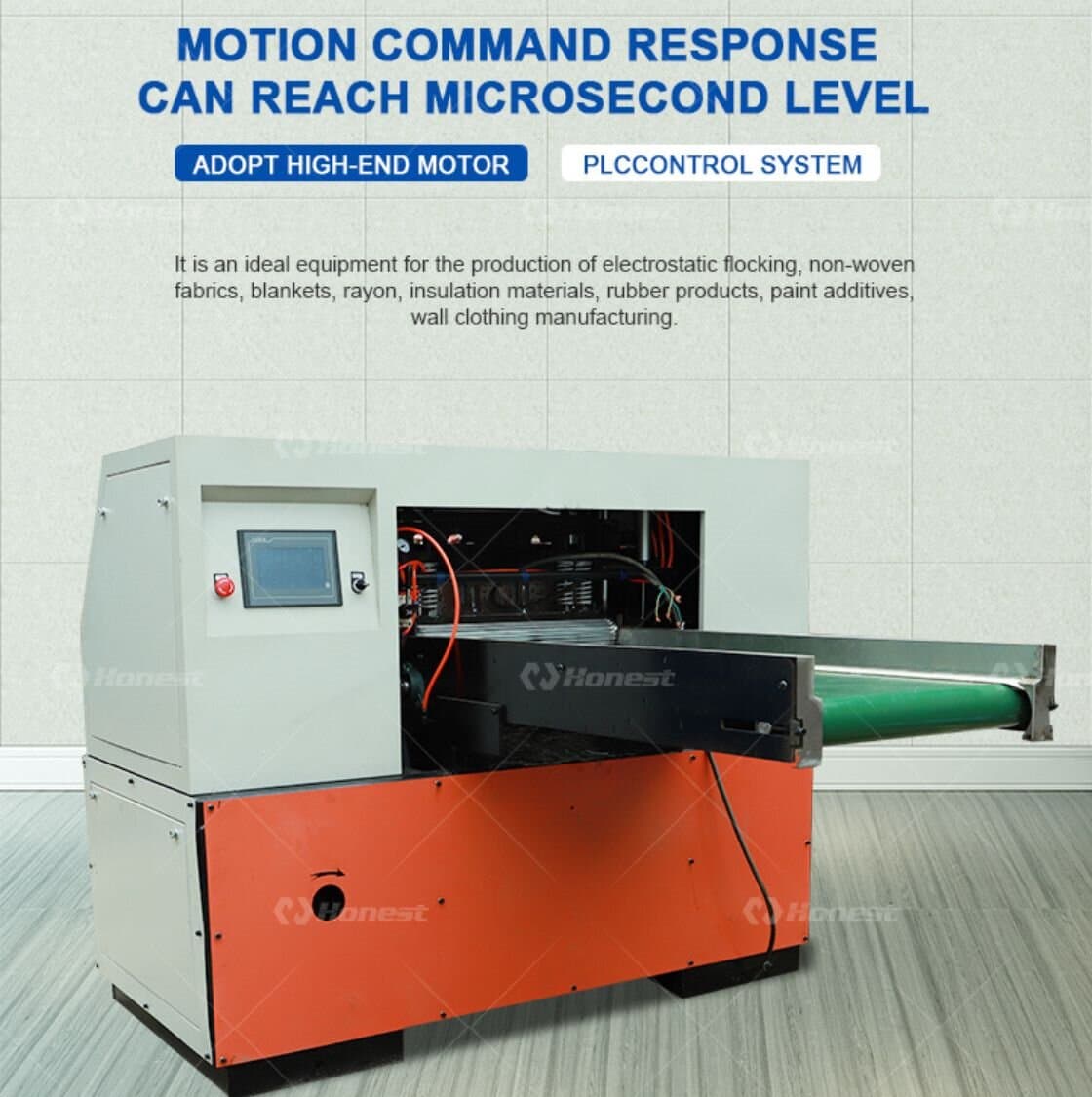

Glass Fabric Cutting Machine handles various materials like glass fibers, carbon fibers, and textiles, featuring a high-end motor and PLC control system for precise microsecond-level responses. Ideal for industries such as non-woven fabrics, insulation materials, and rubber products, it offers a cutting range of 1-150mm, a width of 600mm, and speeds of 30-100 cuts per minute. With a compact design, thickened blades, and easy maintenance, it ensures efficient cutting of fiber tow and chaotic wire. Specifications include 7Kw power, 380V 50Hz 3-phase voltage, and dimensions of 2000×1800×1400mm, weighing 1500 kg.
