Recycling Solution Details

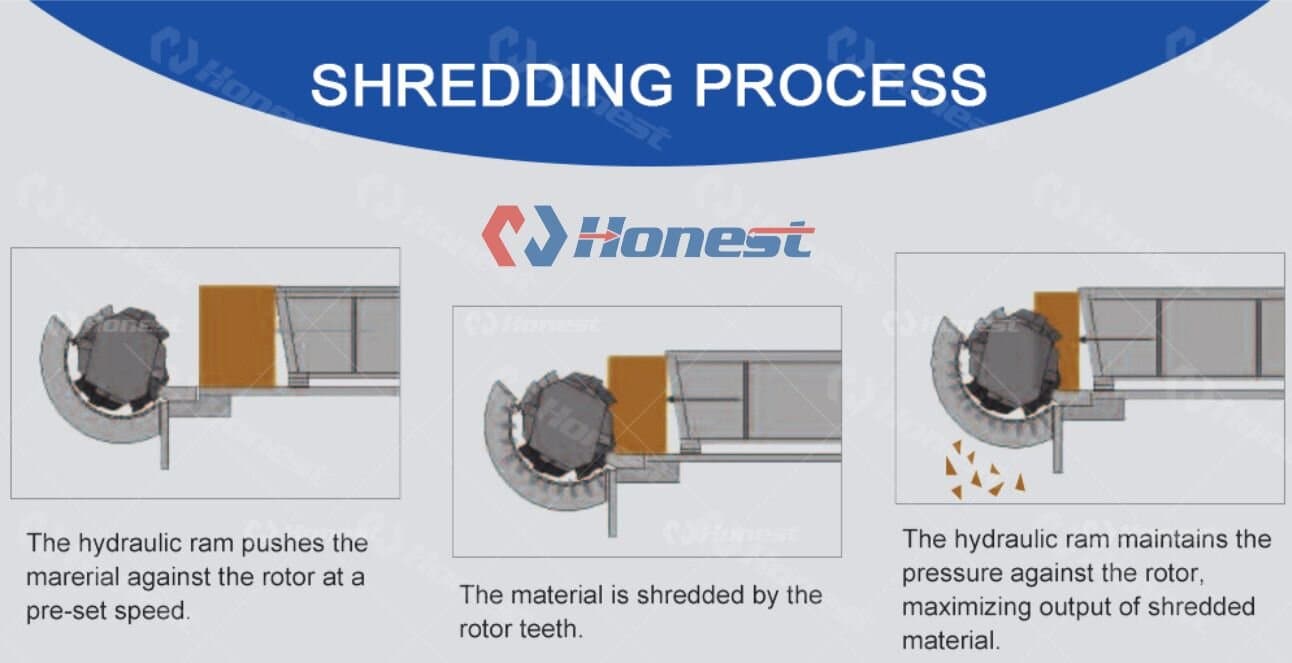

HONEST single shaft shredders feature advanced control systems for automated operation, overload protection and easy maintenance. Many single shaft shredders include a hydraulic pusher that pushes the material into the rotor, ensuring consistent feed and efficient shredding. Output particle size is controlled by the use of screens with specific hole sizes. The shredded material passes through the screen and any oversized pieces are recirculated for further shredding.

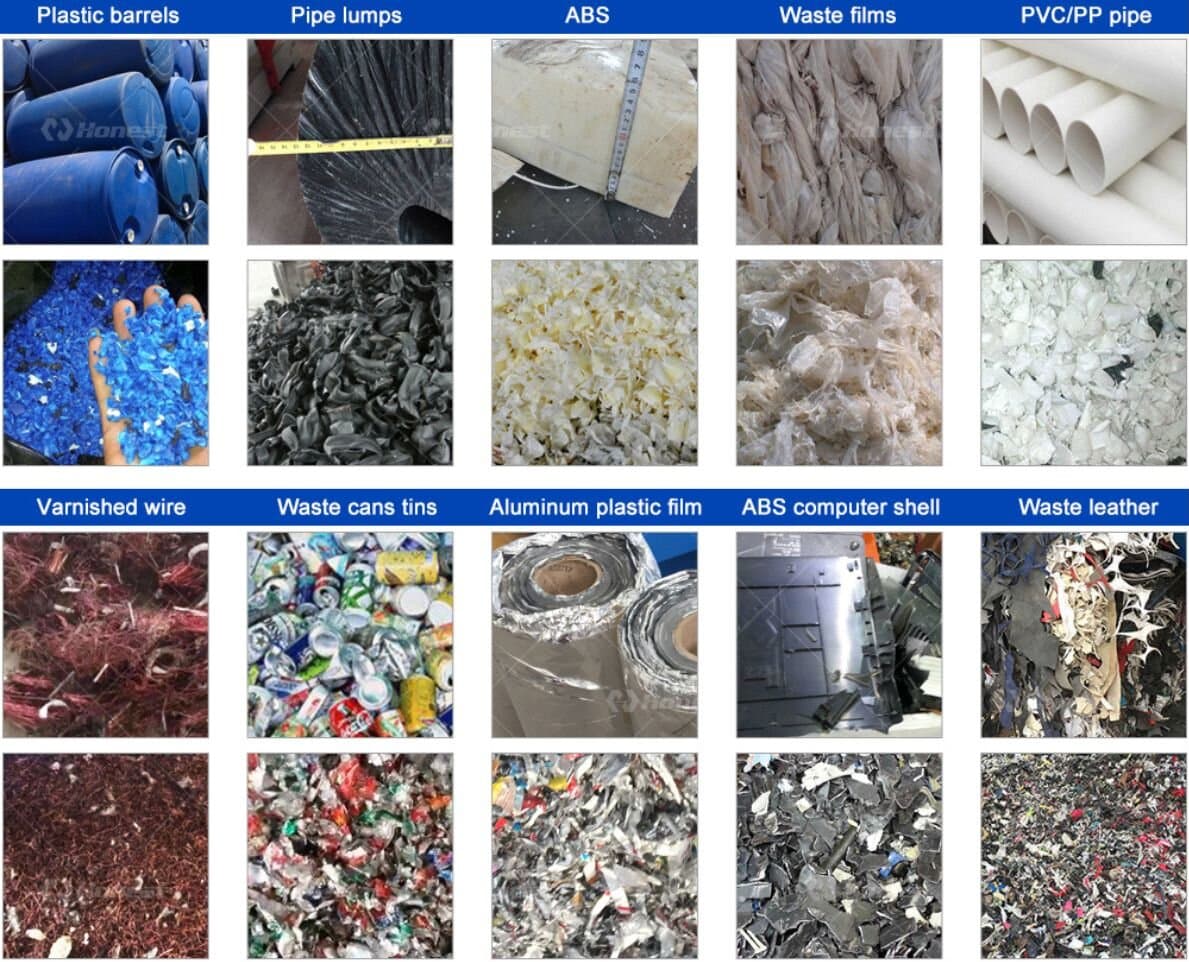

Raw Material

lt is mainly used for shredding and recycling various thick-wall waste materials and leftover materials in the plastic industry.

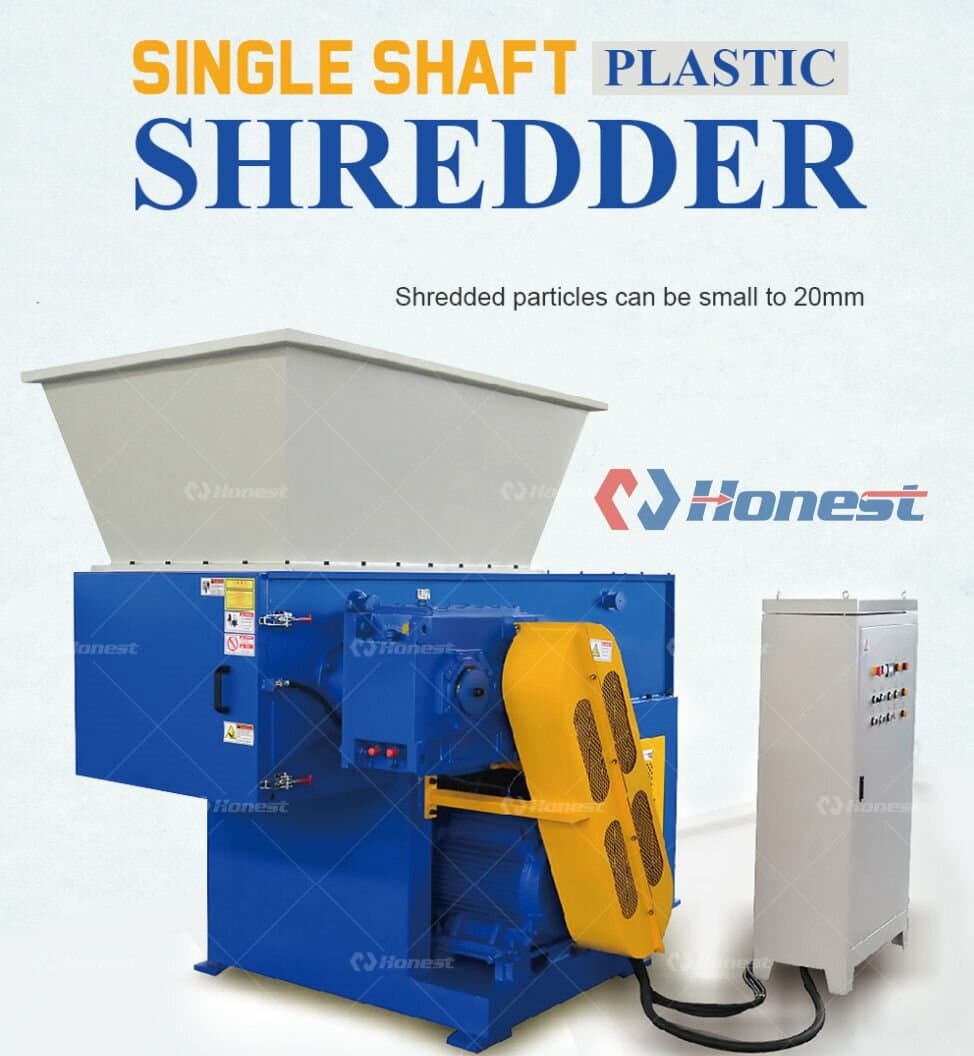

It can effectively shred and crush large materials ( such as extra-thick head materials, nozzle materials, gate materials, large plastic pipe fittings, large-diameter thick-wall PE pipes, PE head materials, plastic packaging barrels, large bundles of plastic films, large bundles of woven bags, rolled films, paper, fibers, plastic boxes, plastic garbage cans, TV casings, computer shells,printer housings,copper wires, forklift pallets, plastic clamping plates, plastic turn over boxes, etc. ) and is suitable for crushing and recycling various materials of plastic,rubber and wood. Shredded particles can be small to 20mm according to different needs.

Final Products

The main final products of single-shaft shredders include size-reduced plastics, wood, paper and cardboard shreds, textile shreds, pre-processed municipal solid waste, and separated electronic component materials. These products can be easily recycled, reused or further processed after shredding.

Technical Parameters

Model	HN-S600	HN-S800	HN-S1000	HN-S1200	HN-S1500
Capacity (kg/h)	600	800	1000	1200	1500
Rotor-knives (pcs)	26+4	46+6	49+4	64+4	90+4
Counter-knives	4 pcs	4 pcs	4 pcs	4 pcs	6 pcs
Blade Material	Cr12MoV/SKDII	Cr12MoV/SKDII	Cr12MoV/SKDII	Cr12MoV/SKDII	Cr12MoV/SKDII
Rotor Diameter	0.24 m	0.4 m	0.4 m	0.5 m	0.5 m
Rotor Speed	45-90 r/min	45-90 r/min	45-90 r/min	55-75 r/min	55-75 r/min
Cutting Chamber	0.6×0.6 m	0.81×0.8 m	1.0×1.0 m	1.2×1.1 m	1.5×1.2 m
Hydraulic Power	2.2 kw	3 kw	4 kw	5.5 kw	7.5 kw
Cylinder Stroke	0.6 m	0.8 m	1.0 m	1.0 m	1.2 m
Machine Size	1.78×1.4×1.8 m	2.4×1.68×2.0 m	3.0×2.0x2.2 m	3.5×2.3×2.2 m	3.6×3.0x2.4 m
Weight (kg)	2800	4000	5500	7000	9000

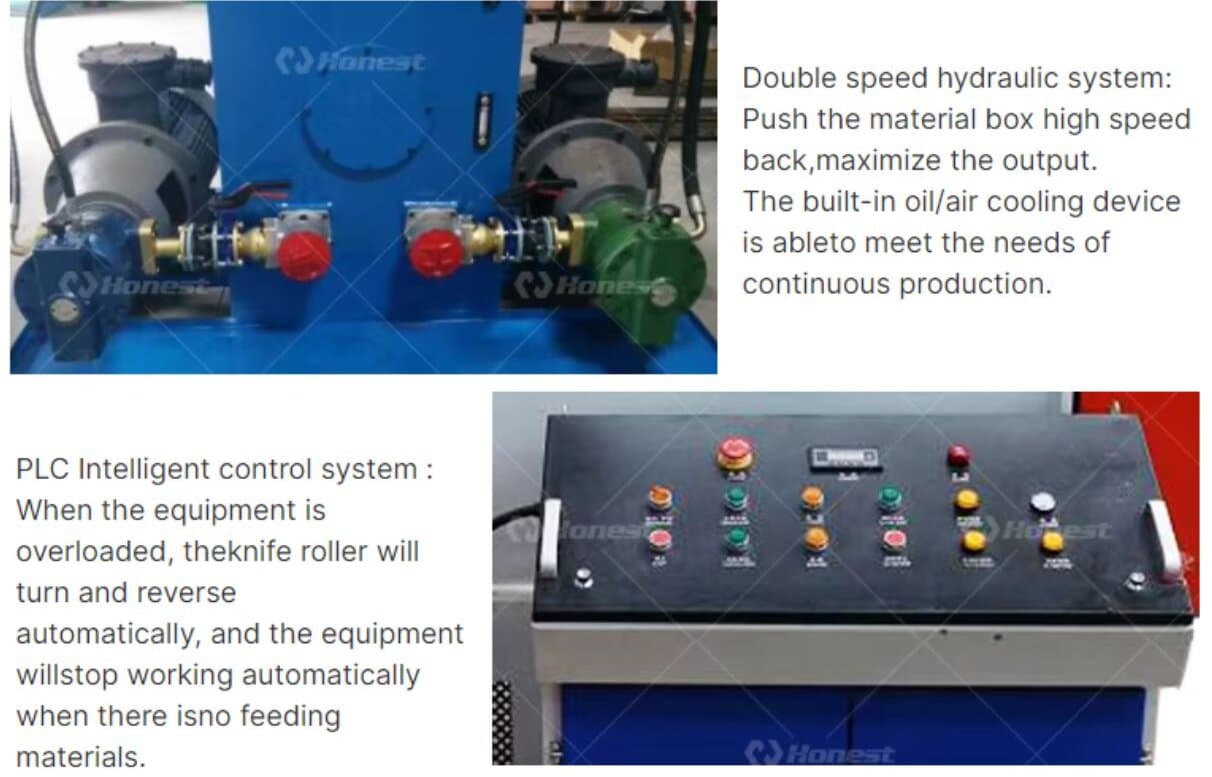

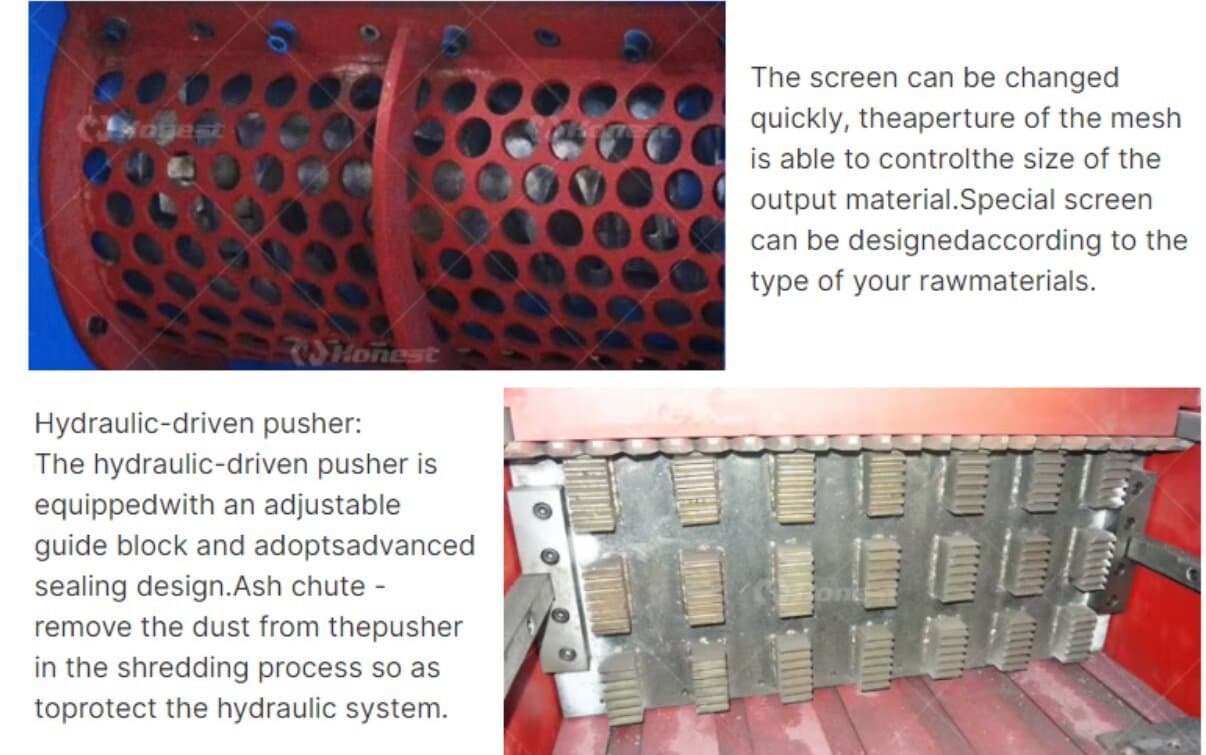

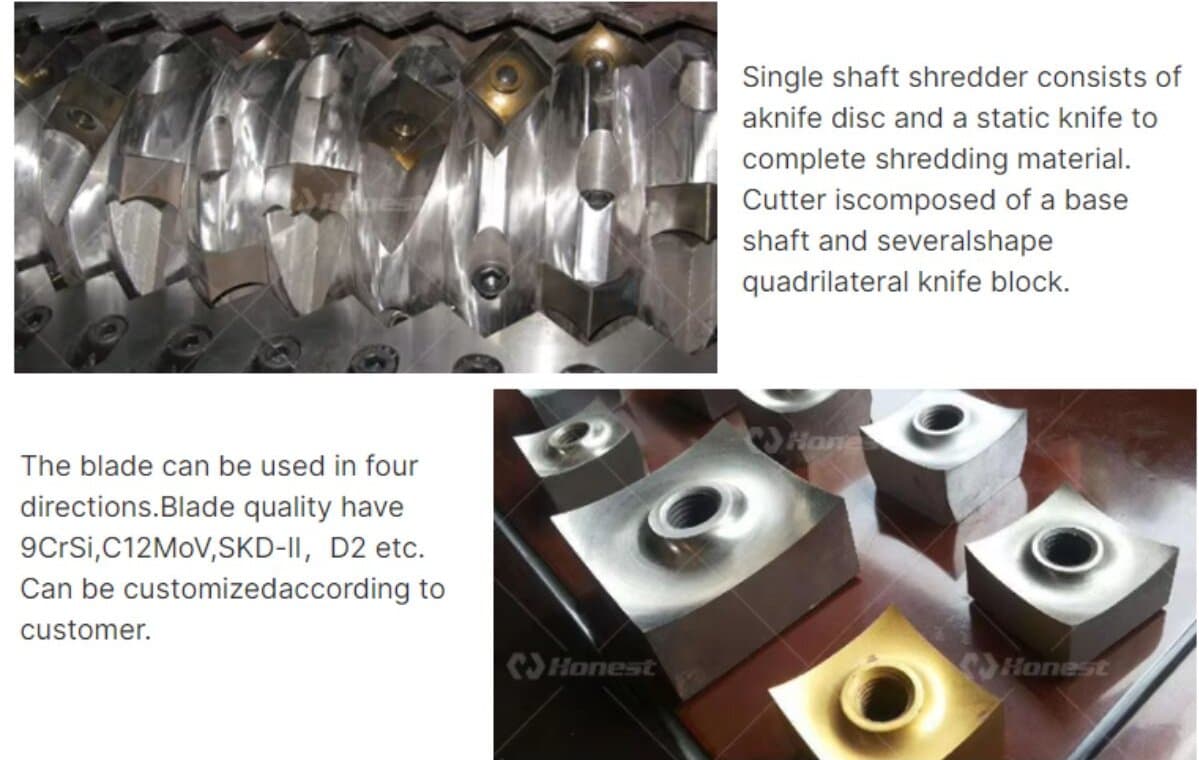

Key components of single shaft shredder machine

The single shaft shredder consists of several key components, including spindle, moving blade, fixed blade, reducer, motor, feed chute, discharge port, electric control cabinet, control panel, screen, roller and tool holder. Its knives adopt four-way adjustable design and materials such as 9CrSi, C12MoV, etc., which support customization according to customers’ needs. After crushing, the material size is usually reduced by 30% and some can reach 50%. The machine is equipped with quick-changeable screens to control the particle size of the output material, and has a hydraulic-driven pushing device, double-speed hydraulic system and PLC intelligent control system, which can automatically adjust and stop the work to ensure efficient and stable production.

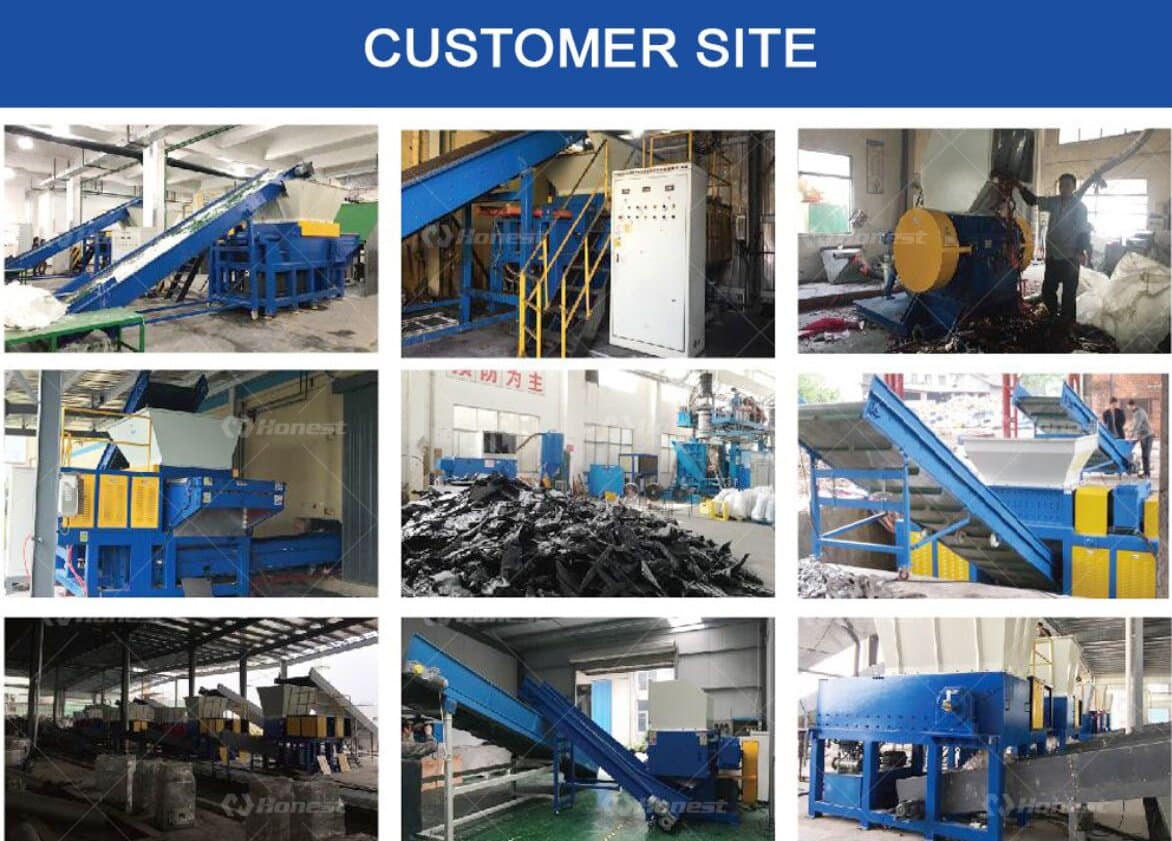

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
