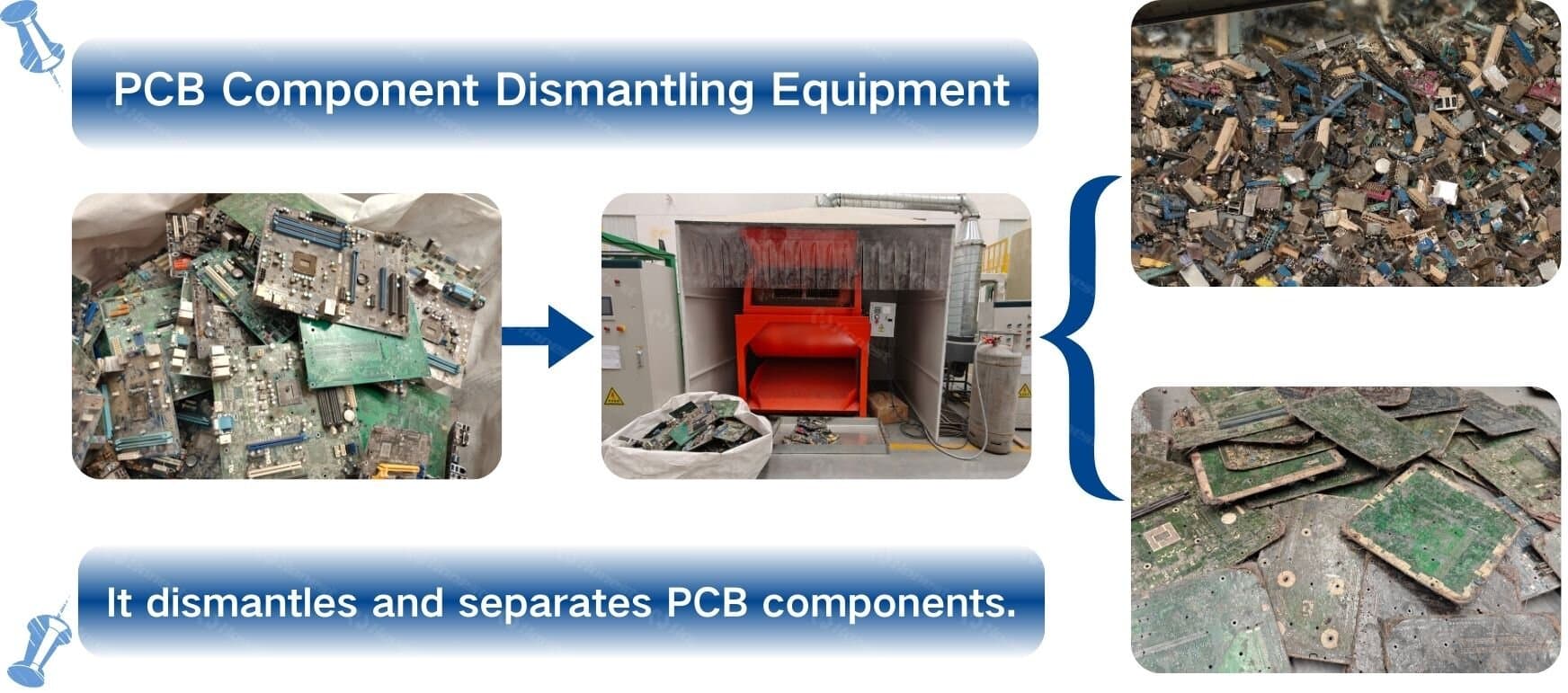

The PCB Component Dismantling and Separation Equipment is suitable for dismantling various circuit boards (for example: computer motherboards, TV boards, household appliance control boards, etc.).

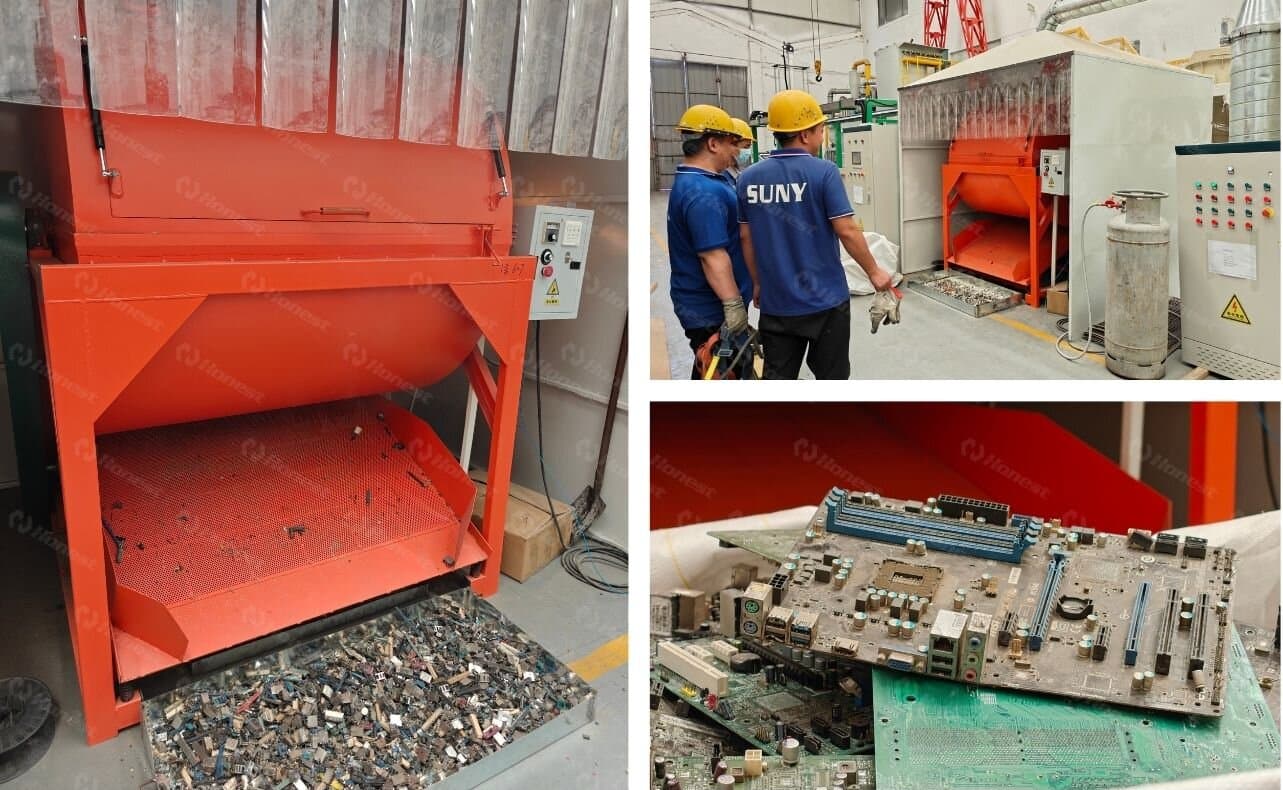

PCB Component Dismantling Equipment Working Principle 1. When the material is put into the rotating cylinder, the ignition system ignites the liquefied gas, and the flame generated heats the rotating cylinder through the fire guide tube.
2. After the temperature sensor senses that the temperature reaches the set temperature, the ignition system closes the liquefied gas valve and stops heating; when the temperature sensor senses that the temperature is lower than the set temperature, the ignition system reopens the liquefied gas valve and restarts the ignition. Continue to heat the device in the rotating cylinder, and so on, until the solder on the circuit board is completely melted.
3. The melted tin particles and components fall to the vibrating sieve plate under the insulation tube through the vibration of the vibration motor. The tin particles fall through the sieve holes into the lower tin collection tray, and the components slide into the collection box.
