How Ink Cartridge Recycling Machines Improve Material Recovery

Waste printer cartridges, including ink and toner cartridges, contain a mixture of plastics, aluminum, steel, copper, and residual ink or toner powder. An industrial ink cartridge recycling machine is designed to safely shred, crush, and separate these materials, turning discarded printer consumables into reusable secondary resources.

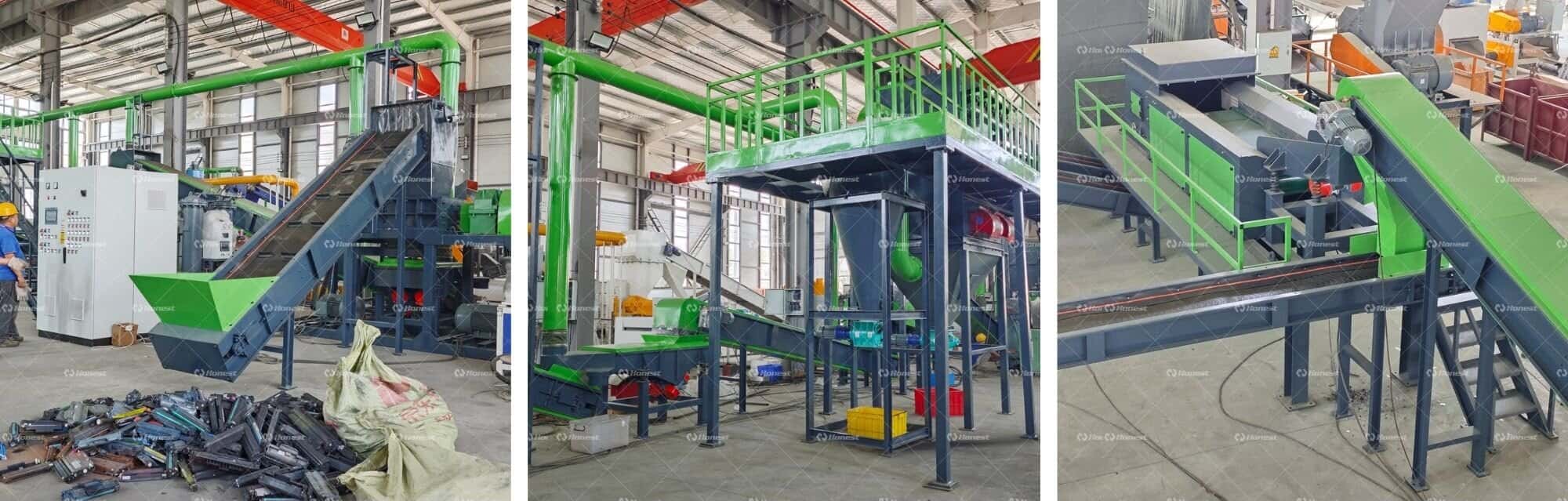

The recycling process begins with a double shaft shredder, which reduces whole cartridges into manageable pieces. For applications involving fine toner dust, the system can be equipped with temperature monitoring and nitrogen protection. If abnormal temperature conditions are detected, the system can automatically stop material feeding and create an inert atmosphere to reduce the risk of overheating and dust ignition. The shredded material then enters a hammer crusher for secondary size reduction, typically to around 20–30 mm. This helps release metals from plastic housings and prepares the material for efficient separation. A vibrating screen removes fine toner or ink powder, while larger particles continue through the separation process.

Ferrous metals such as steel screws, springs, and other iron components are removed by a magnetic separator. An eddy current separator then separates non-ferrous metals, particularly aluminum, from the remaining plastic fraction. Depending on the material composition and system configuration, separation efficiency can exceed 98%. A pulse-jet dust collection system captures fine particles generated during shredding and crushing, helping control dust emissions and maintain a cleaner working environment. PLC-based automatic control and high-quality electrical components provide stable operation and allow the complete system to run continuously with minimal manual intervention.

The recovered materials can include plastic, aluminum, copper, steel, and residual ink or toner powder, providing a practical solution for printer cartridge recycling facilities and waste processing companies. The system can be configured according to cartridge type, material composition, required capacity, and desired output quality. As a professional recycling machinery manufacturer, Henan Honest Heavy Machinery Co., Ltd. provides customized ink and toner cartridge recycling solutions, including equipment selection, process design, system integration, and technical support.
