Classification Details for Solar Panel Frame Removal Machines

Aluminum frame removal is the first mechanical step in photovoltaic (PV) module recycling and directly affects the efficiency of the entire process. A high-quality removal machine separates the aluminum frame without damaging the glass or solar cells, maximizing aluminum recovery while preparing the panel for downstream crushing and material separation. Most industrial systems use a hydraulic de-framing mechanism, where hydraulic cylinders and precision steel molds apply controlled pressure to remove the frame safely and efficiently.

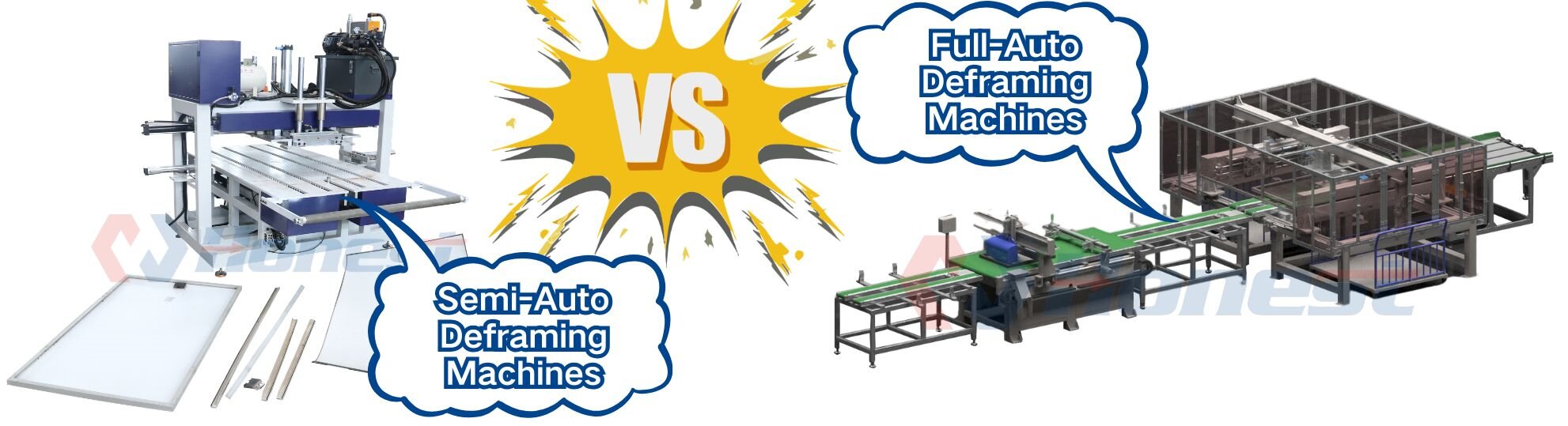

Solar panel frame removal machines are generally classified according to their level of automation and production capacity.

★ Semi-Automatic Deframing Machines are designed for small recycling facilities, repair workshops, and pilot production lines. Operators manually load the photovoltaic module, while the hydraulic system automatically completes the frame removal cycle. These machines require a lower initial investment and are well-suited for businesses processing relatively small volumes of end-of-life or defective solar panels.
★ Fully Automatic Deframing Machines are designed for industrial-scale recycling plants requiring continuous operation. Equipped with PLC control and automated material handling, these systems significantly reduce manual labor while improving production consistency. Depending on the configuration, fully automatic machines can process 50–90 photovoltaic modules per hour, making them an ideal choice for high-capacity solar panel recycling lines.
★ For recyclers handling oversized photovoltaic modules, dual-glass panels, or special product designs, customized de-framing solutions are often the most practical option. Customized systems can be engineered to accommodate larger panel dimensions, integrate junction box removal, or connect seamlessly with complete solar panel recycling lines to meet specific production requirements.

When selecting a solar panel frame removal machine, panel compatibility is just as important as production capacity. Our hydraulic de-framing equipment is designed to process most standard photovoltaic modules, supporting panel sizes from 1580 × 808 × 40 mm to 2380 × 1300 × 35 mm. If your modules exceed these dimensions or have unique structural requirements, customized equipment can be developed to match your application.

Another key factor is frame recovery quality. A precision hydraulic de-framing process preserves the integrity of the aluminum frame, allowing it to be directly recycled or resold while minimizing damage to the glass panel. This not only increases the value of recovered materials but also improves the efficiency of subsequent glass, silicon, and metal separation processes. Whether used as a standalone machine or integrated into a complete PV recycling plant, a hydraulic solar panel frame removal machine provides an efficient starting point for photovoltaic recycling. Choosing the right level of automation and equipment configuration helps reduce labor costs, increase throughput, and maximize the recovery value of end-of-life solar panels.
