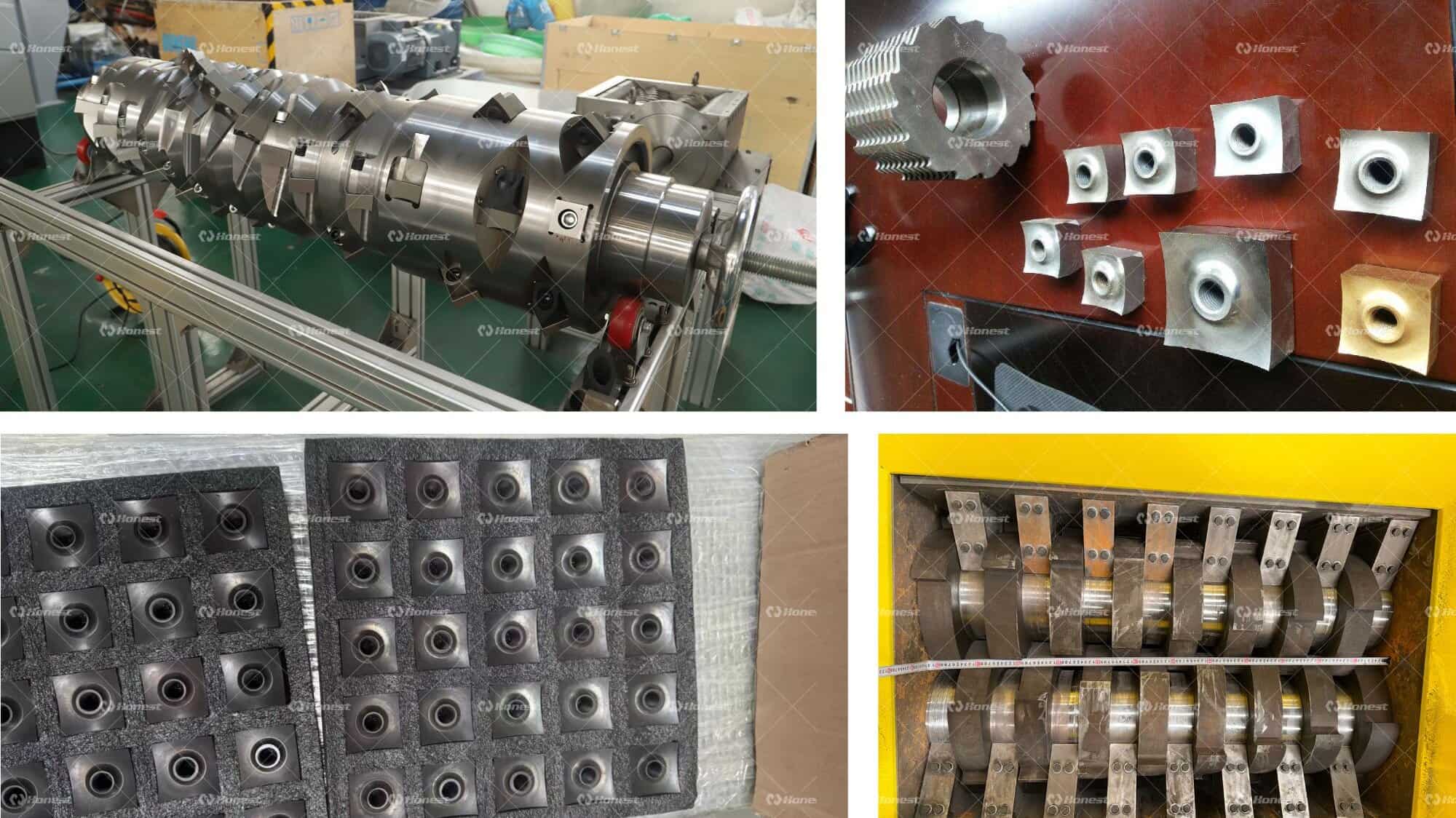

Shredder Blade Materials and Manufacturing Process Explained

Shredder blades are one of the key wear components in a recycling machine, and their performance directly affects cutting efficiency, service life, and maintenance frequency. Different recycling applications require different blade materials. Common options include 75Cr1, 55SiCr, 9CrSi, M6V, H13, and NM500, each offering different levels of hardness, wear resistance, impact resistance, and cost. For example, 75Cr1 and 55SiCr are economical choices for general applications, while M6V and H13 are better suited to demanding conditions where higher wear and impact resistance are required.

Blade quality is determined not only by the steel grade but also by the manufacturing process. Production normally starts with sawing the steel into blanks while leaving sufficient machining allowance. The blanks are then forged at high temperature to refine the internal steel structure and improve mechanical strength. After forging, lathe machining is used to finish the outer diameter and positioning surfaces. Heat treatment is a critical stage because it increases hardness and wear resistance. The blades are then ground to remove excess material, followed by wire cutting to produce the required tooth profile. A final precision grinding process establishes the correct thickness and dimensional accuracy before the blades are trial-fitted to the shredder.

The blade design and manufacturing accuracy must also match the working conditions of the machine. When processing materials such as plastics, wood, e-waste, metal-containing waste, or mixed materials, the blades can experience fluctuating loads and sudden impacts. Proper material selection, heat treatment, tooth geometry, and dimensional accuracy help the blades maintain stable cutting performance under these conditions. NM500, for instance, can be advantageous for applications requiring relatively fast and economical blade production, while dedicated tool steels can provide higher hardness and more specialized performance.

Reliable shredding also depends on the machine’s protection and control system. Under-voltage and over-voltage protection help protect the electrical system, while over-current protection can be configured according to the operating conditions to trigger automatic reverse rotation or machine shutdown when excessive loads occur. A human-machine interface allows operators to monitor operating status, voltage, and current in real time. Combined with an integrated and relatively simple structure, these functions make the Shredder easier to operate, inspect, and maintain. In practice, blade material, manufacturing process, and machine protection should be considered together when selecting a shredder for a specific recycling application. We supply shredder blades and offer custom manufacturing to meet your specific requirements (you may also provide drawings for us to work from).
