Automatic ACSR Cable Wire Cutting Sorting Recycling Machine

As power grids continue to expand and aging transmission infrastructure is gradually replaced, growing volumes of retired ACSR (Aluminum Conductor Steel Reinforced) cables are entering the recycling stream. Unlike ordinary cables, ACSR conductors are built with multiple layers of aluminum strands tightly wrapped around a central steel core. This design provides the strength required for long-span transmission lines, but it also makes dismantling slow, labor-intensive, and economically inefficient. The ACSR Cable Recycling Machine is designed to address this challenge through a fully mechanical separation process.

What is the ACSR Cable Recycling Machine ?
The ACSR Cable Recycling Machine efficiently separates and recovers aluminum and steel from scrap transmission lines through a fully mechanical process. With no manual intervention required, the system combines size-reduction and magnetic separation technologies to automatically process entire cable sections, converting them into aluminum and steel materials suitable for direct recycling and resale.

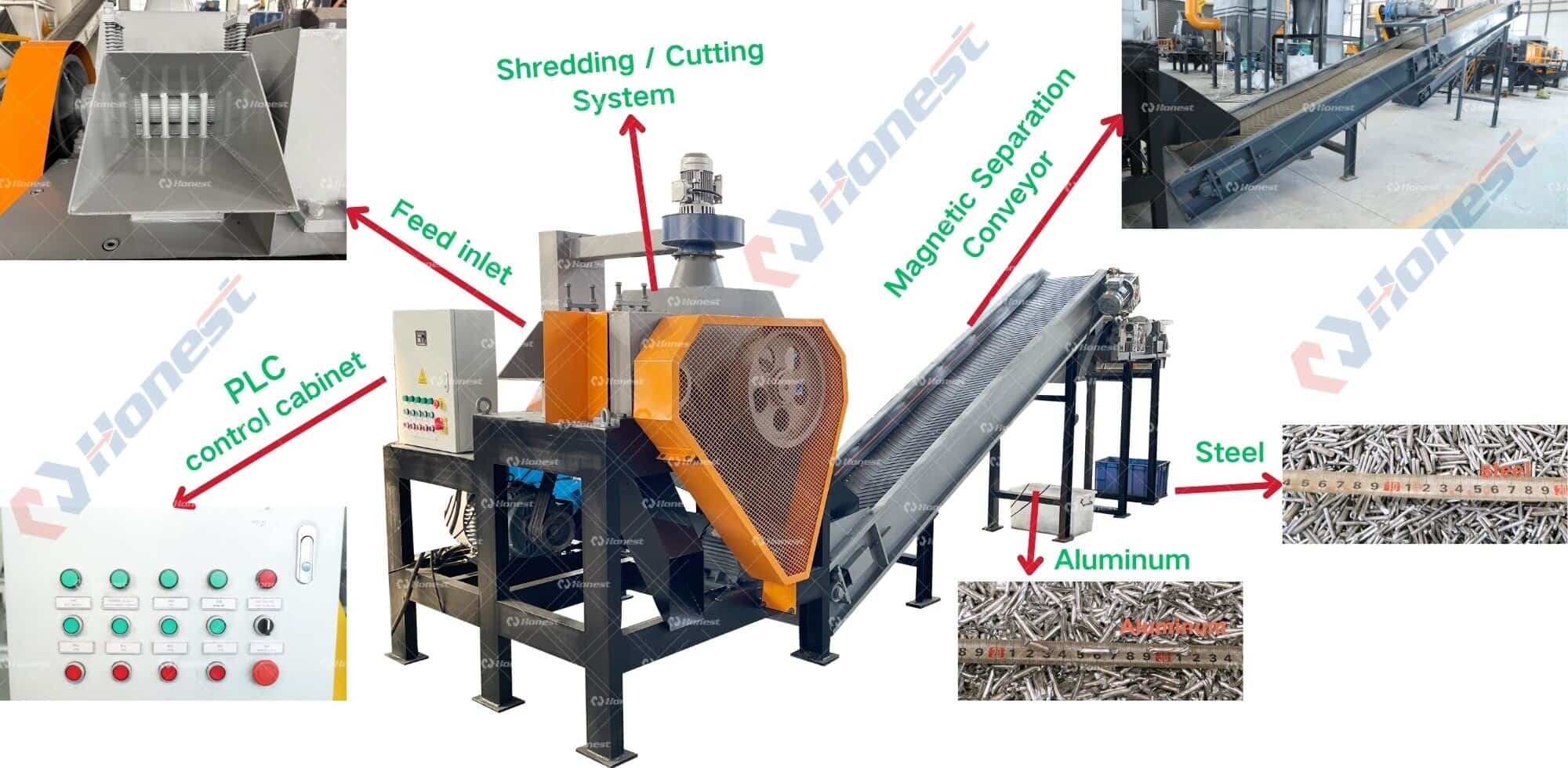

★ [Raw ACSR Cable] ➔ [Feeding Rollers] ➔ [Shredding / Cutting System] ➔ [Magnetic Separation Belt] ➔ 2 Clean Streams (Pure Steel & Pure Aluminum)

The process begins with automatic feeding, allowing long cable lengths to be continuously introduced into the system without manual pre-cutting. Heavy-duty shredding and cutting units then reduce the cables into small segments (typically 10 mm to 50 mm) , releasing the aluminum strands from the steel core. Once the material is sufficiently liberated, it passes through a magnetic separation system where ferrous steel is extracted from the non-magnetic aluminum fraction. This process enables efficient recovery of both metals while maintaining high separation purity.

To ensure stable industrial operation, modern ACSR recycling systems are equipped with wear-resistant cutting components, continuous conveying systems, and integrated dust collection units. Dust and fine particles generated during shredding are captured through filtration systems, creating a cleaner working environment and supporting safer plant operation. By transforming complex composite conductors into high-value recyclable metals, the ACSR Cable Recycling Machine provides a practical and profitable solution for modern metal recycling operations. For more information about the machine or to schedule a factory visit (in-person or virtual), feel free to contact our sales team.
