Recycling Solution Details

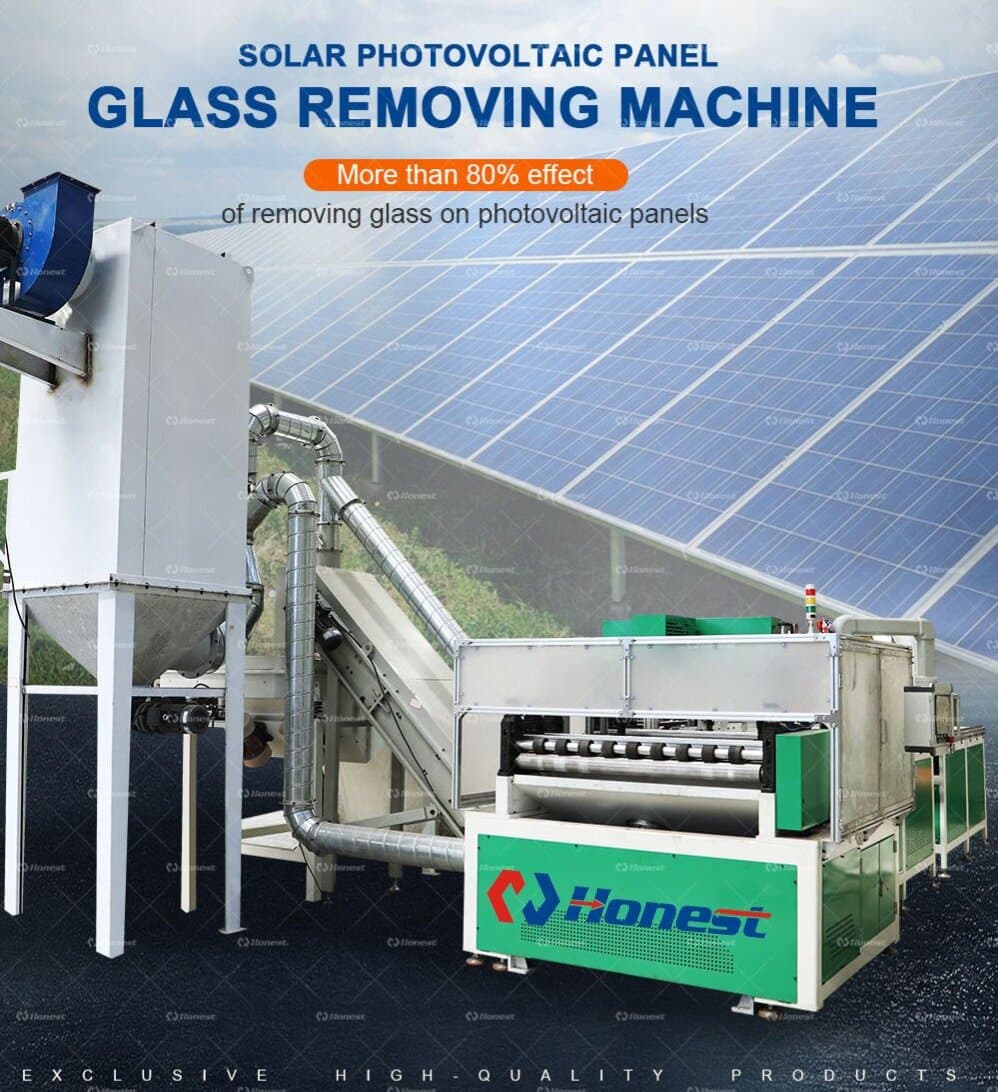

This Solar Photovoltaic Panel Glass Removing Machine is a specialized, single-unit system designed for the efficient recycling of end-of-life solar panels.

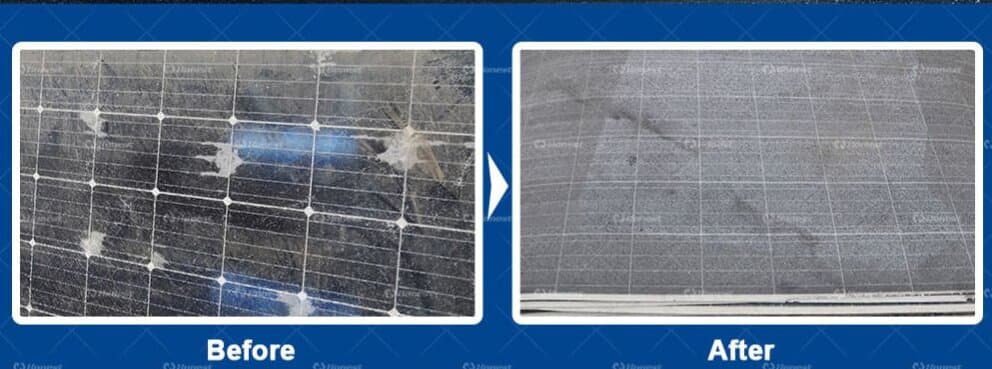

Raw Material

Its primary function is to separate the glass layer from decommissioned PV modules, preparing the remaining materials for further processing.

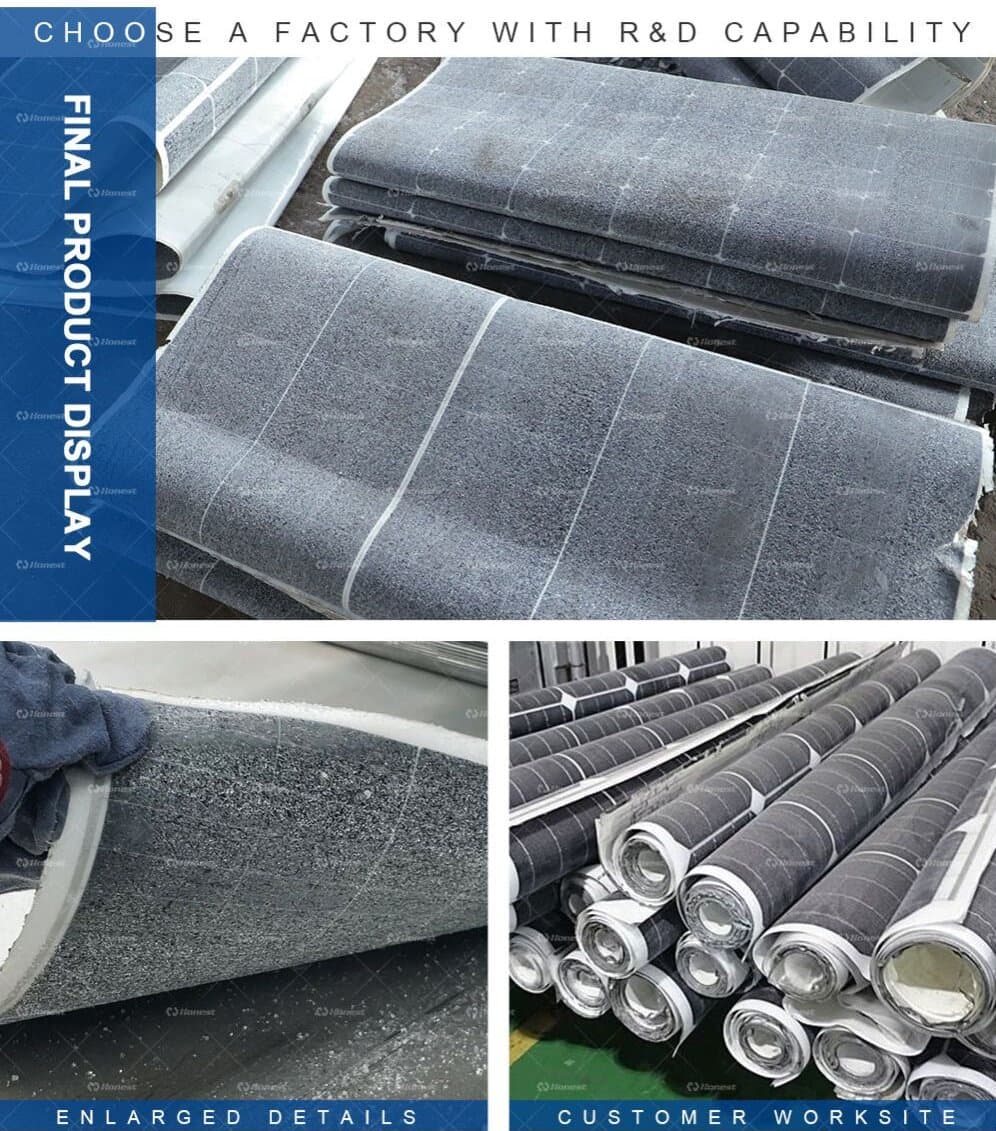

Final Products

(Above) Its main function is to separate the glass from end-of-life solar PV panels (following the removal of the aluminum frame and junction box), resulting in the Cell/EVA sheet.

Technical Parameters

Model	HN-GR-1000
Power	26kw
Biggest input width	1250mm (customized)
Speed	70-90 pcs per hour
Capacity	1400-2000kg per hour
Glass removal ratio	above 88%
Machine Dimension	(4+2)*1.6*2.5m
Dimension	(4000+2000)*2400*2500mm

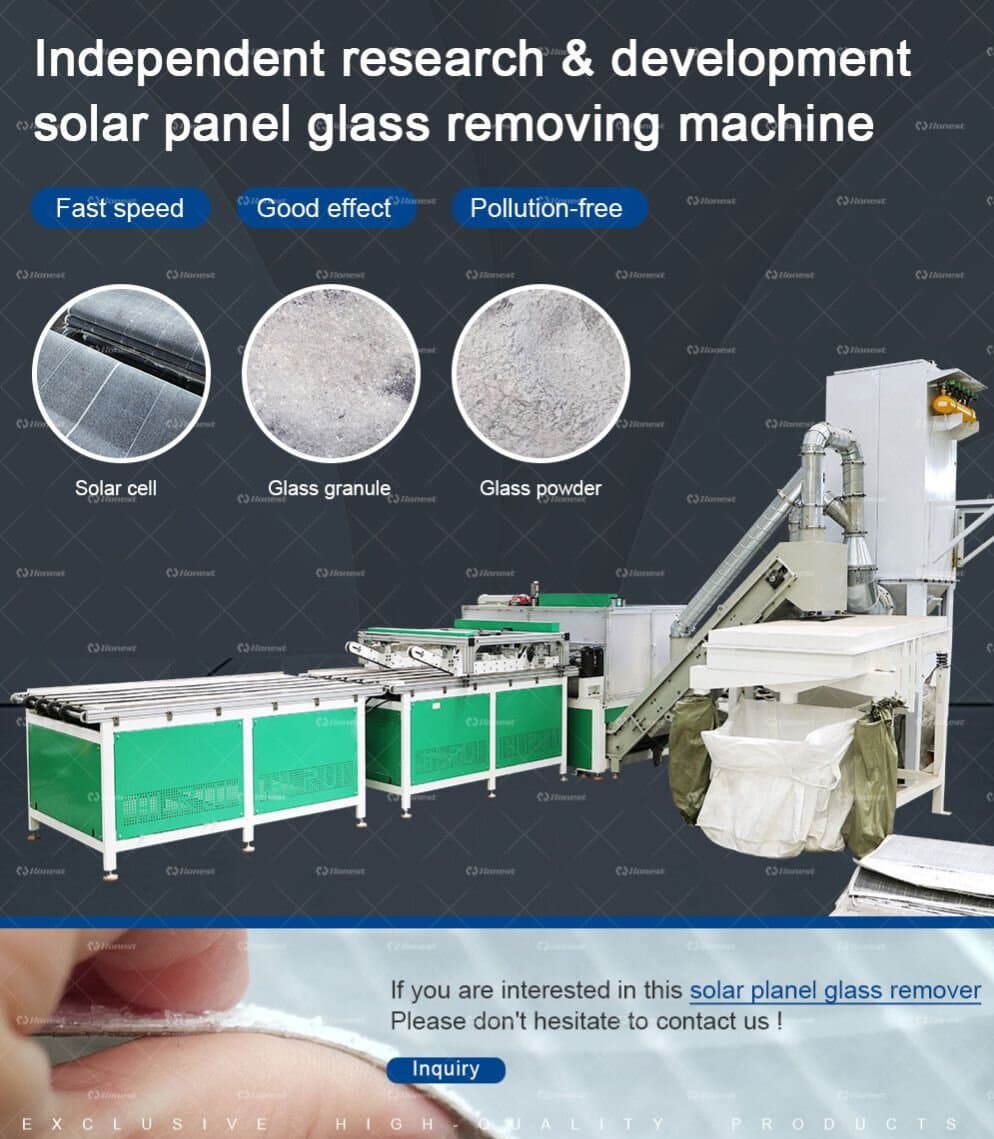

Key components of Solar PV Glass Removing Machine

The machine is engineered to handle various panel sizes, featuring an integrated glass separation, collection, classification, and dust control system.

Key components include a 108-blade glass milling cutter, a three-layer vibrating screen, and a dedicated conveyor belt, all contributing to streamlined, automated operation.

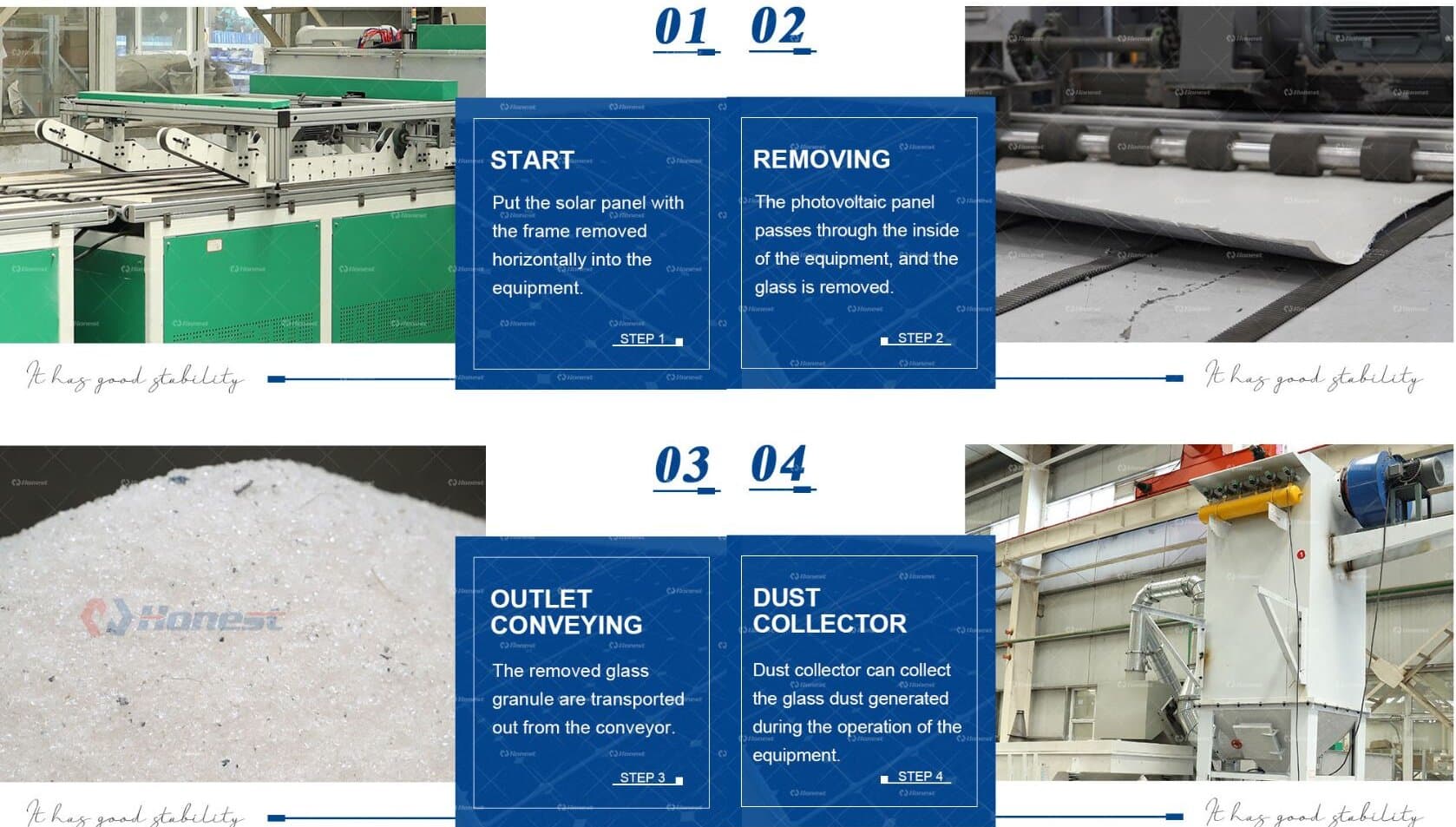

Achieving a glass removal rate of 85% to 95%, this machine can process 60 to 70 panels per hour, with a power consumption of 30.5 kW. The equipment measures 9200mm x 5200mm x 4200mm and weighs 7.02 tons. It incorporates a 36-bag dust collection system to minimize environmental impact. The process involves horizontally feeding frame-removed panels, internal glass separation, and conveyance of glass granules, with the integrated dust collector capturing any generated glass dust.

Whether you’re starting a recycling business or upgrading your current operations, our equipment provides a reliable, efficient, and eco-friendly solution. Contact us today to learn more about how our technology can support your recycling goals!

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
