Recycling Solution Details

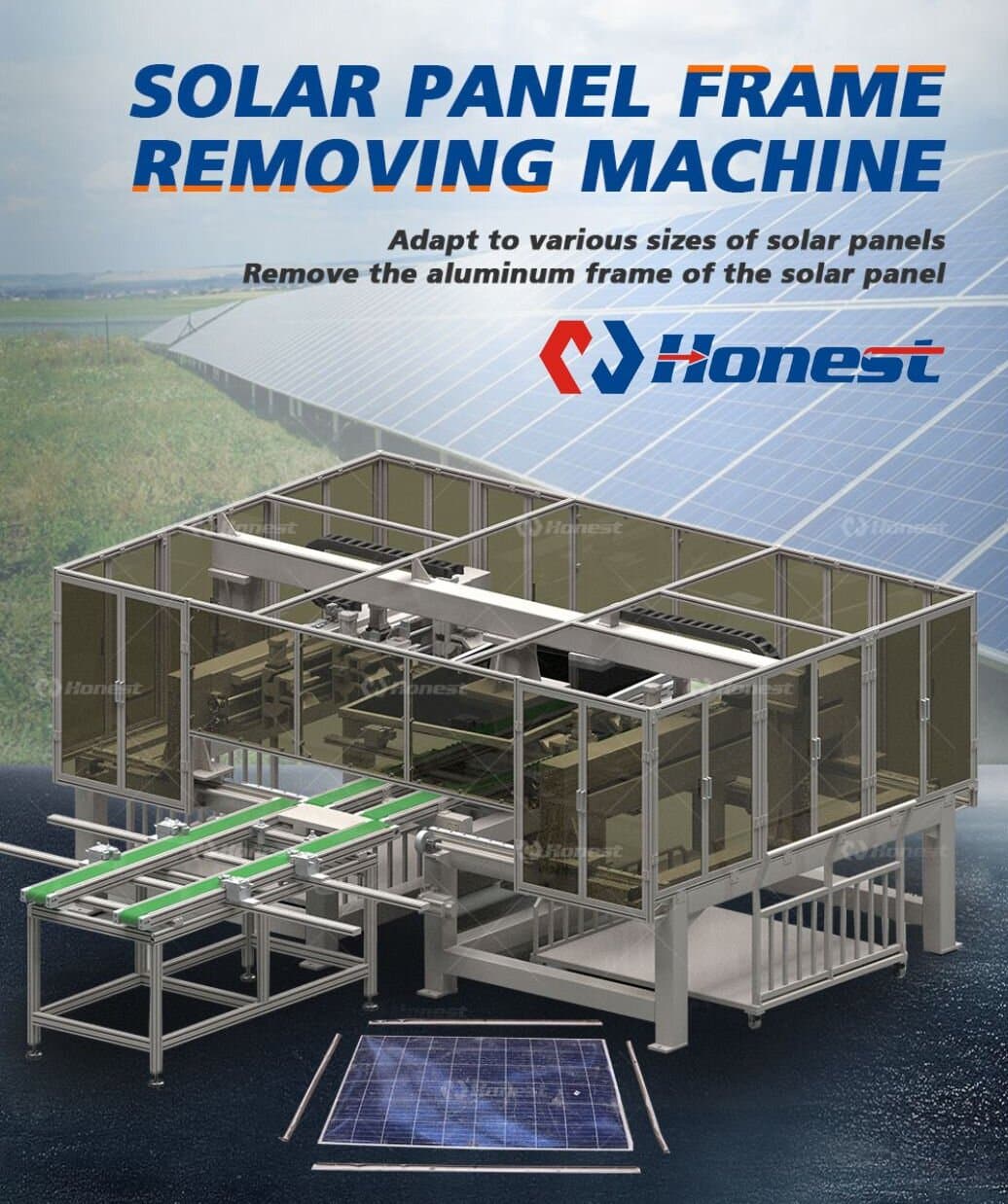

Frame Remove Machine is the pre-processing equipment of Solar PV Panels Recycling Line, which is mainly used to remove the frames of solar panels. Usually, a combination of multiple technologies is used to achieve the removal of the frame. Mechanical or hydraulic structures can quickly remove the aluminum alloy frames around the photovoltaic panels. Avoid the tedious process of manual disassembly, reduce human losses, and ensure the complete recycling of frame materials. And it is suitable for photovoltaic modules of different sizes and brands, without frequent equipment adjustments.

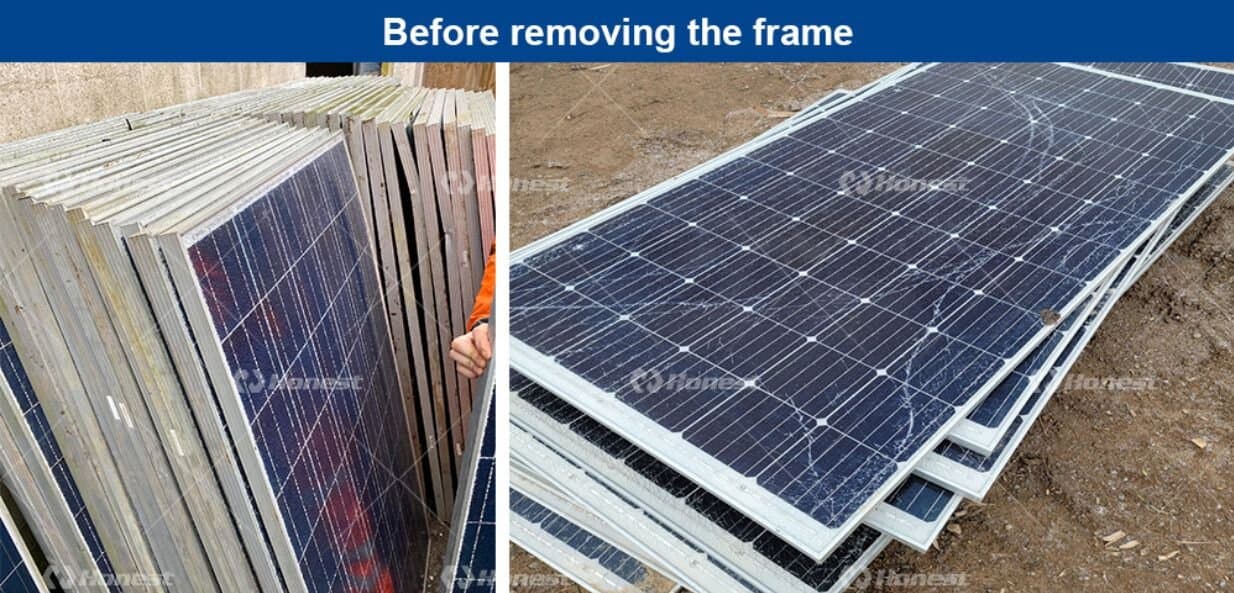

Raw Material

Solar Panels Frame Remove Machine is mainly used to dismantle the aluminum alloy frames of waste or scrapped photovoltaic panels, and is suitable for retired modules from photovoltaic power stations or rooftop solar systems. Its main raw material is solar panels with aluminum alloy frames. Through automated disassembly, the recycling efficiency is improved, which facilitates the subsequent separation and reuse of glass, silicon wafers, battery cells and other materials.

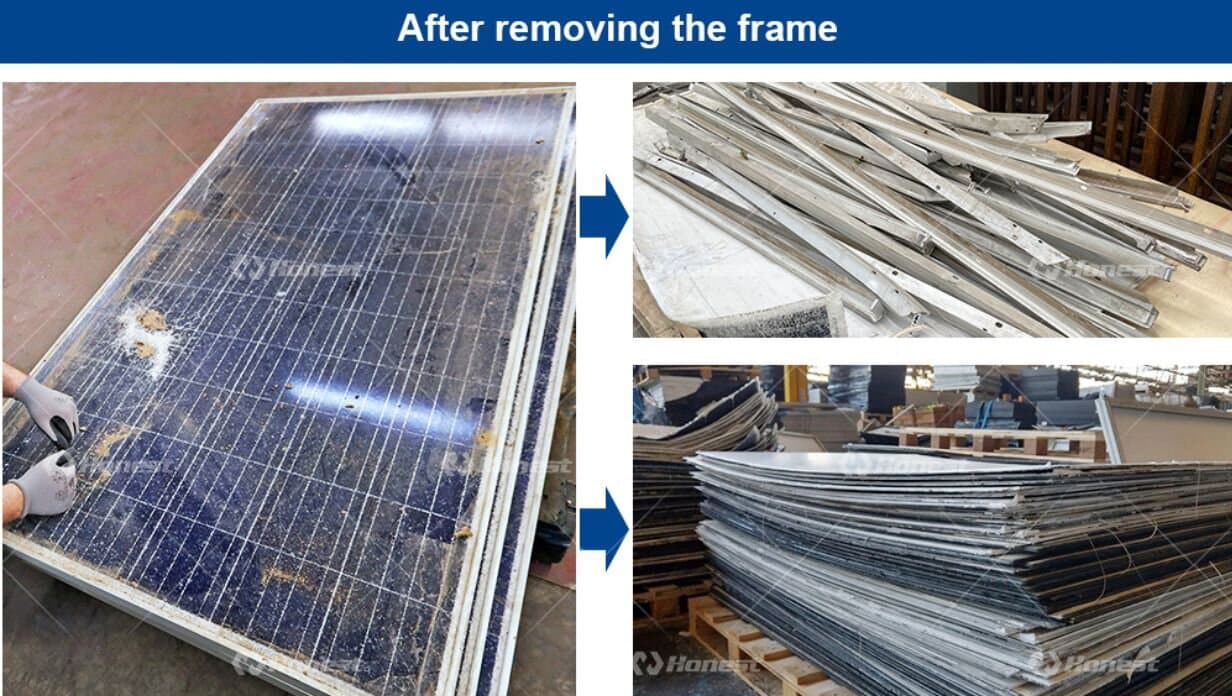

Final Products

(Above) Aluminum frame is product of frame removing machine, the purity is 100%.

Technical Parameters

Model	HN-FR-500
Design pressure	1-2T
Motor (KW)	5.5kw
Voltage	200v/60Hz
Oil pump	2*1
Hydraulic stroke length	150mm
Control method	Fully automatic/manual operation
Design times	6-8times/min
Overall size	1.9mx1.7mx1.7m
Total Weight	1 T

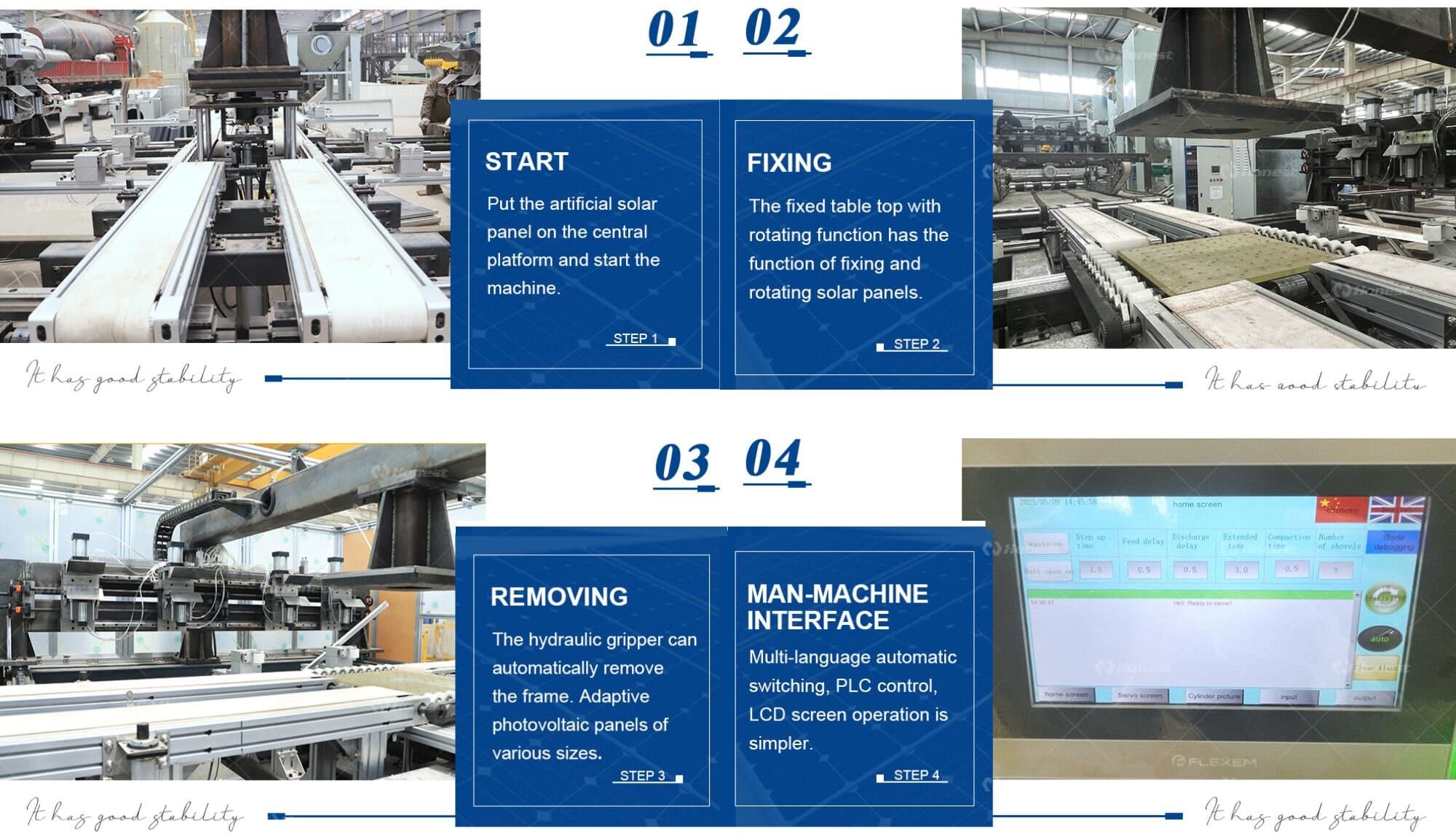

Workflow Aluminum Frame Remove Machine

START → FIXING → REMOVING → CUSTOMIZATION
Put the artificial solarpanel on the centralplatform and start themachine.The upper hydraulicdevice falls and pressesthe solar panel to fix it.The hydraulic device atthe bottom spreads outall around, and the steelmold takes the frameapart.The demoulding mold canbe customized accordingto requirements to adaptto different sizes of solarpanels.

Solar Panels Frame Remove Machine is a device specially used to remove the aluminum alloy frames of waste photovoltaic panels. It is usually the first step in the photovoltaic panel recycling production line, which can efficiently and automatically peel off the metal frames of photovoltaic modules for subsequent recycling.
Frame Removing Machine is mainly composed of the following parts: frame, electrical control (PLC, touch screen, etc.), drive system (cylinder, oil cylinder, hydraulic station), etc.

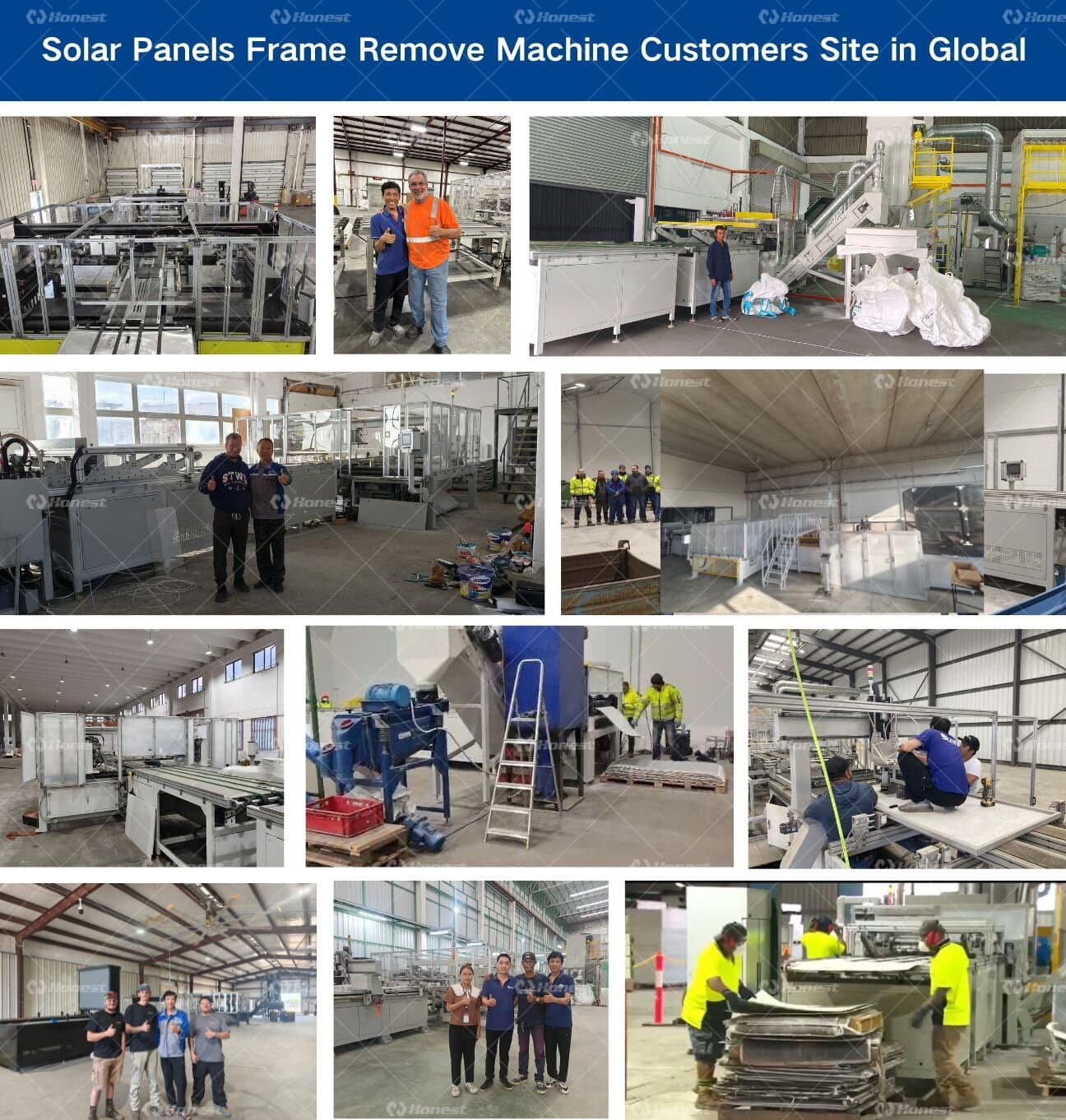

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.

We not only sell the single machine, but also the whole recycling line. Welcome to send us an inquiry for more details. You will never regret to cooperate with us who specialize in solid waste recycling machines more than 20 years.
1. Solar Panel Aluminum Frame Removing Machine

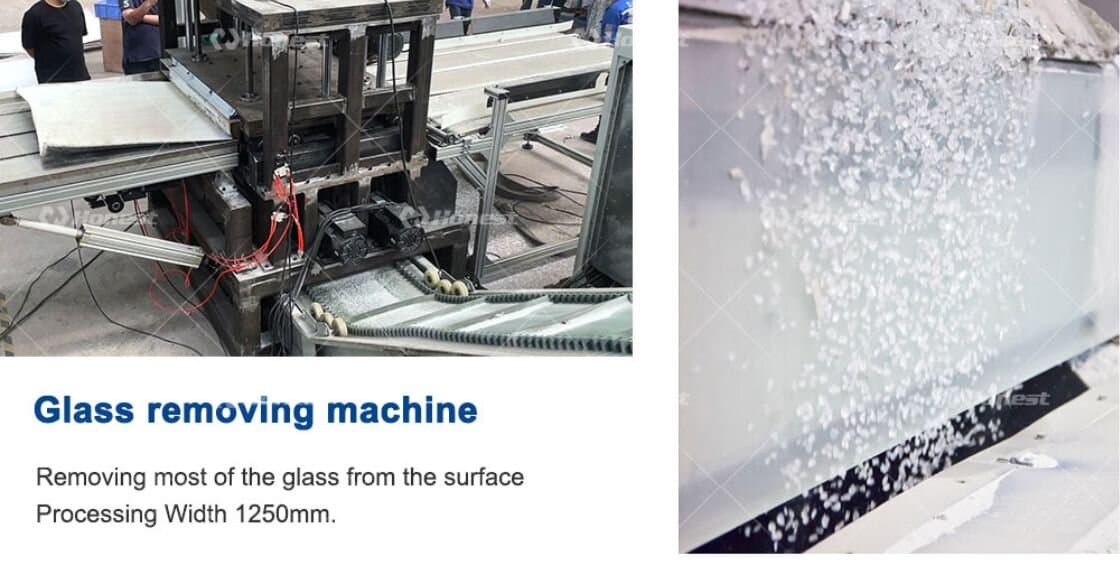

2. Solar Panel Glass Removing Machine

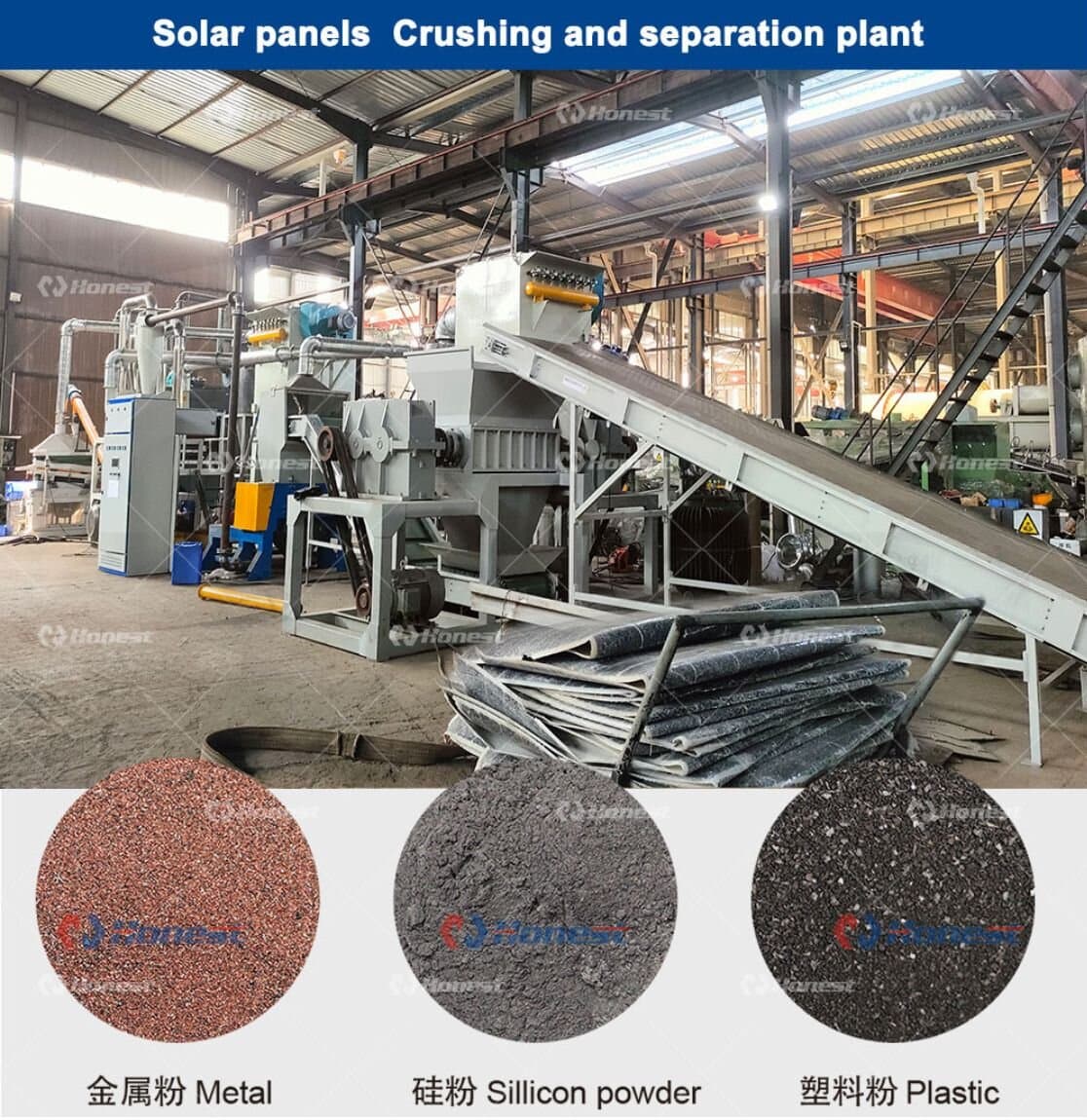

3. Solar Panels Separating Machine Recycling Line
