Recycling Solution Details

Raw Material

This machine suitable for recycling electric cable, reticle, mixed wire, car/motorcycle cable, communication cable, ordinary wire, etc. with wire diameter ranging from 0.3 mm to 20 mm.

Final Products

This machine can efficiently separate Copper,Aluminum and PVC.

Technical Parameters

Model	HN-TMJ-100
Capacity	100-200kg/h
Total Power	15kw
Volt	220V,50Hz
Dimension	1.85*1.85*2.4m
Package Size	2*2.1*2m
Weight	1.2t
Wire Diameter	0.3-20mm

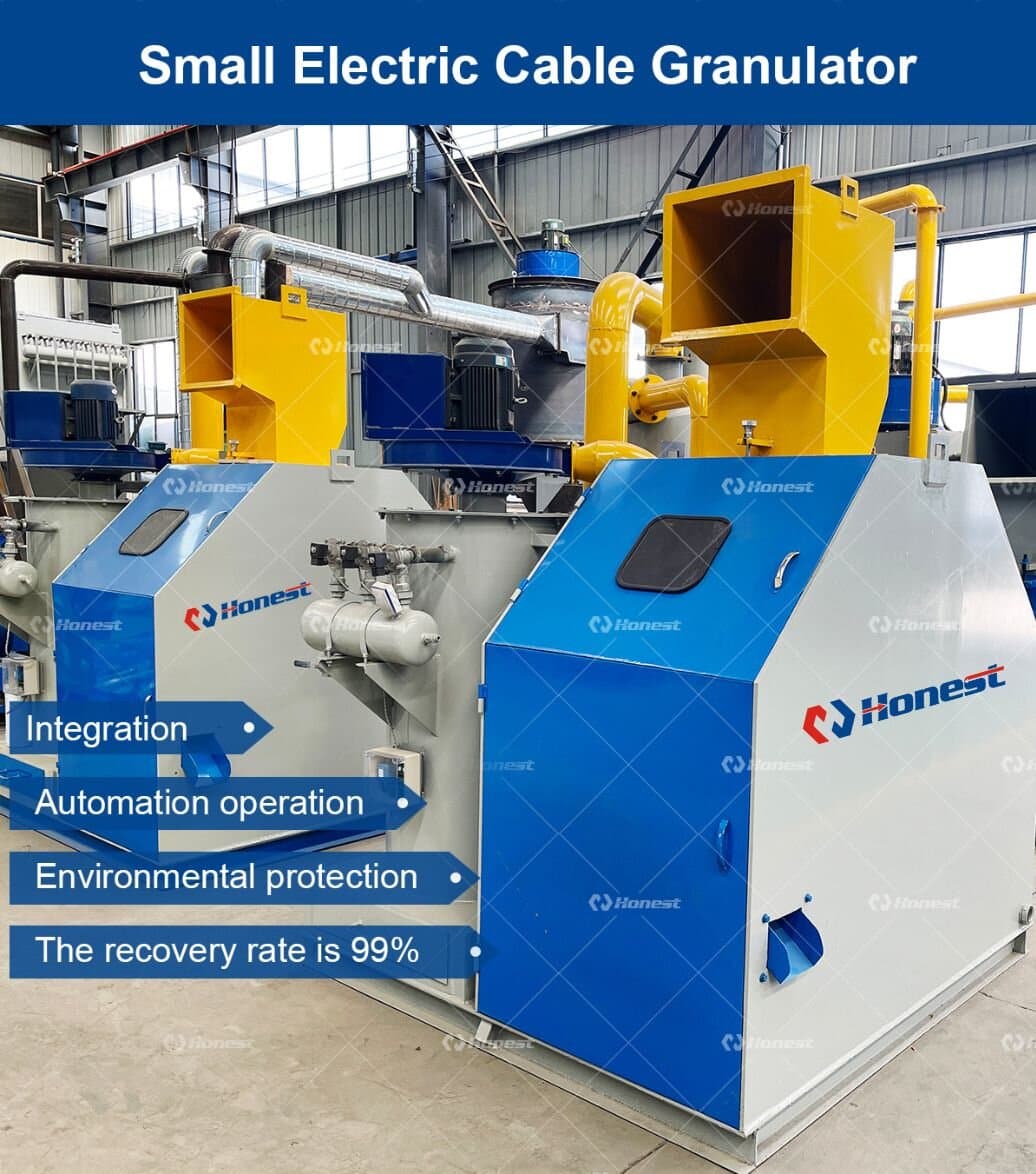

Key components of Small Electric Cable Granulator Machine

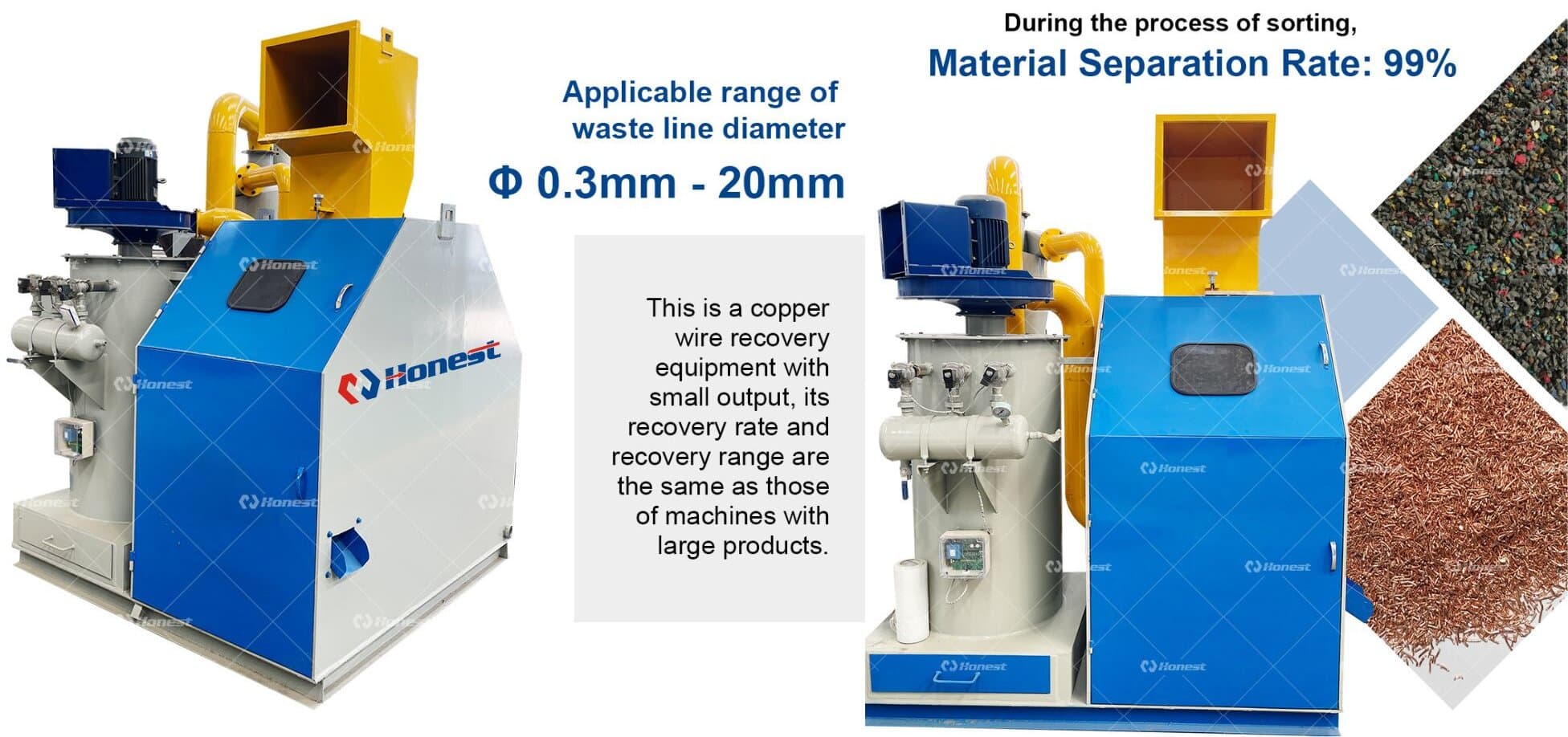

The machine has the same recovery rate and range as the larger machines despite the smaller output. Its material separation rate is up to 99%, ensuring efficient recycling.

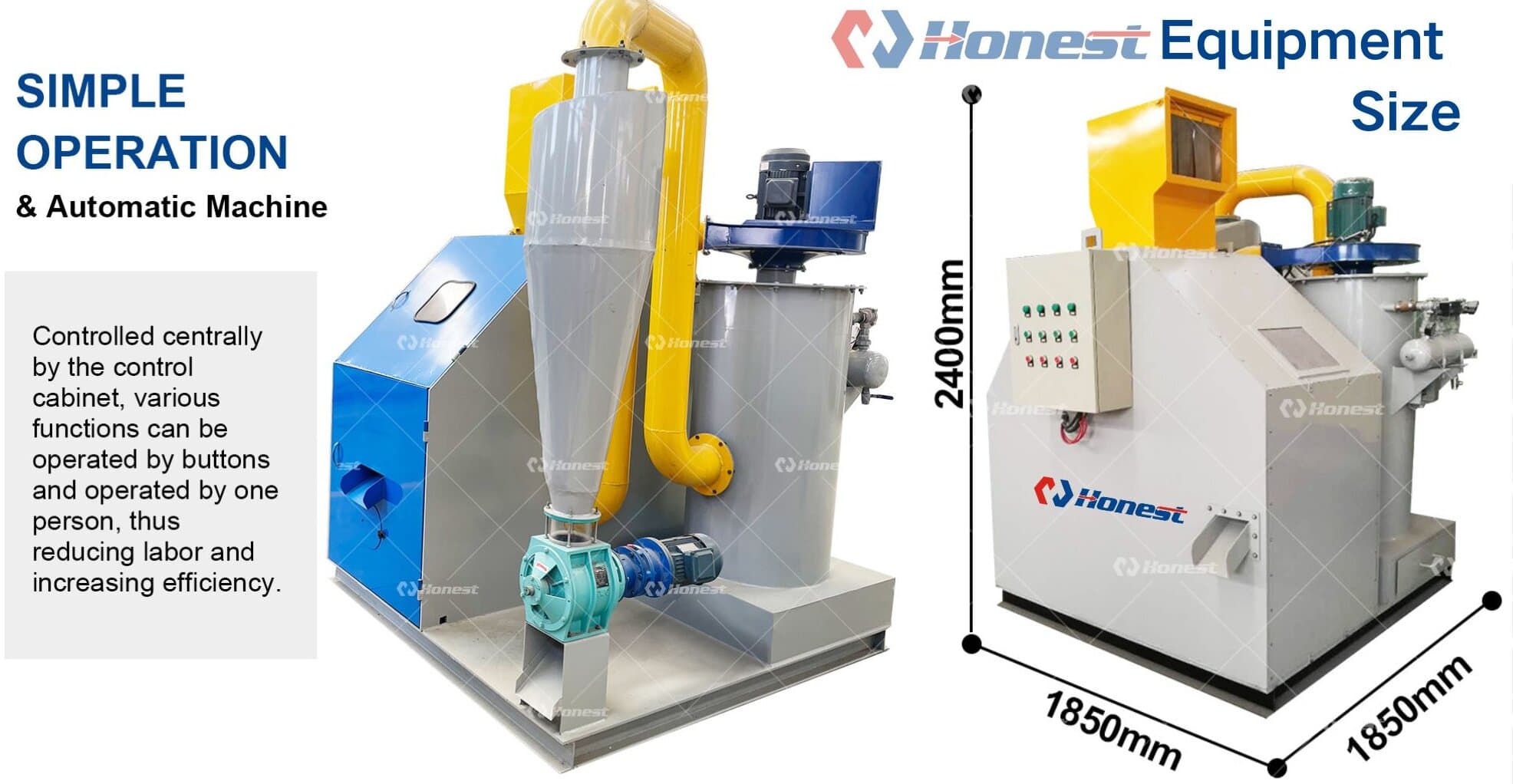

The machine is designed for automation and easy operation. Centralized control through the control cabinet, all kinds of functions can be operated by buttons, which can be completed by one person, effectively reducing labor and improving work efficiency. The high degree of automation simplifies the recycling process and improves the production efficiency.

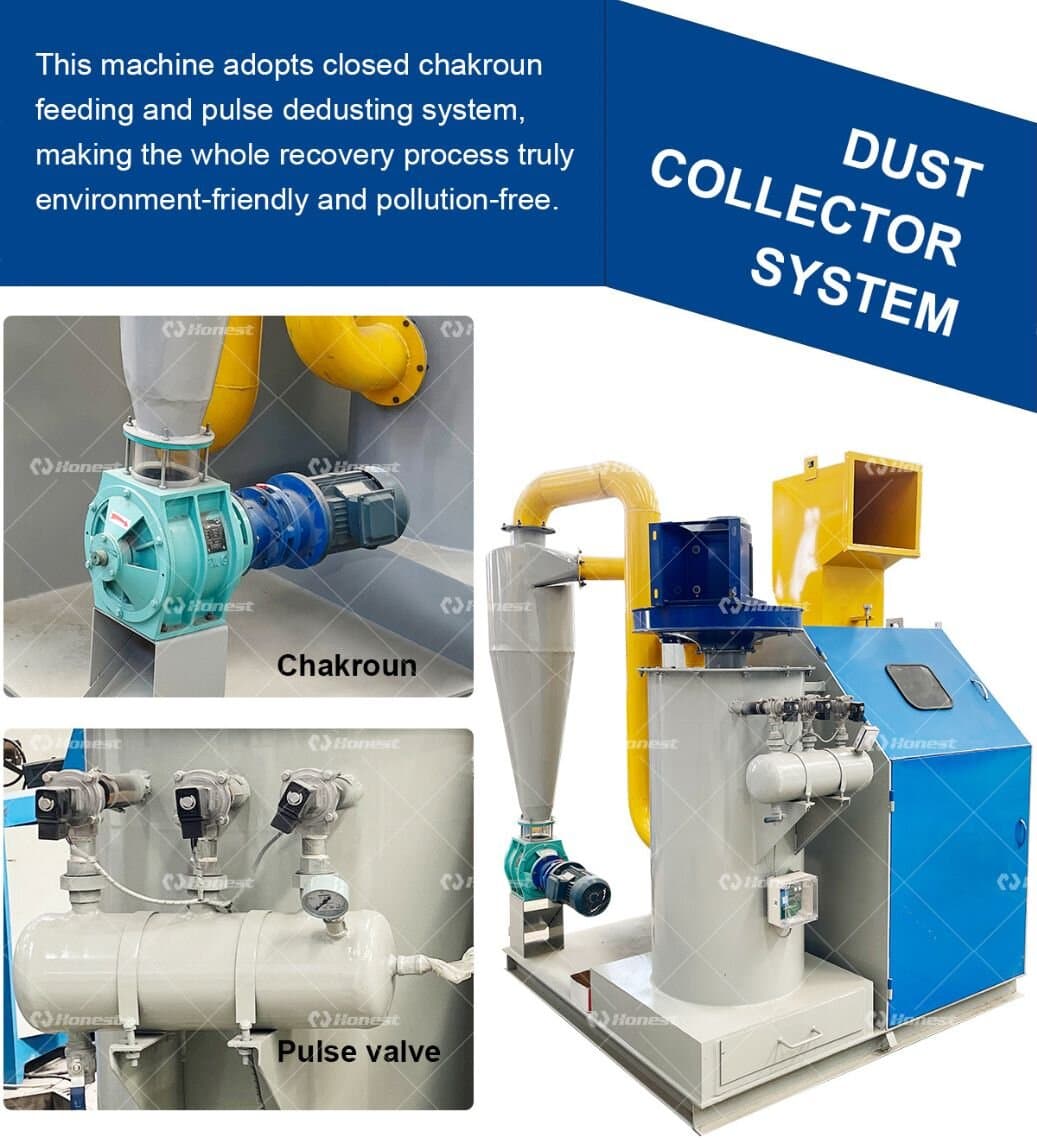

The machine adopts the closed winch feeding and pulse dust removal system to ensure that the whole recycling process is truly environmentally friendly and pollution-free. The enclosed design effectively reduces dust and noise, and protects the operator’s health. The pulse dust removal system collects dust efficiently, which meets the environmental standards and realizes clean production.

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.

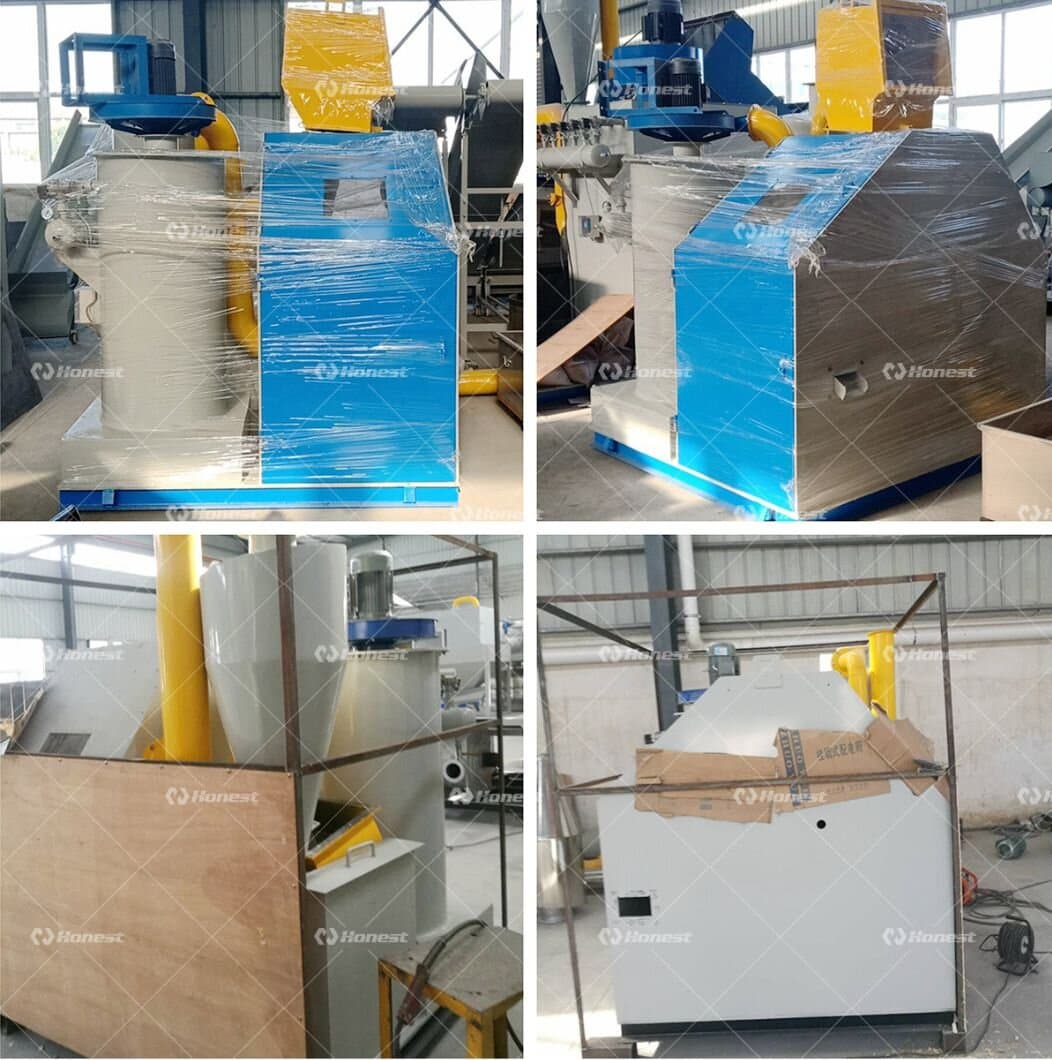

Small Cable Granulator will be packed with film first to protect the machine from humidity during long time sea transportation and then be packed with wood case to protect the machine from damages.
