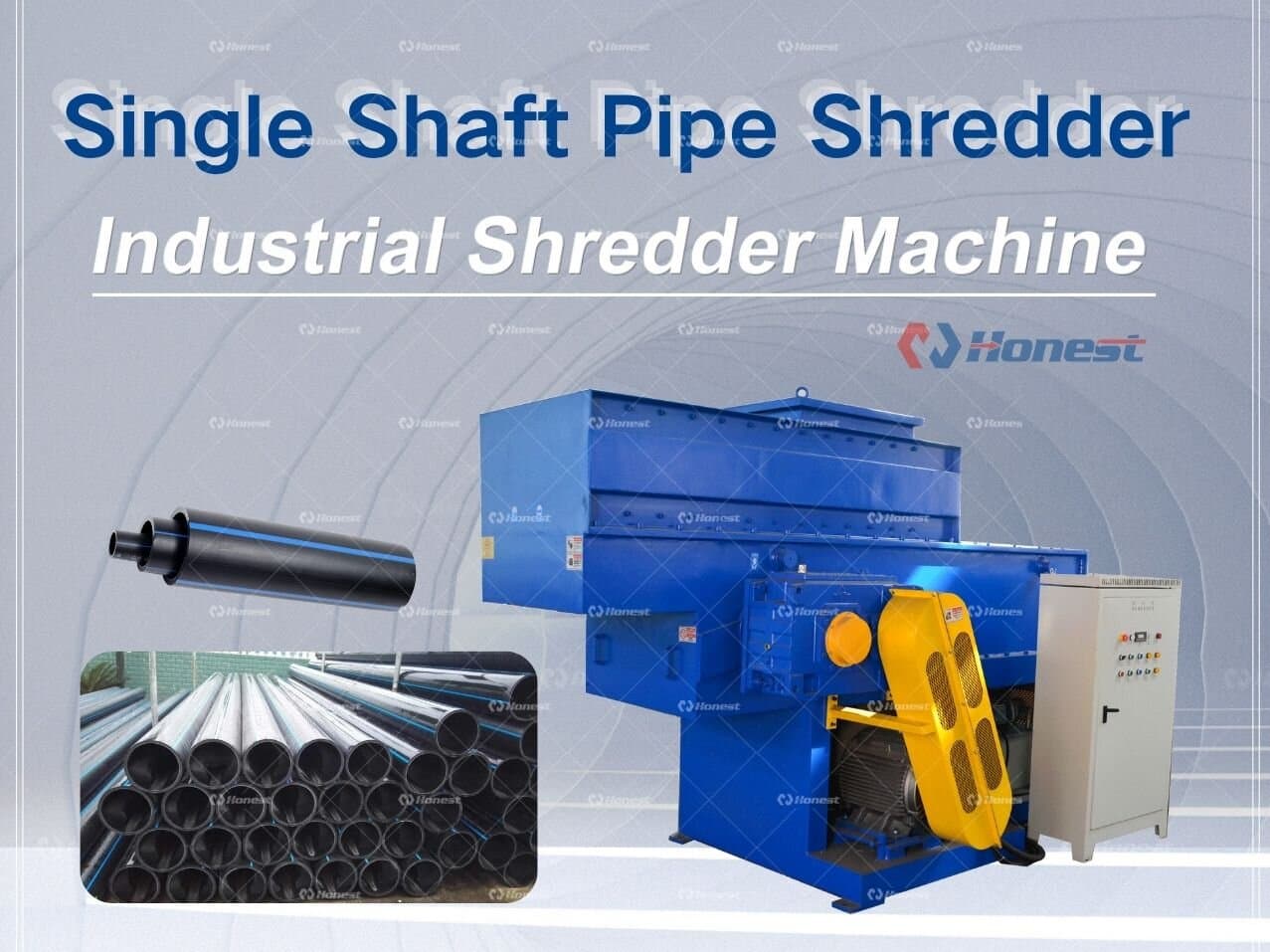

Single Shaft Pipe Shredder Machine

Recycling Solution Details

This heavy-duty single-shaft shredder is specifically designed for crushing hard-to-break plastic pipes. It features powerful shredding capability, intelligent operation, and flexible configuration options, ensuring uniform output size and reliable performance.

Single Shaft Pipe Shredder Machine:

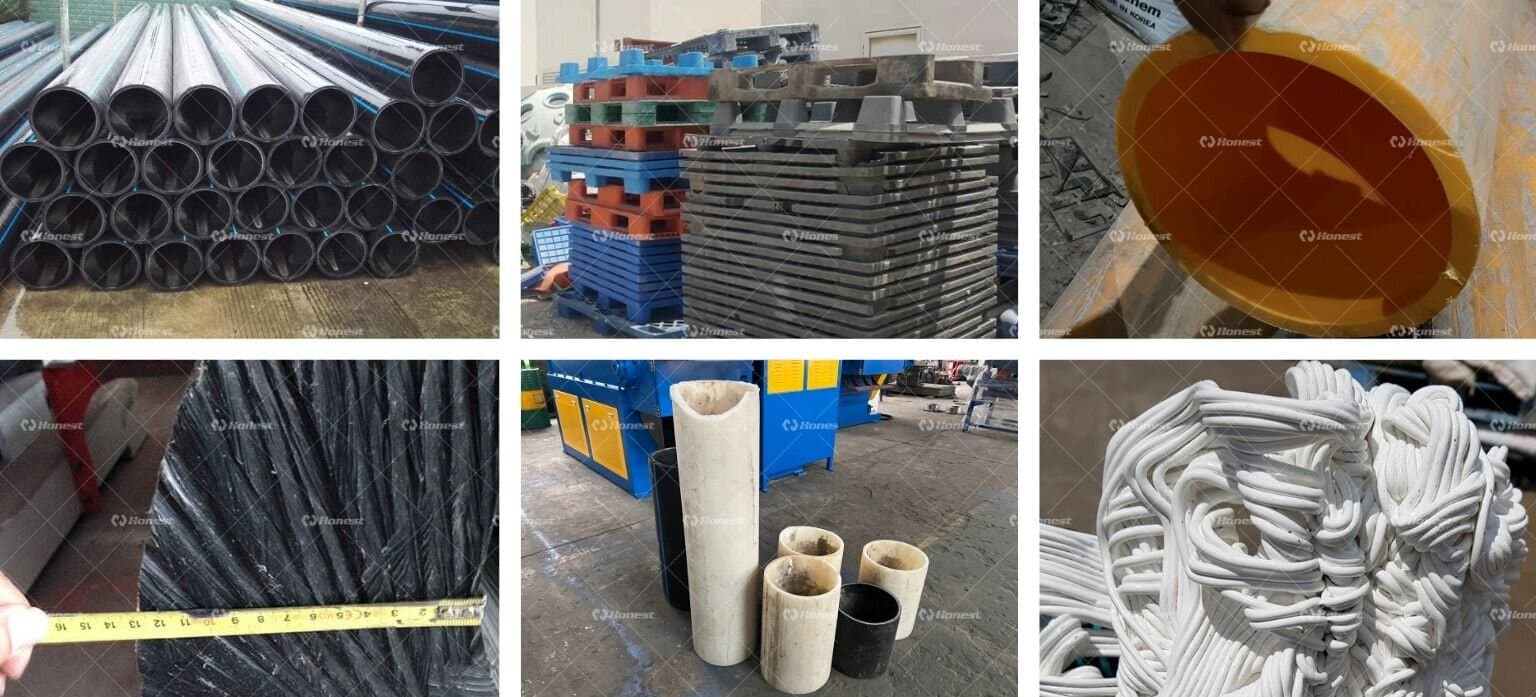

Single shaft pipe shredder is used to crush the plastics which is hard to process and is suitable for recycling all kinds of bulk solid materials, plastic containers, plastic drums, tubes, film, large diameter PE/PP/PPR/ABS/PVC pipes, like 1000mm gas pipe, thick wall water supply pipe and other large-caliber pipe materials, etc.

Technical Parameters

Model	HNSP600	HNSP700	HNSP800	HNSP1000	HNSP1200
Motor Power	22 Kw	37 Kw	45 Kw	55 Kw	75 Kw
Rotor Blades	26+4 pcs	39 pcs	34+6 pcs	46+6 pcs	56+6 pcs
Fixed Blades	2 pcs
Blade Material	Cr12MoV/SKDII/D2
Rotor Speed	75 rpm
Rotor Diameter	260 mm	280 mm	400 mm	400 mm	400 mm
Max Pipe Diameter	400 mm	500 mm	630 mm	800 mm	1000 mm
Feeding Size	480*480 mm	580*580 mm	680*680 mm	880*880 mm	1080*1080 mm
Cutting Chamber	600*600 mm	700*600 mm	800*800 mm	1000*1000 mm	1200*1200 mm
Hydraulic Power	2.2 Kw	2.2 Kw	3 Kw	4 Kw	5.5 Kw
Cylinder Stroke	600 mm	600 mm	800 mm	1000 mm	1200 mm
Dimension L/W/H	1800*1600*1950 mm	2000*1780*2050 mm	2500*1980*2250 mm	3000*2000*2450 mm	4200*2150*2450 mm
Weight	2400 Kg	3200 Kg	4000 Kg	4800 Kg	7600 Kg

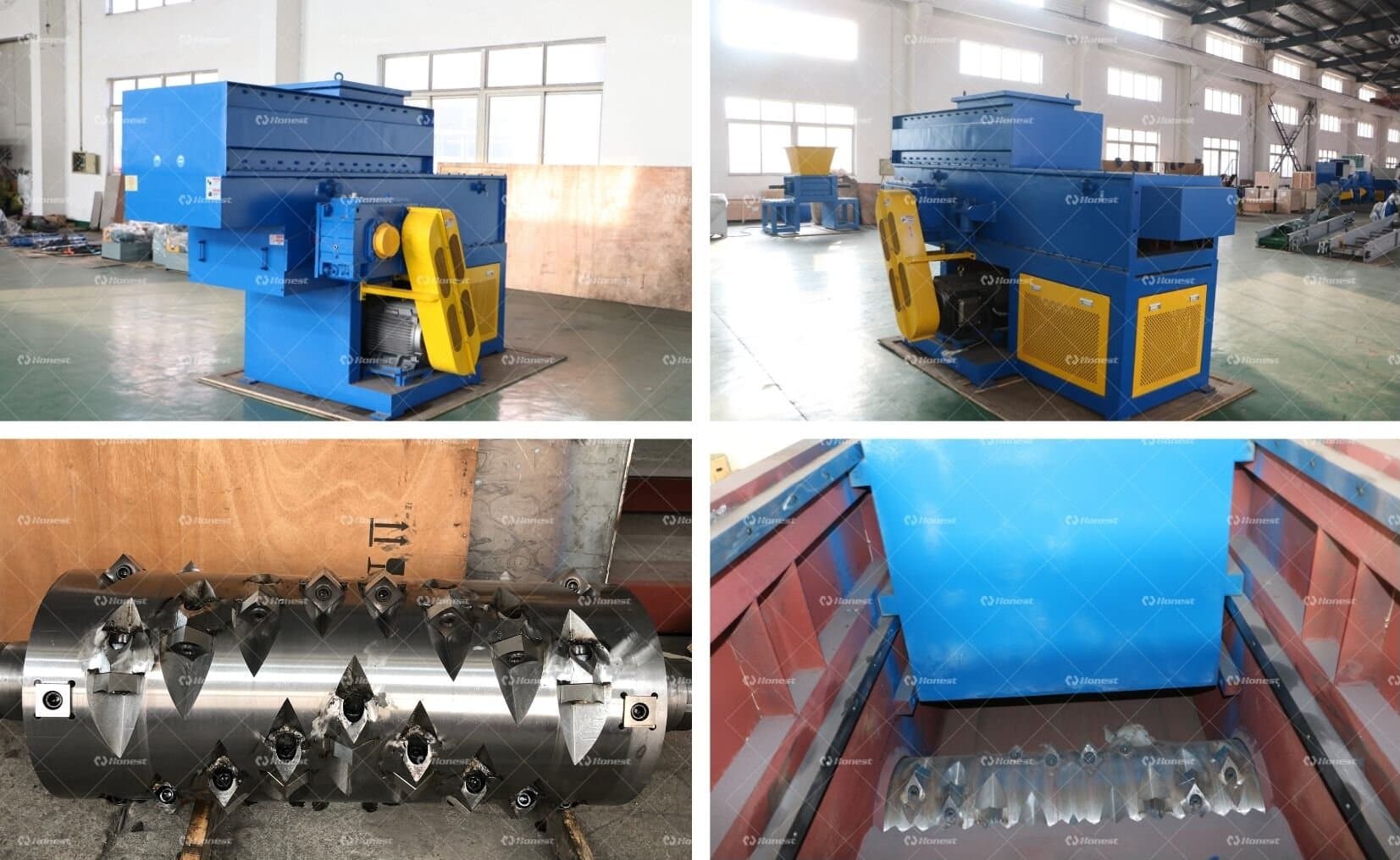

Key components of Single Shaft Pipe Shredder

The single-shaft pipe shredder mainly consists of a frame, motor, reducer, main shaft, movable blades, fixed blades, hydraulic pushing system, and screen. Materials enter the shredding chamber through the hopper. The hydraulic pushing system pushes the material towards the rotating rotor on the main shaft. The high-speed rotating movable blades and the fixed blades mounted on the machine frame create a shearing and tearing action, breaking large pipe sections into smaller flakes. The shredded material is discharged after passing through the screen to reach the desired size. Materials that do not meet the size requirement are recirculated for further shredding until they comply.

Single Shaft Pipe Shredder Advantages Description:

Equipped with a high-torque, low-speed single-shaft rotor, combined with a unique movable and fixed blade design, it easily handles various thick-walled, high-strength plastic pipes.
A unique feeding and pushing system ensures uniform material entry into the shredding chamber, preventing bridging and improving shredding efficiency.
Equipped with a PLC intelligent control system, enabling automatic operation, overload protection, and fault alarms to ensure safe and stable equipment performance.
One-button start/stop and a user-friendly operating interface reduce manual intervention and improve production efficiency.

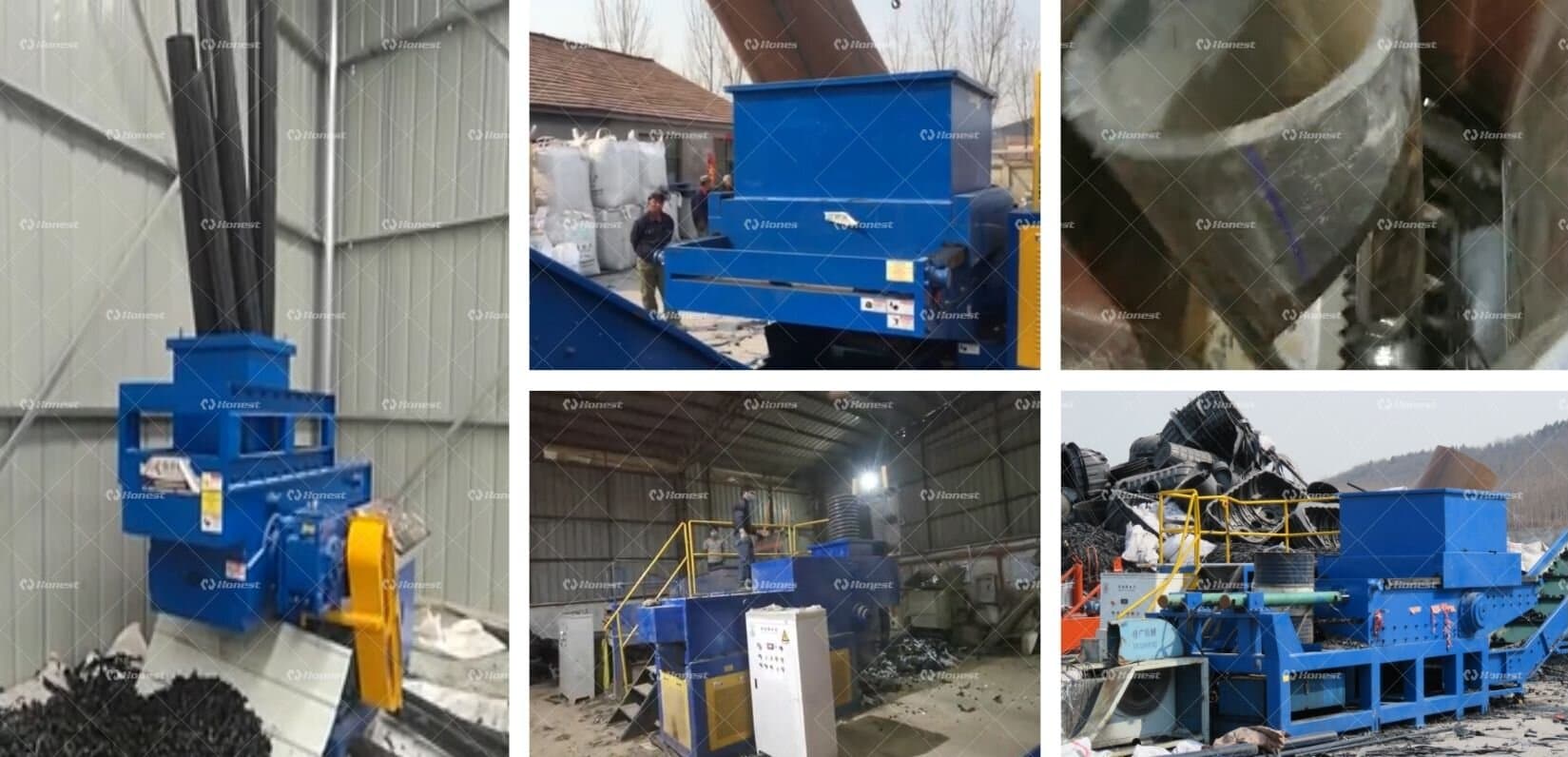

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2. Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
