Recycling Solution Details

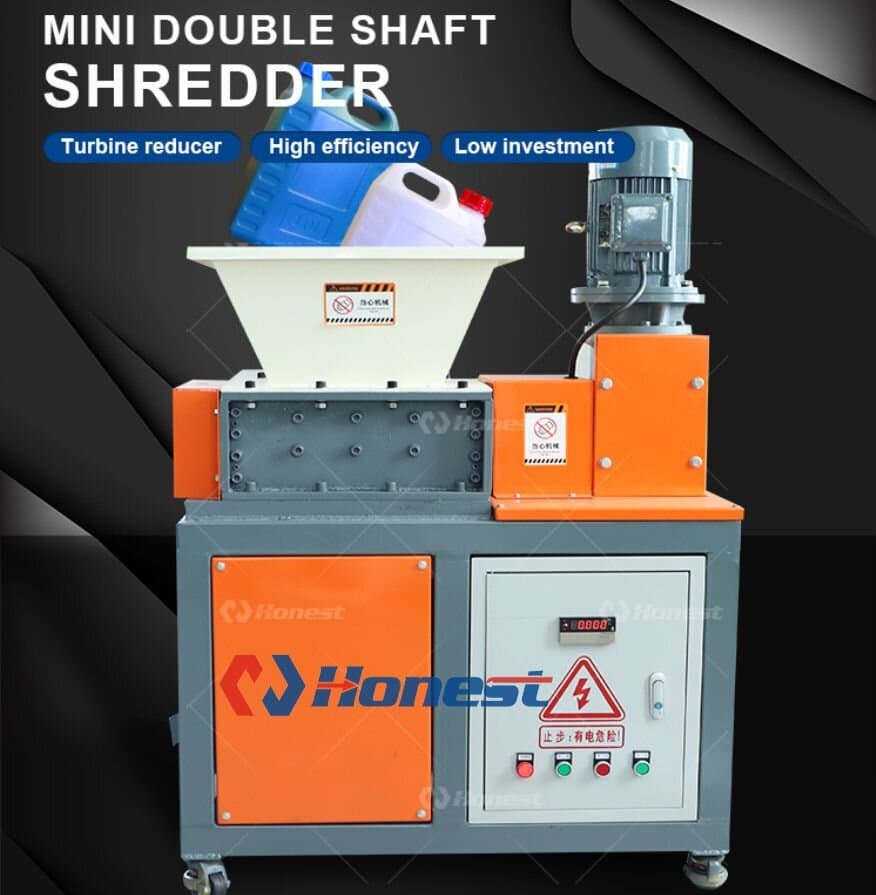

The HONEST Mini Twin Shaft Shredder is a compact version of the industrial twin shaft shredder, designed for smaller operations and handling lightweight materials. Despite its smaller size, it retains the core functionality of its larger cousins, utilizing two counter-rotating shafts and interlocking blades to shred material. Mini Twin Shaft Shredders are typically driven by electric motors, providing quiet and reliable operation. Energy-efficient designs reduce operating costs. Equipped with safety switches and overload protection to prevent damage and ensure operator safety. Some models have a reverse function to release material jams. The simple design and durable construction minimize maintenance requirements.

Raw Material

Small Double Shaft Shredder Machine is especially for shredding fabric,waste tires,various solid materials, unmanageable materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle. The main body of the equipment is welded with high quality steel plate to eliminate stress treatment/integral machining to ensure the stability of the equipment under heavy load for a long time.

Final Products

The main final products of single-shaft shredders include size-reduced plastics, wood, paper and cardboard shreds, textile shreds, pre-processed municipal solid waste, and separated electronic component materials. These products can be easily recycled, reused or further processed after shredding.

Technical Parameters

Model	Feed inlet	Machine size	Weight	Power
HN-M180A	0.3×0.18 m	1.2×0.6×1.0 m	320kg/340kg	380v 4kw
HN-M180B	0.3×0.18 m	0.9×0.6×1.0 m	350kg	380v 5.5kw
HN-M180C	0.3×0.18 m	1.0×0.8×1.0 m	320kg	380v 5.5kw
HN-M280	0.3×0.28 m	1.4×0.6×1.0 m	520kg	380V 5.5kw*2
HN-M300C	0.3×0.3 m	0.8×1.0x1.0 m	430kg	380v 7.5kw
HN-M400A	0.4×0.4 m	1.2×0.6×1.2 m	680kg	380v 15kw
HN-M400C	0.4×0.4 m	1.0×0.9×1.0 m	780kg	380v 7.5kw
HN-M500	0.4×0.5 m	1.9×0.6×1.2 m	1200kg	380V 15kw*2
HN-M600	0.4×0.6 m	2.2×0.6×1.2 m	1500kg	380V 15kw*2

Key components of Mini double shaft shredder machine

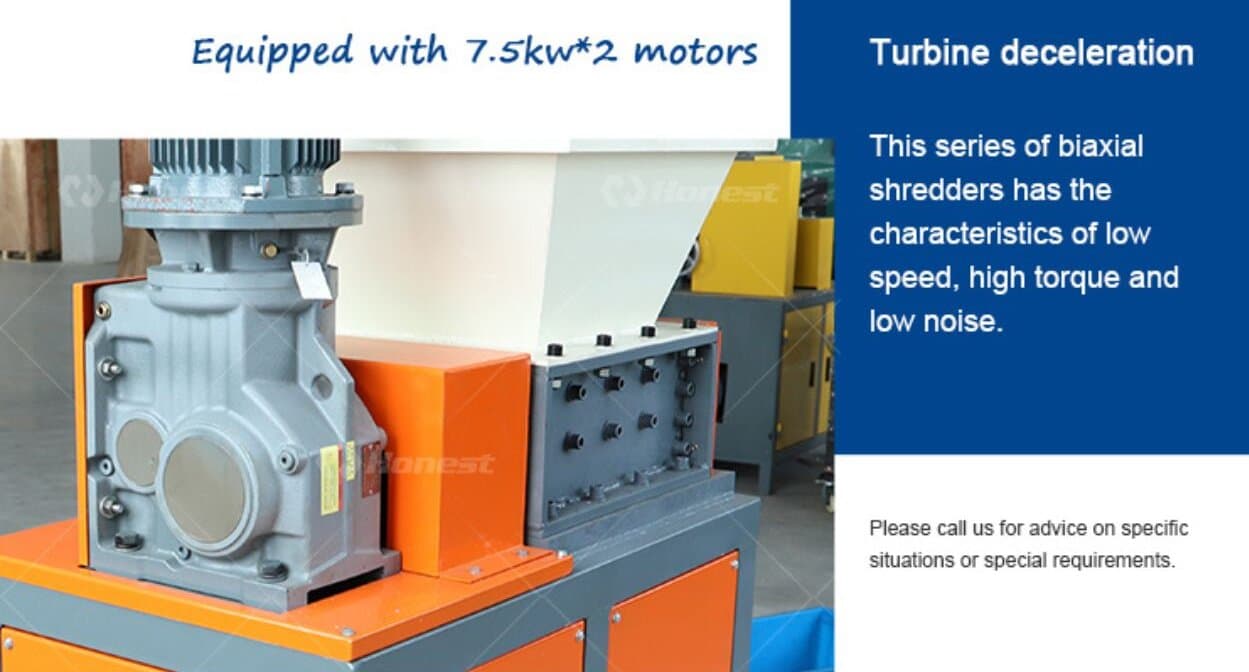

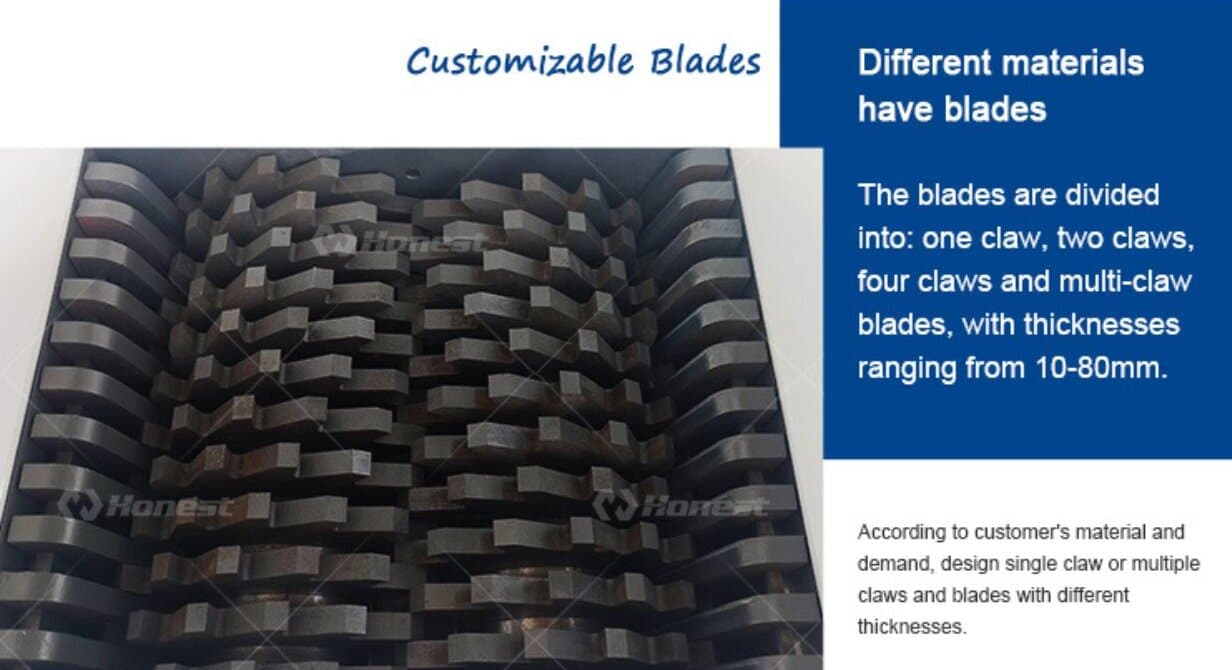

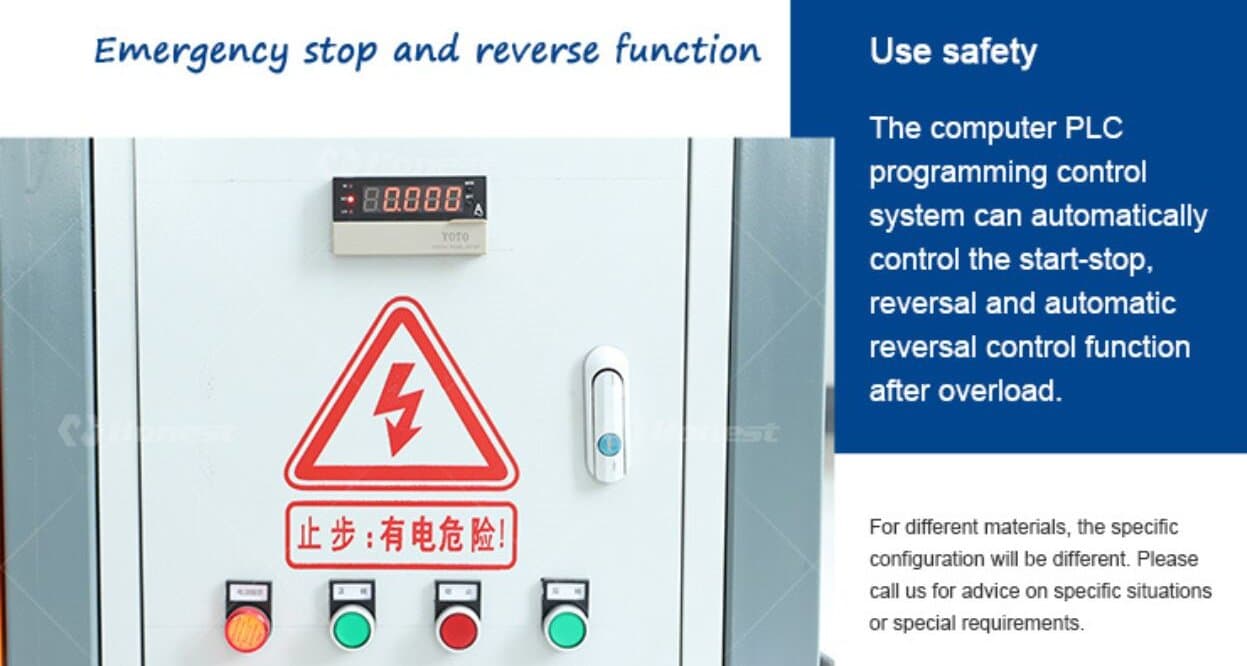

Designed for a wide range of applications, this mini twin-shaft shredder is capable of shredding a variety of waste materials and is suitable for scenarios with limited throughput. The main body of the machine is made of high quality welded steel plate which is stress relieved to ensure superior material quality. The equipment has good stability under long term heavy loads. Customers can choose from a wide range of models and well-known brands of gearboxes. The machine features customizable blades for different materials. The blades are categorized into single-jaw, double-jaw, four-jaw and multi-jaw blades with thicknesses ranging from 10-80 mm.Customers can specify single-jaw or multi-jaw designs and different thicknesses of blades according to their materials and requirements. Equipped with a 7.5kw*2 motor and turbo reduction system, this series of twin-shaft shredder features low speed, high torque and low noise. For enhanced safety, the shredders are integrated with emergency stop and reverse functions. The computerized PLC programmed control system automatically manages start-stop, reverse and automatic reverse control after an overload. Specific configurations vary depending on the material being processed, so customers are advised to contact for specifics or special requirements.

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
