Recycling Solution Details

Raw Material

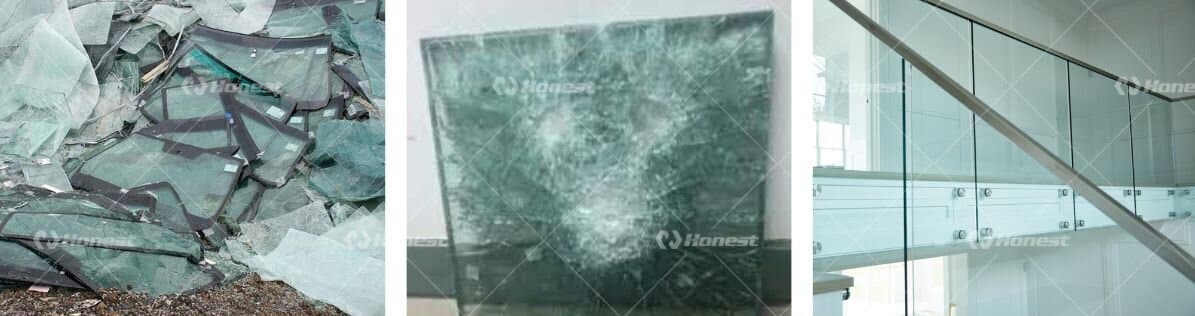

Our equipment is capable of recycling various types of laminated glass, including PVB laminated glass, widely used in automotive windshields and architectural glass in Europe and America; SGP laminated glass, commonly applied in glass lighting roofs, exterior windows, and curtain walls; and EVA laminated glass, primarily utilized for interior partitions and decorative purposes. This versatility makes our recycling solution suitable for a wide range of applications in both the automotive and construction industries.

Final Products

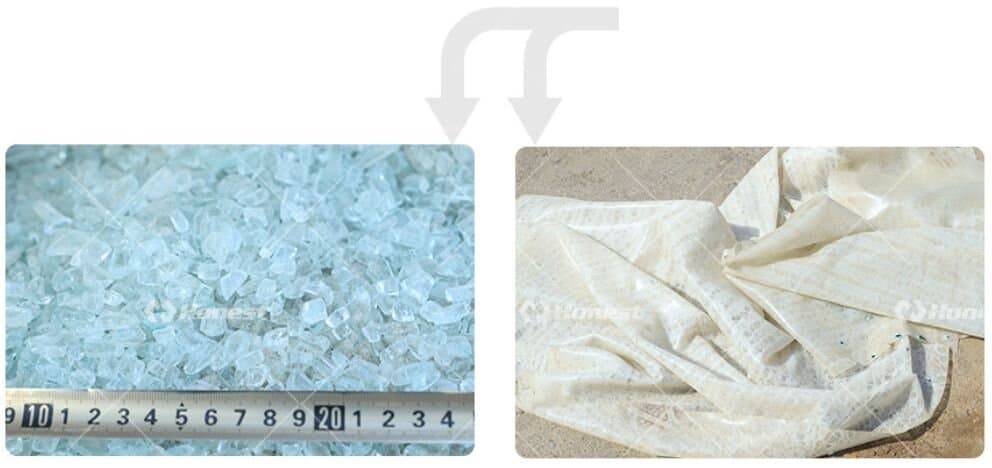

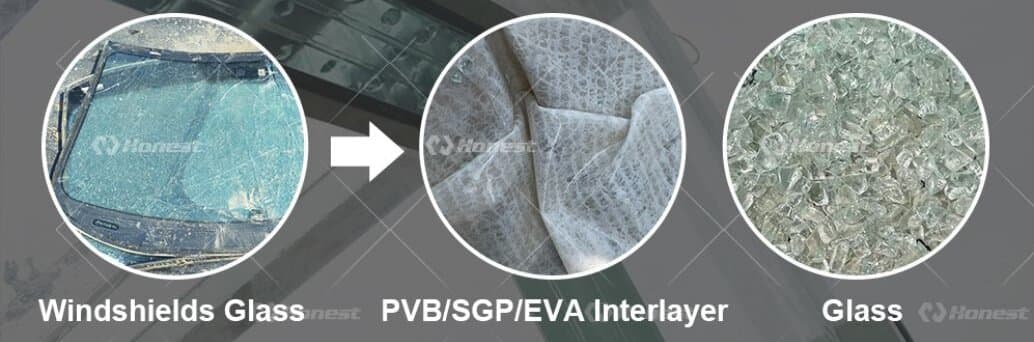

(Above) After separation by our equipment, 99% of the glass on the laminate is removedThe final output is the the whole PVB/SGP/EVA Interlayer and glass particles.

Technical Parameters

Name	Model	Size	Power
Pre-Press Machine	HN-YY-1500	2.3m x 0.8m x 1.5m	4KW
Feeding Conveyor	HN-SS-650	5.8m x 0.8m x 0.75m	2.2KW
Glass Removal Machine	HN-TJ-11	1.9m x 1.32m x 2.6m	11KW
Vibrating Screen	HN-ZZS-1500	1.5m x 0.8m x 1.4m	0.37KW
Glass Discharge Conveyor	HN-SS-500	6m x 0.7m x 0.75m	3KW
Pulse Dust Collector	HN-MC-72	1.5m x 1.5m x 4.5m	7.5KW

Mesh thickness	8mm
Mesh	20mm x 30mm
Centrifugal bottom plate thickness	12mm
Centrifugal scraper thickness	20mm
Feed port	480mm x 1080mm
Overall bracket	100mm
Channel steel welded box plate	4mm

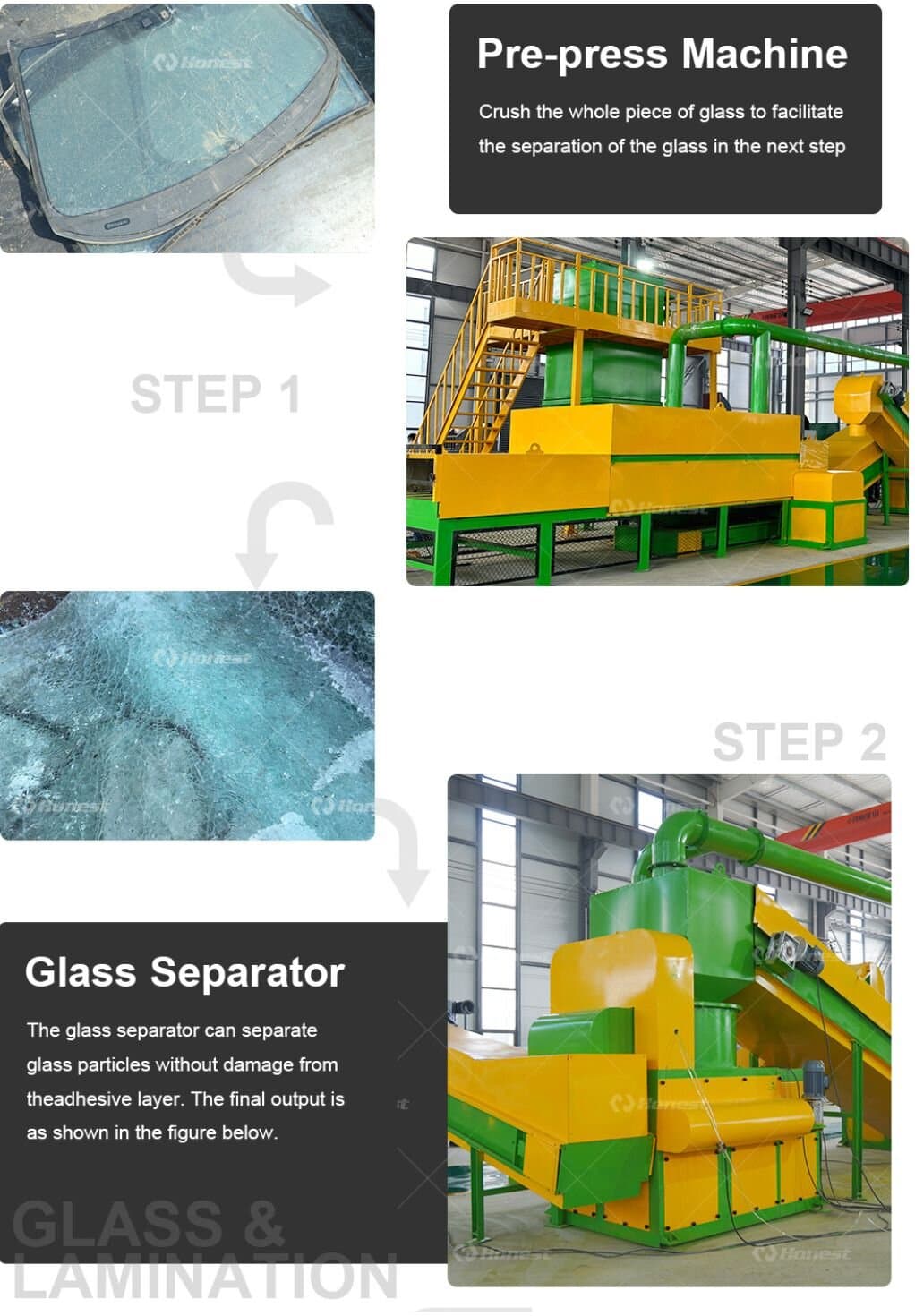

Workflow Windshield Separator Machine

The Windshield Recycling Machine Laminated Glass Separator features a pre-press machine to crush glass for easier separation, a glass separator to extract glass particles without damaging the interlayer, and a double roller compactor capable of handling materials up to 1500mm in size.

The entire production line is controlled by a PLC system with multi-language support, ensuring user-friendly operation. Additionally, it includes a fully enclosed conveying system and dust removal system for pollution-free production, meeting strict environmental standards.

We offer customizable solutions to meet specific customer needs, including European-standard components like Schneider electronics and fully enclosed designs.

Whether you’re starting a recycling business or upgrading your current operations, our equipment provides a reliable, efficient, and eco-friendly solution. Contact us today to learn more about how our technology can support your recycling goals!

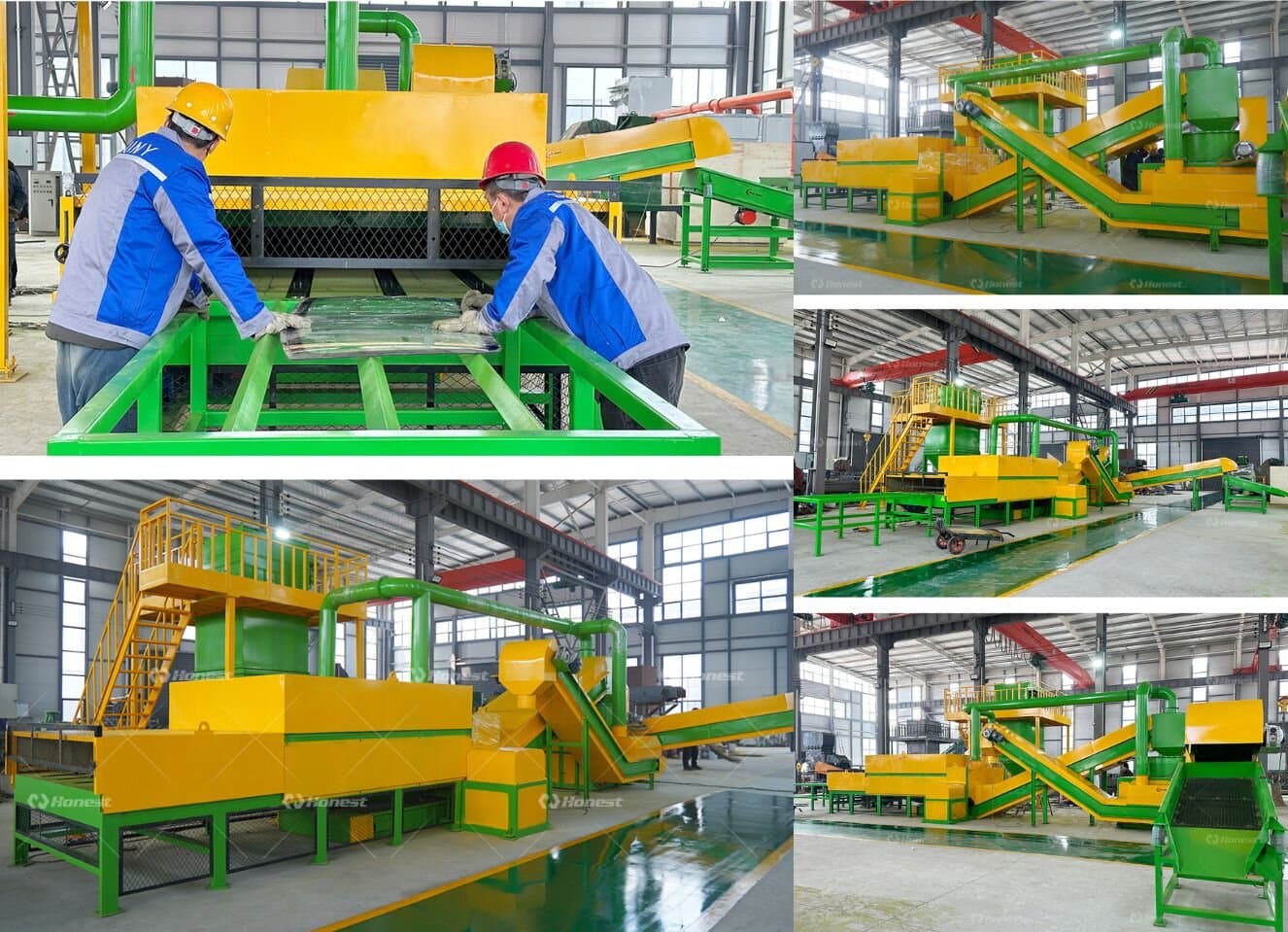

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
