Recycling Solution Details

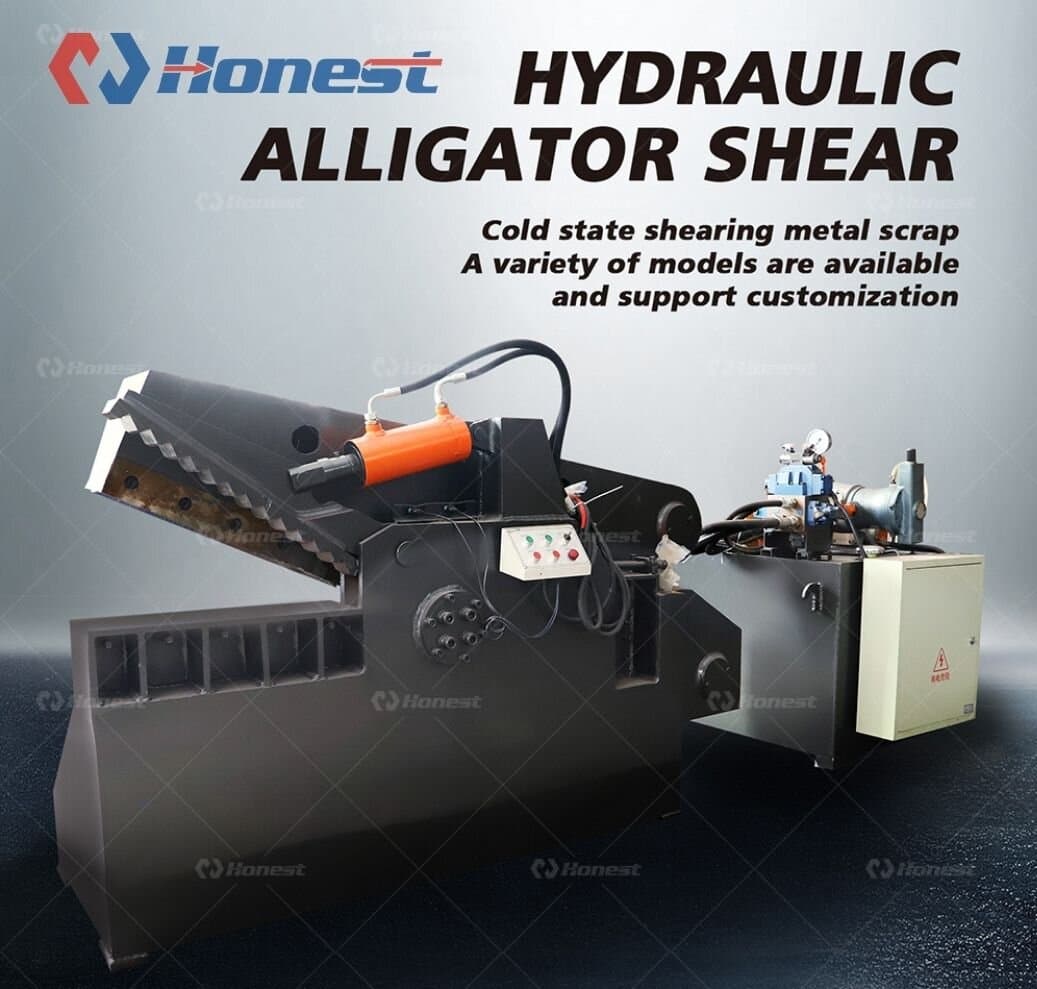

Hydraulic Alligator Shear Product Usage /Application:

The series of machines are suitable for metal recycling processing factor, the automatic dismantling plants, smelting foundry industry, all kinds of shape steel and all kinds of metal structures for cold cut, processed into qualified burden.

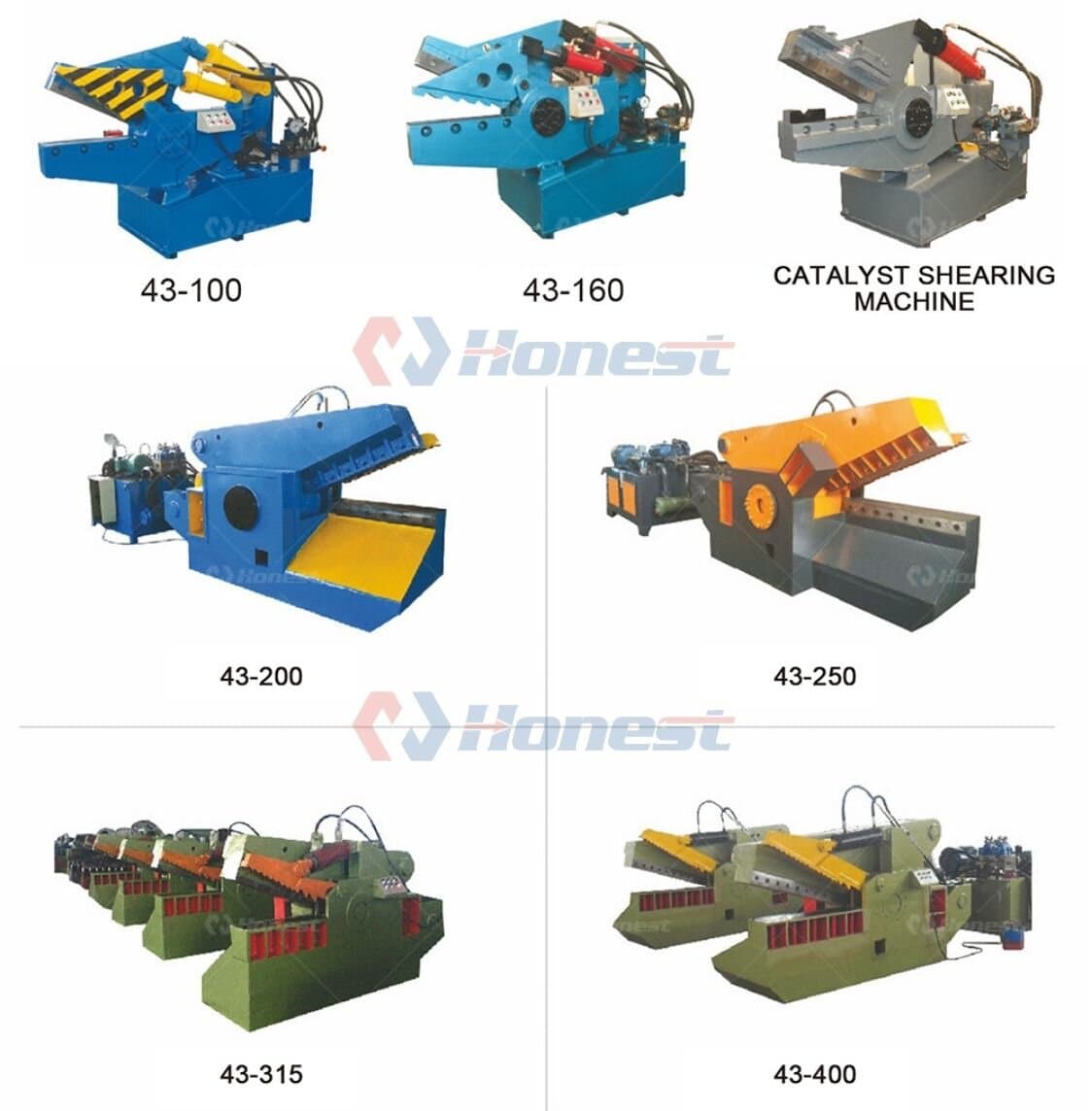

Technical Parameters

Model	Max Cutting Force	Blade Length	Max Blade Opening	Shearing Speed	Cutting Standard		Motor (kw)
HN-Q63	63 (ton)	600 (mm)	320 (mm)	14~25 (times/min)	30×30	Φ35	7.5
HN-Q100	100 (ton)	600 (mm)	320 (mm)	14~25 (times/min)	40×40	Φ45	7.5
HN-Q160	160 (ton)	600 (mm)	320 (mm)	11~12 (times/min)	55×55	Φ65	18.5
HN-Q200	200 (ton)	800 (mm)	380 (mm)	10~18 (times/min)	65×65	Φ75	22
HN-Q250	250 (ton)	800 (mm)	420 (mm)	8~16 (times/min)	70×70	Φ80	30
HN-Q315	315 (ton)	1200 (mm)	560 (mm)	6~10 (times/min)	80×80	Φ90	37
HN-Q400	400 (ton)	1200 (mm)	580 (mm)	4~10 (times/min)	90×90	Φ100	22×2
HN-Q600	600 (ton)	1800 (mm)	860 (mm)	4~10 (times/min)	105×105	Φ120	30×2
NOTE: Working Voltage: 380V, 415V, 440V or can be customized.

Hydraulic Alligator Shear Machine Features Description:

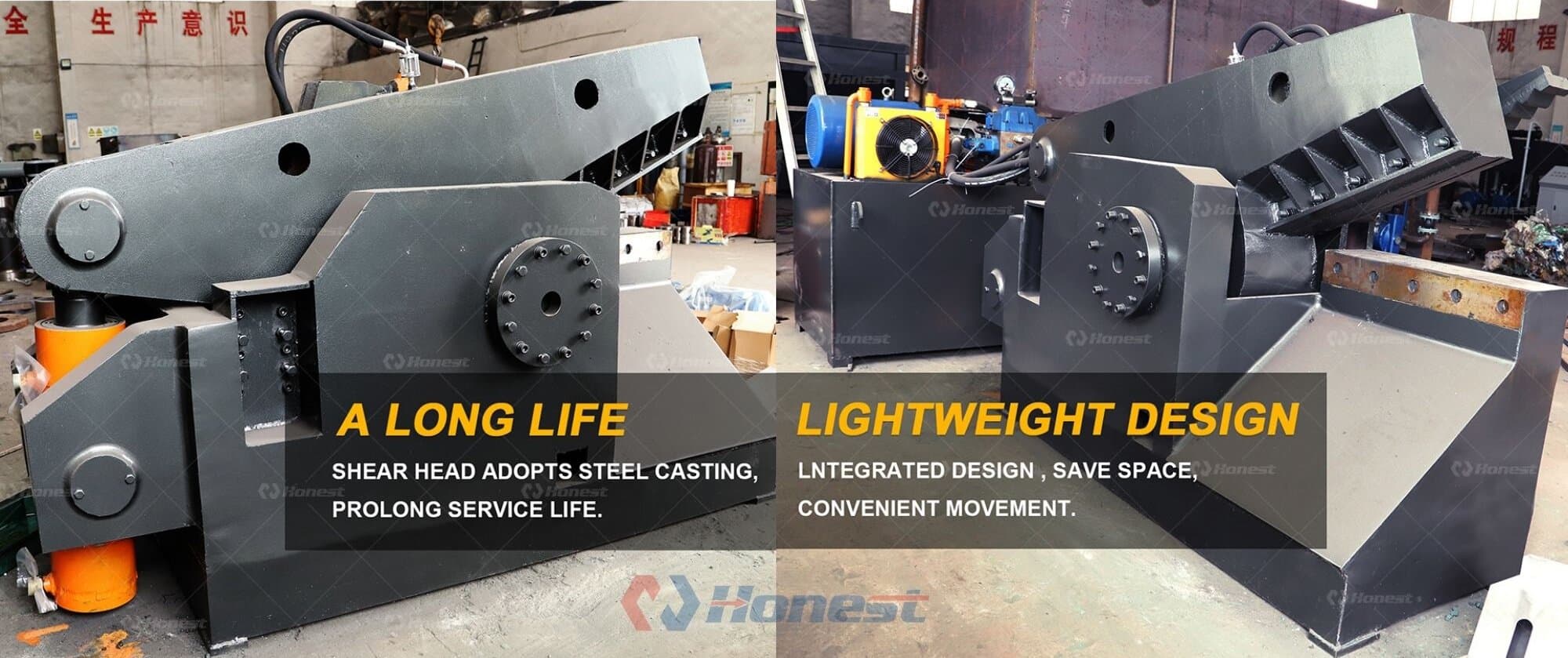

1. Lightweight design: Integrated design, save space, convenient movement
2. A long life: Shear head adopts steel casting, prolong service life.

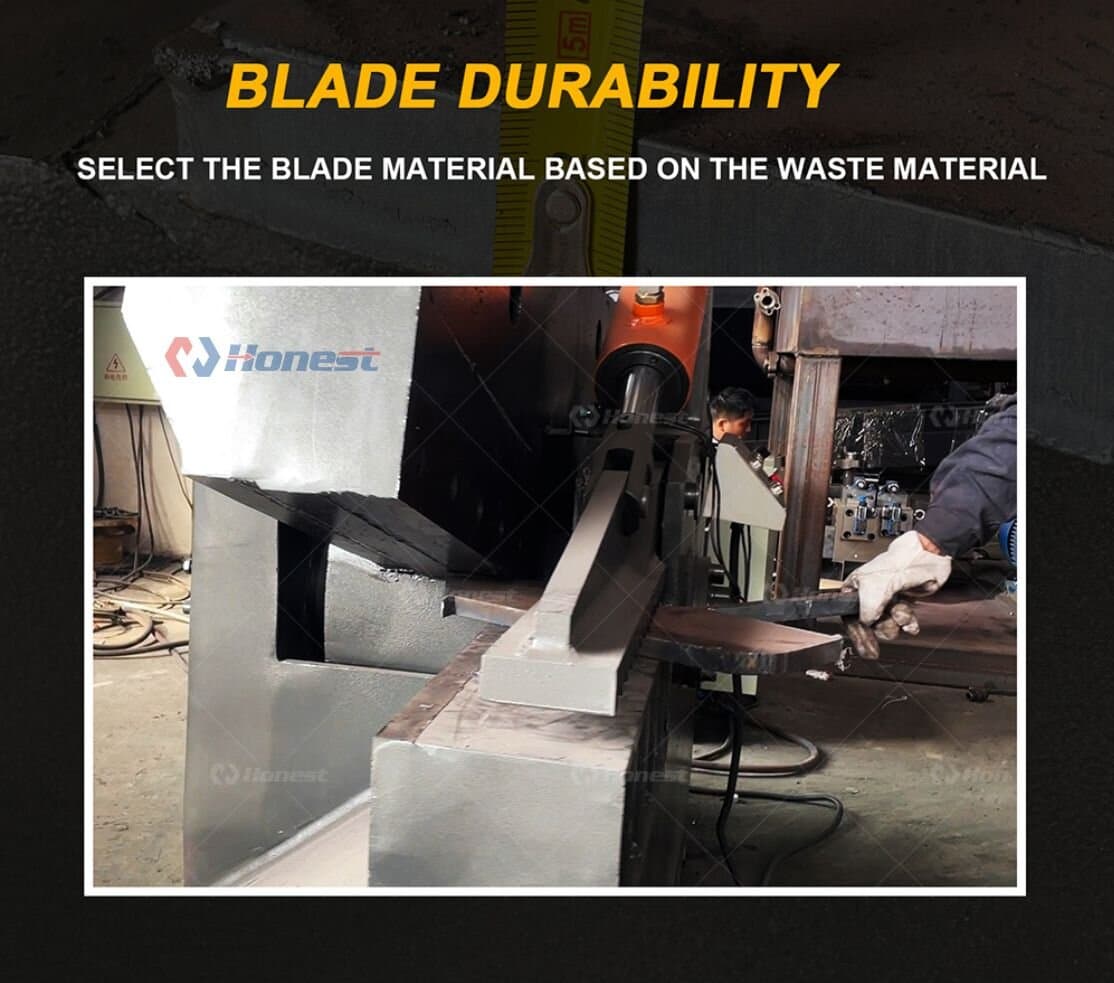

3. Blade durability: Select the blade material based on the waste material.

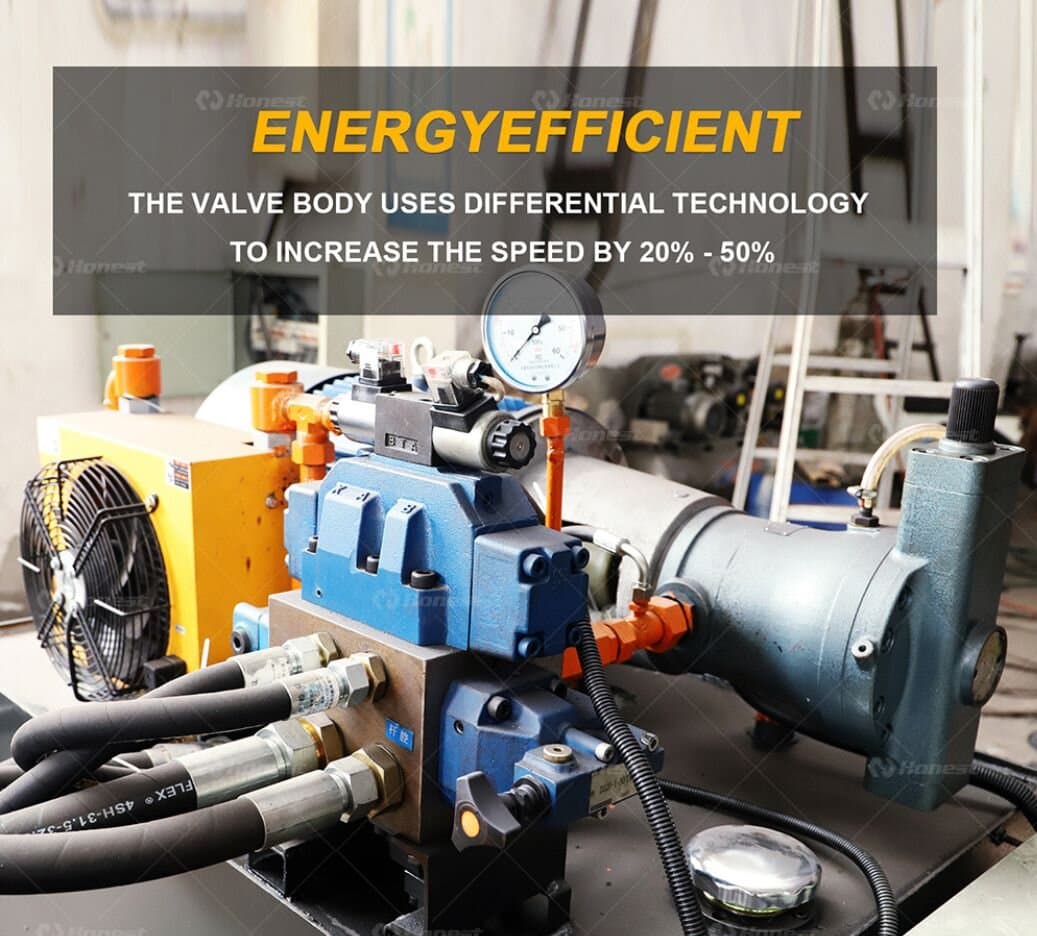

4. Energy efficient: The valve body uses differential technology to increase the speed by 20%-50%.

Hydraulic Alligator Shear Machine Advantages Description:

1. The blade is screwed, replaceable and available on all 4 sides.
2. Adjustment system and friction plate can adjust the gap between the cutter head and the knife holder to prevent the cutter head from reversing.
3. High-pressure soft oil pipe to reduce vibration and prevent oil leakage.

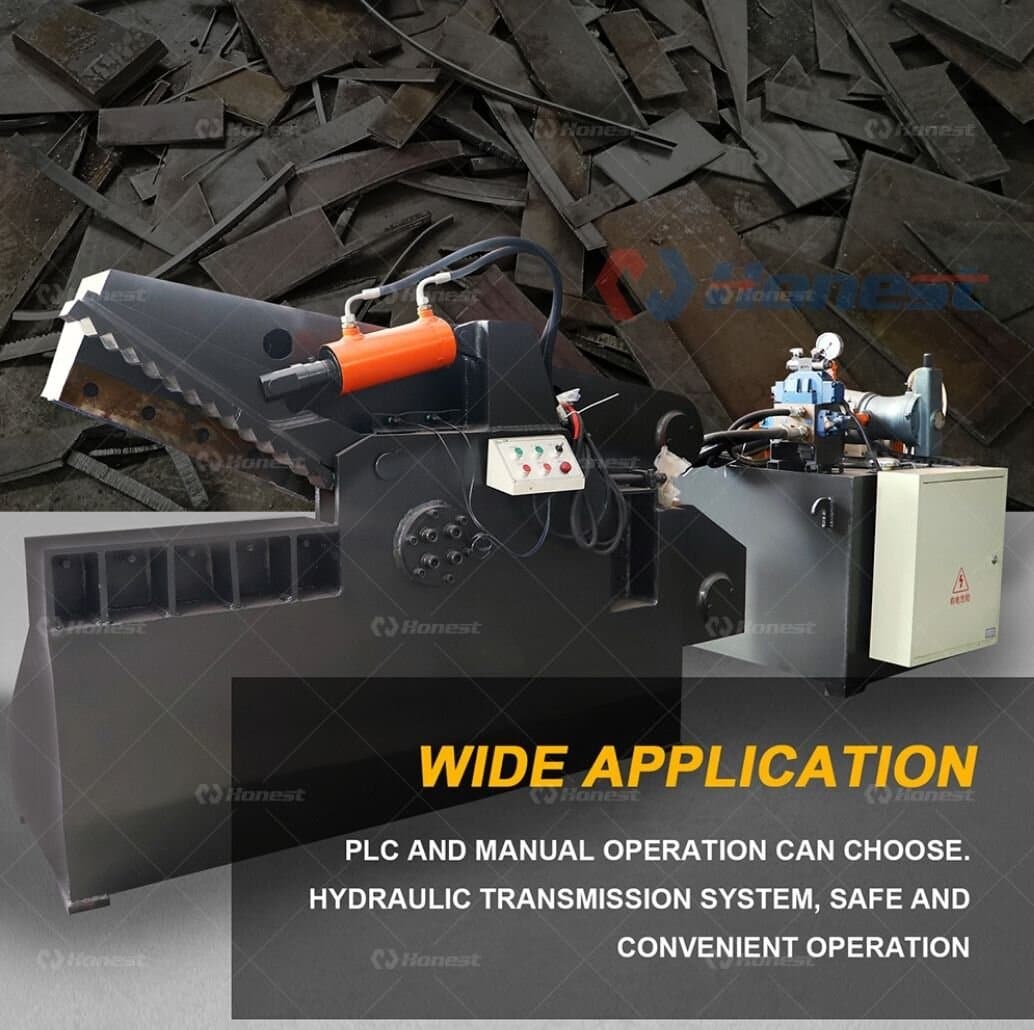

4. Plc and manual operation can choose.
5. Hydraulic transmission system, safe and reliable design, convenient operation.
6. Various models have different cutting forces, and the blade length can be customized according to customer needs.

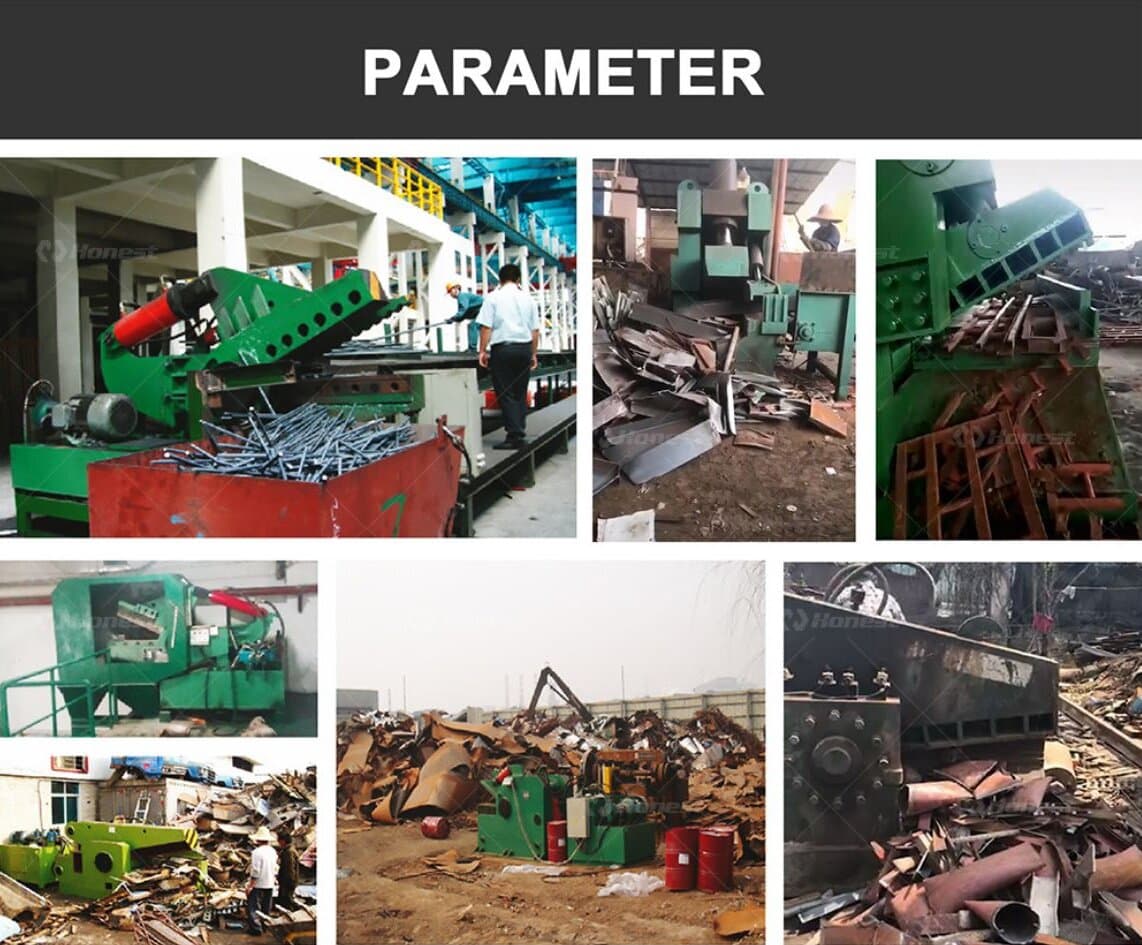

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2. Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.

This Model is for Metal Shearing, We Factory Also Provide All kinds of Other Metal Baler Pressing machine
