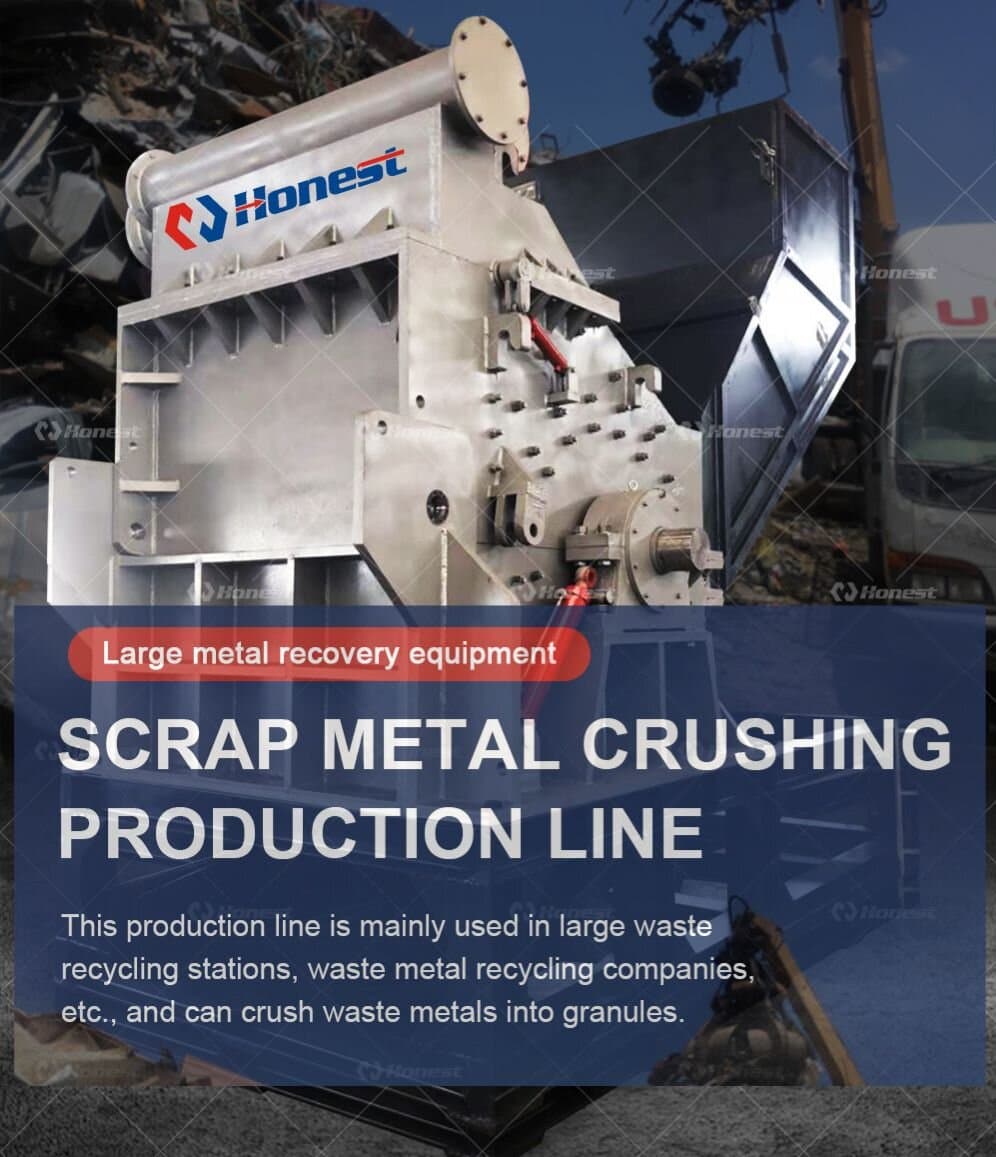

Horizontal Hammer Crusher Machine

Recycling Solution Details

The scrap steel production line can crush scrap metals into particles,and atthe same time use magnetic separator to separate steel from copper,aluminum, plastic and other materials. According to customer requirements,we can also provide solutions to further separate materials out such as copper,aluminum, and plastics. Finally, pure steel, copper, aluminum, plastic and othermaterials are obtained. For steel scraps recycling, we will provide One-StopSolution Service.

Raw Material

It can crush steel scraps, car shell, waste bicycles,motorcycles, waste wires, cans, beer bottle caps, tin boxes, paint buckets andother metals into ideal particles, thus greatly good for transportation and savingtransportation costs.

Final Products

Normally the metal output size after crushing is 6-8 mm. The final outputsize also can be made according to your requirements.

Technical Parameters

Model	HHN-HHC-315	HHN-HHC-480	HHN-HHC-630
Capacity (t/h)	5-8	8-12	12-20
Rated Power(kw)	315	480	630
Hydraulic Maintenance System（t）	200	200	200
Machine Size (m)	4.5×2.2×4.9	5.8×2.5×5.5	6.2×2.8×5.8
Machine Base	250H Steel	250H Steel	250H Steel
Weight	4.5×2.2×4.9	4000	5500

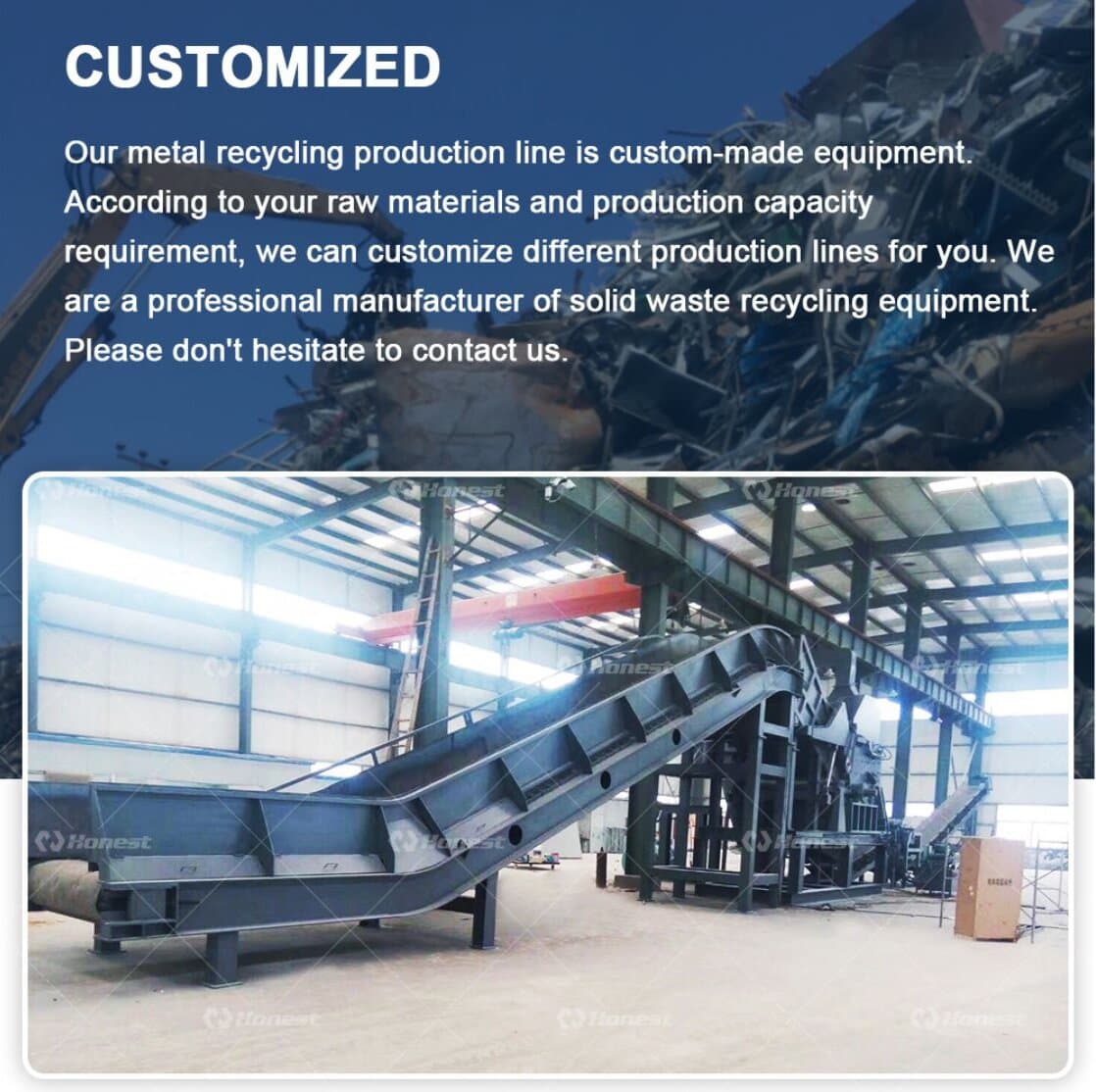

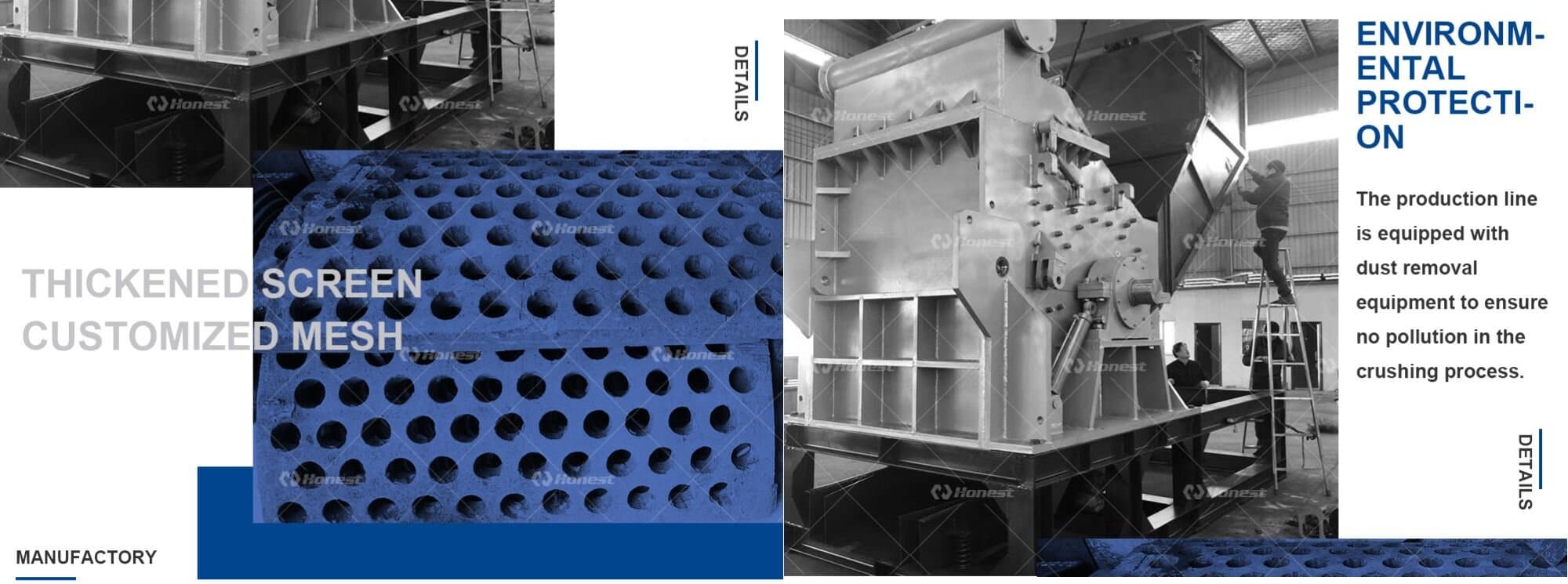

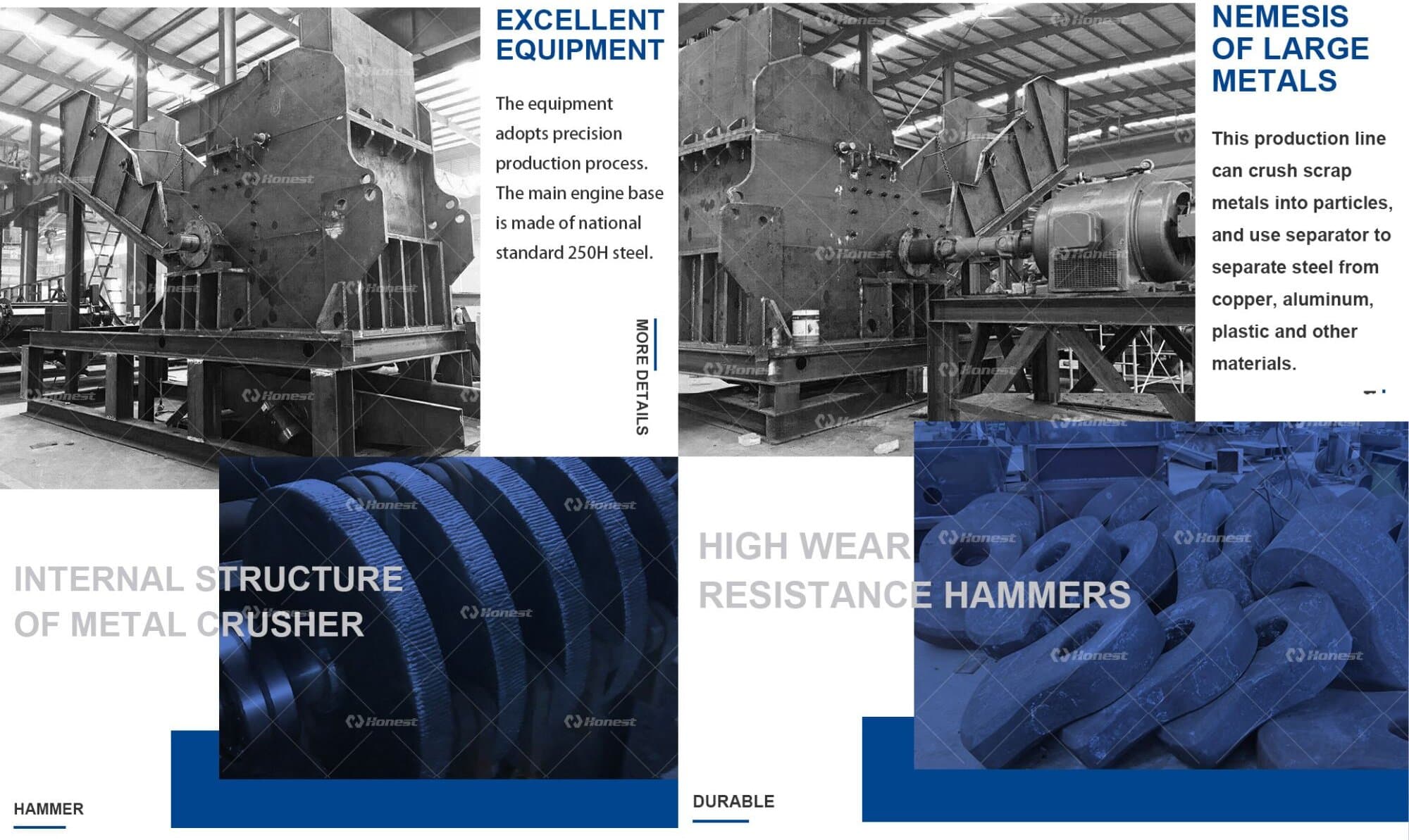

Horizontal Hammer Crusher Working Principle

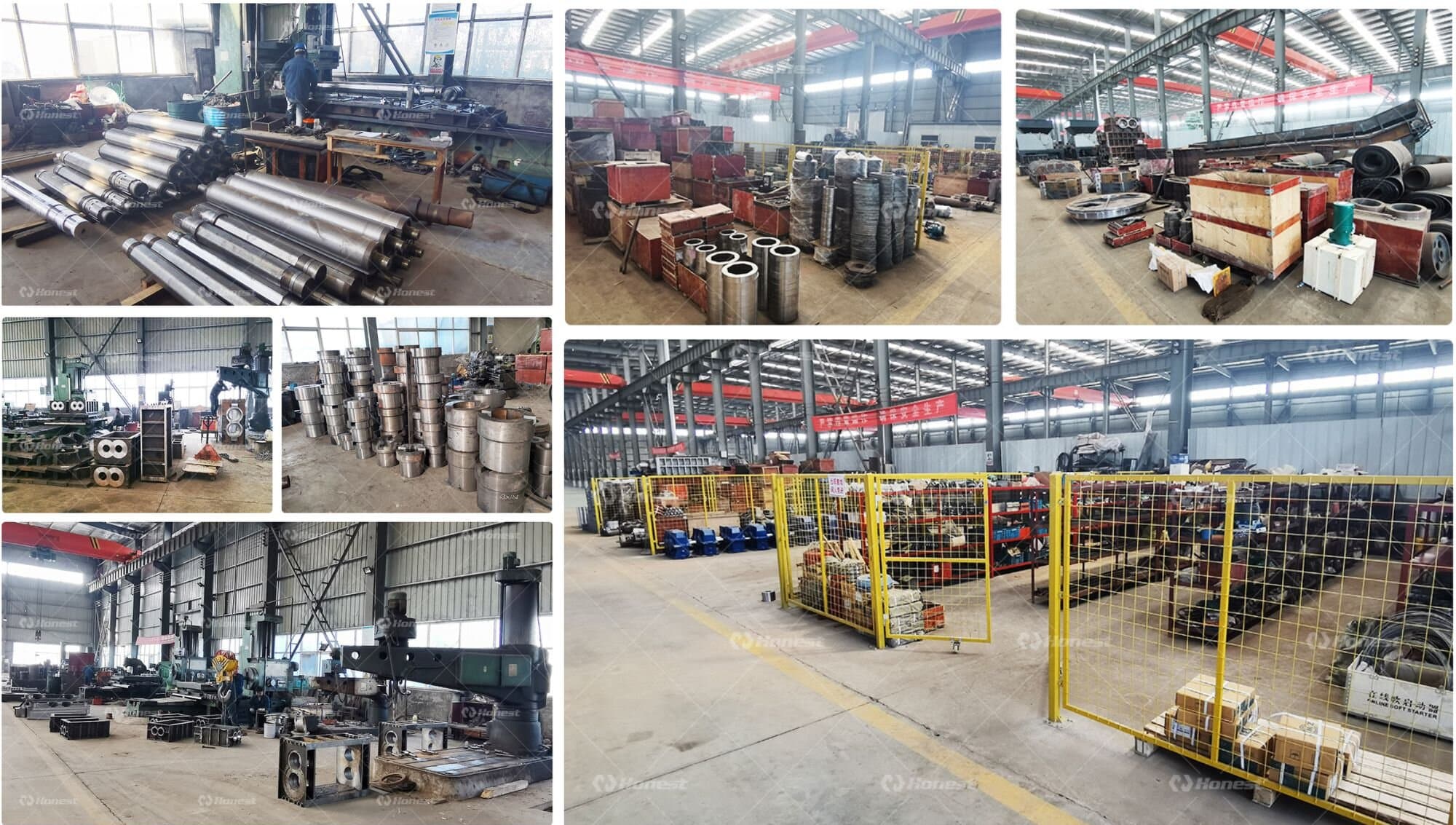

Factory Site Overview

Our vertical metal broken gold is sold to many countries and regions around the world. Get unanimous praise from customers. If you want to get accurate equipment configuration and recycling plan acording to your own materials and output, please contact us directly.
1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
