Recycling Solution Details

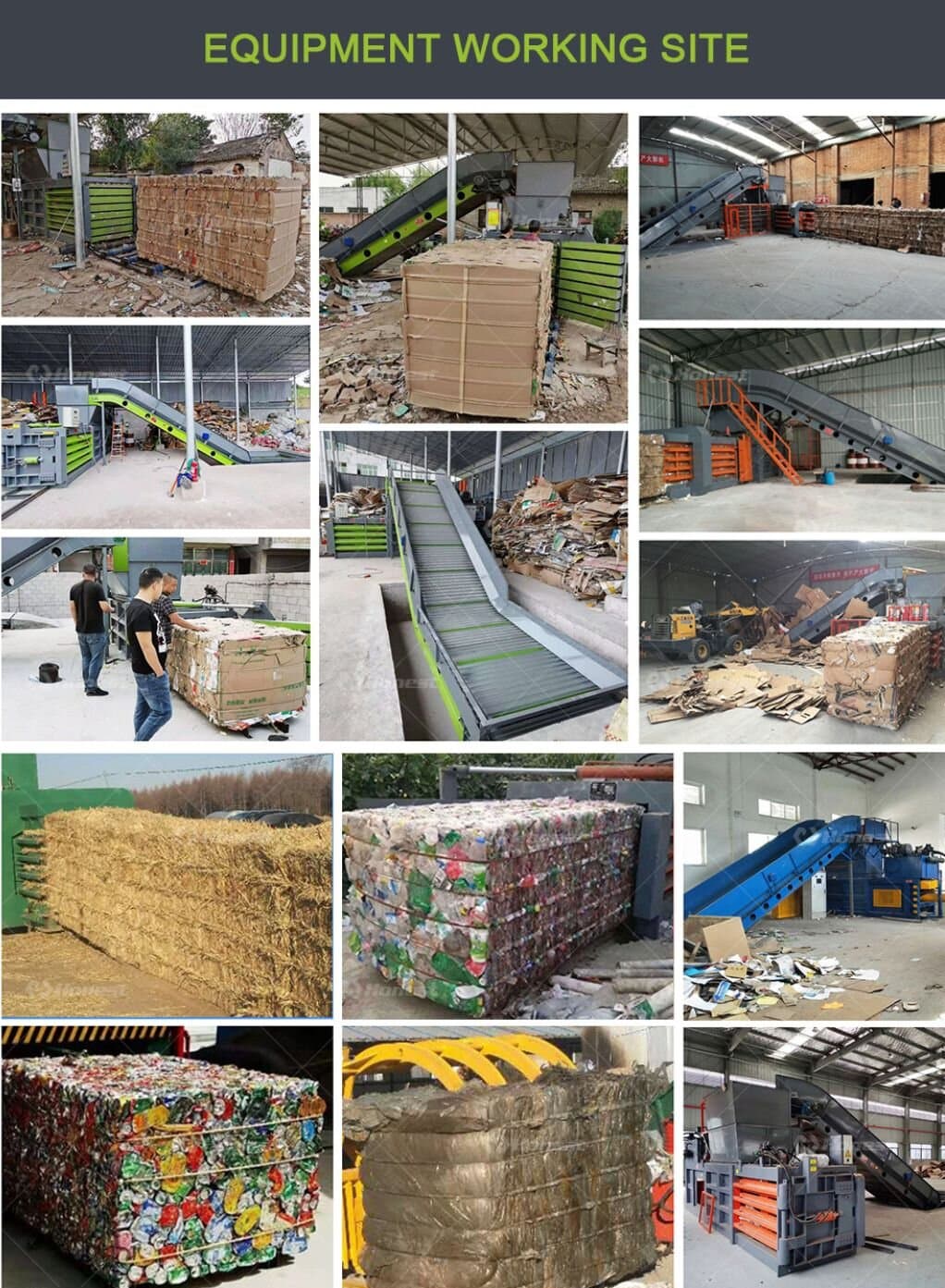

The Automatic Horizontal Baler is a highly productive piece of industrial equipment that is widely used in places where large quantities of recyclable materials need to be compressed. Its main application areas include: large recycling centers for processing large quantities of paper, cardboard, plastics and other recyclables; paper mills for baling waste paper and cardboard for recycling; large manufacturing plants for processing waste materials generated during the production process; large distribution centers for managing cardboard and plastic wastes generated by packaging; and large waste treatment facilities for handling municipal solid waste.

Raw Material

Horizontal Baler Machine(Paper Press Machine) are mainly used in waste processing plants, crop straws and recycling in-dustries.The working principle of the hydraulic packer is to extrude various compressedmaterials such as thin metal, plastic bottles, cans, wastepaper bins, paint buckets, plasticfilms, clothing and clothes into rectangles or squares,which has the characteristics of highcompression efficiency and large space saving, and improves operation efficiency!

Final Products

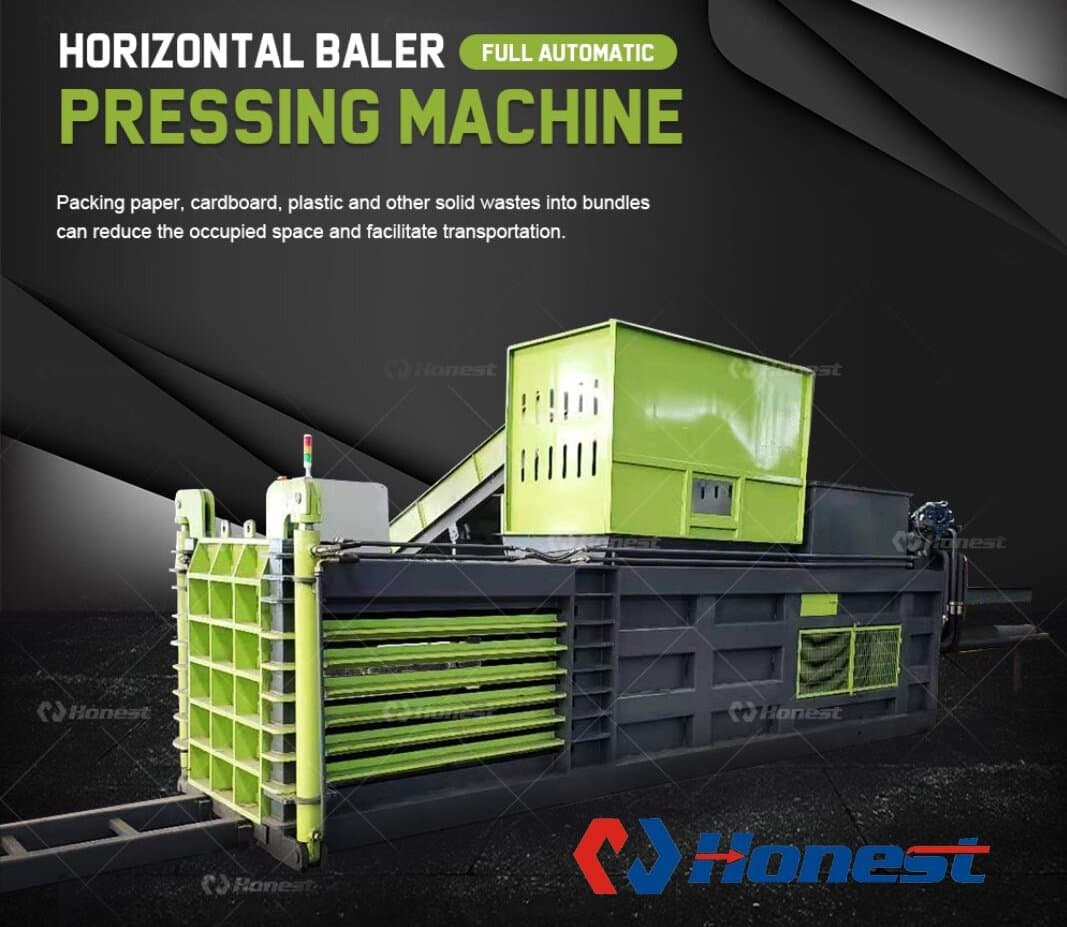

(Above) Packing paper, cardboard, plastic and other solid wastes into bundlescan reduce the occupied space and facilitate transportation.

Technical Parameters

Product Name	Most Popular Hydraulic Drive With Alloy Coveryor Belt Baler Baling Machine For Paperboard
Product Model	HN-YDW-160	HN-YDW-120
Pressure	160T	120T
Oil pump	50A38 Double Combination Pump	50A35 Double Combination Pump
Electronic control system	PLC Computer automatic degree infrared sensor, object detection
Inlet size	1100mm×2000mm	1100mm×1600mm
Outlet size	2000（Adjustable）×1100×1250mm	1800（Adjustable）×1100×900mm
Bale density	400-500kg/m³	400kg/m³
capacity	8-12T/H	6-10T/H
power	37KW+5KW+4KW	30KW+4KW+4KW
Packing and strapping	4-5 Round

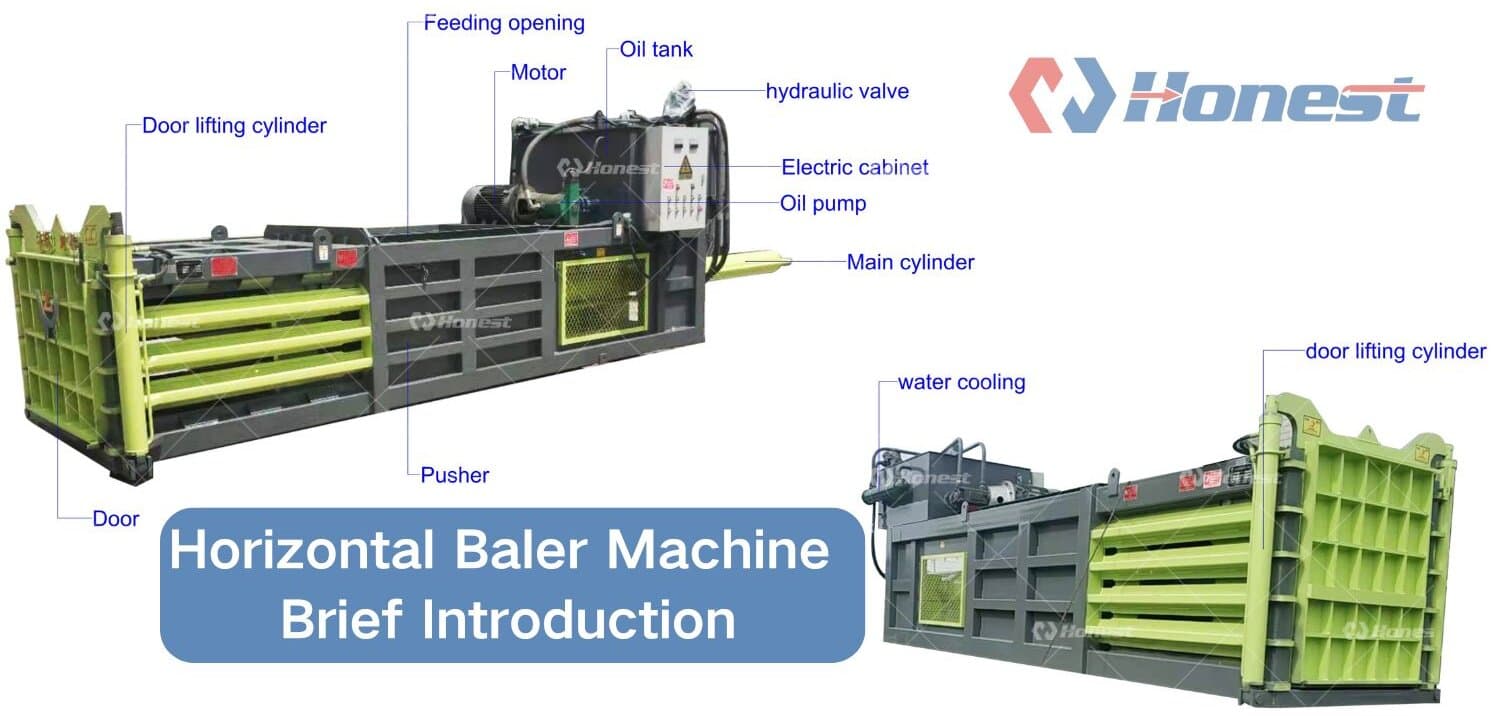

Key components of Horizontal Baler Machine

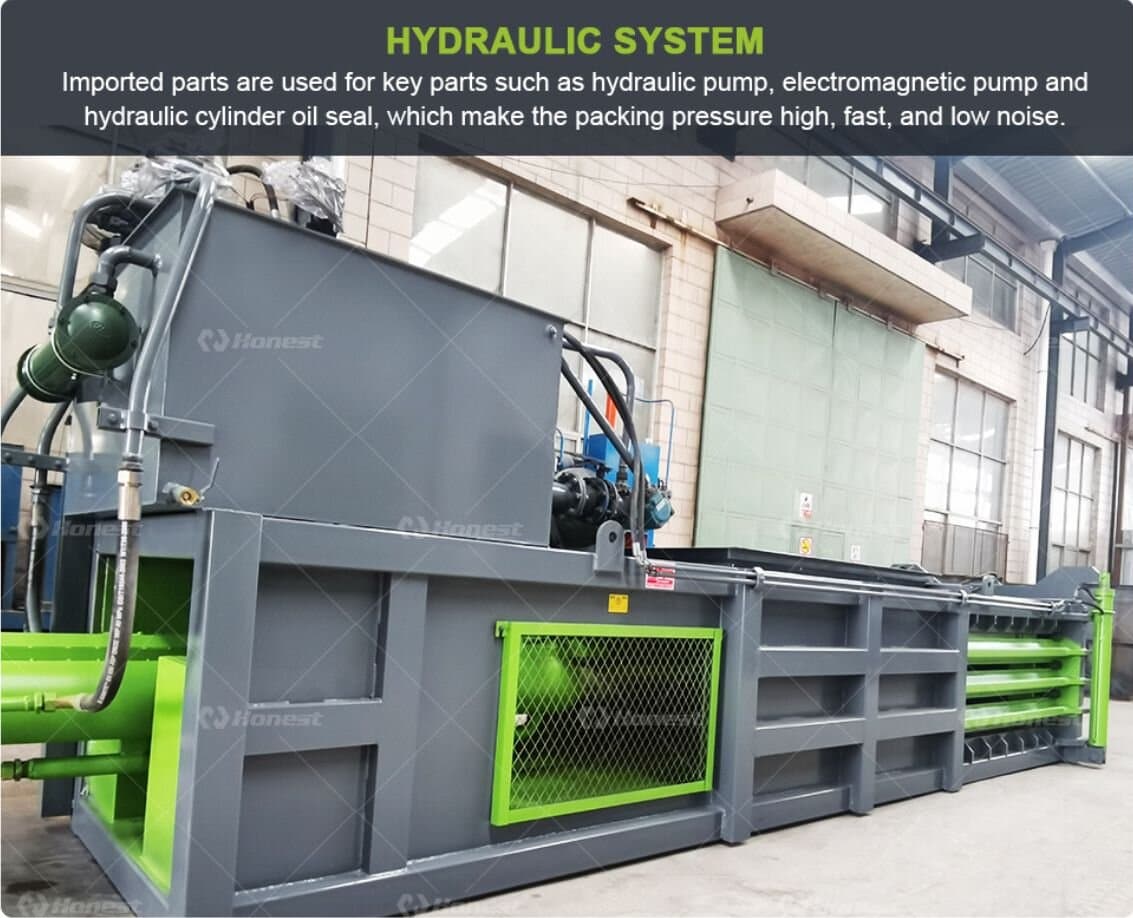

The core of Horizontal Baler Full Automatic Pressing Machine lies in its sophisticated hydraulic and electrical system, the inlet receives the waste material to be processed, the motor drives the oil pump to pressurize the hydraulic oil in the tank, and through the hydraulic valve to control the flow of oil, drive the main cylinder to generate strong pressure to compress the material into bales; the pusher ensures that the material enters into the compression chamber evenly, and the door lifting cylinder controls the flow of oil, to compress the material into bales.

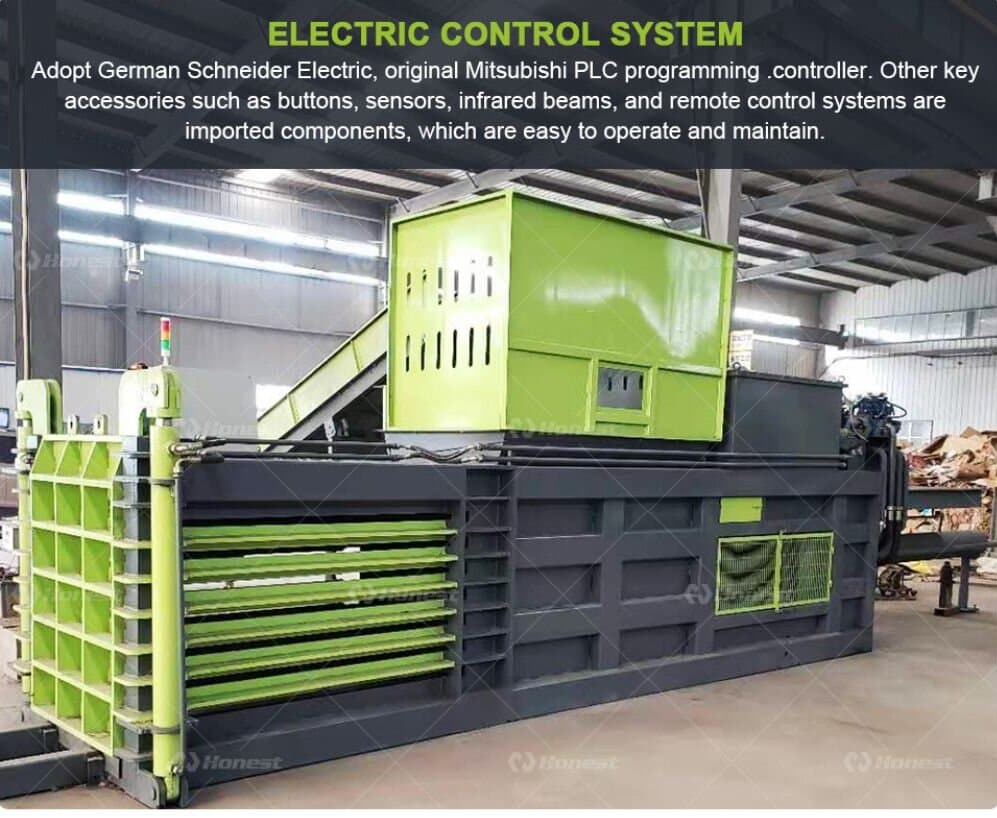

The pusher ensures that the material enters the compression chamber evenly, the door lifting cylinder controls the switch of the door, which is convenient for pushing out the bundles; the electric cabinet serves as the control center to coordinate the operation of each component, and the water-cooling system guarantees the stability of the hydraulic system; finally, the baler efficiently compresses the waste material into tight bundles, which is convenient for transportation and storage, and realizes the waste minimization and resourceization.

With its high efficiency and stable performance, Horizontal Baler Full Automatic Pressing Machine has become the ideal choice for material recycling in various industries, especially suitable for enterprises that need to process waste materials on a large scale, helping to achieve cost optimization and environmental protection goals.
