Recycling Solution Details

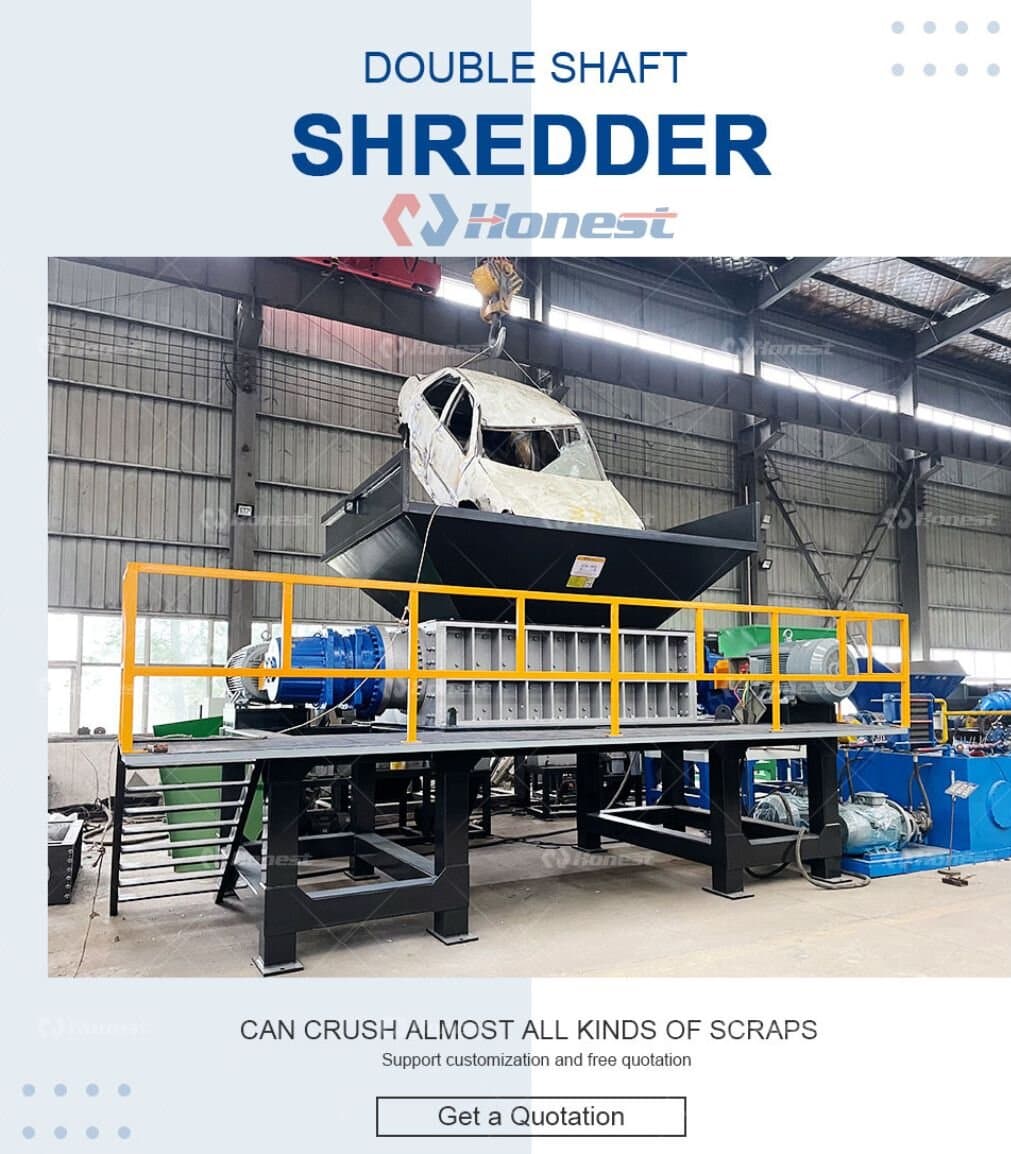

The Double Shaft Shredder is a highly efficient waste crushing plant that utilizes two rotating cutter shafts to process a wide variety of waste materials. Its blades are made of high-strength alloy steel, which is wear-resistant and highly applicable, and can provide uniform material particles and high processing capacity.

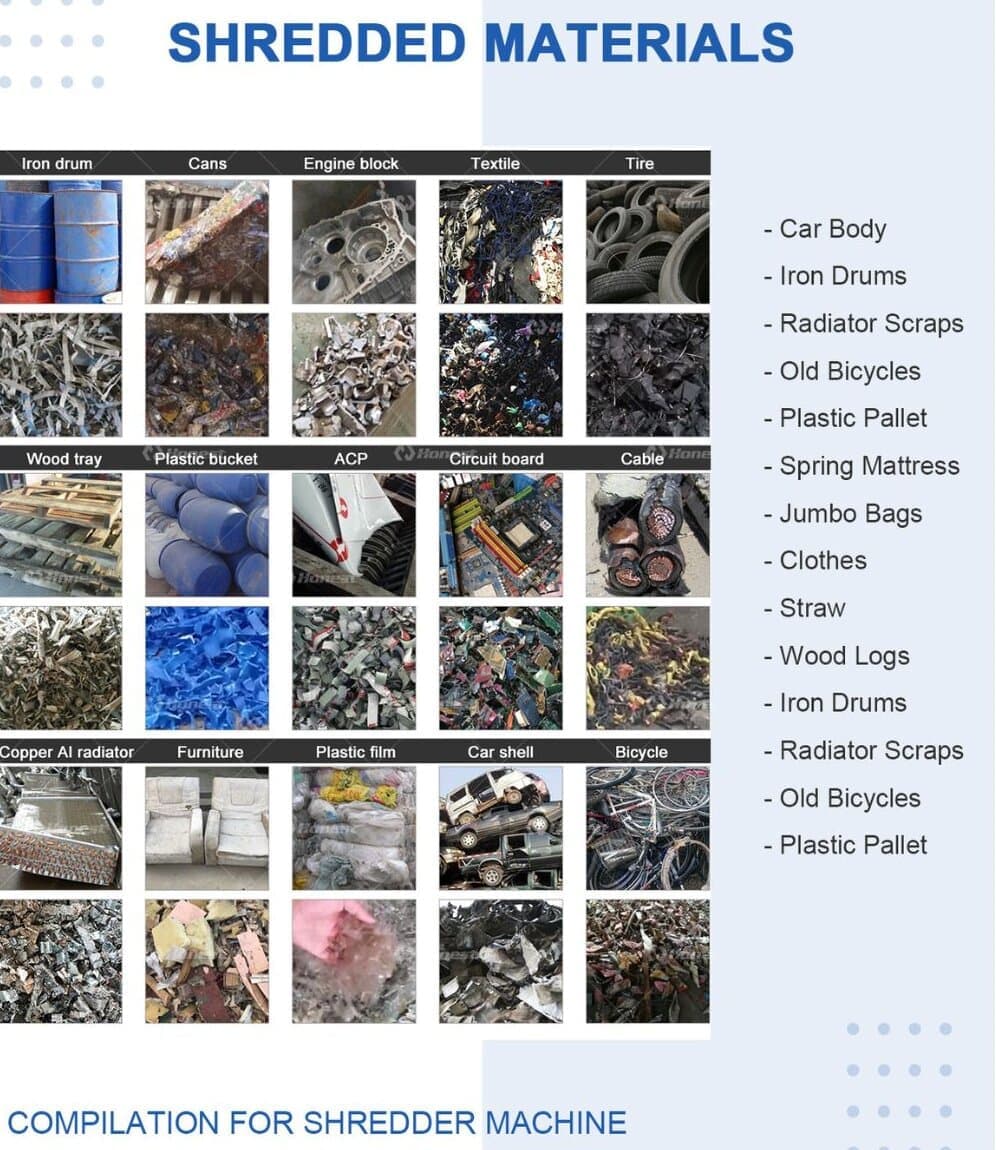

Raw Material

1.Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires, cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc.
2.Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.
3.Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.
4.Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.
5.Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper, printing paper, paperboard, etc.
6.Waste household appliances: TV, washing machine, refrigerator shell etc.
7. Pipes: large pipes, pipe fittings, PE pipes etc.
8.Scrap tires: car tires, truck tires etc.
9.All kinds of Kitchen waste, domestic waste, rdf derivatives,garden waste etc.

Final Products

The main final products of Double Shaft Shredder Machine include size-reduced Car Body,lron Drums,Radiator Scraps,Old Bicycles,Plastic Pallet, and more. These products can be easily recycled, reused or further processed after shredding.

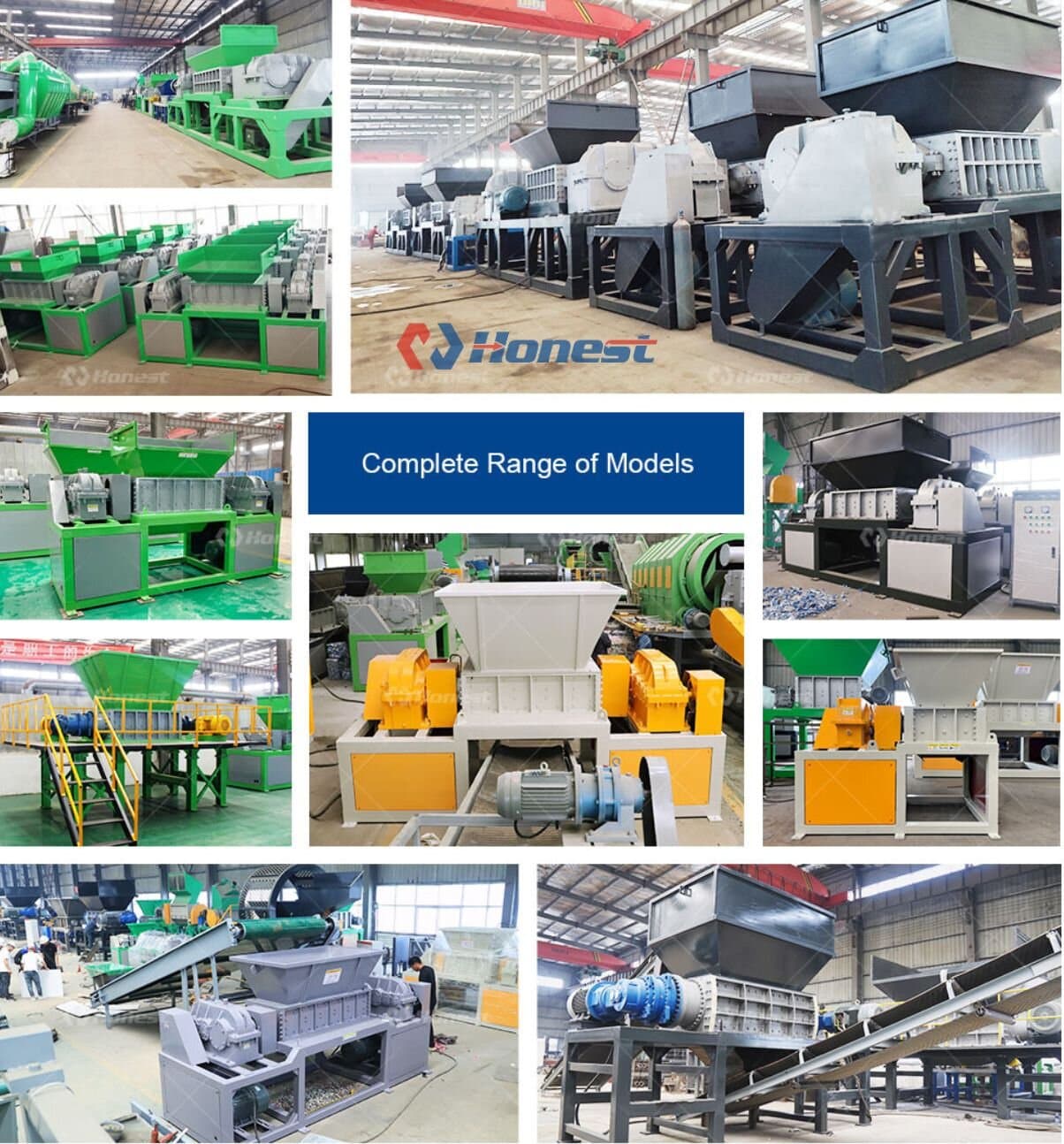

Technical Parameters

Model	Motor Power	Capacity	Blade Number	Input Opening Size	Dimension	Weight
HN-SS-600	11*2 Kw	0.2-0.6 T/H	34 Pieces	0.95×0.7 m	2.6×0.9×1.8 m	3T
HN-SS-800	22*2 Kw	0.5-1 T/H	26 Pieces	1.2×0.8 m	2.6×1.5×2.2 m	4T
HN-SS-1000	30*2 Kw	1-2 T/H	34 Pieces	1.2×0.95 m	3.5×1.5×2.2 m	5T
HN-SS-1200	45*2 Kw	2-4 T/H	24 Pieces	2.0×1.5 m	4.6×1.7×2.6 m	8T
HN-SS-1500	55*2 Kw	4-6 T/H	20 Pieces	2.0×1.5 m	4.8×1.9×2.6 m	13T
HN-SS-2000	110*2 Kw	10-15 T/H	20 Pieces	2.5×2.0 m	6.2×2.5×2.8 m	18T

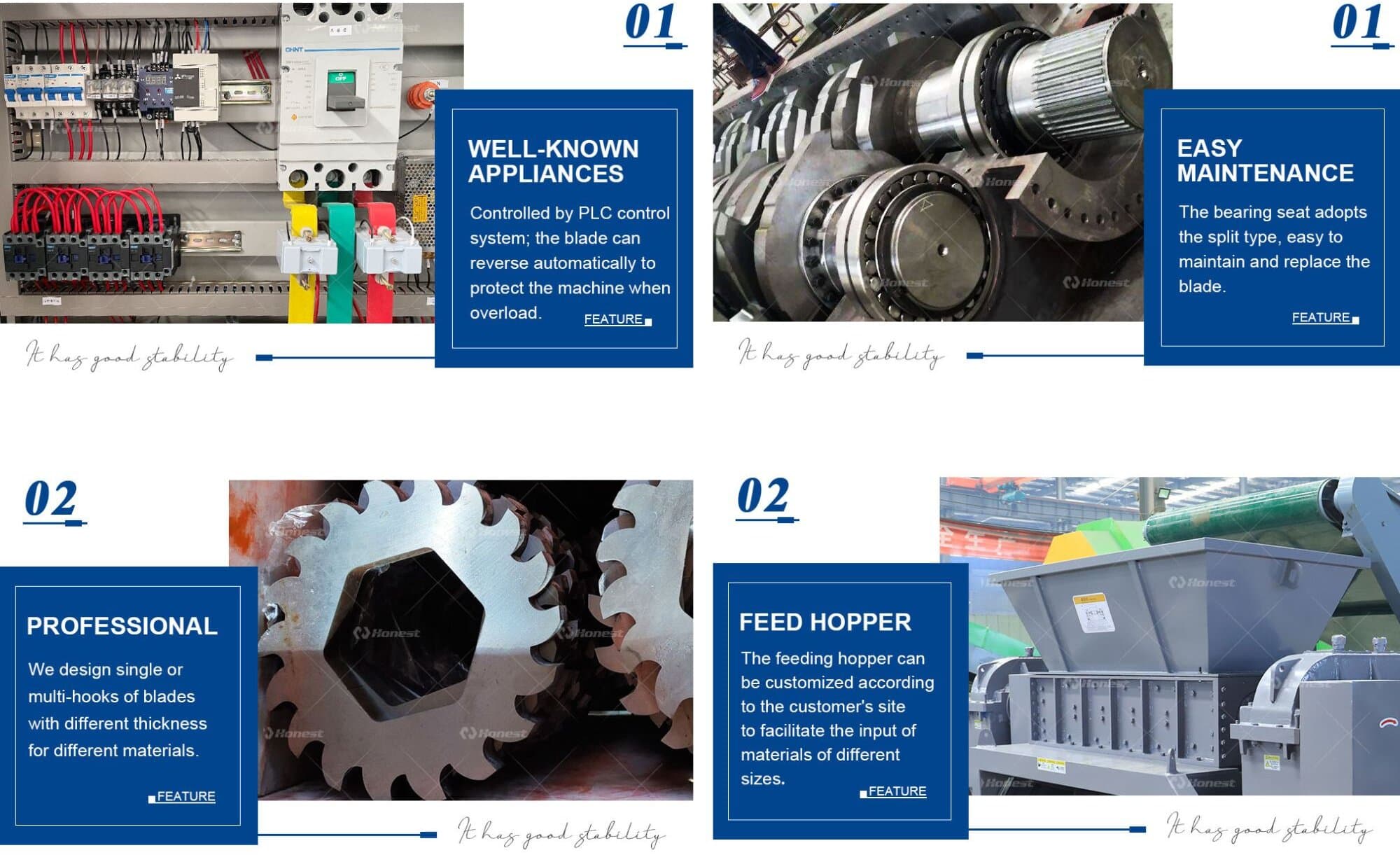

Double Shaft Shredder Machine Working Principle

This equipment is mainly composed of feed hopper,double shaft cutting system, Plc control system, discharging conveyor system and power system, etc.

1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out.

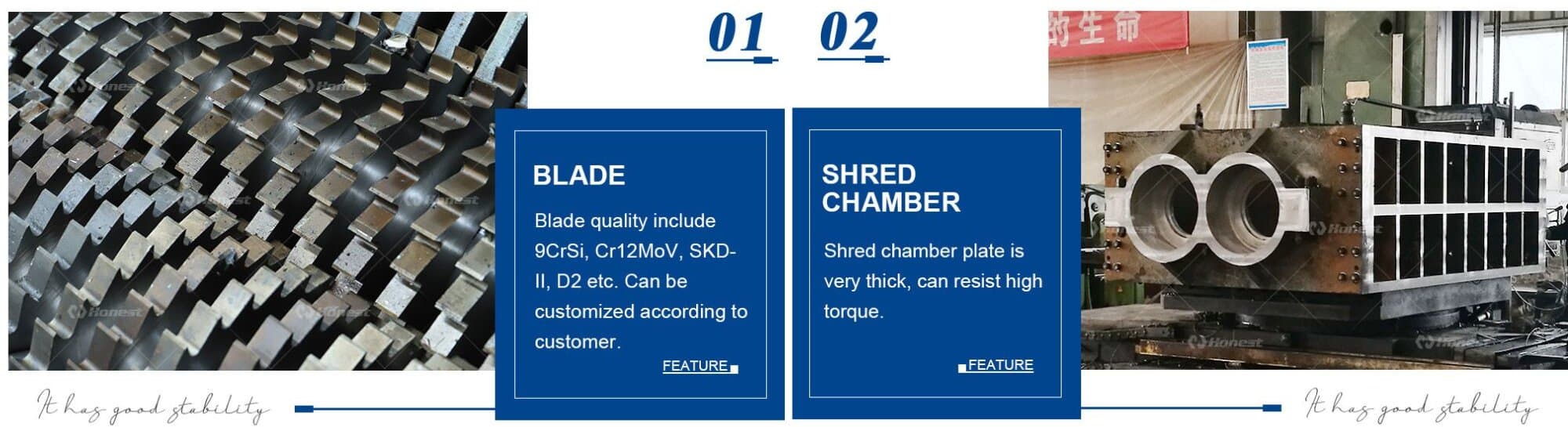

2.Double shaft cutting system:Using different blades according customers’ material.

3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs.

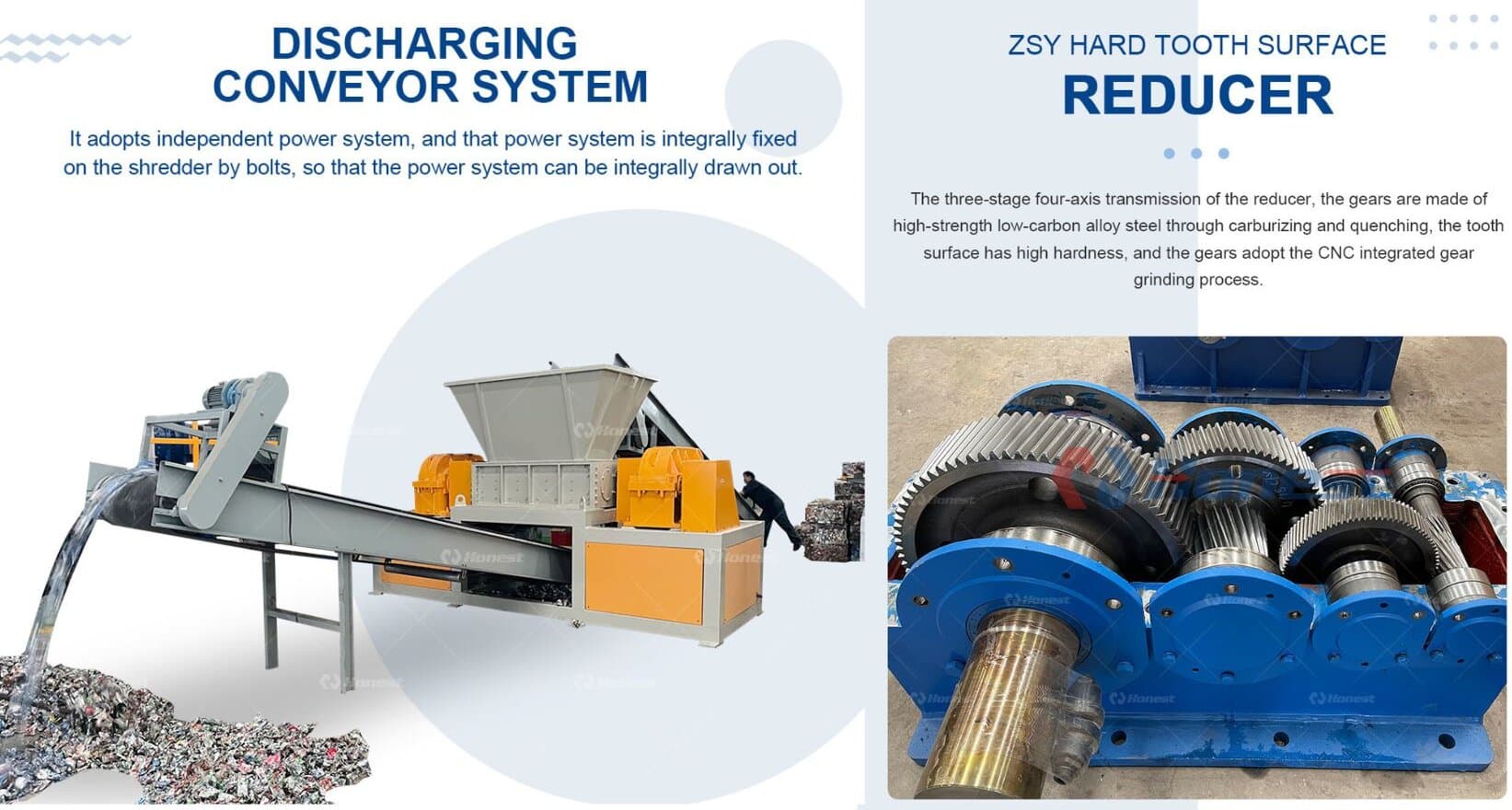

4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

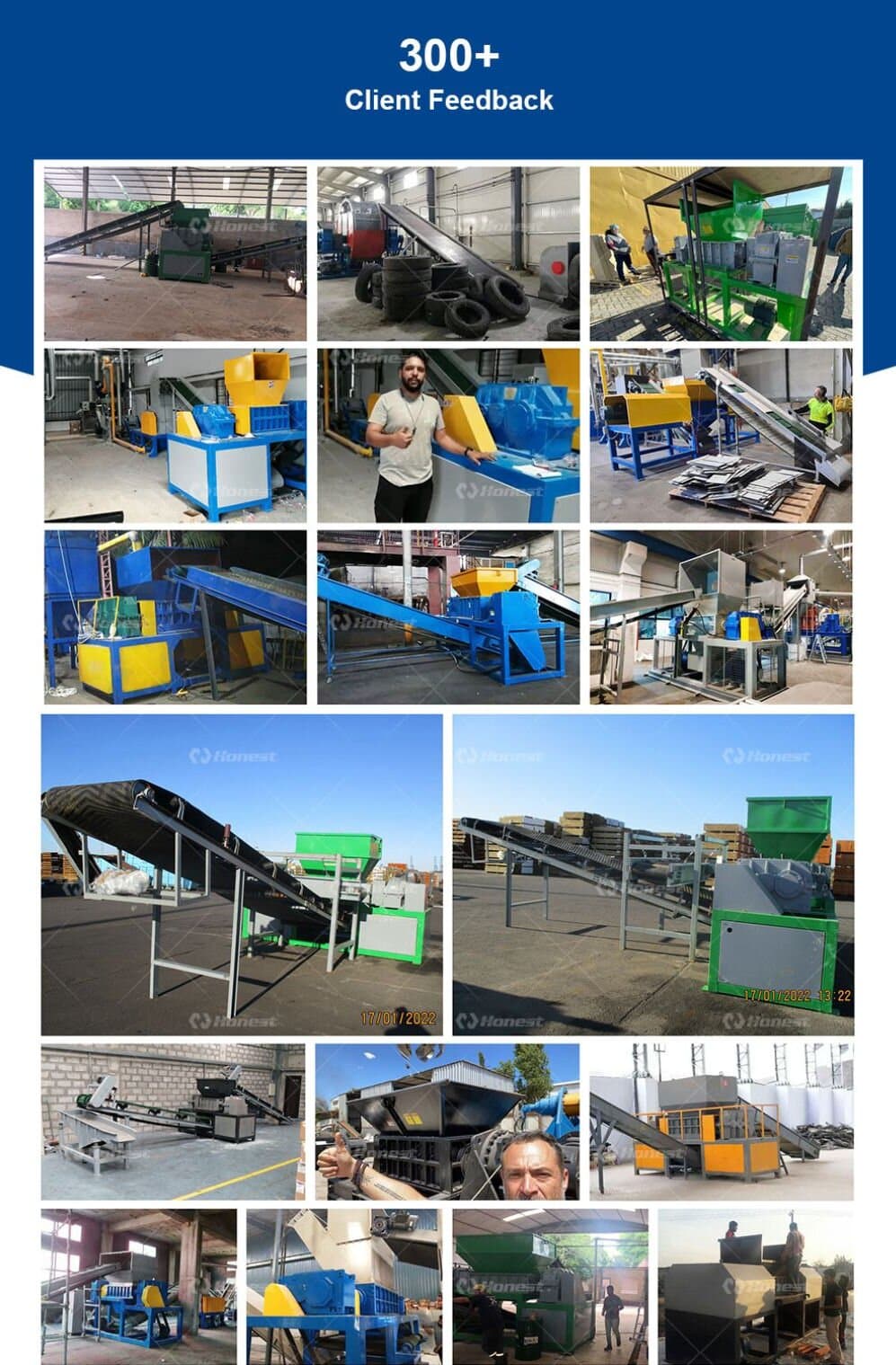

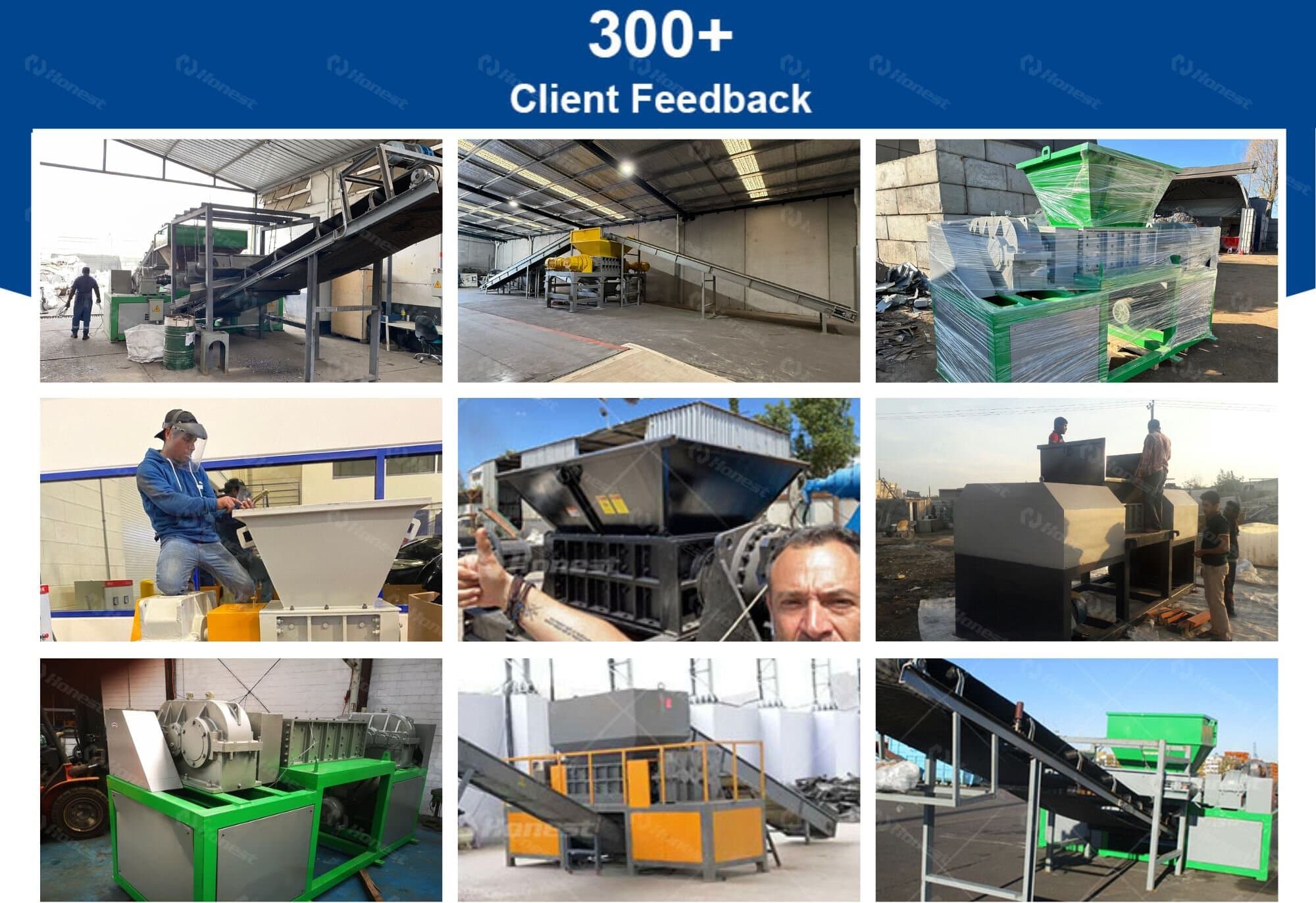

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.

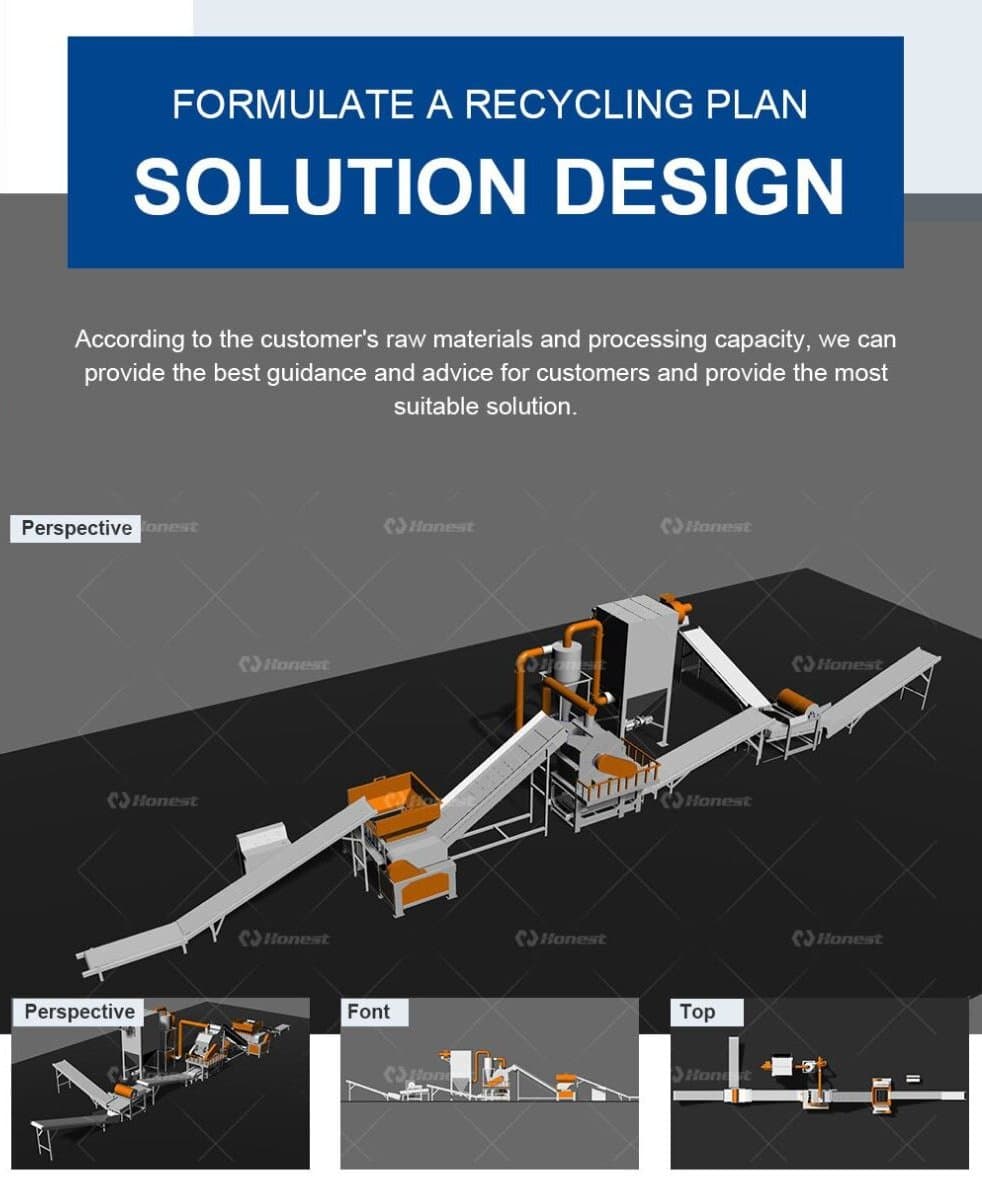

Formulate a Machine

According to the customer’s raw materials and processing capacity, we canprovide the best guidance and advice for customers and provide the mostsuitable solution.
