Recycling Solution Details

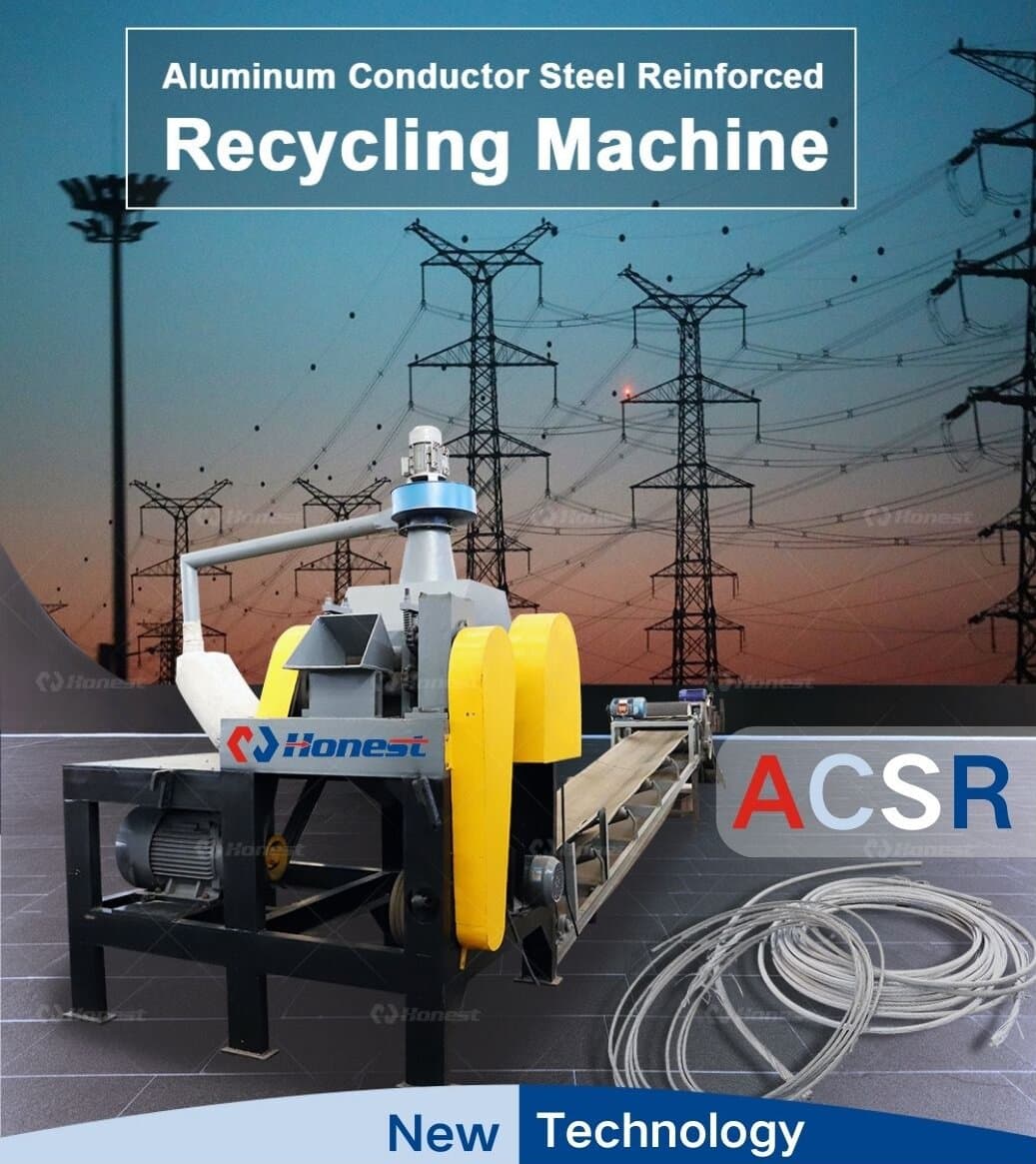

This ACSR recycling machine is specially designed for processing aluminum stranded steel cores, with a processing capacity of up to 50 meters/minute, and can efficiently separate aluminum and steel. This innovative recycling method combined with efficient processing equipment makes it an excellent choice for recyclers.

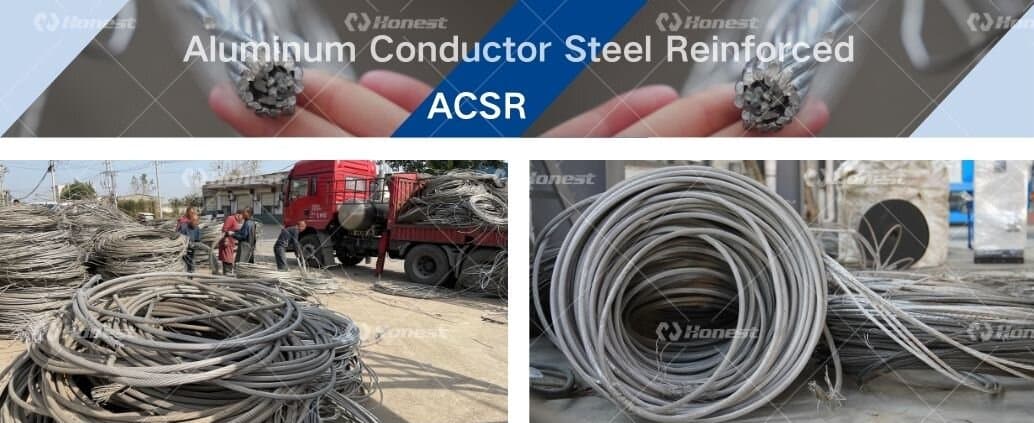

Raw Material

This machine has a wide range of applications and is suitable for both stranded wire withsingle steel core and multi-strandsteel core aluminum cables. It supports the simultaneous feeding of multiple strands of cables, significantly improving recycling efficiency.

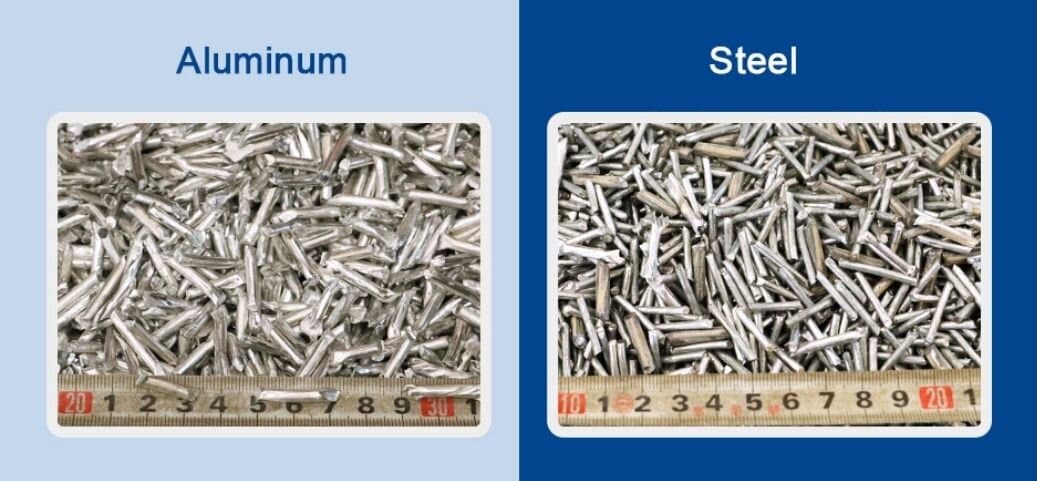

Final Products

This machine can efficiently separate aluminum and steel through crushing and screening.

Technical Parameters

Name	ACSR Recycling Machine
Specifications	HN-ASCR-260
Achievement	18.5kw+3kw+0.75kw
Inlet	Medium 200 (can feed multiple strands)
Feed diameter	Hit 100
Dimensions	2000*1800*2450
Fixed knife	1 piece (Material H13)
Move knife	6 pieces (Material H13)
Reducer	Dedicated 3-speed transmission
Maximum processing speed	50m/min
Sorting rate	99%
Cut off length	10mm, 20mm, 50mm
Weight	2000kg

Key components of ACSR Recycling Machine

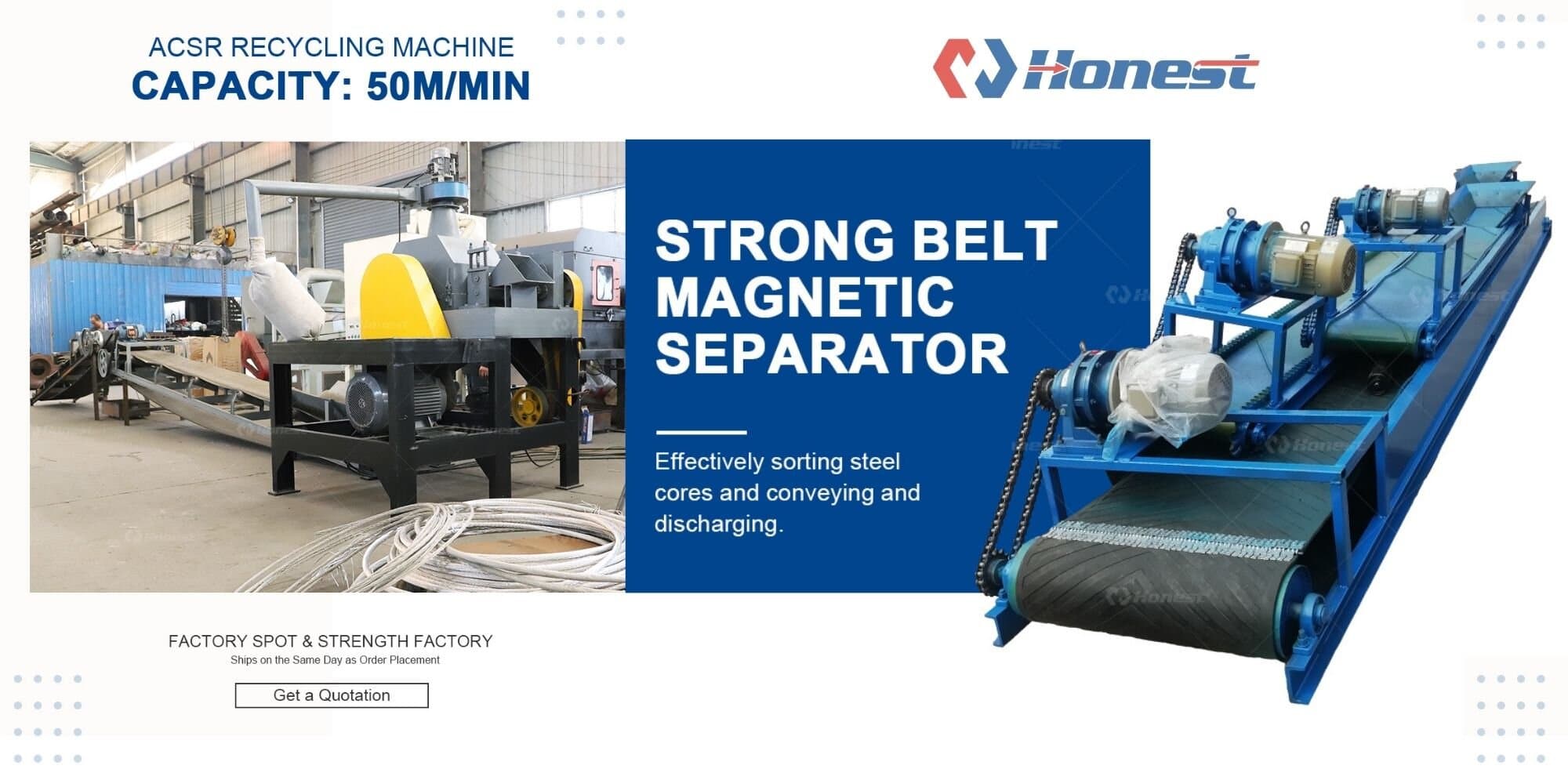

The core advantage of this machine lies in its powerful magnetic belt separator, which effectively separates the steel core, conveying and discharging it with high efficiency.

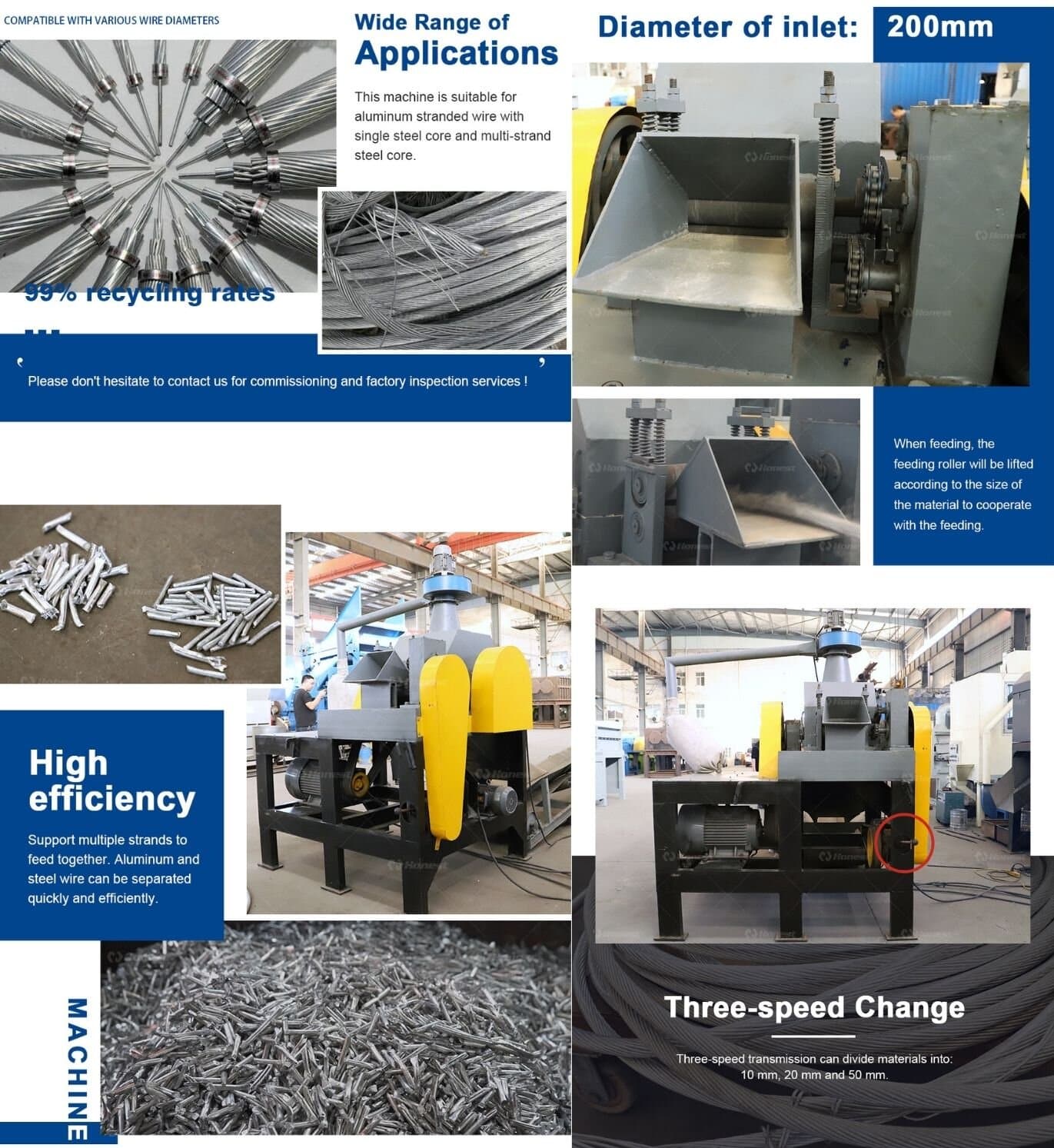

The machine features a feed inlet with a diameter of 200 millimeters. During the feeding process, the feed rollers automatically adjust their height based on the size of the material to ensure smooth and uninterrupted feeding. Equipped with a three-speed variable function, the machine can sort materials into three specifications: 10 millimeters, 20 millimeters, and 50 millimeters, catering to diverse recycling needs. Its user-friendly design supports the simultaneous feeding of multiple strands of cables, enabling rapid and efficient separation of aluminum and steel wires.

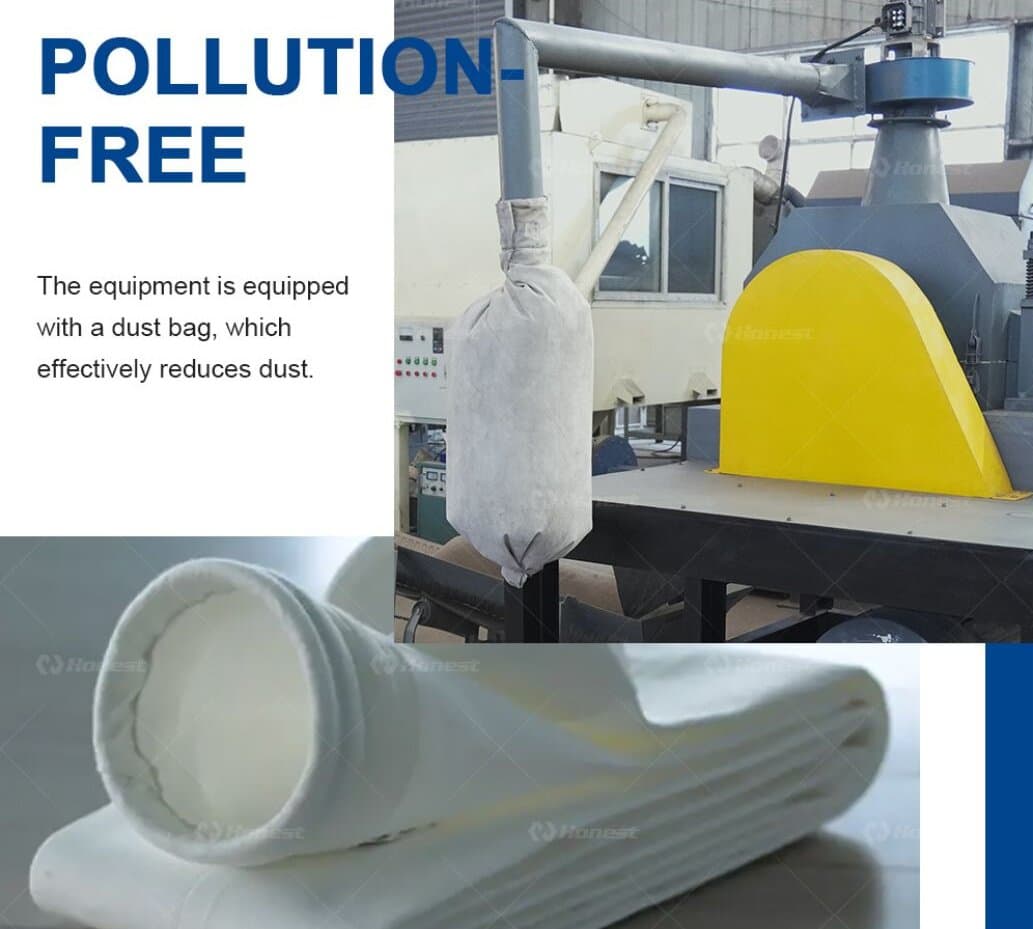

The equipment prioritizes environmental protection and is equipped with a dust collection bag, effectively reducing dust generation and enabling pollution-free operation. The machine is designed with safety and reliability in mind, ensuring the safety of both operators and the environment. With its compact structure,small footprint and stable performance, it serves as an efficient and eco-friendly solution for ACSR recycling.

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
