How PCB Dismantling Machines Improve Copper Recovery in Recycling

PCB recyclers often face the same bottleneck: mixed boards enter the shredder with components still attached, which increases wear, lowers copper recovery, and pushes more material into low-value output. A modern pcb dismantling machine solves this at the source by removing electronic components before crushing, operating at 200–1000 kg/h, and turning complex boards into clean motherboards and separated components. The result is clear—reduce downstream load, increase metal recovery, and unlock additional revenue from components.

Instead of sending whole boards directly into a pcb shredder, the dismantling stage separates value streams early. The system heats the boards in a rotating drum until the solder reaches the melting point, allowing components and tin to detach. Once separated, solder drops through a vibrating screen for collection, while components move into a dedicated output stream. This step changes the economics of the entire line: cleaner boards enter crushing, which improves copper liberation, while removed components can be screened and sold or processed for precious metal recovery.

The impact on downstream equipment is immediate. When pre-treated boards enter a circuit board crushing and sorting recycling line, shredding becomes more efficient, energy consumption drops, and blade wear decreases. Operators process more material with the same equipment while reducing maintenance frequency. In practical terms, this means more tons processed per day and lower cost per ton.

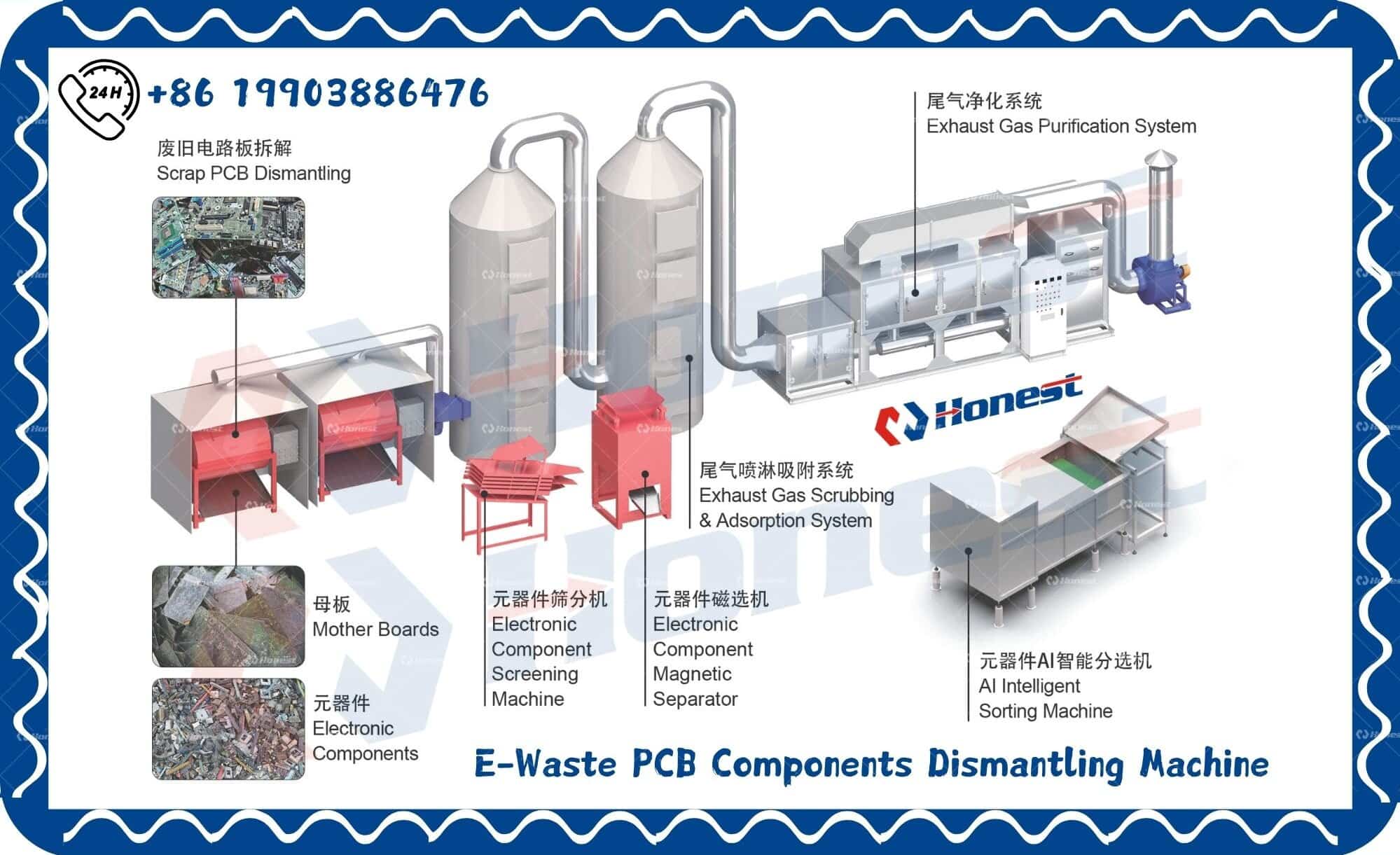

At the same time, separated components create a second revenue channel. After dismantling, materials pass through an electronic component screening machine to be classified by size, then through an electronic component magnetic separator to remove ferrous fractions. With further refinement using an AI sorting machine, recyclers can isolate high-value fractions suitable for precious metal recovery. Instead of treating components as contamination, the process converts them into a saleable output.

Environmental control also becomes part of the system, not an afterthought. During heating, exhaust gas is captured and treated through an exhaust gas scrubbing and adsorption system, followed by purification. This allows operators to meet compliance requirements while maintaining continuous production, avoiding shutdown risks linked to emissions.

From an operational standpoint, the system runs on a controlled heating cycle. The ignition system heats the rotating drum until the preset temperature is reached, then stops automatically. When the temperature drops, heating resumes. This loop continues until the solder fully melts, ensuring consistent separation without overprocessing. Adjustable rotation speed and temperature allow operators to match different board types, from household appliance PCBs to computer motherboards.

System design also reflects real factory conditions. Many plants dismantle boards first, then accumulate volume before feeding shredding and separation lines. This means the capacity of the pcb dismantling machine and the pcb shredder must be configured separately to avoid bottlenecks. Matching these two stages correctly is critical to maintaining continuous flow and maximizing output.

For recyclers, the shift is strategic. Adding a pcb dismantling machine does not just improve one step—it restructures the entire process flow. It reduces shredder load, increases copper recovery, creates new revenue from components, and stabilizes system performance. In a market where margins depend on both efficiency and material value, this upstream change directly defines how much profit each ton of PCB can generate.
