Can Copper and Aluminum Be Separated from Mixed PCB Metal Powder?

For many newcomers to the PCB recycling industry, one of the most common questions is whether copper and aluminum can be truly separated after printed circuit boards are crushed into a mixed metal powder. This concern is understandable. PCB waste is not a simple metal stream. It is a complex composite of copper, solder, aluminum parts, fiberglass, resin, plastics, and electronic components.

In practice, the feasibility of copper–aluminum separation does not depend on a single machine. It depends on whether the entire recycling process is designed correctly. When PCBs are crushed directly without proper preparation, metals remain tightly bonded to non-metallic materials. This results in low separation purity and unstable output. This is why industrial PCB recycling always follows a structured, multi-stage process. It is never a one-step solution.

The process begins with dismantling. Large components such as transformers, heat sinks, fans, and high-value electronic parts are removed first, either manually or with auxiliary equipment. These components often contain concentrated valuable materials and should not be damaged during crushing. After that, the remaining boards enter an automatic PCB dismantling machine designed around the low melting point of solder. By precisely controlling temperature and rotation, solder is melted without destroying components, allowing electronic parts and solder to fall away cleanly from the base board. This step significantly reduces precious metal loss and prepares a cleaner, more uniform material for downstream processing.

Once dismantling is completed, the bare boards are conveyed into the recycling line for mechanical size reduction. The material typically passes through shredding, crushing, and fine grinding stages. During this process, metals are fully liberated from fiberglass and resin. Any material that is not completely separated is automatically returned for re-grinding, ensuring consistent particle size and stable separation performance. The entire line is controlled by a PLC system, allowing precise adjustment of operating parameters and reliable continuous operation.

After proper liberation, separation is carried out using purely physical methods. Air separation, gravity separation, electrostatic separation, and magnetic separation work together to divide metal and non-metal fractions based on differences in density, conductivity, and magnetic properties. Dust is collected through a pulse dust collection system operating under negative pressure, which effectively prevents secondary pollution. With correct process configuration and stable operating conditions, metal and non-metal separation purity can reach approximately 99% in long-term industrial operation.

At this stage, copper and aluminum can be separated into high-purity non-ferrous metal fractions. This is the key point often misunderstood by new investors: copper–aluminum separation is not achieved by forcing separation at the crushing stage, but by ensuring complete liberation first and then applying appropriate physical sorting technologies. When this logic is followed, separation becomes reliable, repeatable, and economically viable.

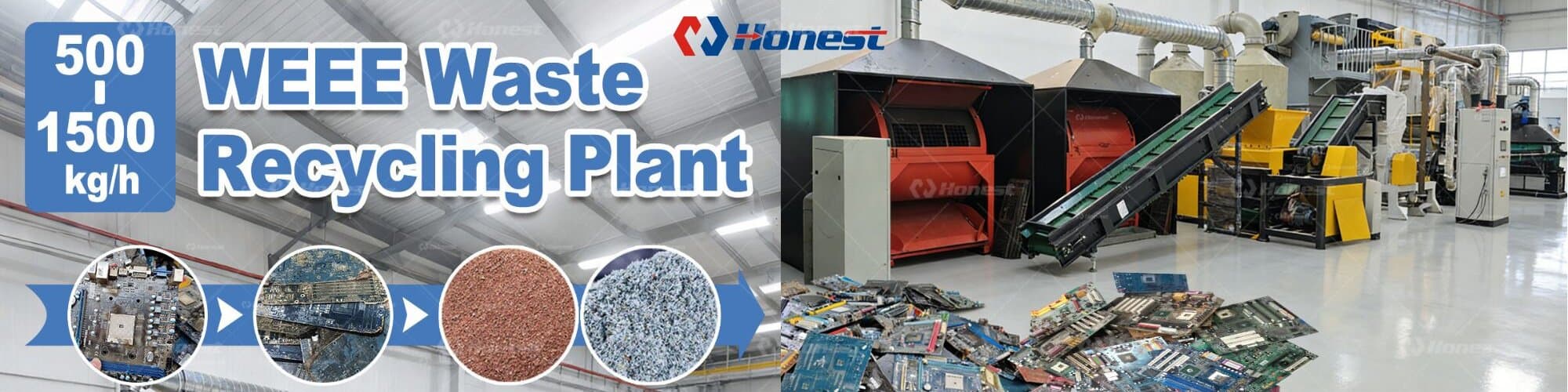

The final outputs of a 500-1500 kg/h PCB recycling line typically include non-ferrous metals such as copper and aluminum, clean non-metallic materials like resin and fiber, as well as independently recovered electronic components and solder. Because these materials all have established downstream markets, a well-designed PCB recycling plant can achieve strong economic returns while meeting environmental compliance requirements. In summary, copper and aluminum can indeed be separated from mixed PCB metal powder, but only when dismantling, crushing, and separation are treated as an integrated system rather than isolated steps. The real value of PCB recycling lies in process design and execution, not in any single piece of equipment.
