Recycling Solution Details

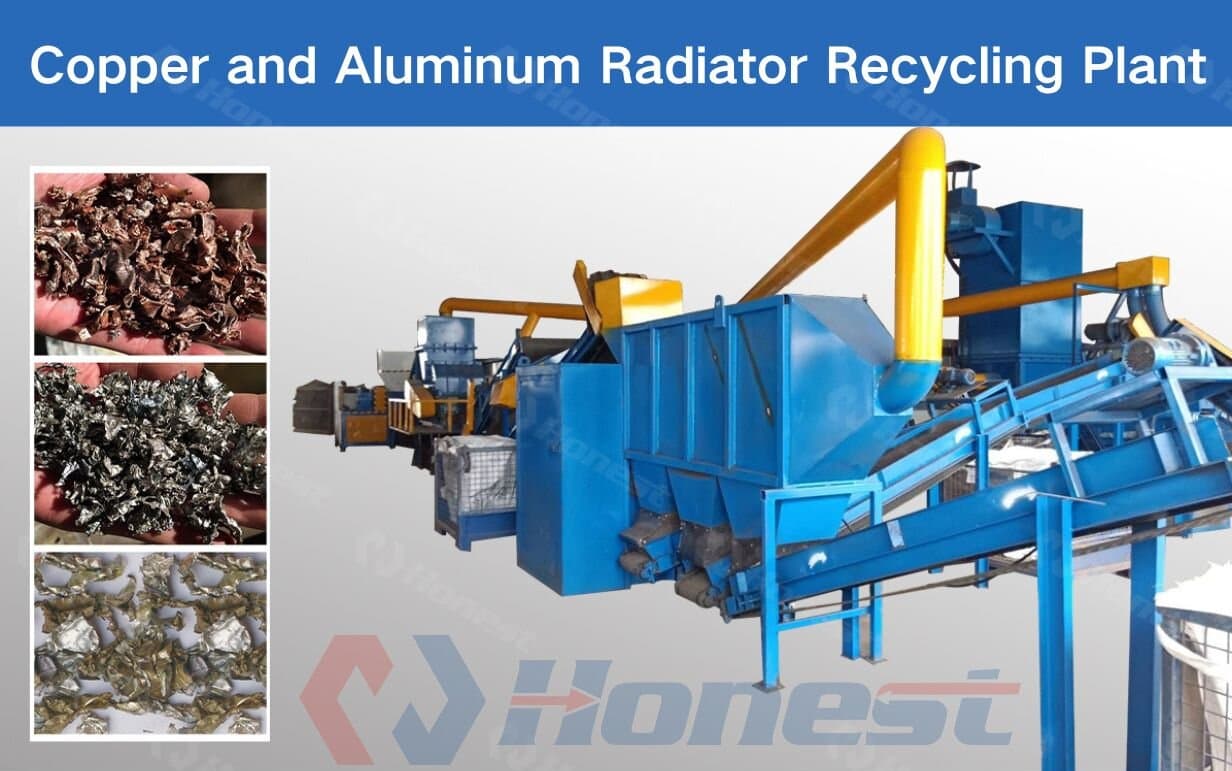

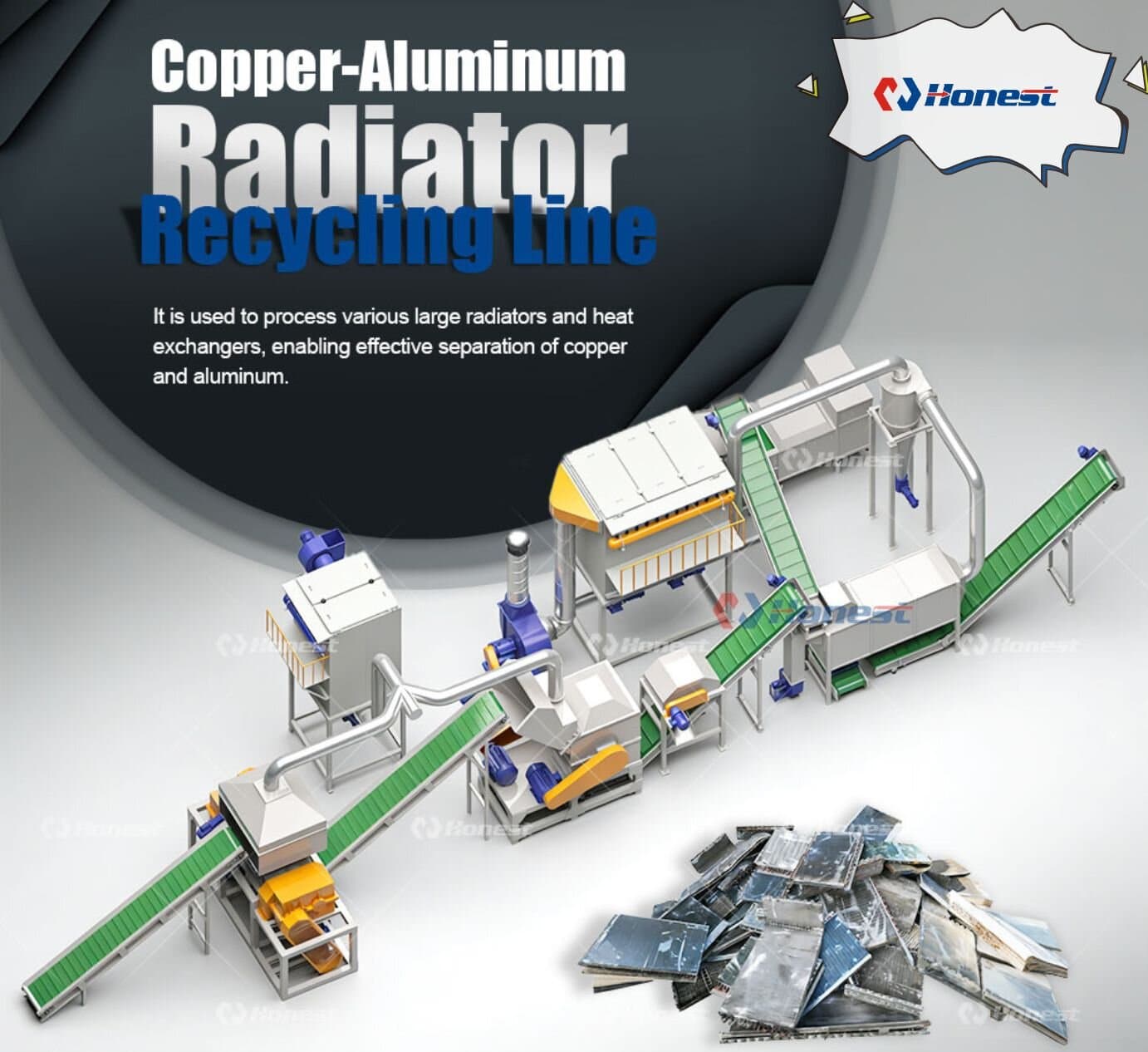

The Copper and Aluminum Radiator Recycling Plant is a specialized system designed to efficiently separate and recover valuable metals, such as copper and aluminum, from discarded radiators found in vehicles and industrial equipment. It can be customized according to the customer’s factory size and structure to ensure the best equipment placement. The factory adopts PLC control, simple operation and maintenance, high efficiency, high separation ratio and large capacity. The system adopts primary gravity separation and secondary airflow separation, with a separation rate of up to 99%. The pulse dust collector effectively removes dust during the production process, keeps the workshop environment clean and prevents secondary pollution.

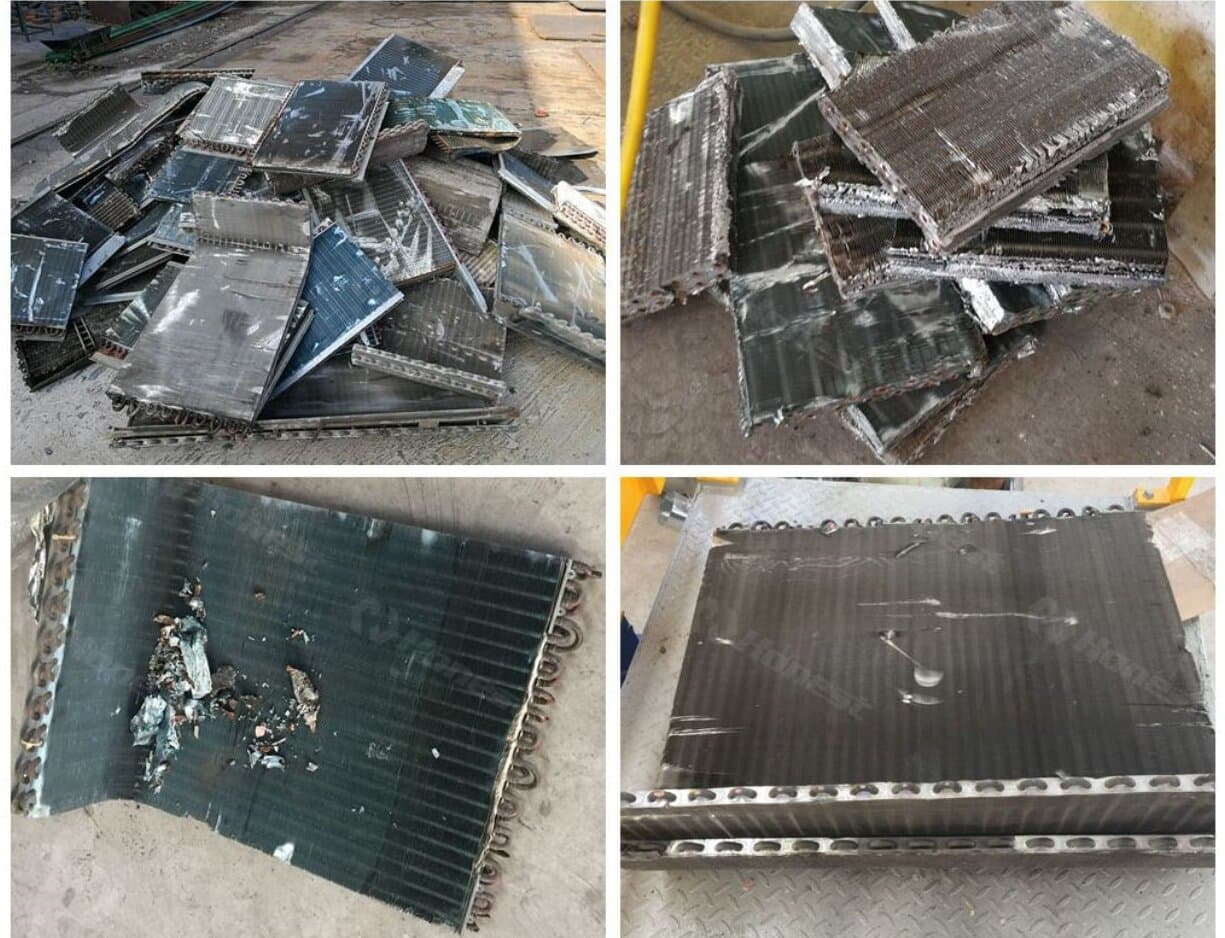

Raw Material

The equipment is suitable for processing various large radiator blocks, such as air conditioning copper and aluminum radiators, car water tanks, truck water tanks and other waste copper and aluminum materials.

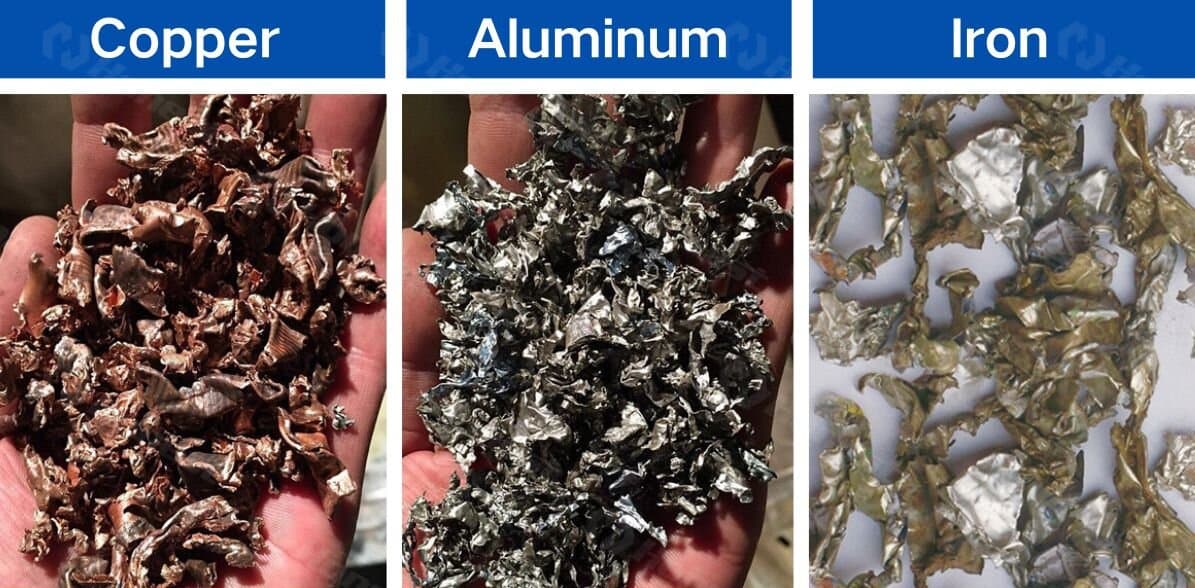

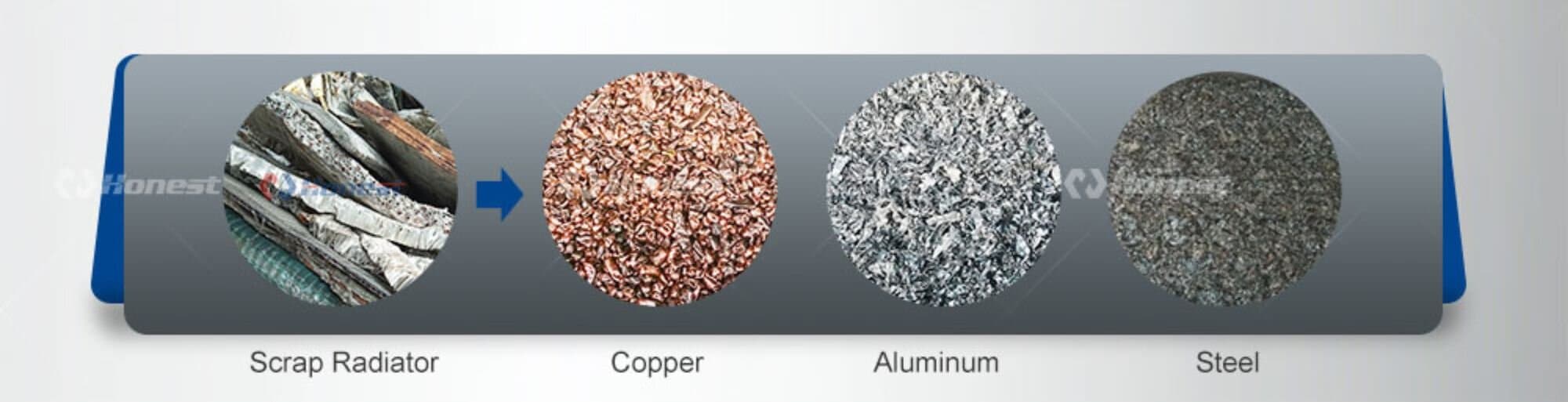

Final Products

This scrap Copper and Aluminum Radiator Recycling Plant is designed to efficiently separate copper, aluminum and iron from a variety of radiators.

Technical Parameters

Model	HN-SRP-1000	HN-SRP-2000	HN-SRP-3000	HN-SRP-5000
Capacity (Kg/H)	1000	2000	3000	5000
Power (Kw)	55*2	75*2	90*2	132*2
Sorting Efficiency	97%	97%	97%	97%
Dust Removing Efficiency	99%	99%	99%	99%
NOTE: Working voltage: 380±10V (415V, 440V also can be customized)

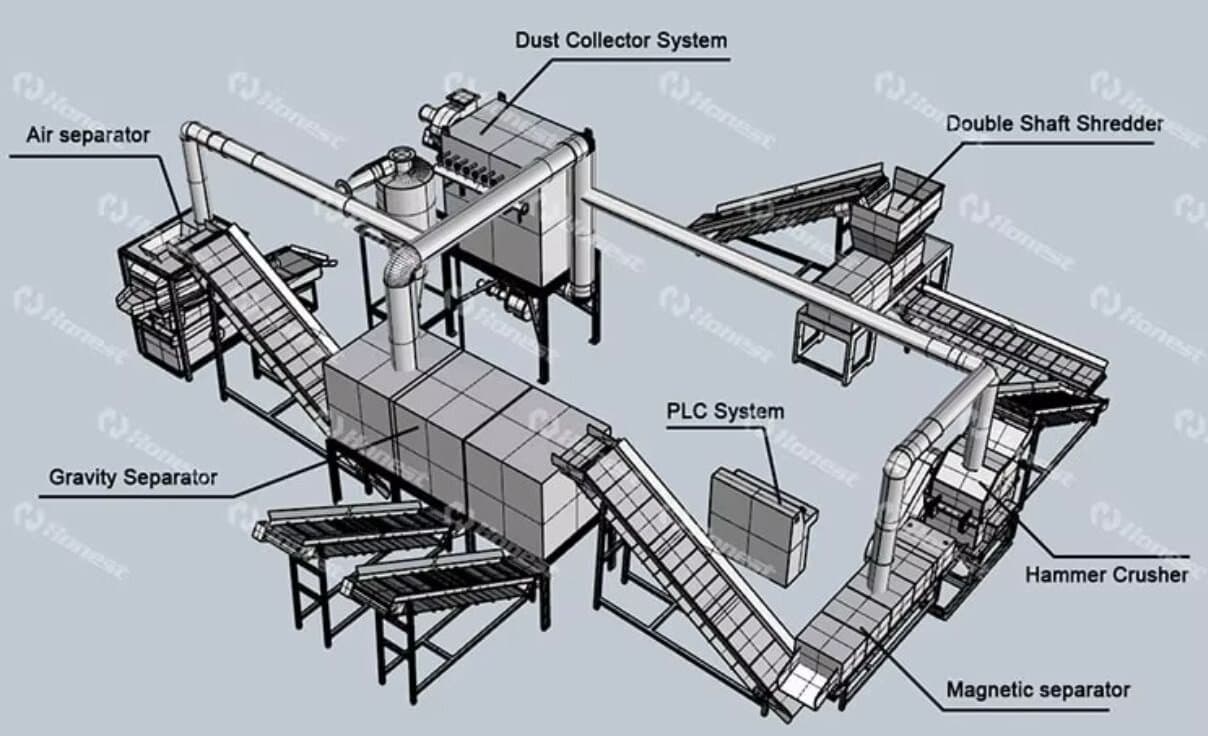

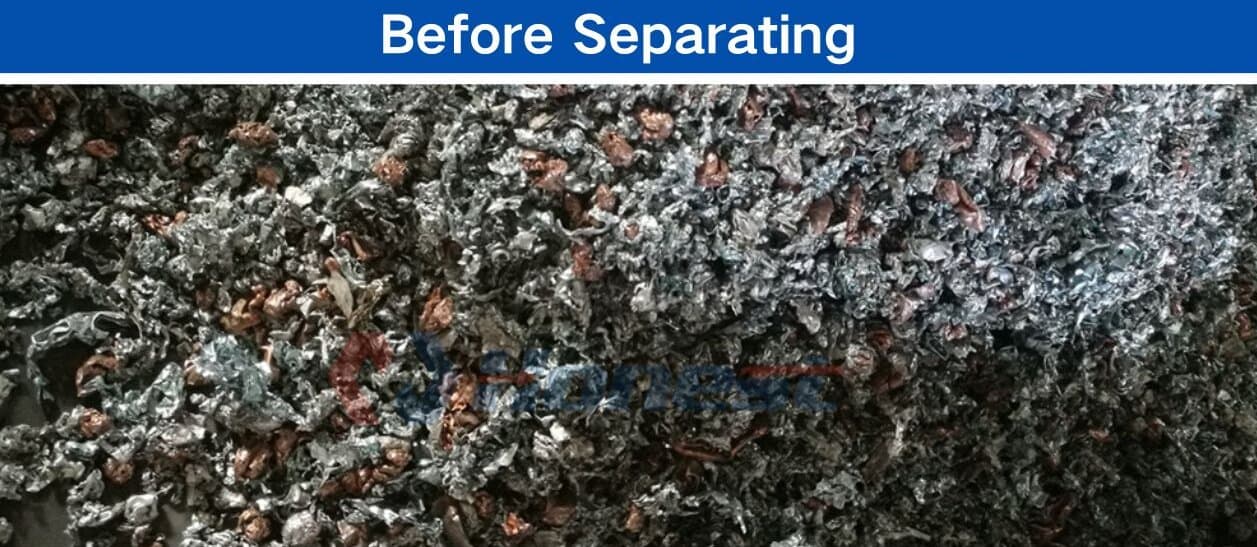

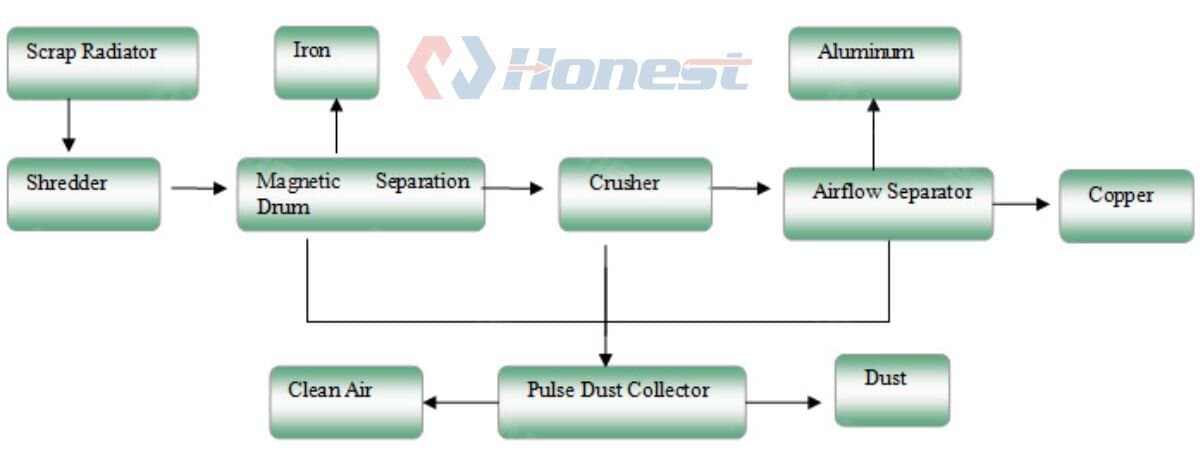

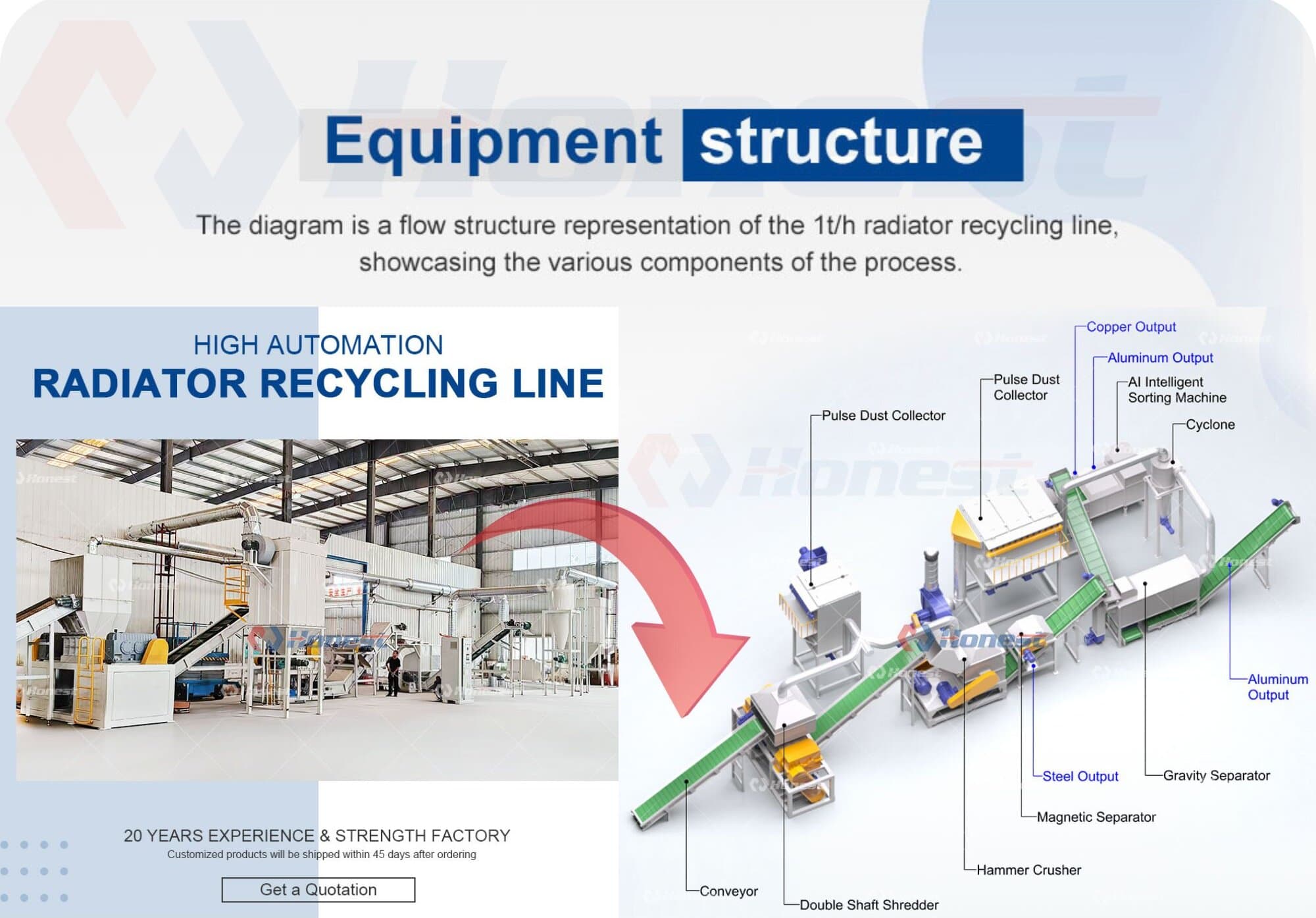

Copper and Aluminum Radiator Recycling Equipment Workflow

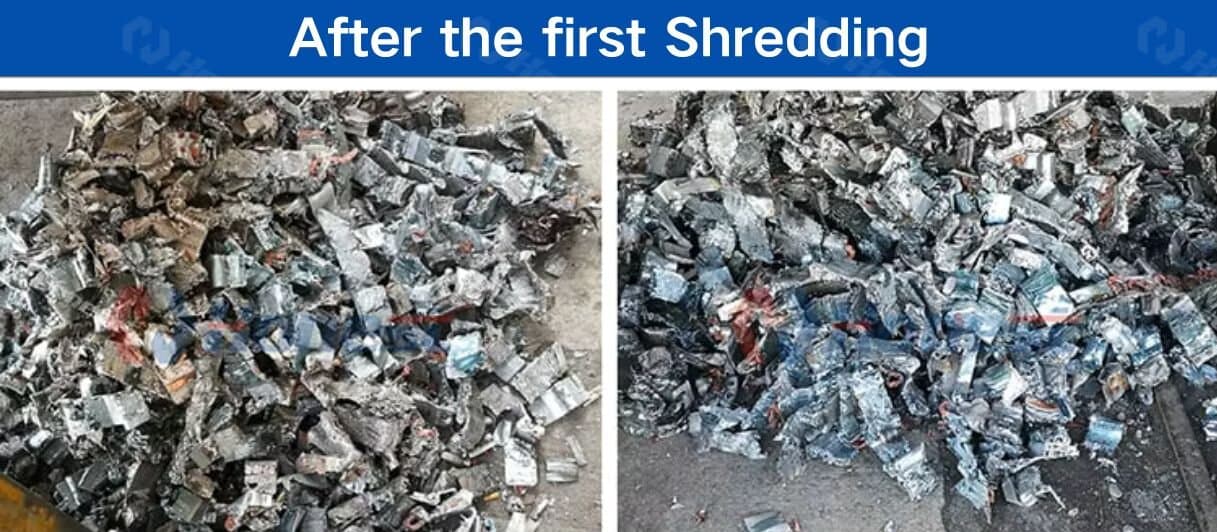

Double Shaft Shredder: Performs preliminary shredding of materials.
Hammer Crusher: Further crushes the materials to make them smaller in size.
Magnetic separator: Separates magnetic substances from the materials.
PLC System: Automatically controls the operation of the entire equipment.

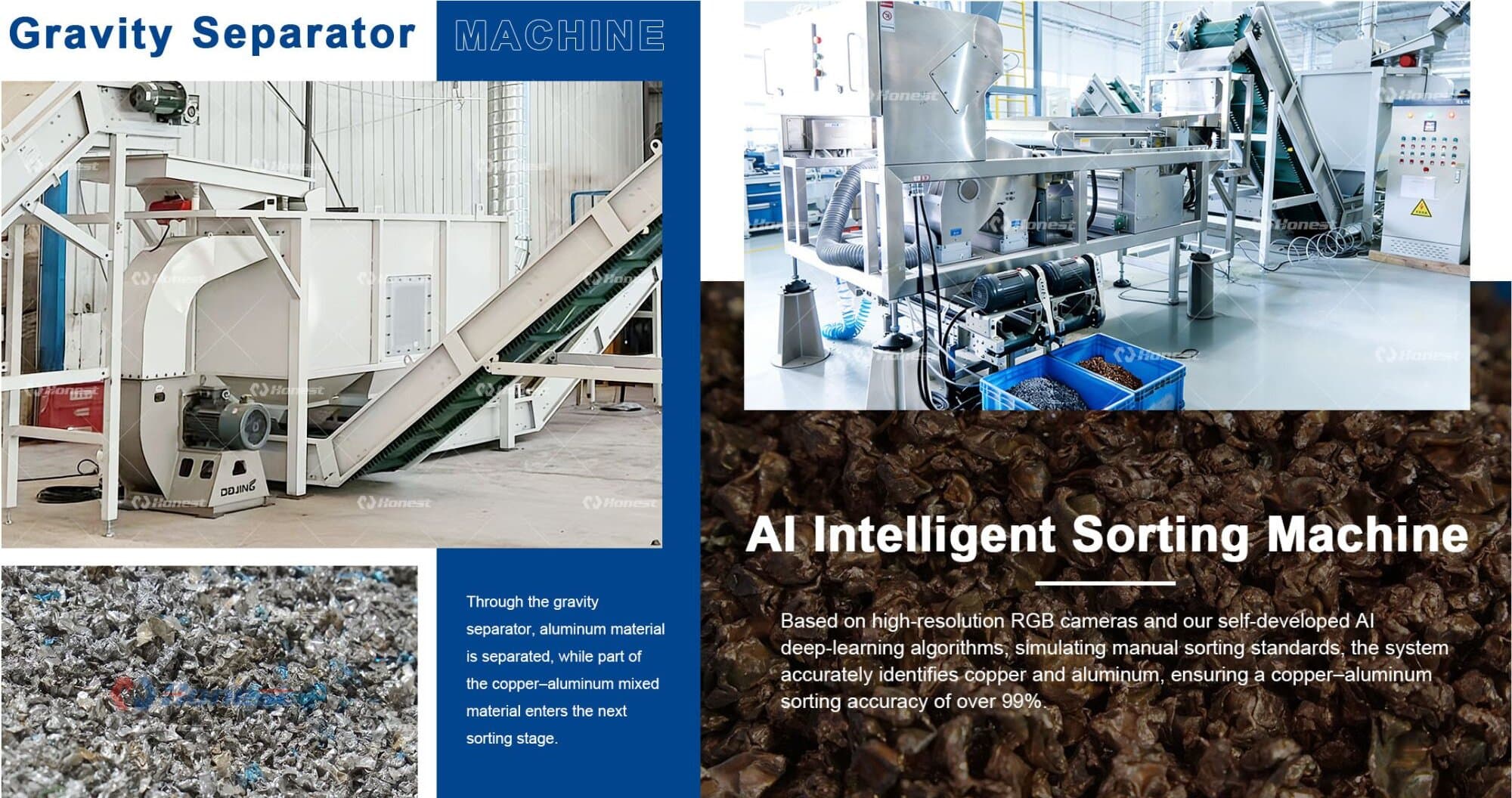

Gravity Separator: Uses the principle of gravity to separate materials of different densities.
Air separator: Uses airflow to separate materials according to different characteristics.

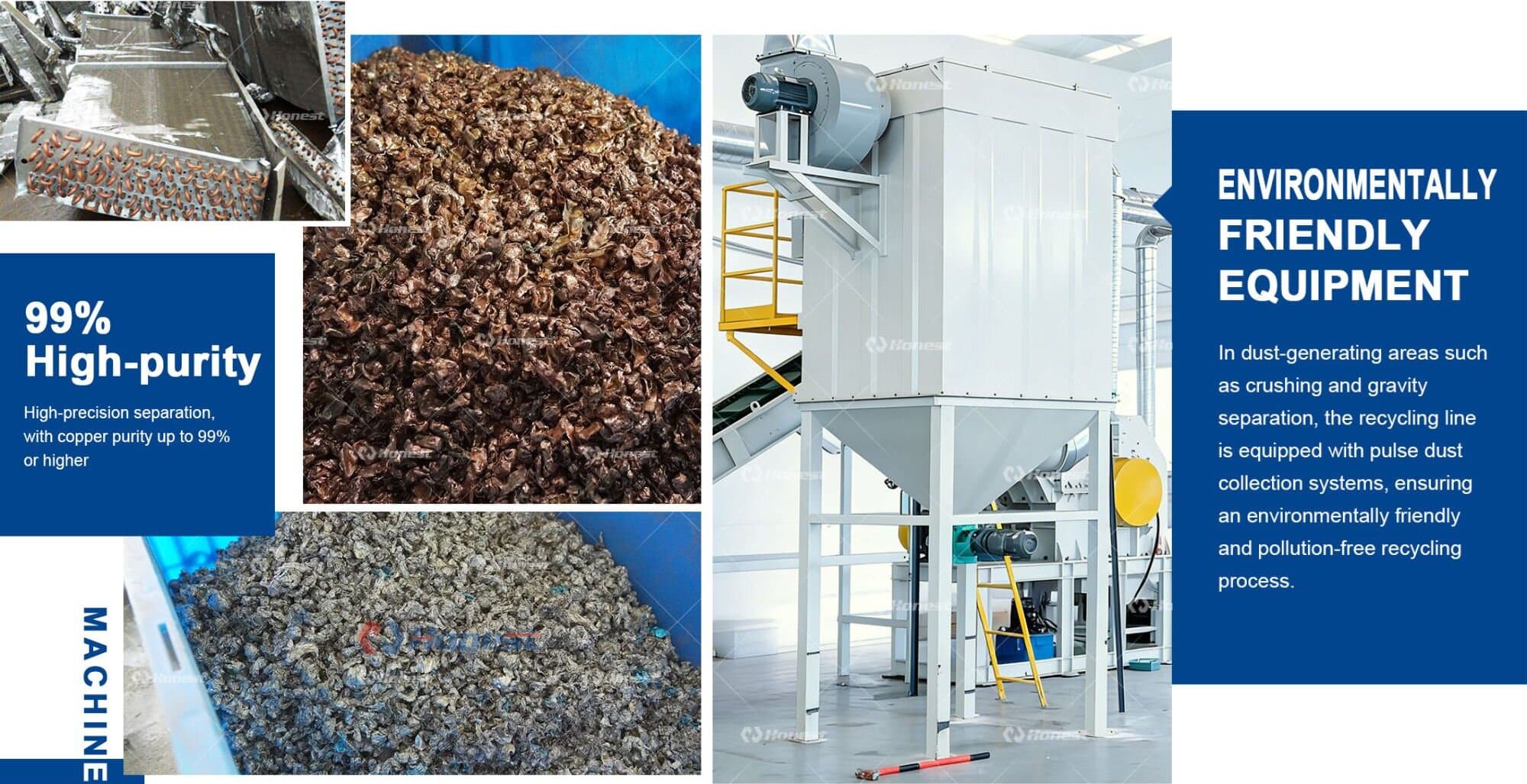

Dust Collector System: Collects dust generated during the operation of the equipment to keep the working environment clean.

The equipment layout can be customized according to the customer’s factory size and structure to ensure optimal equipment placement. The factory adopts PLC control, simple operation and maintenance, high efficiency, high separation ratio and large capacity. The system adopts primary gravity separation and secondary air flow separation, with a separation rate of up to 99%. The pulse dust collector effectively removes dust during the production process, keeps the workshop environment clean and prevents secondary pollution.

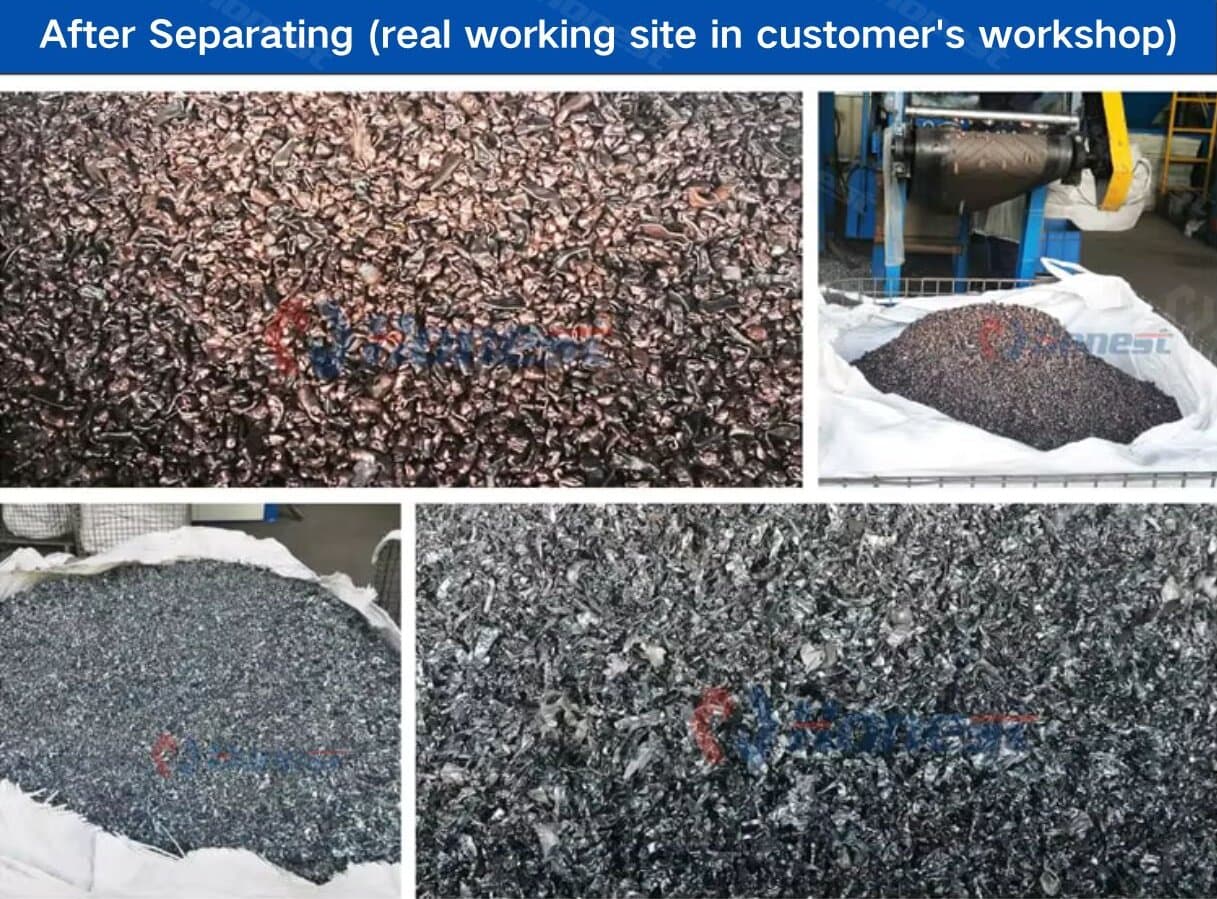

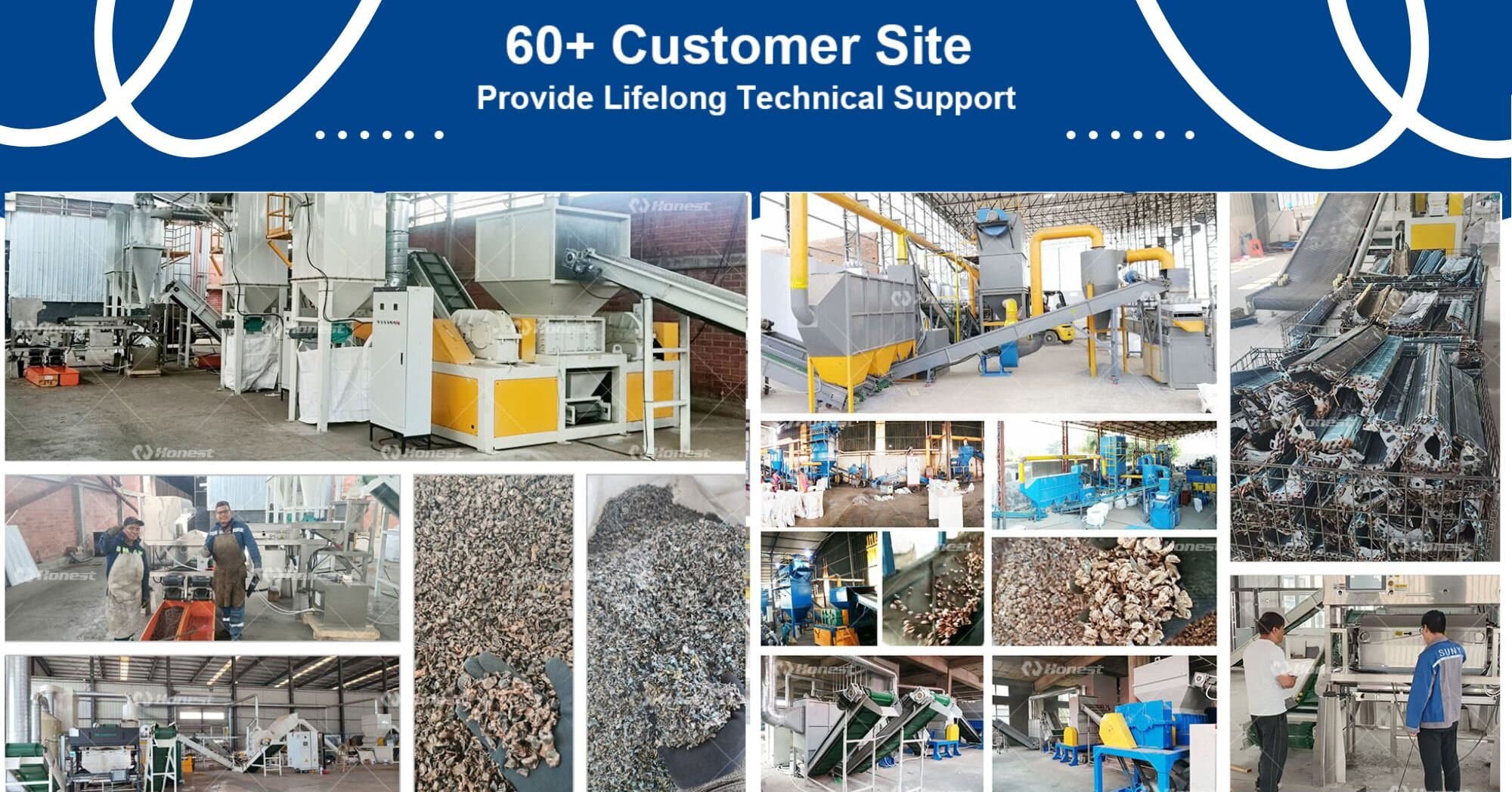

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
