Recycling Solution Details

The Lead-Acid Battery Recycling Plant employs a sophisticated process to recover valuable components from spent lead-acid batteries. Utilizing advanced crushing, separation, and smelting technologies, the plant extracts lead, plastics, and sulfuric acid. The recovered lead undergoes purification for reuse in new batteries or other industrial applications, while the sulfuric acid is neutralized for safe disposal or transformed into useful products.

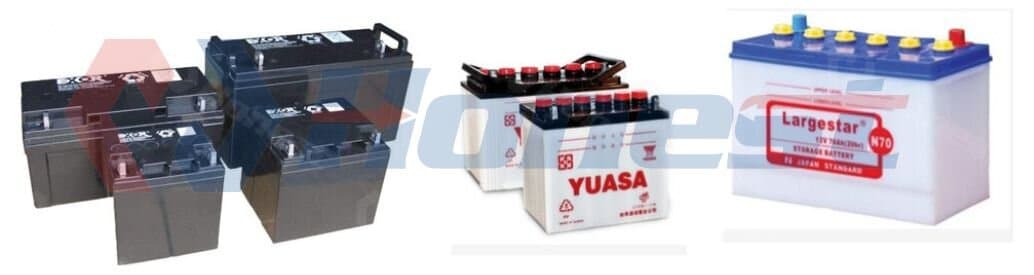

Raw Material

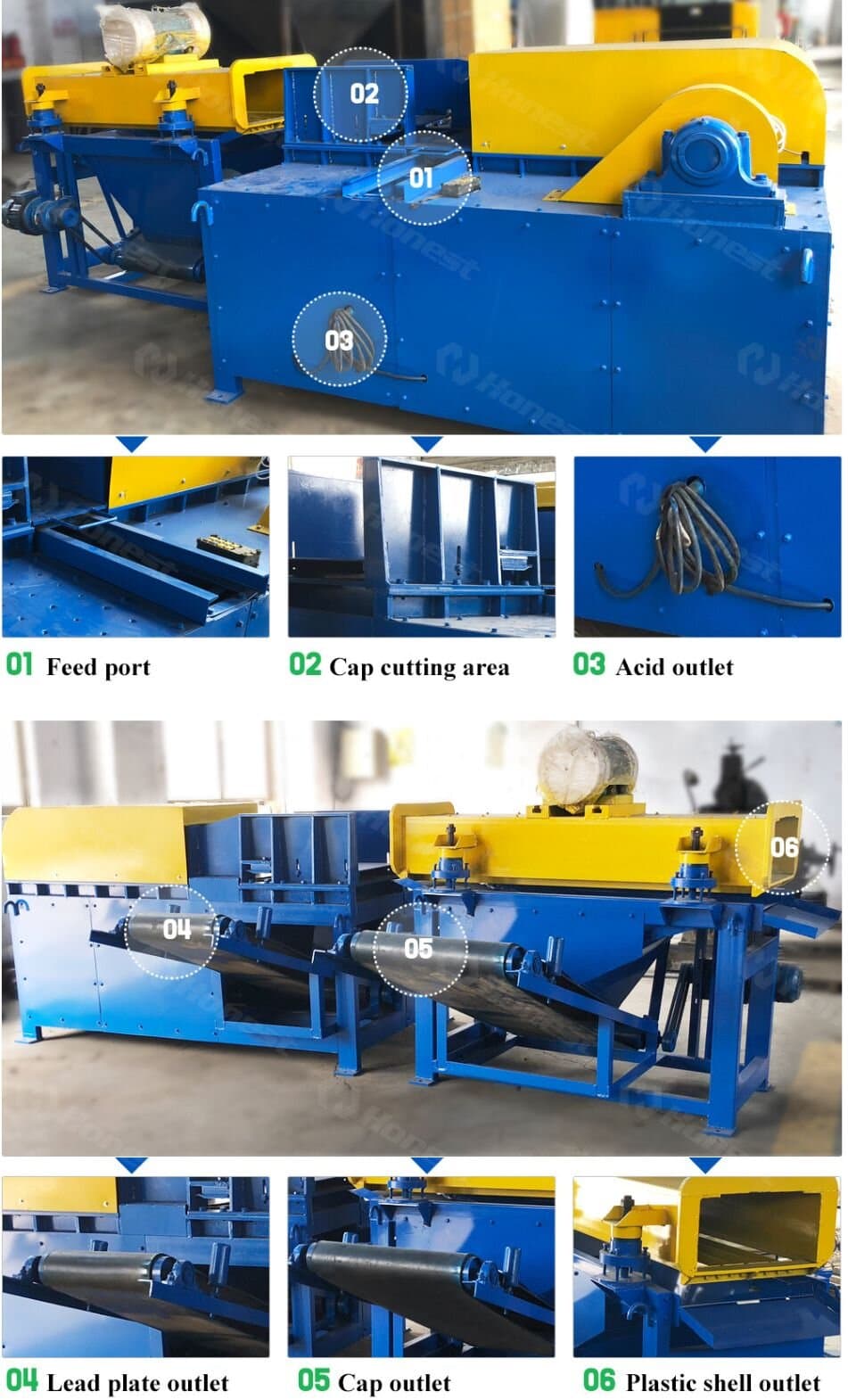

The equipment features a battery cutter dismantling machine, suitable for recycling various lead-acid batteries, including those from automobiles, trucks, and electric bicycles.

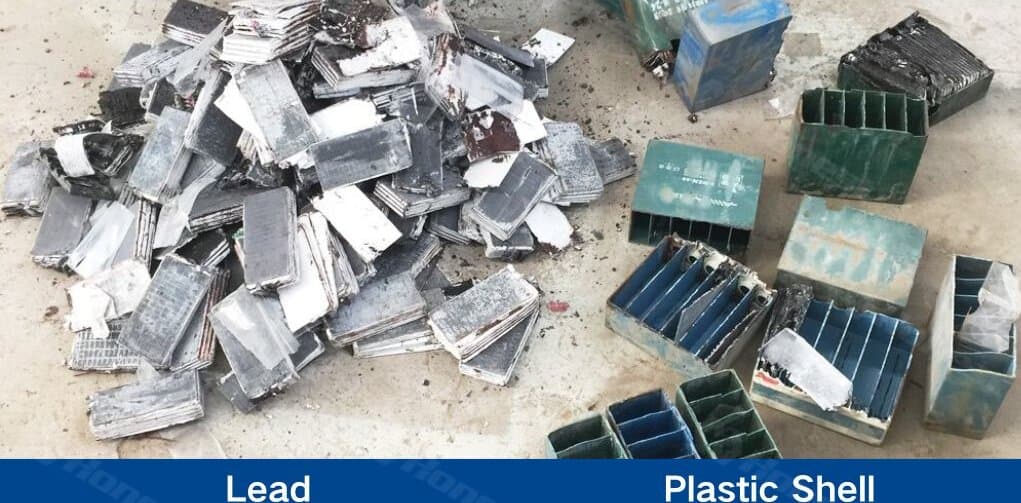

Final Products

The recycling process yields lead and plastic shells as primary outputs.

Technical Parameters

ITEM	DIMENSION
Battery Cover Remover	2.2×2.0x1.3 m
Lead Separator	1.8×1.7×1.6 m
Working Performance
Raw Material	Waste Lead Acid Battery
Feeding Port	One feeding port (feeding size can be customized)
Operator Required	2 Workers
Option
1. Standard model machine body made of durable steel. Stainless steel acceptable as optional choice. 2. OEM acceptable. Entire machine could be made according to different sizes of batteries. 3. 12 months warranty. One complete set of wearing parts delivered with the machine for free. 4. Battery shell cleaning and crush system available as an option. 5. Working voltage:380±10V(415V ,440V also can be customized);

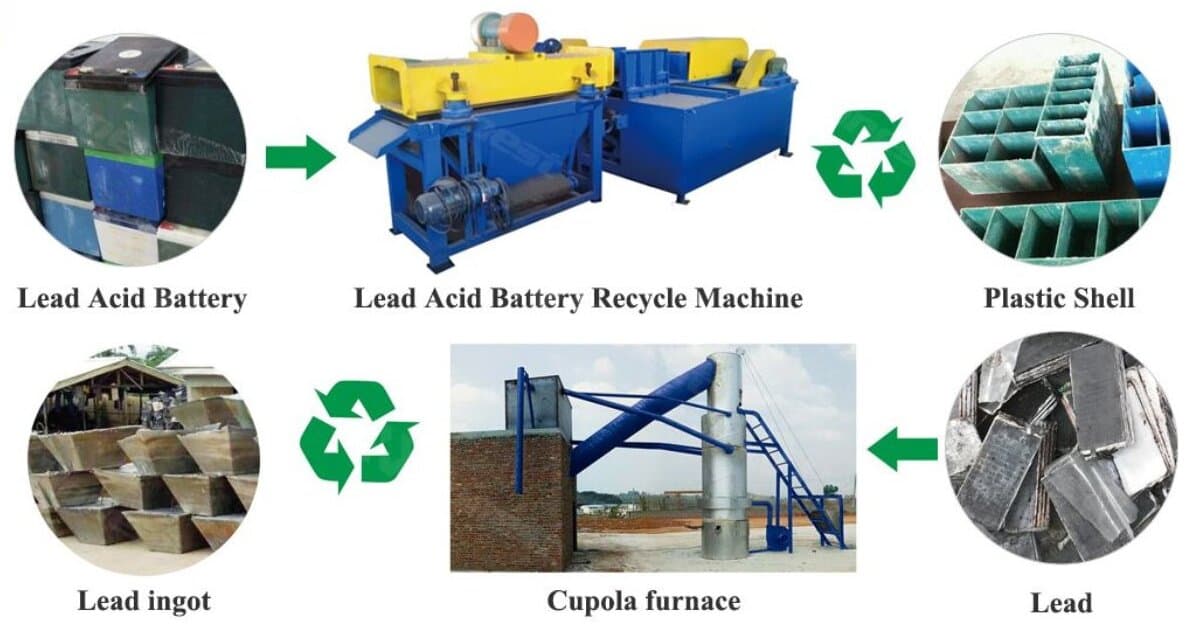

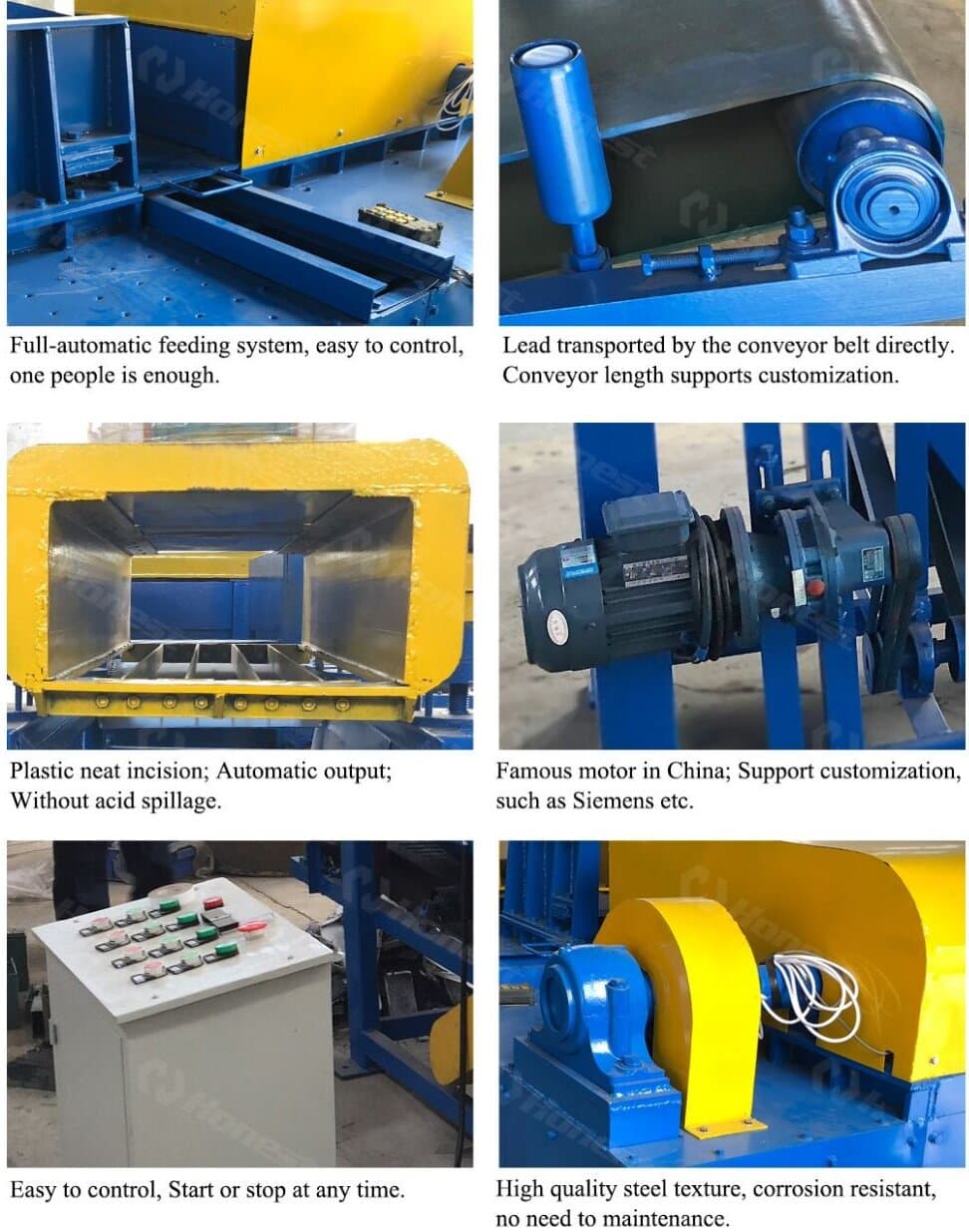

Lead-Acid Battery Recycling Machine Workflow

There are different alternatives to the final disposition of batteries: landfill, incineration and recycling. As for this situation, we designed the All-In-One lead acid battery recycling machine for lead battery separating and recycling, which is few pollution and easy to operate.

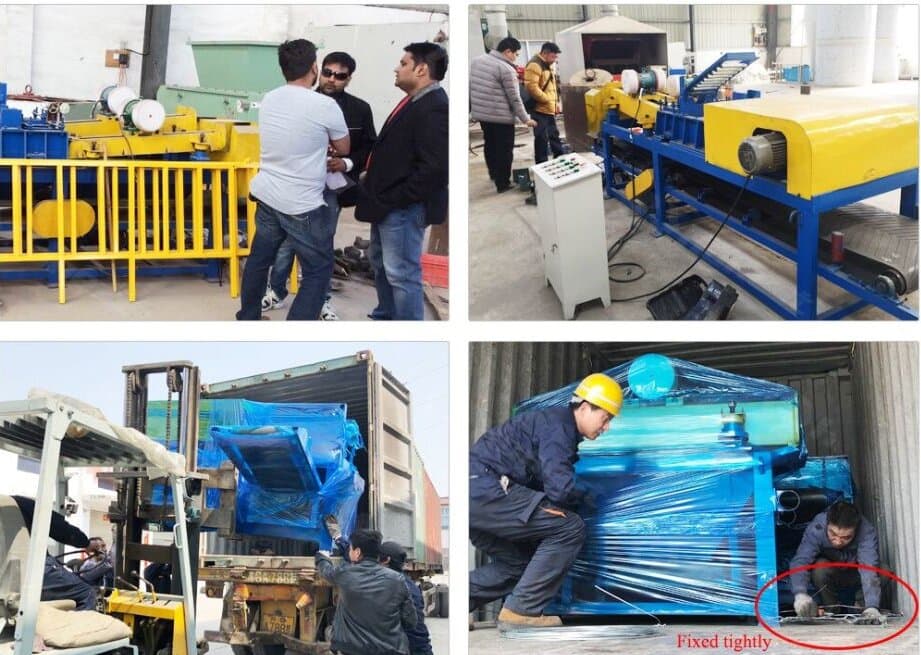

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2 Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
