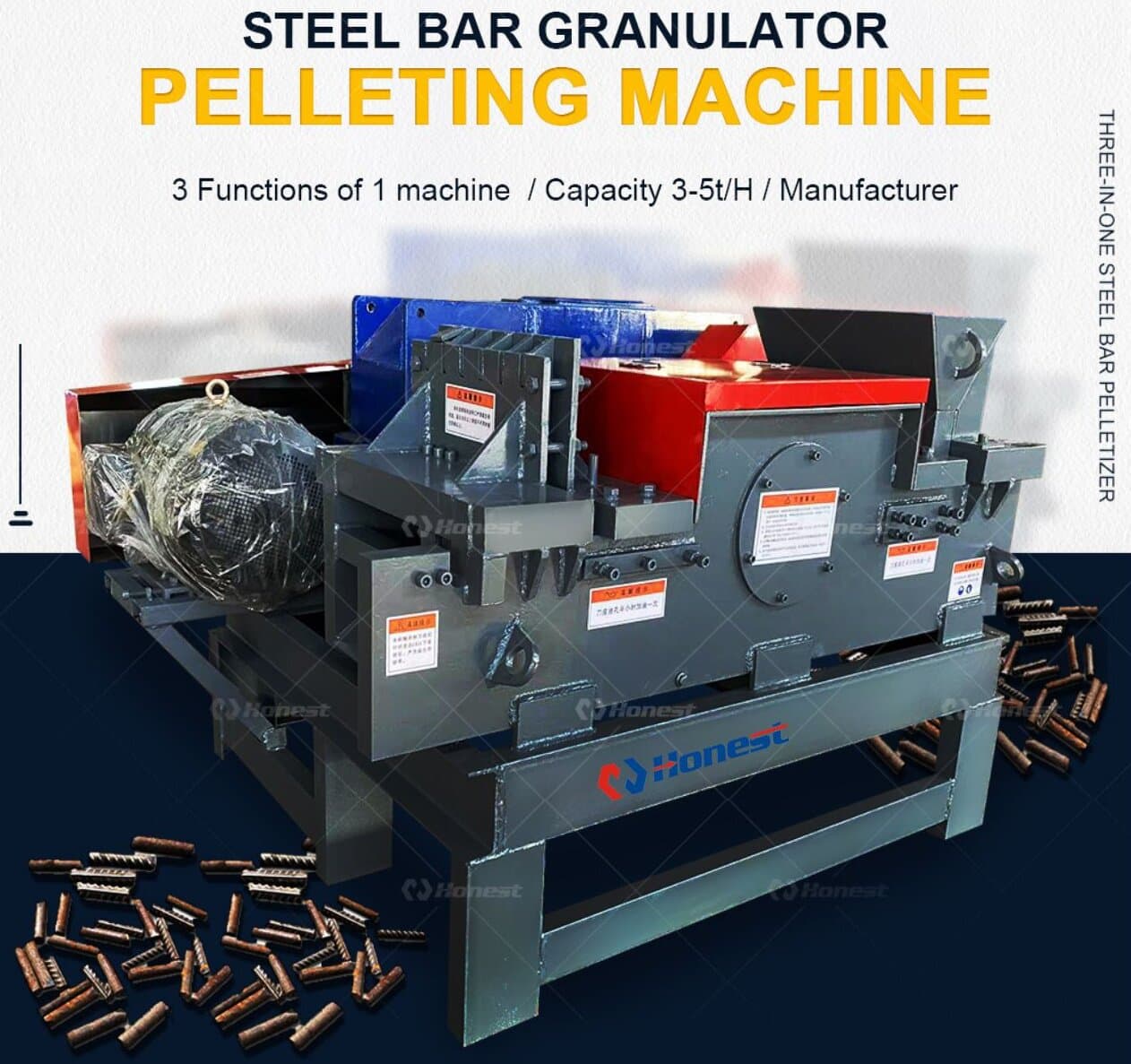

Scrap Rebar Granulating Machine

Recycling Solution Details

The Rebar Granulator is also known as a Steel Bar Cutting Machine, Rebar Chopper, Scrap Rebar Granulator, or Steel Bar Shearing & Sizing Machine. It is a heavy-duty solution designed to convert oversized scrap steel bars into uniform, high-density granules (20–80 mm). This machine efficiently processes straight, bent, or tangled rebar and wire rods. It handles diameters from 1–40 mm, transforming bulky construction steel waste into compact, furnace-ready feedstock. By increasing bulk density and producing consistent particle size, the machine helps reduce transportation costs and improve material handling. It also significantly enhances melting efficiency in steel mills and foundries. This makes it an ideal system for scrap yards, metal recycling plants, and steel manufacturers.

Applicable Materials Range:

Thanks to its wide material compatibility, the machine can process a variety of scrap metals with diameters ranging from 1–40 mm, including scrap rebar, steel rods, iron bars, wire rods, round bars, reinforcing bars, steel wires, construction steel offcuts, and other common scrap steel materials. It is suitable for handling different types of construction metal waste, scrap steel bars, and metal rod materials, making it an ideal solution for scrap yards, metal recycling plants, and steel processing facilities.

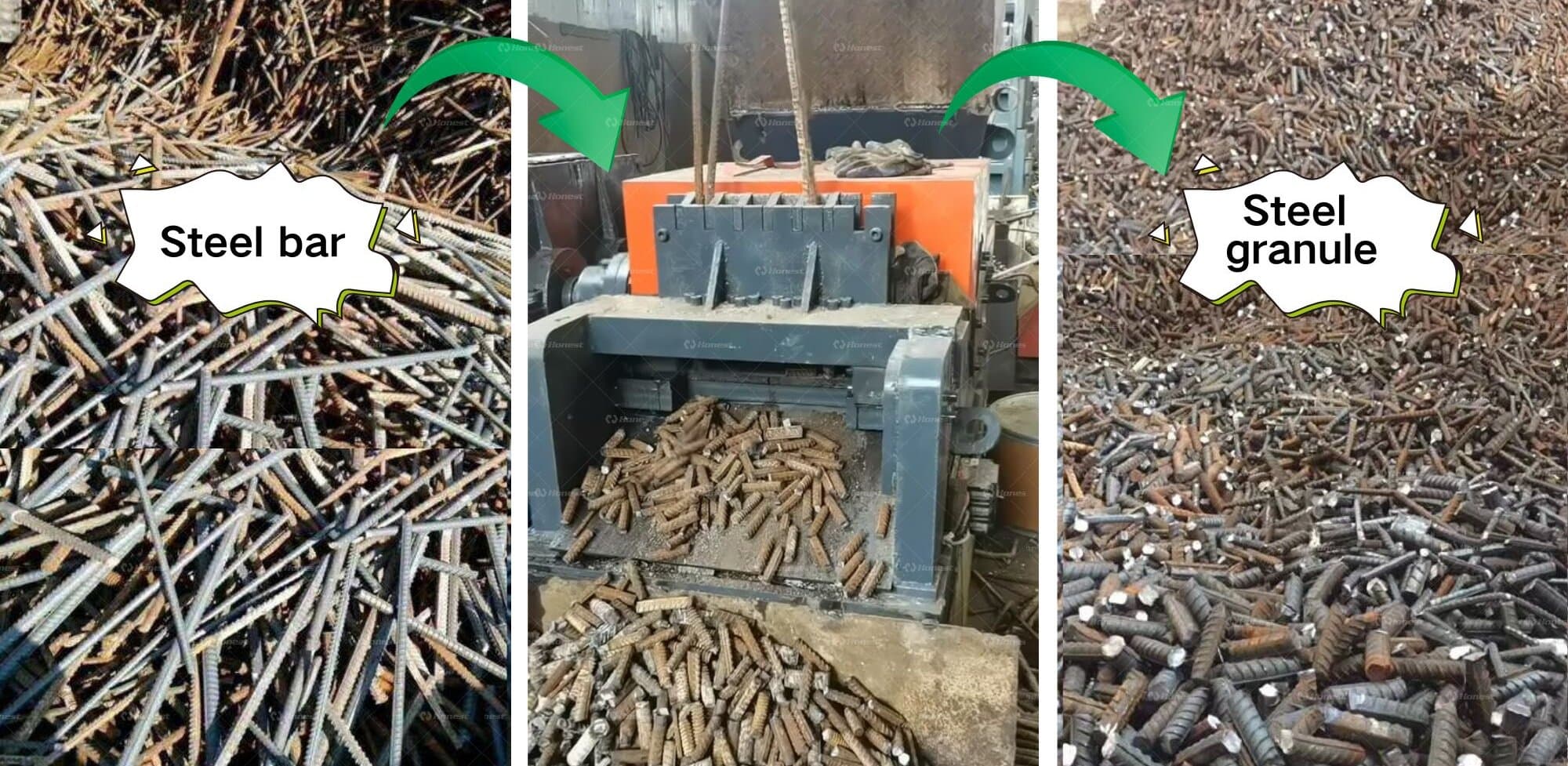

The machine is easy to operate. Simply place the scrap metal into the feeding inlet, and the system will automatically cut and process it into uniformly sized steel bar segments. This straightforward operation reduces manual handling, improves processing efficiency, and ensures consistent output size for downstream recycling or smelting.

Technical Parameters

Model	HN-SRG-750	HN-SRG-1000
Power	30kw	45kw
1 Feed inlet size	240*40mm	400*42mm
2 Feed inlet size	240*40mm	580*300mm
Capacity	2-3t/h	3-5t/h
Weight	2.25t	3.9t

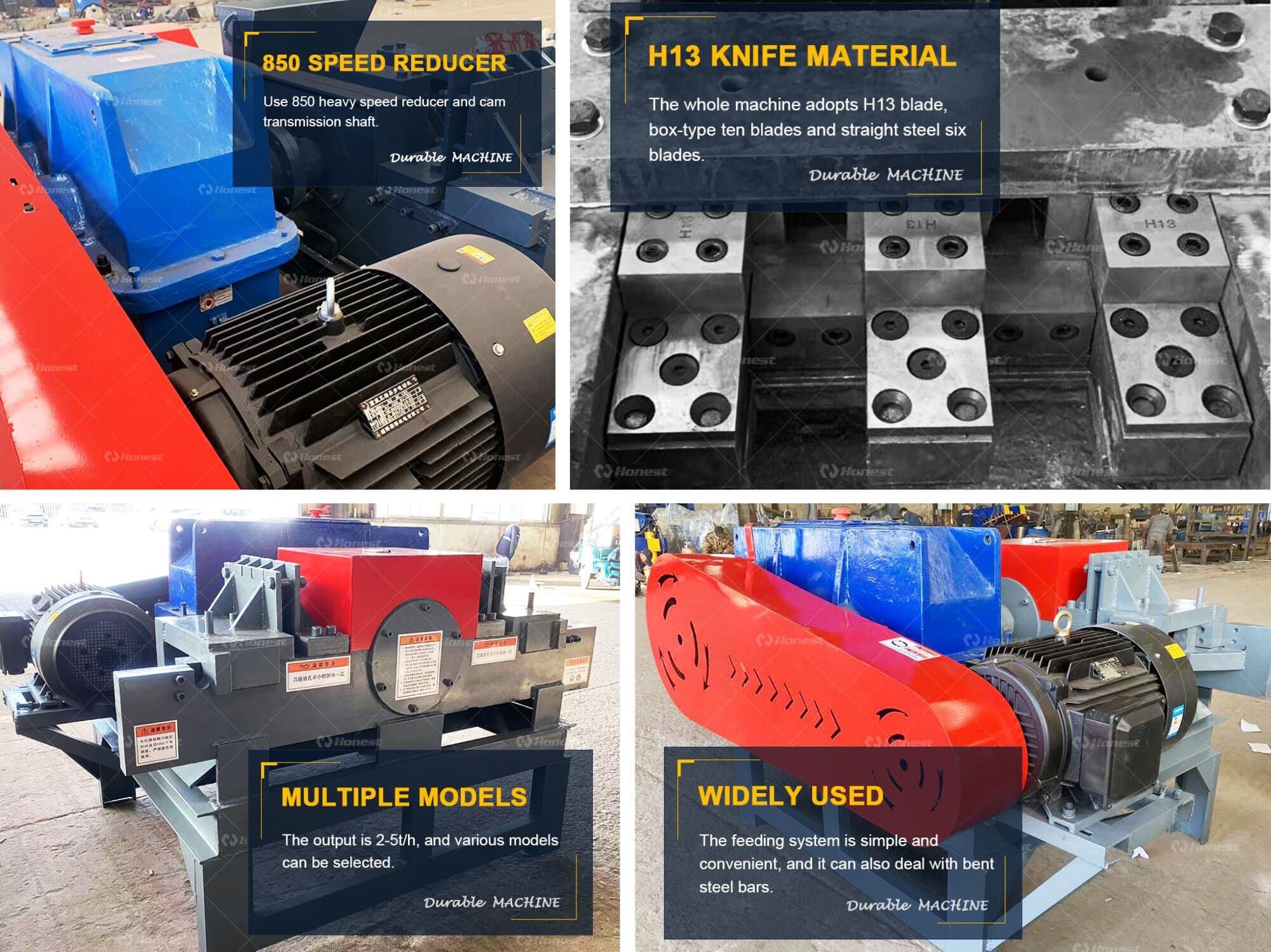

Scrap Rebar Granulating Machine Structural Features

The Three-in-One Steel Bar Pelletizer integrates cutting, sizing, and granulating functions in one machine, with a capacity of 2–5 t/h. It features a three-inlet feeding system for different scrap materials: Feed Inlet 1 & 2 (400 × 42 mm) process straight steel bars up to 40 mm, while the single-sided blade design handles bent bars below 28 mm. Feed Inlet 3 (580 × 300 mm) is designed for irregular reinforcing steel bars up to 16 mm. The machine is equipped with an 850 heavy-duty speed reducer and cam transmission shaft for stable operation. H13 tool steel blades, including a ten-blade box-type cutting system and six straight blades, ensure strong cutting performance and durability. Built with a thickened carbon steel frame and weighing 2–4 tons, the machine is suitable for processing 1–40 mm scrap steel bars and metal rods, widely used in scrap recycling and steel processing industries.

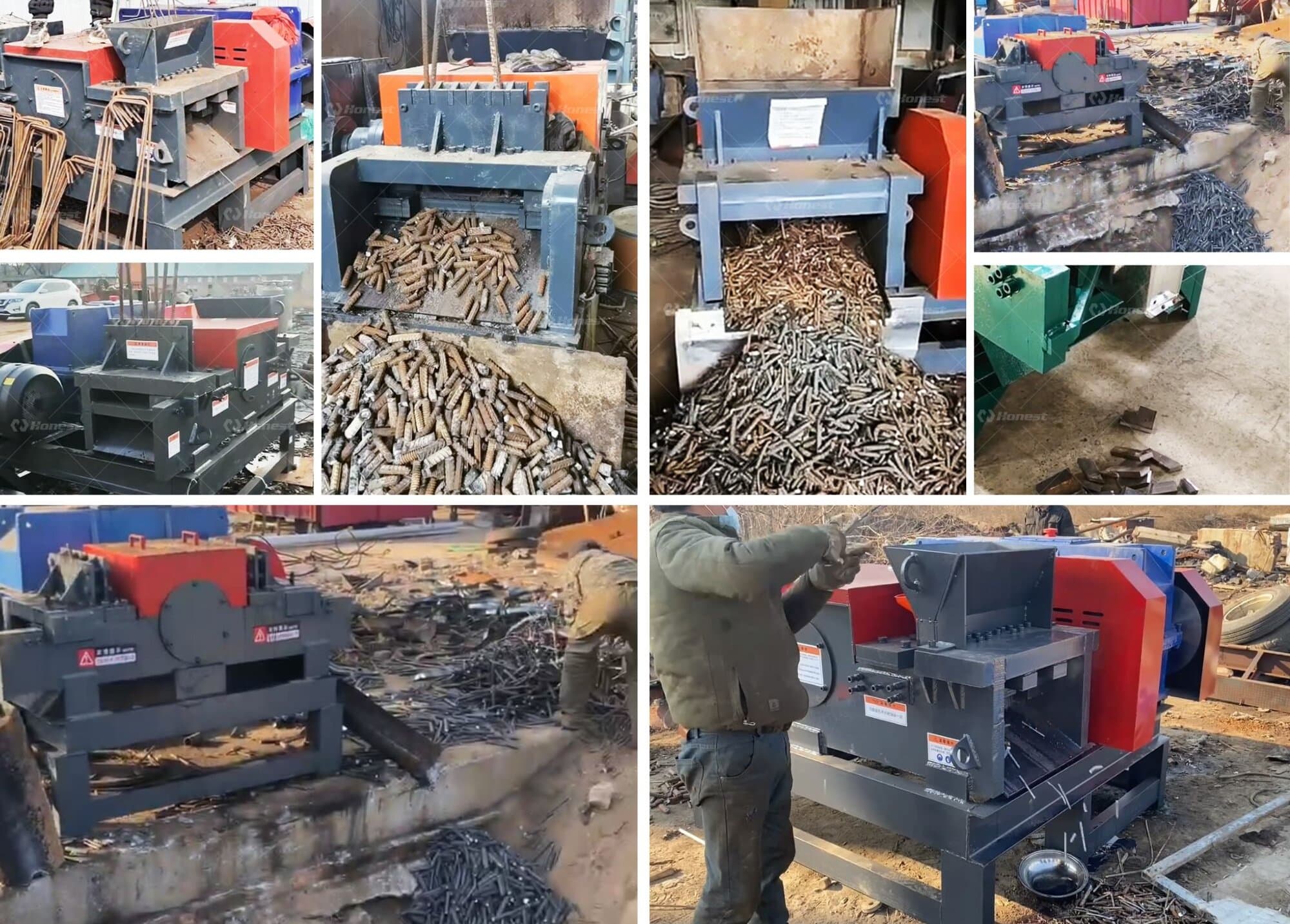

Scrap Rebar Granulating Machine Functional Features

a) Versatile Feeding : Simplifies loading and effortlessly processes slightly bent rebar.
b) Quick-Change Tooling : Rapid blade disassembly and replacement; adjustable cutting lengths available upon request.
c) 4-Way Reversible Blades : Specialized alloy and heat treatment allow all 4 blade edges to be used, quadrupling service life.
d) Low Noise & Stable Power : Quiet operation with smooth motor loading to minimize grid impact.
e) Dual-Inlet High Efficiency : Supports simultaneous multi-strand feeding at both inlets for maximum throughput.
f) Simplified Maintenance : Lean mechanical design ensures easy operation and low-cost upkeep.

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2. Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
