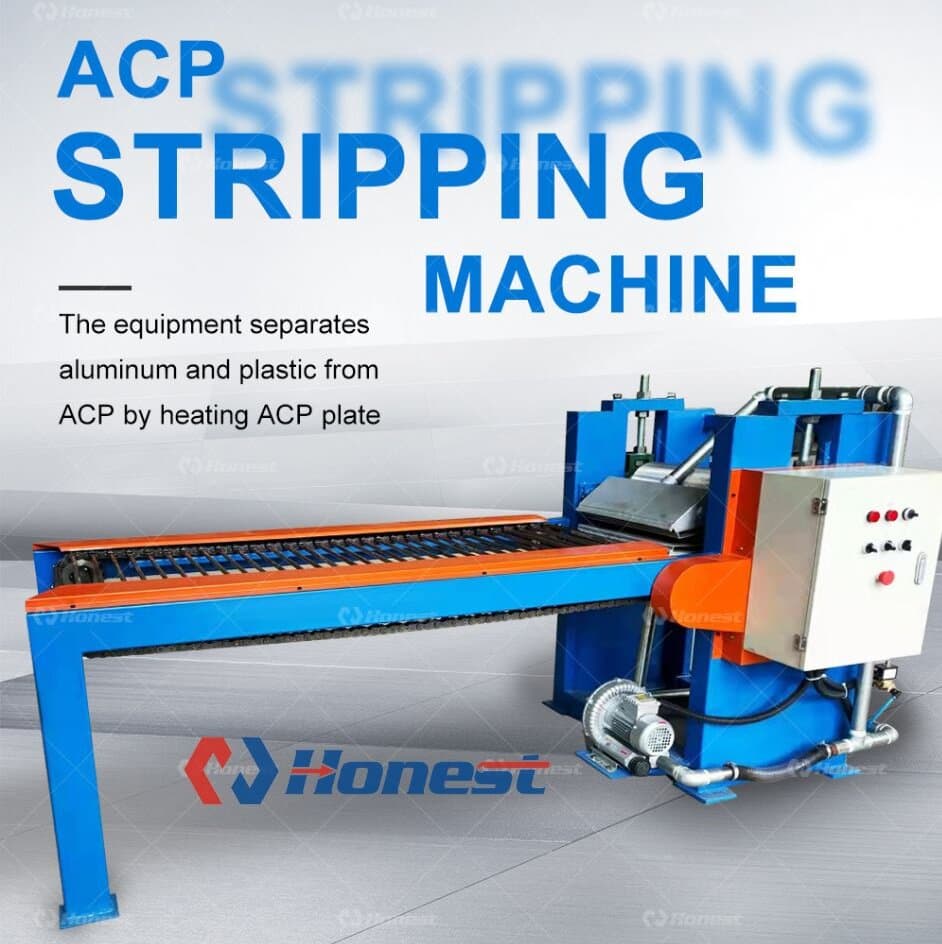

ACP Sheet Stripping Machine

Recycling Solution Details

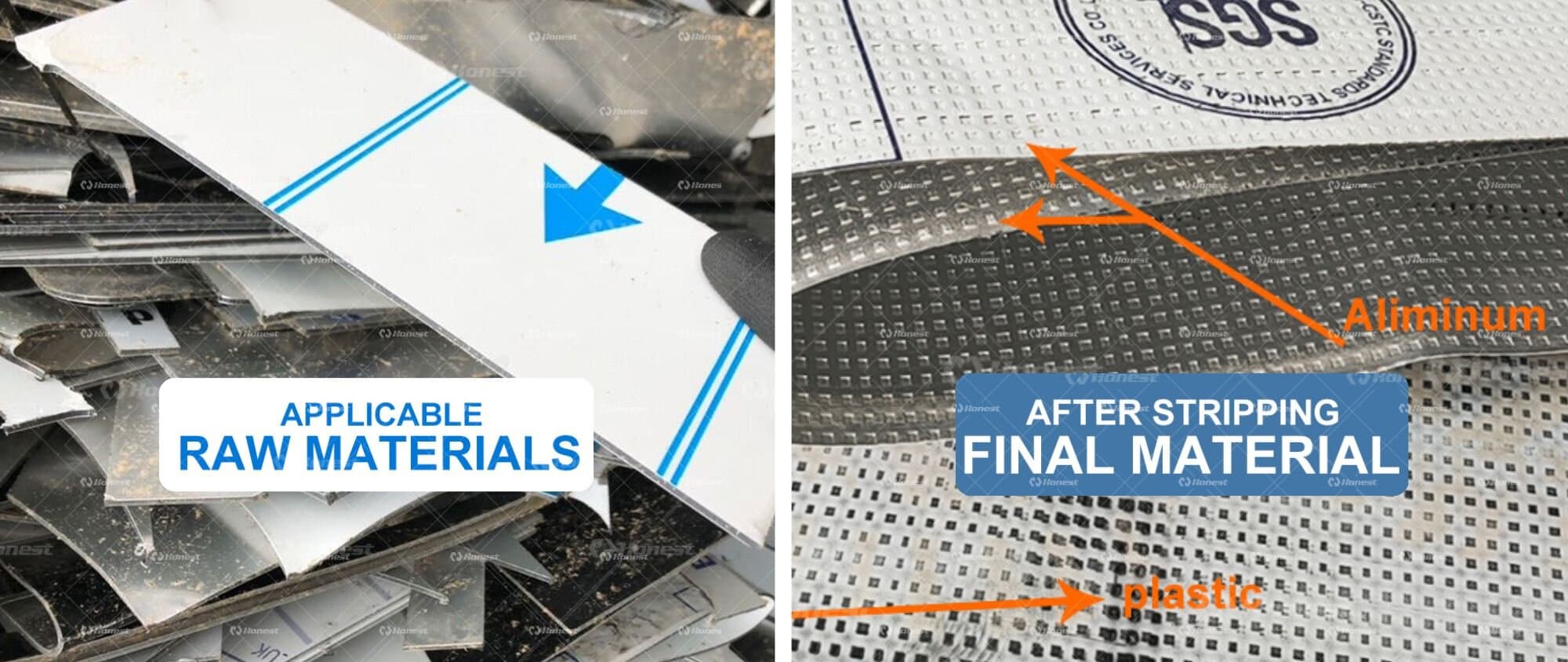

ACP Sheet Stripping Machine Product Usage /Application:

Aluminum composite panels are made of a plastic core sandwiched between two aluminum layers. Widely used in architectural decoration, these panels generate significant recyclable waste due to their high aluminum content.

The Alucobond stripping machine adopts thermal separation technology, heating the ACP sheets using either liquefied gas flame or electric heating. Once softened, the aluminum and plastic layers automatically separate inside the machine, eliminating the need for manual peeling.

Technical Parameters

Model	HN-001
Name	ACP Stripping machine
Applicable	All kinds of ACP material
Size (L*W*H)	2600mm*1000mm*1000mm
Weight	500kg
Voltage	380V/2.2 KW 50HZ/3 phase (motor can be customized)
Capacity	2-4 t/per day

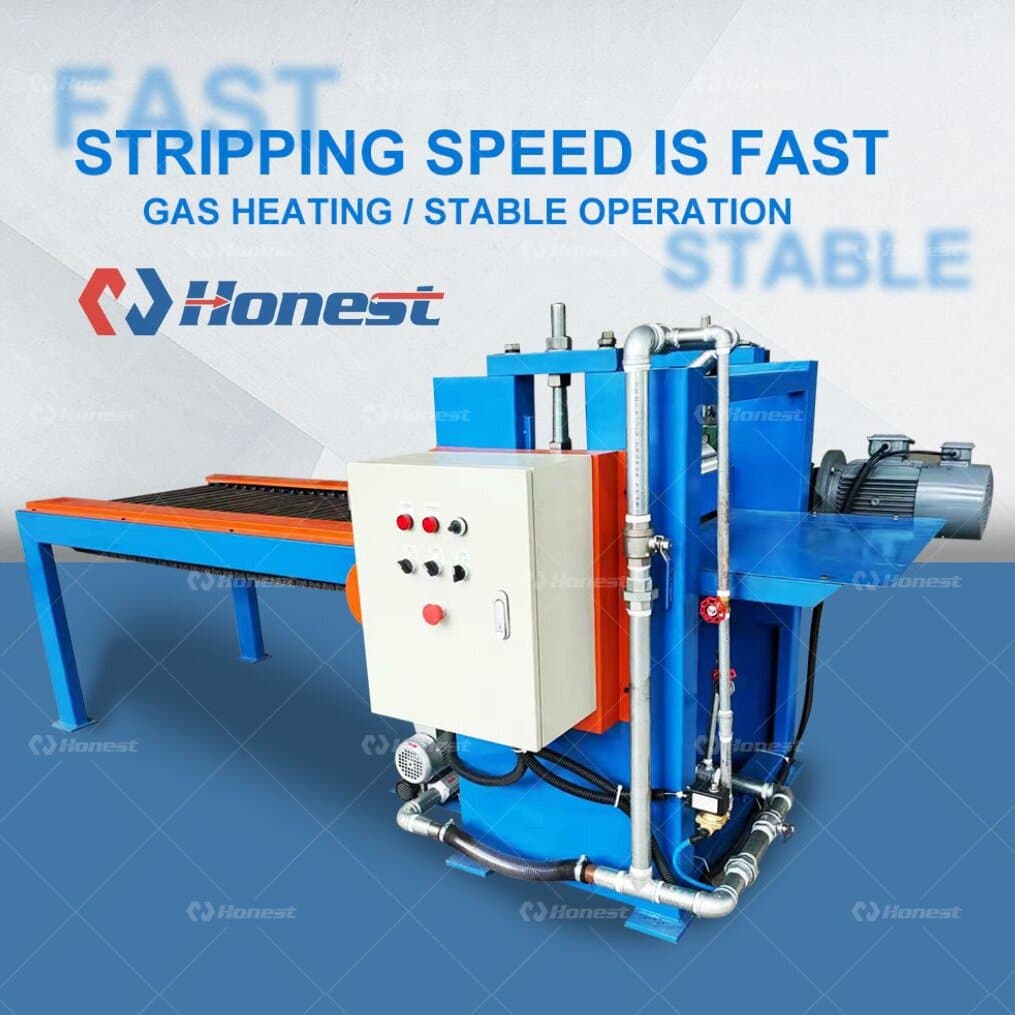

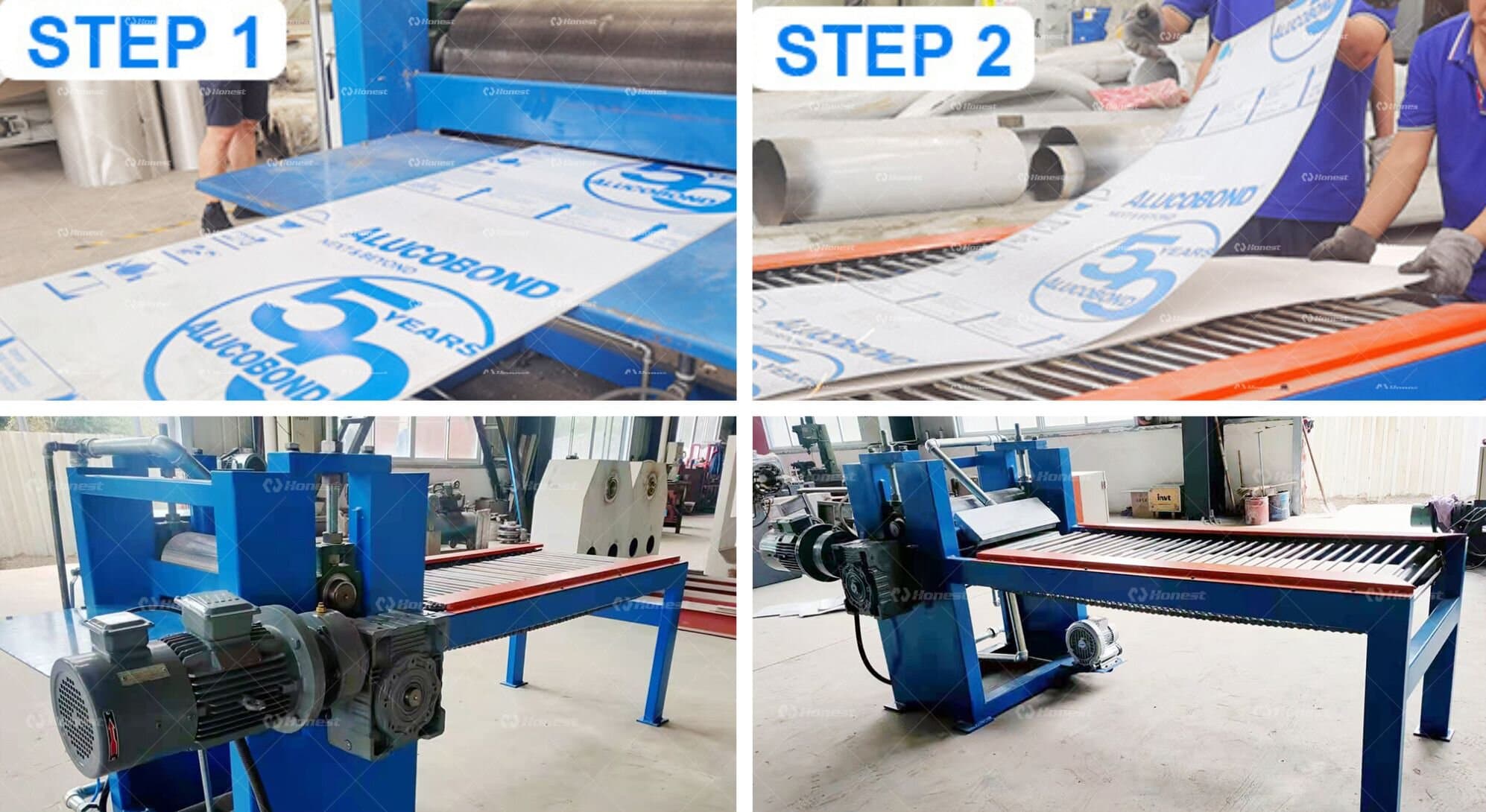

Key components of ACP Board Heating Separating Machine

The ACP Board Heating Separating Machine comprises several key components, including a separating mechanism, feeding inlet, discharge port, rollers, sprockets, a power system driven by a motor and gearbox, an electric control box, and a sturdy machine frame. The motor transmits power to the gearbox via a belt, enabling stable and continuous operation throughout the separation process.

ACP Stripping Machine Advantages Description:

The ACP stripping machine is easy to operate, highly efficient, and operates with low noise and no secondary pollution thanks to its dry physical separation method. This equipment is an ideal choice for those who are new to the recycling of waste aluminum-plastic composite materials. It can maximize the resource recovery rate and reduce the initial mechanical investment cost (it can be upgraded to more suitable equipment for large-scale aluminum-plastic recycling later). It is a simple and efficient solution for the recycling of waste aluminum-plastic composite materials.

Customers Site Overview

1. Provide field installation service to make sure the normal operation of theequipment.
2. Provide detailed technical training for customers. Including the equipmentoperation process, primary and common troubleshooting methods, etc.
3. Provide lifelong technical support for the machine.
