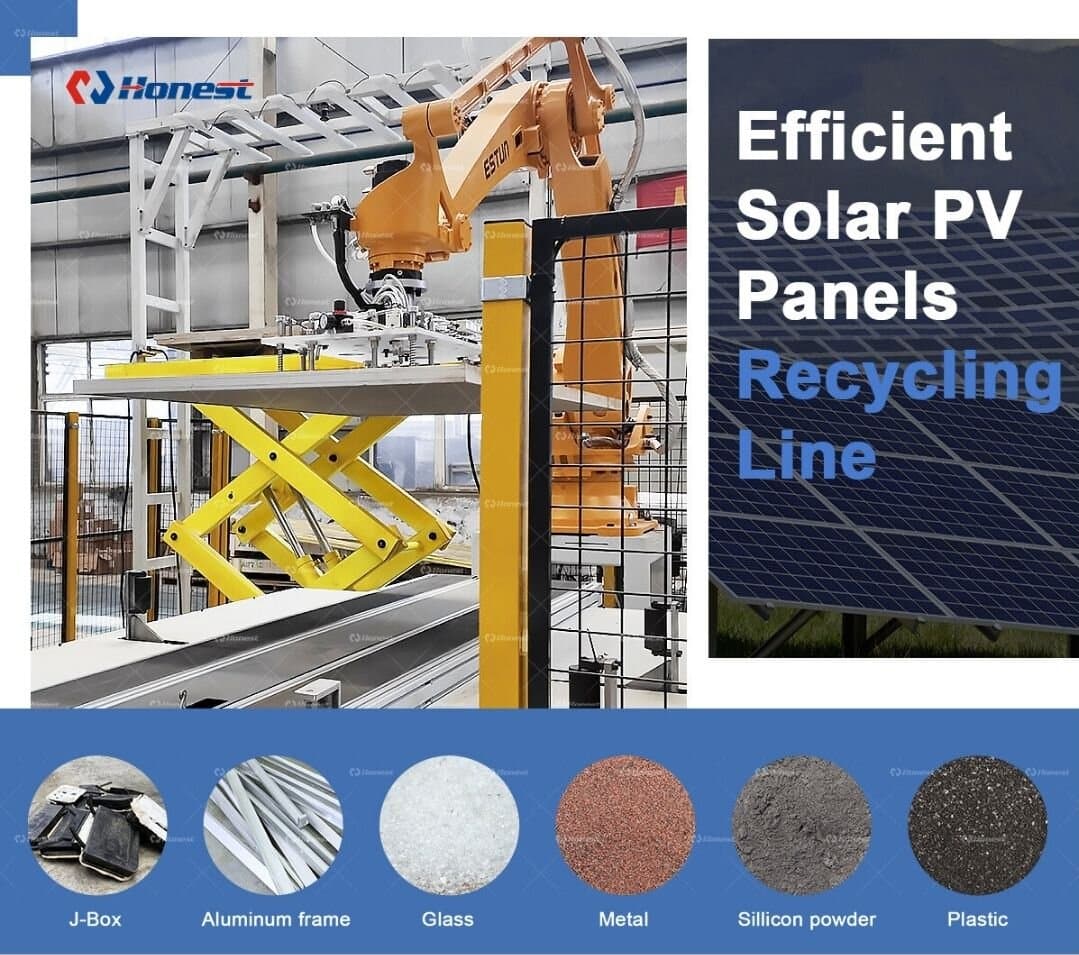

Efficient Solar PV Panels Recycling Line

Once neglected in the recycling industry, solar panel recycling has rapidly emerged as a global hotspot. Solar panels are primarily composed of glass, aluminum, plastic, and semiconductor materials, all of which can be effectively recycled at the end of their service life.

Our Efficient Solar PV Panels Recycling Line adopts a fully physical separation process, avoiding chemical pollution. Through automated disassembly, crushing, and sorting, the system achieves high-efficiency, high-purity material recovery. The core process includes: Frame Remover: Detaches the aluminum frame and junction box (J-Box) from the panel.
Glass Removal Unit: Separates over 80% of the glass layer from the panel.
Double Shaft Shredder: Shreds the de-glassed panel into strips.
Crusher: Further reduces material into 1–2 cm fragments.
Negative Pressure Conveying System: Ensures fully enclosed, dust-free, and environmentally friendly material transport.
Fine Grinder with Return System: Grinds material to the desired particle size; oversized particles are automatically returned for regrinding.
Air Separator: Performs initial separation of metal powder and plastic.
Electrostatic Separator: Accurately separates residual metals from plastics.
Shaclon System: Isolates silicon powder and small amounts of glass residue.
Pulse Dust Collection System: Operates under negative pressure throughout the entire line, effectively controlling dust emissions.

Have questions about the process, output quality, or installation options? Leave a comment below — we’d love to hear your thoughts or help tailor a solution for your project.
